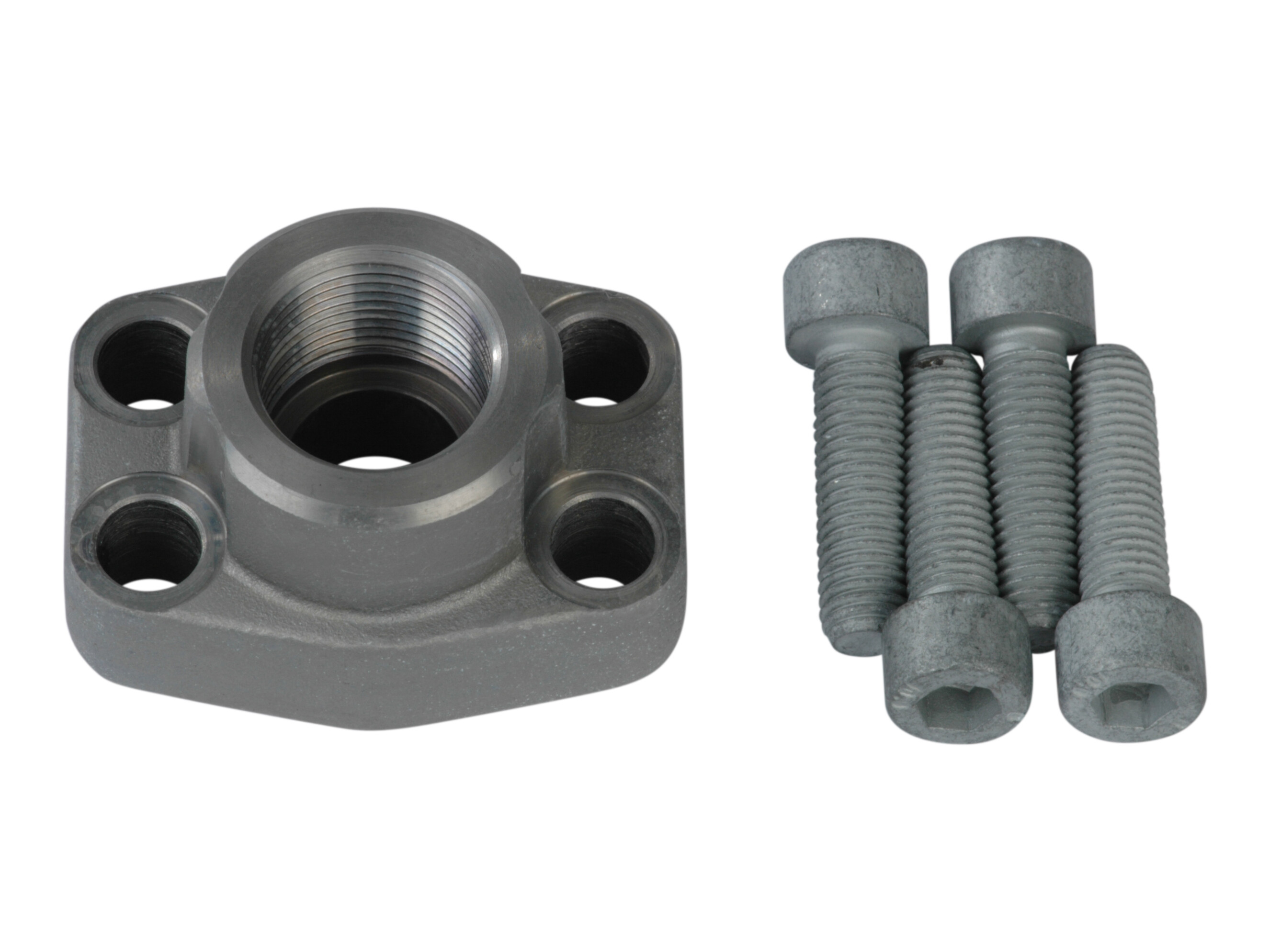

Threaded flange 3/4" SAE3000 x 3/4" BSP - complete

Threaded flange 3/4" SAE3000 x 3/4" BSP - complete

Artikelnummer:

8310-12-12-KM

Förpackningsstorlek:

1 Set

Minsta beställningskvantitet:

1 Set

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M10x35 mm

Brand Name

Havit

47,6 mm

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

38.1 mm

22,3 mm

Flange

3/4 "

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

O-ring

24,99X3,53 mm

Pressure max.

350 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread inner

G 3/4 BSP

Package size

1 Set

Barcode

110360

Gross weight

0,51 Kg

Net weight

0,51 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Threaded flange 3/4" SAE3000 x 3/4" BSP - complete
