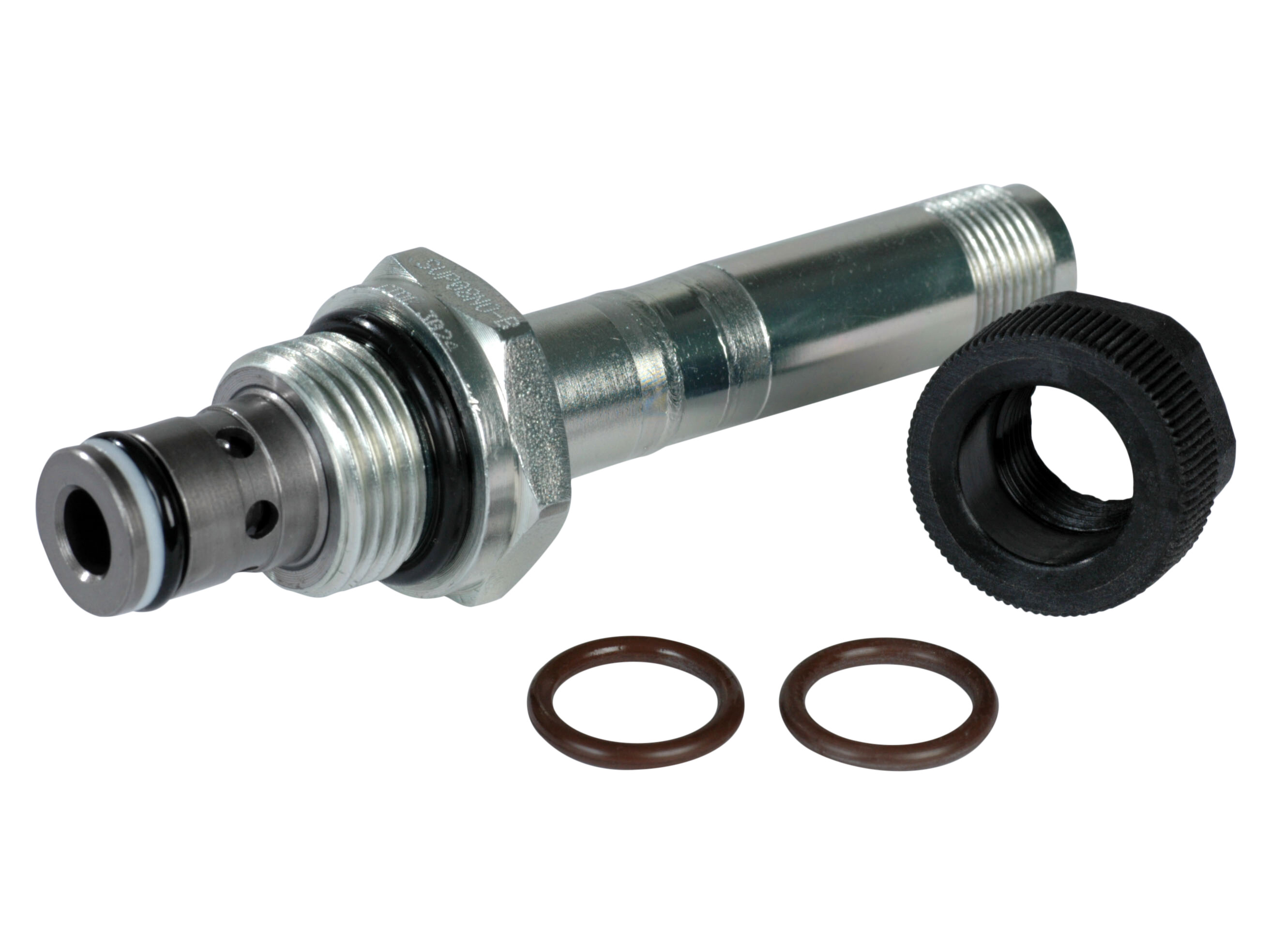

Solenoid Valve 2/2 35l/m NO w.Throttle SVP08-NO-00-00-B-00

This is a 2-way, 2-position, poppet type, pilot operated, normally open solenoid valve. In its de-energized condition, fl­ow can take place from port 2 to 1 but is restricted in the other direction. When energized, fl­ow can take place from port 1 to 2 but is blocked in the other direction. Leakage is kept to a minimum due to the poppet design.

Some models have the option of a filter around port 2, and these come standard with a push pin manual override. These valves can be used to hold loads in position when energized or bypass excess oil to tank in a fail-safe way.

Partnumber:
805315219

Package size:
1 st

Min. order quantity is:
1 st
Activation
Solenoid

Brand Name
Danfoss

Cavity
SDC08-2

Contamination level max.
20/18/14 - ISO 4406

Filter built-in
No

Flow rate nominal LMin
35 lpm

Manual operated
No

Model code
SVP08-NO-00-00-B-00

Number of ways/positions
2/2

Oil viscocity recommended
12 - 54 cSt

Pressure max.
230 bar

Sealing material
NBR

Solenoidtype
M13 - R13

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
35 - 40 Nm

Valve type
NO - Normally open
Package size
1 st

Barcode
374831

Gross weight
0,11 Kg

Net weight
0,11 Kg

Country of origin
ITA

Intrastat code
85051990

This is a 2-way, 2-position, poppet type, pilot operated, normally open solenoid valve. In its de-energized condition, fl­ow can take place from port 2 to 1 but is restricted in the other direction. When energized, fl­ow can take place from port 1 to 2 but is blocked in the other direction. Leakage is kept to a minimum due to the poppet design.

Some models have the option of a filter around port 2, and these come standard with a push pin manual override. These valves can be used to hold loads in position when energized or bypass excess oil to tank in a fail-safe way.
