Coupling female push/pull 3CFHF - DN12 - M22x1.5

Push-pull female part with internal thread. Can be mounted on pipe or directly on valve.

Can automatically disconnect the male part in an emergency (emergency breakaway).

Can be assembled by hand with pressure on the male part.

Safety factor, pressure indication:
Dynamic: 1:2
Static: 1:4

Partnumber:
3CFHF0821/2215F

Package size:
1 pcs

Min. order quantity is:
1 pcs
sealkit female NV12 (10) o-ring + antiextrusion
Partnumber: SKNV12
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

DN
12.5 mm

Diameter pipe
15 mm

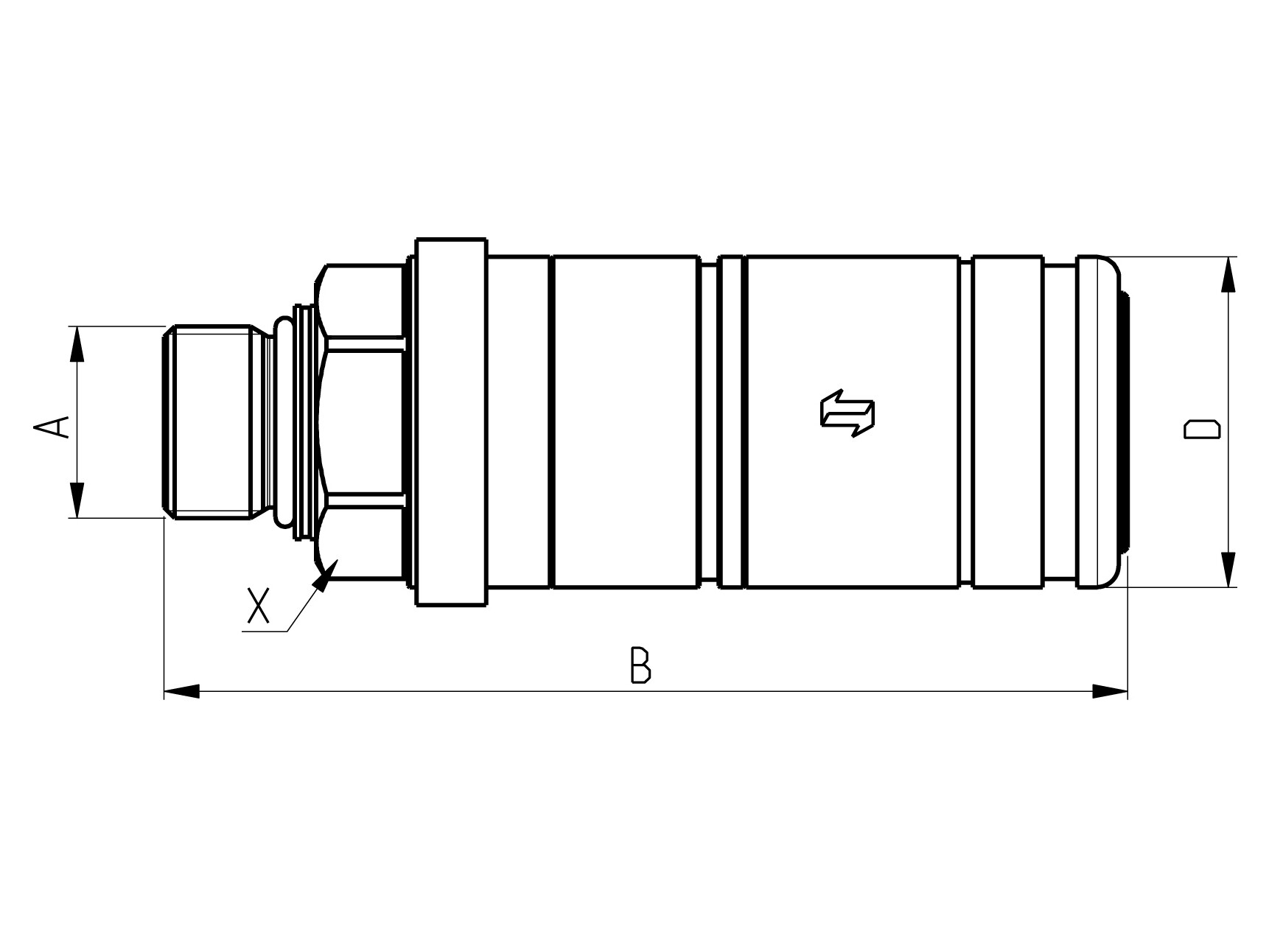

Dimension A metric
M22x1,5

Dimension B
110.3 mm

Dimension D
42 mm

Dimension X
32 mm

Flow rate nominal LMin
70 lpm

Hexagon
32 mm

ISO size
12.5

Material
Steel

Model code
3CFPV21/2215 F

Pressure eliminator
Yes

Pressure max.
250 bar

Sealing material
Polyurethane

Series
L

Size
1/2 "

Standard ISO
ISO 7241-1-A

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread outer metric
M22x1,5

Type
Poppet
Package size
1 pcs

Barcode
5704334820154

Gross weight
0,51 Kg

Net weight
0,51 Kg

Country of origin
ita

Intrastat code
84812010

Push-pull female part with internal thread. Can be mounted on pipe or directly on valve.

Can automatically disconnect the male part in an emergency (emergency breakaway).

Can be assembled by hand with pressure on the male part.

Safety factor, pressure indication:
Dynamic: 1:2
Static: 1:4
