Presskoppling GS 90°, Ø 3/4'', Inv-ORFS 1.3/16''-12
Presskoppling GS 90B, Ø 3/4'', Inv-UN 1 3/16-12
Partnumber:
12GS12FFORX90L
Package size:
5 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117

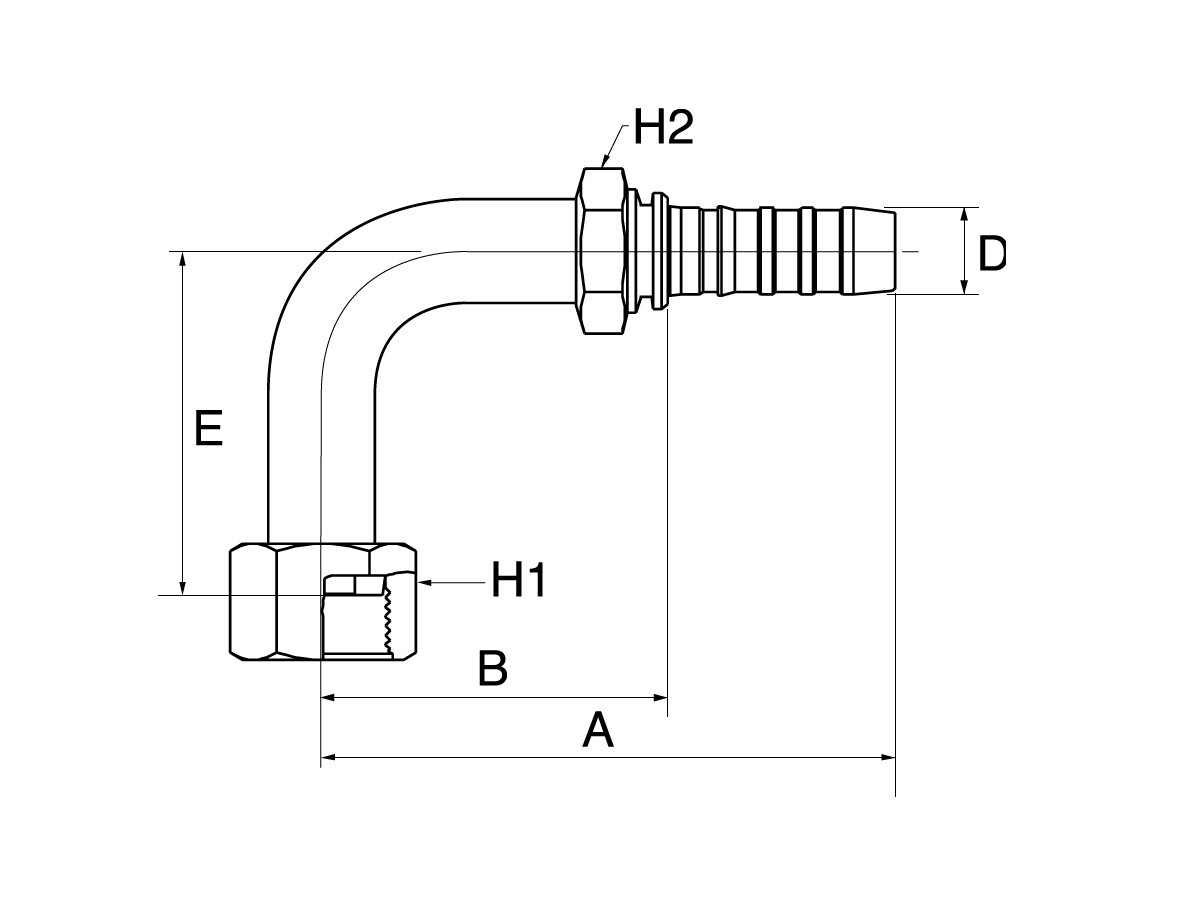

Dimension A
128 mm
Dimension B
77 mm
Dimension D
3/4 "
Dimension E
96 mm
Dimension H1
36 mm
Dimension H2
32 mm
Hose coupling type
For separate ferrule
Hose size
3/4 "
Material
Steel
Model code
12GS-12FFORX90L
Surface treatment
Zinc-plated
Thread
1.3/16-12 ORFS
Torque tightening
90 - 113 Nm
Package size
5 st
Barcode
241490
Gross weight
0,492 Kg
Net weight
0,492 Kg
Country of origin
bel
Presskoppling GS 90B, Ø 3/4'', Inv-UN 1 3/16-12
Note: Opening 3D files requires a program that supports the file format
