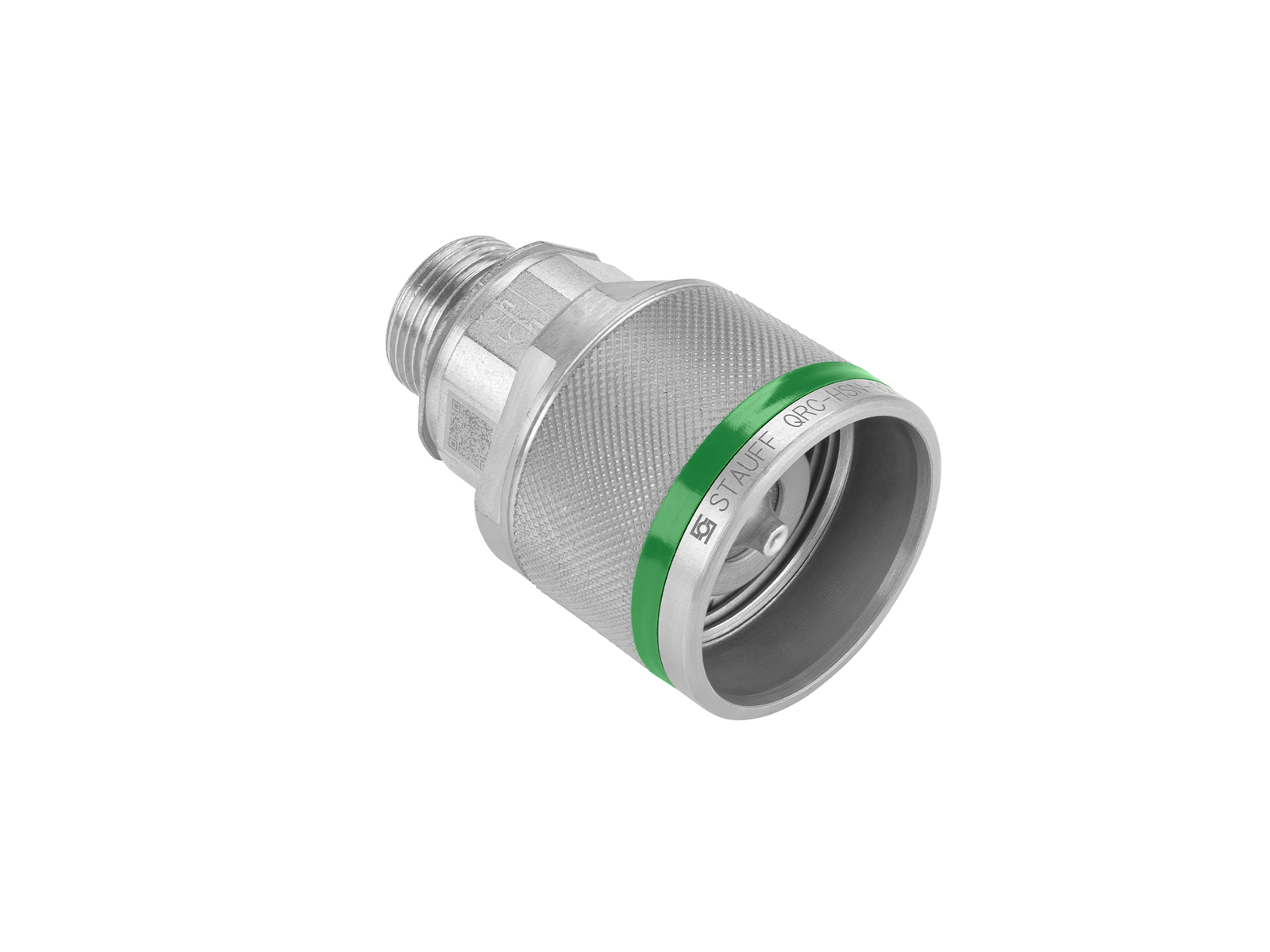

Screw coupling male HSN - DN19 - M18x1.5 (12L) bulkhead

Screw coupling male HSN - DN19 - M18x1.5 (12L) bulkhead

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Brand Name Size Material Pressure max.
HSN-06-M-08LB Screw coupling male HSN - DN06.3 - M14x1.5 (8L) bulkhead Stauff 1/4 " Carbon steel 450 bar
HSN-12-M-12LB Screw coupling male HSN - DN12.5 - M18x1.5 (12L) bulkhead Stauff 1/2 " Carbon steel 400 bar
HSN-12-M-15LB Screw coupling male HSN - DN12.5 - M22x1.5 (15L) bulkhead Stauff 1/2 " Carbon steel 400 bar
HSN-12-M-18LB Screw coupling male HSN - DN12.5 - M26x1.5 (18L) bulkhead Stauff 1/2 " Carbon steel 400 bar
HSN-19-M-12LB Screw coupling male HSN - DN19 - M18x1.5 (12L) bulkhead Stauff 3/4 " Carbon steel 400 bar
HSN-19-M-18LB Screw coupling male HSN - DN19 - M26x1.5 (18L) bulkhead Stauff 3/4 " Carbon steel 400 bar
Brand Name
Stauff
Connection
Screw
Disconnection
Screw
Field of application
Construction Machinery, Industrial Hydraulic
Material
Carbon steel
Pressurized connection
Allowed
Sealing material
NBR
Series
L
Standard ISO
ISO 14541
Surface treatment
Zinc-Nickel plated
Temperature max.
+100
Temperature min.
-25
Thread DIN standard
DIN 3861
