Screw coupling male HSN - DN12.5 - M22x1.5 (15L) bulkhead
Screw coupling male HSN - DN12.5 - M22x1.5 (15L) bulkhead
Partnumber:
HSN-12-M-15LB
Package size:
0 pcs
Min. order quantity is:
1 pcs

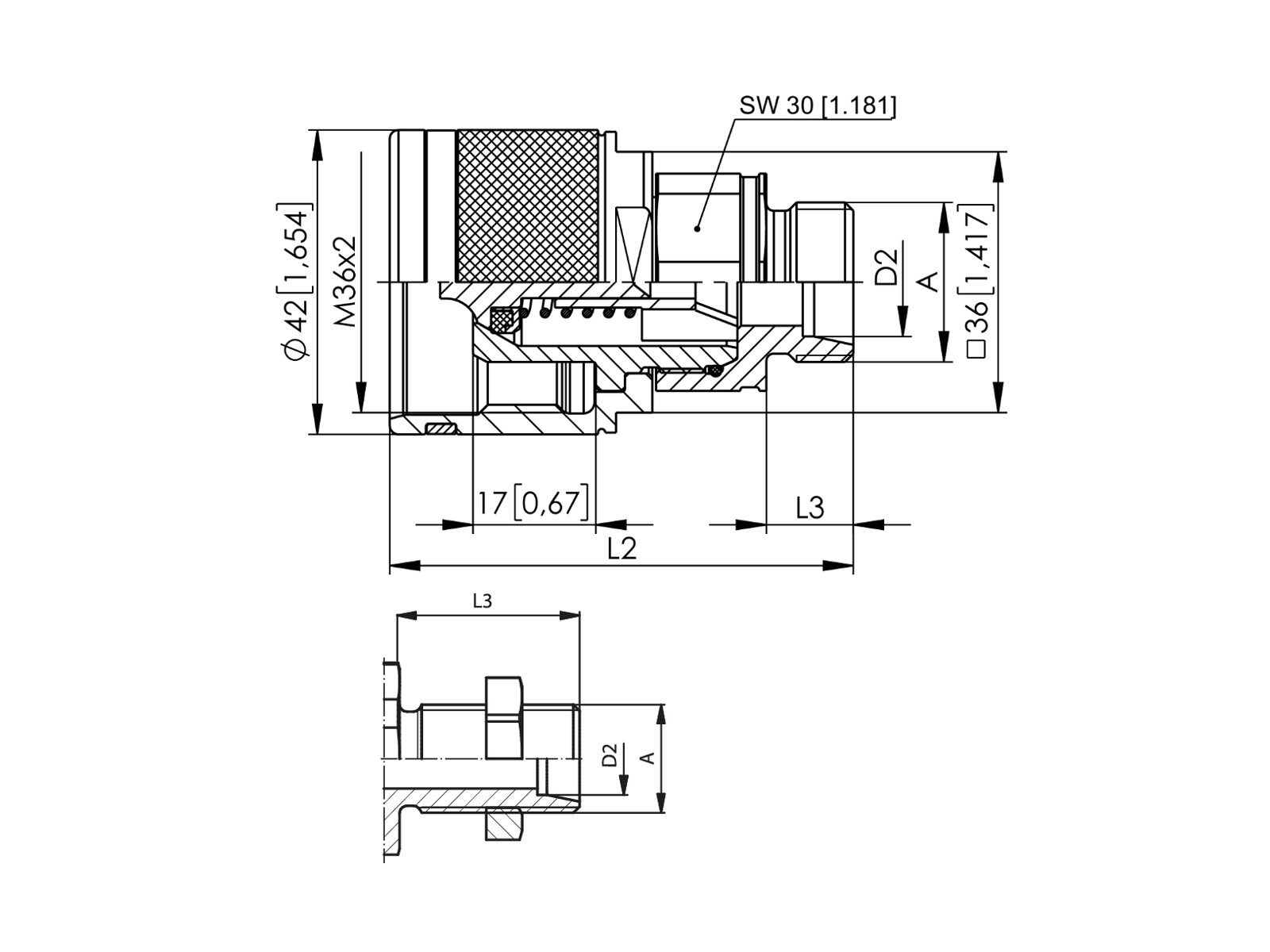

A
M22x1,5
Brand Name
Stauff
Burst Pressure
1550 Bar
Connection
Screw
D2
15 mm
Disconnection
Screw
Field of application
Construction Machinery, Industrial Hydraulic
Flowrate nominal LMin
90 lpm
ISO size
12.5
L2
82 mm
L3
27 mm
Material
Carbon steel
Model code
QRC-HSN-12-M-15LB-B-W3
Pressure max.
400 bar
Pressurized connection
Allowed
Sealing material
NBR
Series
L
Size
1/2 "
Spillage
3,1 ml
Standard ISO
ISO 14541
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3861
Thread outer metric
M22x1,5
Package size
0 pcs
Barcode
Gross weight
Kg
Net weight
0,287 Kg
Country of origin
deu
Intrastat code
84812010
Screw coupling male HSN - DN12.5 - M22x1.5 (15L) bulkhead
