LS relief valves

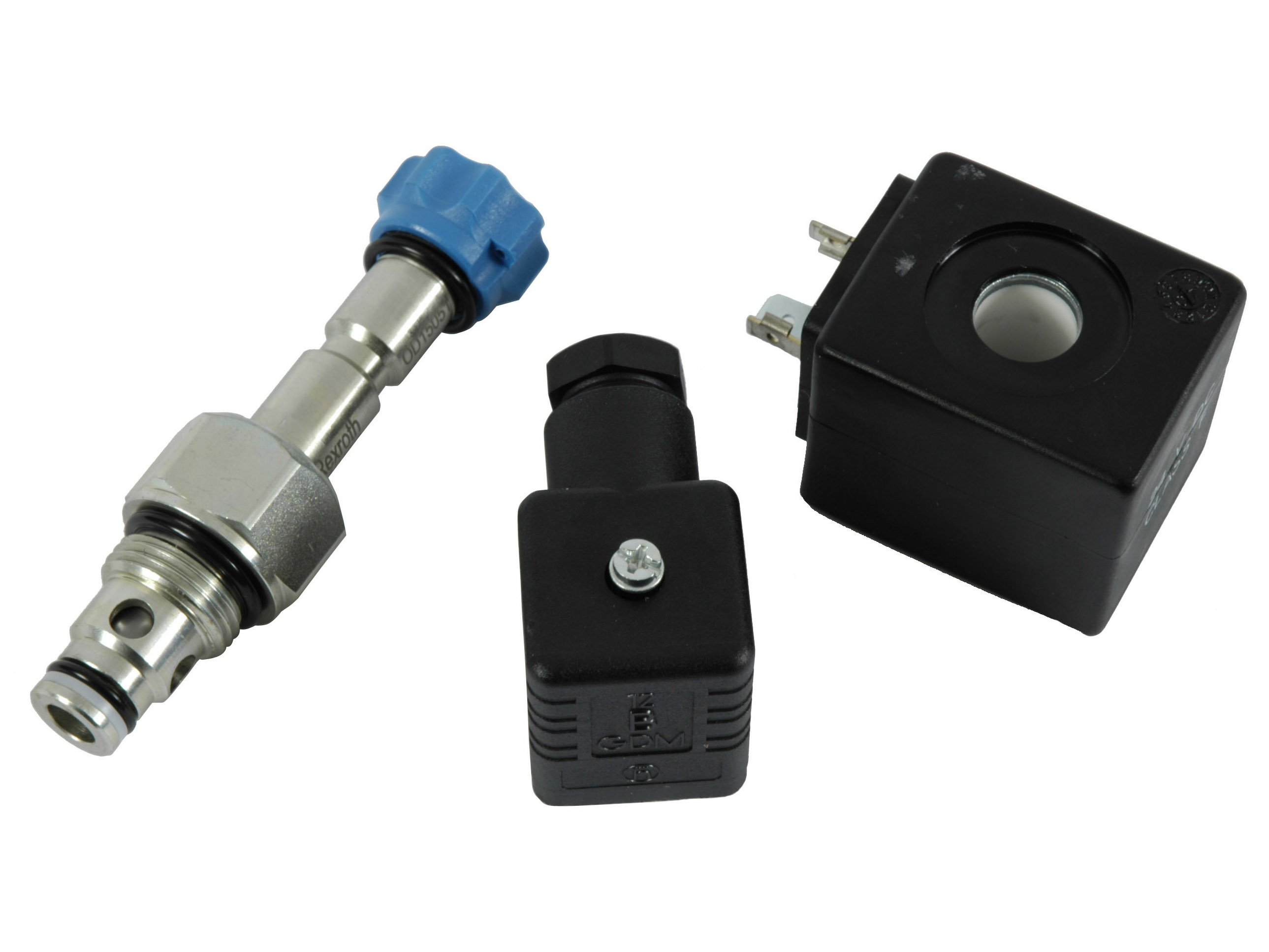

LS-unloaded valve N.O. 12vdc Series 2

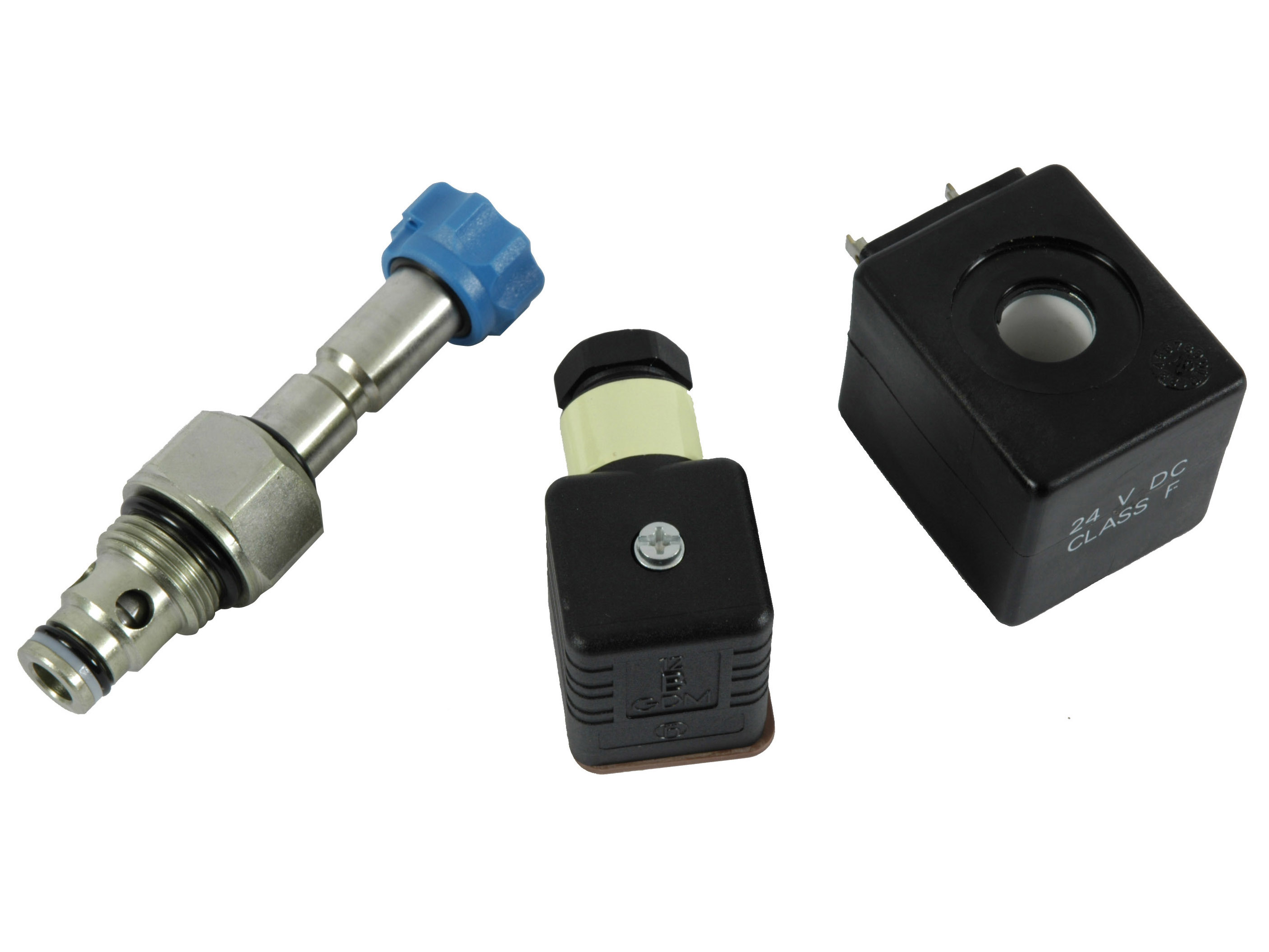

LS-unloaded valve N.O. 24vdc Series 2

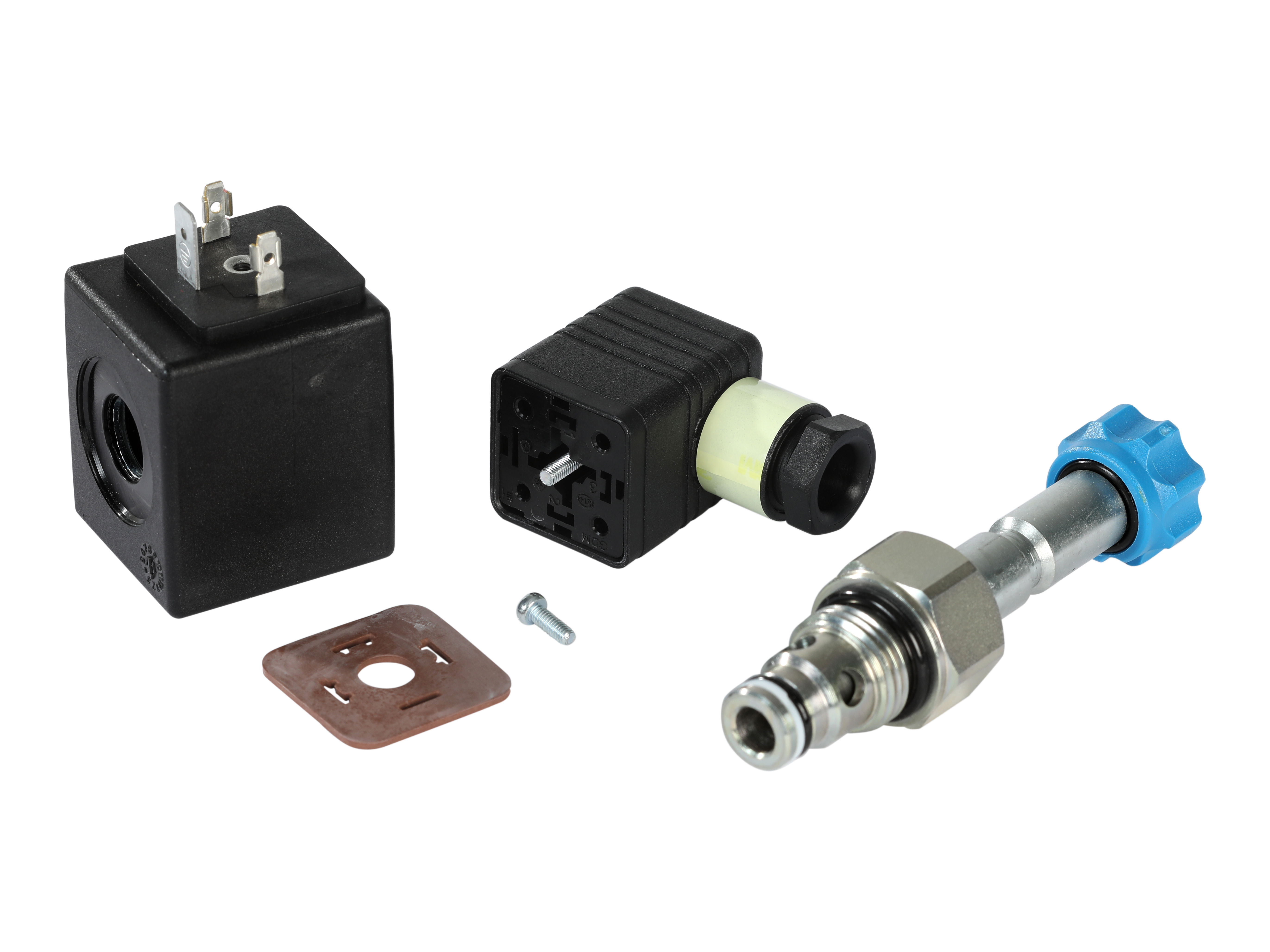

LS-unloaded valve N.C. 12vdc

LS-unloaded valve. N.C. 24vdc

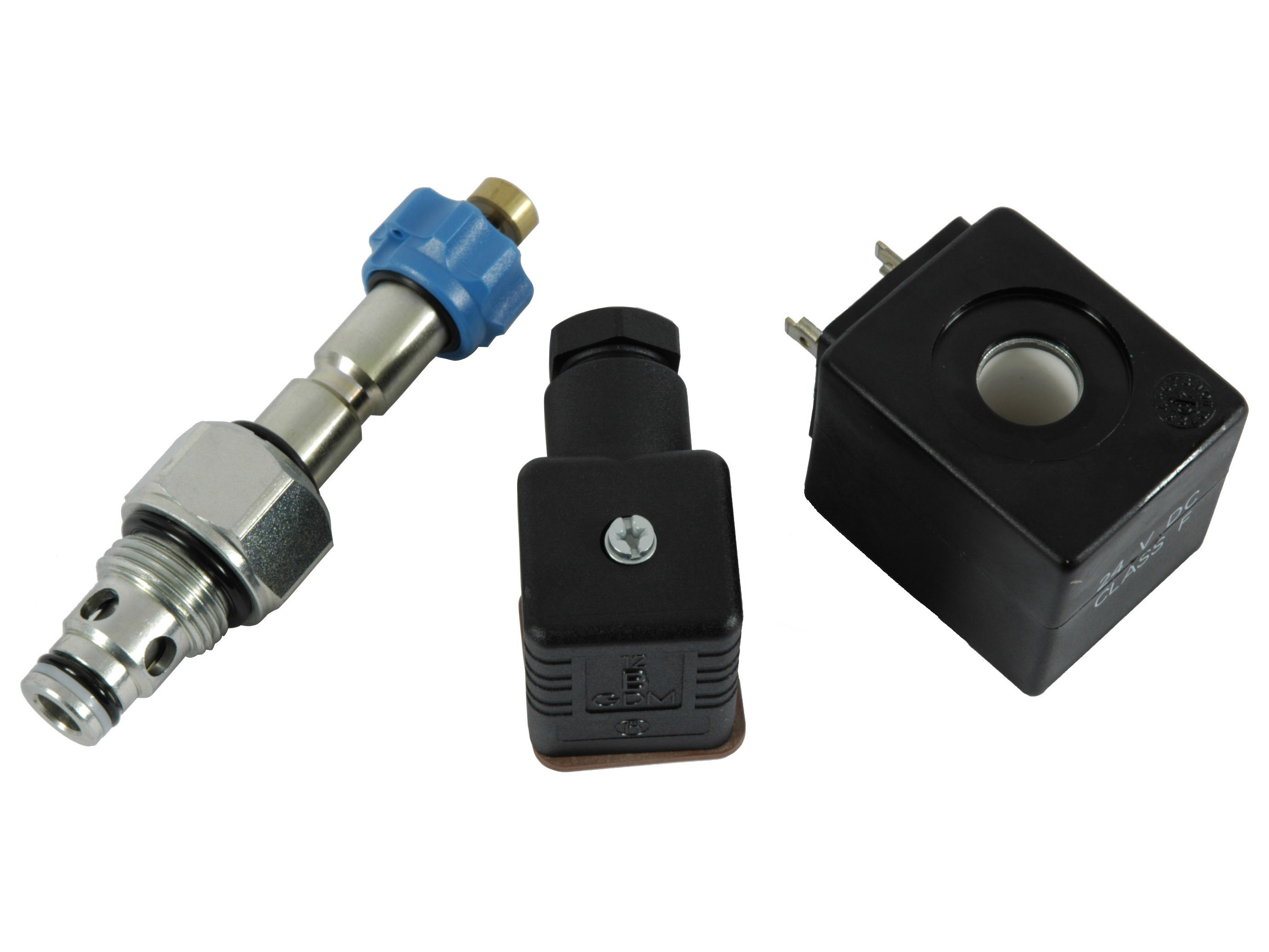

LS-unloaded valve N.O. 12vdc Manual override

LS-unloaded valve. N.O. 24vdc Manual override

PVPX 16/32 Elect. LS pressure unloading valve NO 1x2DIN26VDC

SELECT VARIANT

Partnumber	Description	Pressure max.
157B4236	LS-unloaded valve N.O. 12vdc Series 2	350 bar
157B4238	LS-unloaded valve N.O. 24vdc Series 2	350 bar
157B4246	LS-unloaded valve N.C. 12vdc	350 bar
157B4248	LS-unloaded valve. N.C. 24vdc	350 bar
157B4256	LS-unloaded valve N.O. 12vdc Manual override	350 bar
157B4258	LS-unloaded valve. N.O. 24vdc Manual override	350 bar
157B4260	PVPX 16/32 Elect. LS pressure unloading valve NO 1x2DIN26VDC	350 bar

Contamination level max.

23/19/16 - ISO 4406

Filter built-in

Oil viscocity recommended

12 - 75

Pressure max.

350

Temperature max.

+60

Temperature min.

-30

Torque tightening

45 - 50
