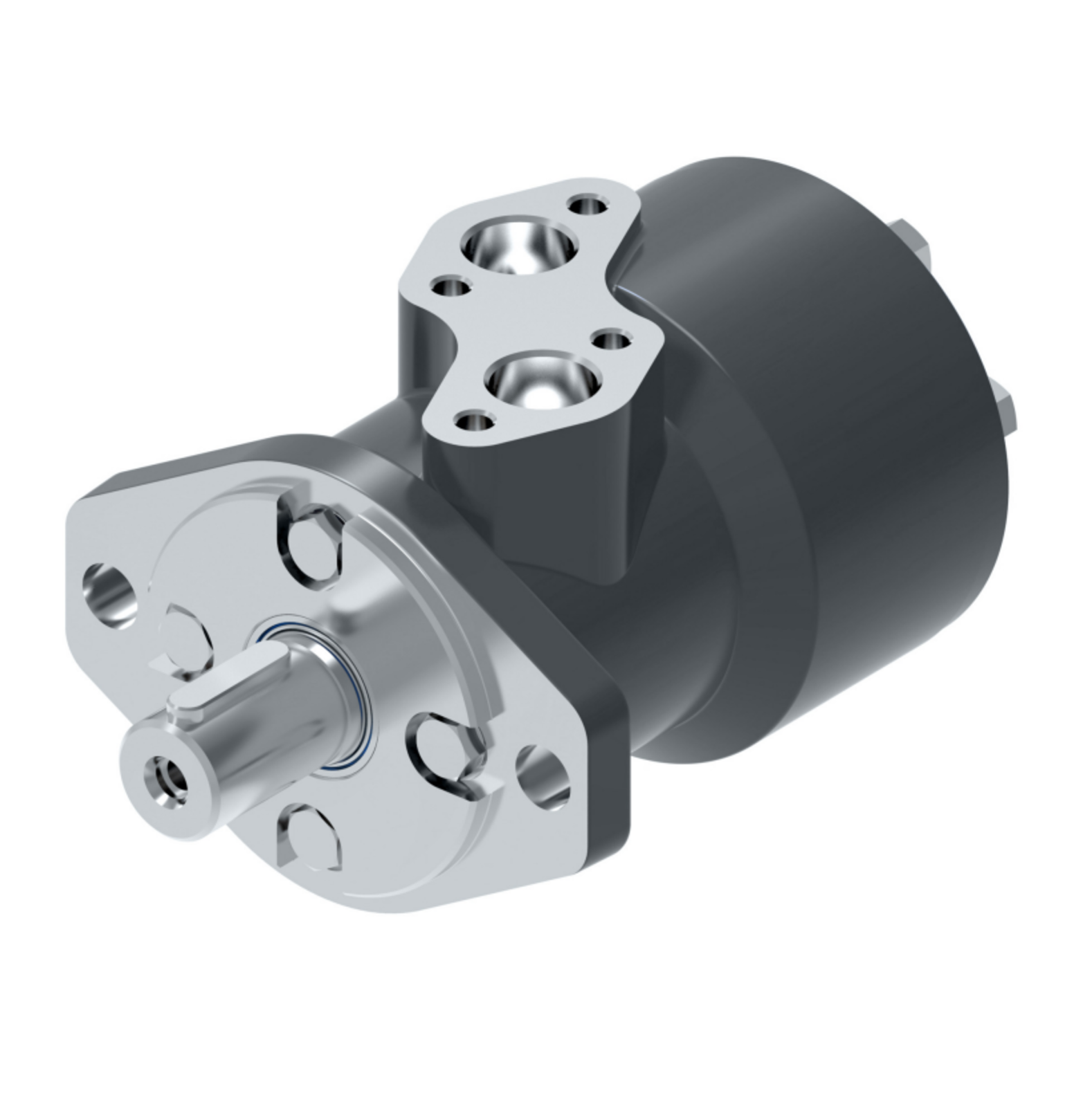

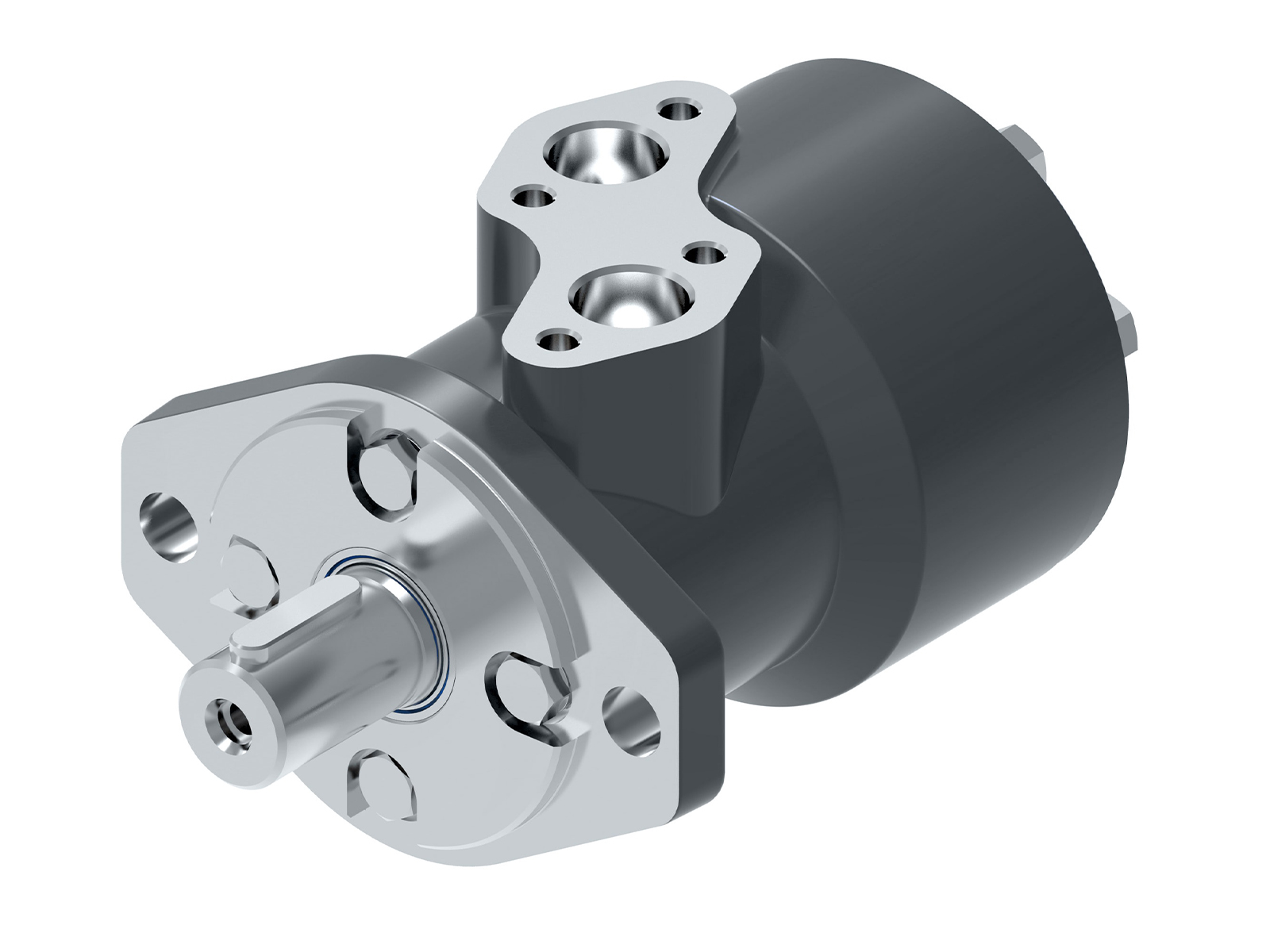

Orbitmotor XLH

Low speed, high torque orbital motors. Displacements from 80 to 400 cm³. Suitable for medium-duty mobile and industrial hydraulic applications.

SELECT VARIANT

Partnumber	Description	Shaft diameter	Shaft type	Number of mounting holes	Mounting flange
016-0535-003	XLH 125 Ø25.5mm 6B Spline SAE-A HPS	25,4 mm	6B spline 7mm extra length	2	SAE-A2
016-0536-003	XLH 160 Ø25.5mm 6B Spline SAE-A HPS	25,4 mm	Spline 6B 1" (07)	2	SAE-A2
016-0538-003	XLH 245 Ø25.5mm 6B Spline SAE-A HPS	25,4 mm	Spline 6B 1" (07)	2	SAE-A2
016-0539-003	XLH 315 Ø25.5mm 6B Spline SAE-A HPS	25,4 mm	Spline 6B 1" (07)	2	SAE-A2
016-0543-003	XLH 50 ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0545-003	XLH 80 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0546-003	XLH 100 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0547-003	XLH 125 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0548-003	XLH 160 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0549-003	XLH 200 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0550-003	XLH 245 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0551-003	XLH 315 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2
016-0552-003	XLH 390 Ø25mm SAE-A HPS	25 mm	Cyl. Ø 25 mm (10)	2	SAE-A2

Brand Name

Danfoss

Contamination level max.

20/18/13 - ISO 4406

Drainport

G 1/4

Flange style diameter

82.5

Holes circle

106.4

Inlet Pressure Max.

150

Integrated check valve

Nej

Max. operating temperature

Mounting flange

SAE-A2

Number of mounting holes

Oil viscocity recommended

20 - 32

Port position

Side

Recess

82,55

Shaft Seal Type

High pressure packing

Temperature max.

+180

Temperature min.

-30

Working ports

G 1/2

Low speed, high torque orbital motors. Displacements from 80 to 400 cm³. Suitable for medium-duty mobile and industrial hydraulic applications.
