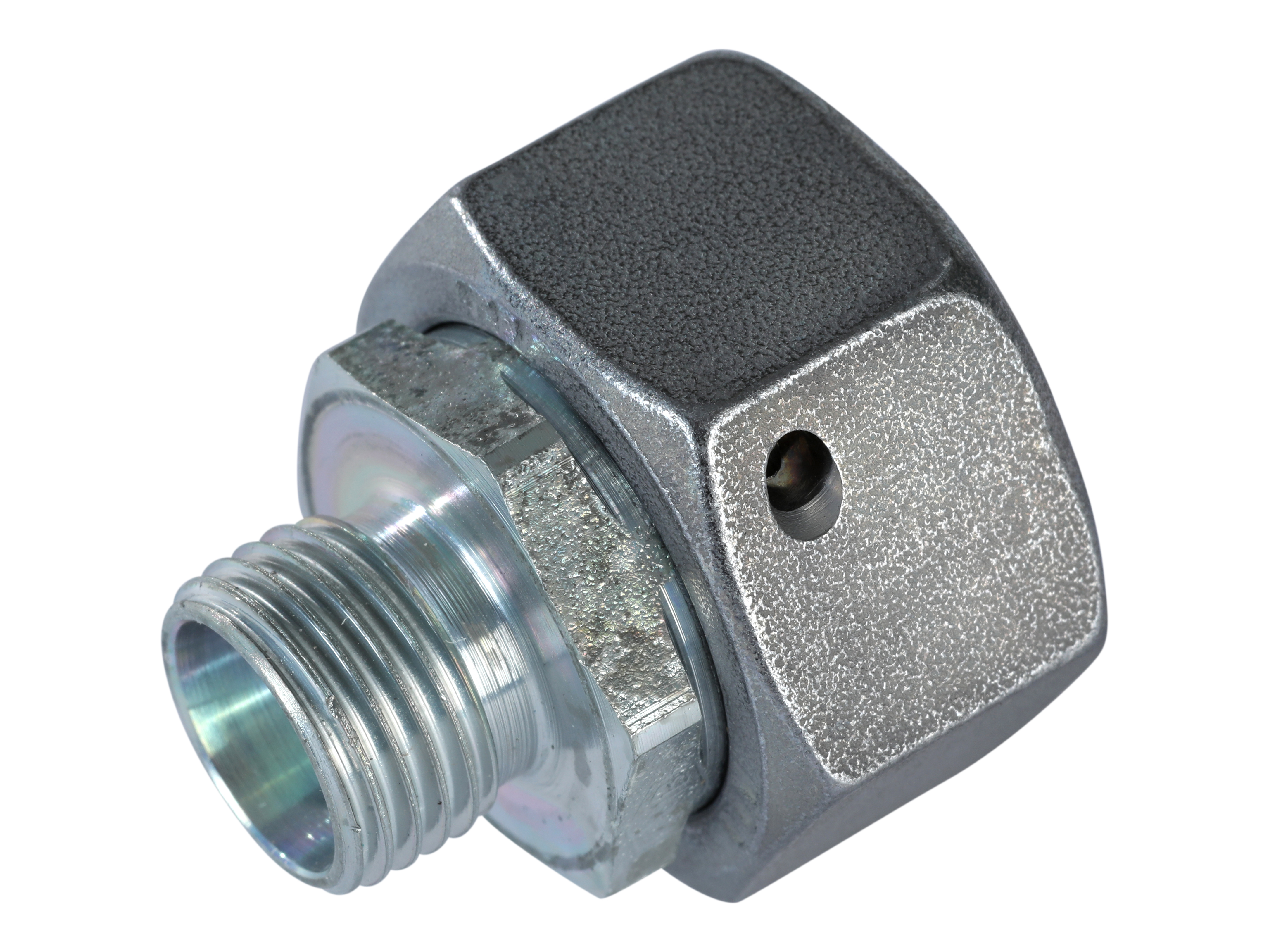

Straight fitting 0° - S-series - DIN union nut O-ring seal x DIN male reducing

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter rör	Gänga inv. metrisk	Gänga utv. metrisk	Tryck max.
FXREDSD0806S	Reduction - ø8S female x ø6S - o-ring seal	8-6 mm			800 bar
FXREDSD1006S	Reduction - ø10S female x ø6S - o-ring seal	10-6 mm			800 bar
FXREDSD1008S	Reduction - ø10S female x ø8S - o-ring seal	10 - 8 mm			800 bar
FXREDSD1206S	Reduction - ø12S female x ø6S - o-ring seal	12 - 6 mm			630 bar
FXREDSD1208S	Reduction - ø12S female x ø8S - o-ring seal	12 - 8 mm			630 bar
FXREDSD1210S	Reduction - ø12S female x ø10S - o-ring seal	12 - 10 mm			630 bar
FXREDSD1406S	Reduction - ø14S indv x ø06S - o-ring seal	14 - 6 mm			630 bar
FXREDSD1408S	Reduction - ø14S indv x ø08S - o-ring seal	14 - 8 mm			630 bar
FXREDSD1410S	Reduction - ø14S indv x ø10S - o-ring seal	14 - 10 mm			630 bar
FXREDSD1412S	Reduction - ø14S indv x ø12S - o-ring seal	14 - 12 mm	M22x1,5	M20x1,5	630 bar
FXREDSD1606S	Reduction - ø16S female x ø6S - o-ring seal	16-6 mm			630 bar
FXREDSD1608S	Reduction - ø16S female x ø8S - o-ring seal	16 - 8 mm			630 bar
FXREDSD1610S	Reduction - ø16S female x ø10S - o-ring seal	16 - 10 mm			630 bar
FXREDSD1612S	Reduction - ø16S female x ø12S - o-ring seal	16 - 12 mm			630 bar
FXREDSD1614S	Reduction - ø16S female x ø14S - o-ring seal	16 - 14 mm			630 bar
FXREDSD2006S	Reduction - ø20S female x ø6S - o-ring seal	20 - 6 mm			420 bar
FXREDSD2008S	Reduction - ø20S female x ø8S - o-ring seal	20-8 mm			420 bar
FXREDSD2010S	Reduction - ø20S female x ø10S - o-ring seal	20 - 10 mm			420 bar
FXREDSD2012S	Reduction - ø20S female x ø12S - o-ring seal	20 - 12 mm			420 bar
FXREDSD2014S	Reduction - ø20S female x ø14S - o-ring seal	20 - 14 mm			420 bar
FXREDSD2016S	Reducing adaptor - ø20S female x ø16S - o-ring seal	20 - 16 mm	M30x2	M24x1,5	400 bar
FXREDSD2506S	Reduction - ø25S female x ø6S - o-ring seal	25 - 6 mm			420 bar
FXREDSD2508S	Reduction - ø25S female x ø8S - o-ring seal	25 - 8 mm			420 bar
FXREDSD2510S	Reduction - ø25S female x ø10S - o-ring seal	25 - 10 mm			420 bar
FXREDSD2512S	Reduction - ø25S female x ø12S - o-ring seal	25 - 12 mm			420 bar
FXREDSD2514S	Reduction - ø25S female x ø14S - o-ring seal	25 - 14 mm			420 bar
FXREDSD2516S	Reducing adaptor - ø25S female x ø16S - o-ring seal	25 - 16 mm	M36x2	M24x1,5	400 bar
FXREDSD2520S	Reducing adaptor - ø25S female x ø20S - o-ring seal	25 - 20 mm	M36x2	M30x2	400 bar
FXREDSD3006S	Reduction - ø30S female x ø6S - o-ring seal	30 - 6 mm			420 bar
FXREDSD3008S	Reduction - ø30S female x ø08S - o-ring seal	30 - 8 mm	M42x2	M16x1,5	400 bar
FXREDSD3010S	Reduction - ø30S female x ø10S - o-ring seal	30 - 10 mm			420 bar
FXREDSD3012S	Reduction - ø30S female x ø12S - o-ring seal	30 - 12 mm			420 bar
FXREDSD3014S	Reduction - ø30S female x ø14S - o-ring seal	30 - 14 mm			420 bar
FXREDSD3016S	Reducting adaptor - ø30S female x ø16S - o-ring seal	30 - 16 mm	M42x2	M24x1,5	400 bar
FXREDSD3020S	Reducting adaptor - ø30S female x ø20S - o-ring seal	30 - 20 mm	M42x2	M30x2	400 bar
FXREDSD3025S	Reduction - ø30S female x ø25S - o-ring seal	30 - 25 mm	M42x2		400 bar
FXREDSD3806S	Reduction - ø38S female x ø6S - o-ring seal	38 - 6 mm			420 bar
FXREDSD3808S	Reduction - ø38S female x ø8S - o-ring seal	38 - 8 mm			420 bar
FXREDSD3810S	Reduction - ø38S female x ø10S - o-ring seal	38 - 10 mm			420 bar
FXREDSD3812S	Reducing adaptor - ø38S female x ø12S - o-ring seal	38 - 12 mm	M52x2	M20x1,5	400 bar
FXREDSD3814S	Reduction - ø38S female x ø14S - o-ring seal	38 - 14 mm			420 bar
FXREDSD3816S	Reducting adaptor - ø38S female x ø16S - o-ring seal	38 - 16 mm	M52x2	M24x1,5	400 bar
FXREDSD3820S	Reducting adaptor - ø38S female x ø20S - o-ring seal	38 - 20 mm	M52x2	M30x2	400 bar
FXREDSD3825S	Reducting adaptor - ø38S female x ø25S - o-ring seal	38 - 25 mm	M52x2	M36x2	400 bar
FXREDSD3830S	Reducting adaptor - ø38S female x ø30S - o-ring seal	38 - 30 mm	M52x2	M42x2	400 bar
RS1206DKOX	Reduction - ø12S female x ø6S - o-ring seal	12 - 6 mm	M20x1,5	M14x1,5	630 bar
RS1210DKOX	Reduction - ø12S female x ø10S - o-ring seal	12 - 10 mm			630 bar
RS1606DKOX	Reduction - ø16S female x ø6S - o-ring seal	16 - 6 mm	M24x1,5	M14x1,5	630 bar
RS1608DKOX	Reduction - ø16S female x ø8S - o-ring seal	16 - 8 mm			630 bar
RS2006DKOX	Reduction - ø20S female x ø6S - o-ring seal	20 - 6 mm			420 bar
RS2506DKOX	Reduction - ø25S female x ø6S - o-ring seal	25 - 6 mm			420 bar
RS2514DKOX	Reduction - ø25S female x ø14S - o-ring seal	25 - 14 mm	M36x2	M22x1,5	400 bar
RS2520DKOX	Reduction - ø25S female x ø20S - o-ring seal	25 - 20 mm	M36x2	M30x2	400 bar

Specifikationer
Dimensioner och frakt (välj variant)

Märke namn

Stauff

Packningsmaterial

FKM/FPM (Viton®)

REACH compliant

Yes

RoHs compliant

Yes

Rostbeständighet

1200 hours salt spray DIN EN ISO 9227

Serie

Säkerhetsfaktor

Temperatur max.

+200

Temperatur min.

+25

Tillverkningsmaterial

Steel

Vinkel

Ytskiktbehandling

Zinc-Nickel plated

Produktinformation
Måttskiss (välj variant)

Straight fitting 0° - S-series - DIN union nut O-ring seal x DIN male reducing
