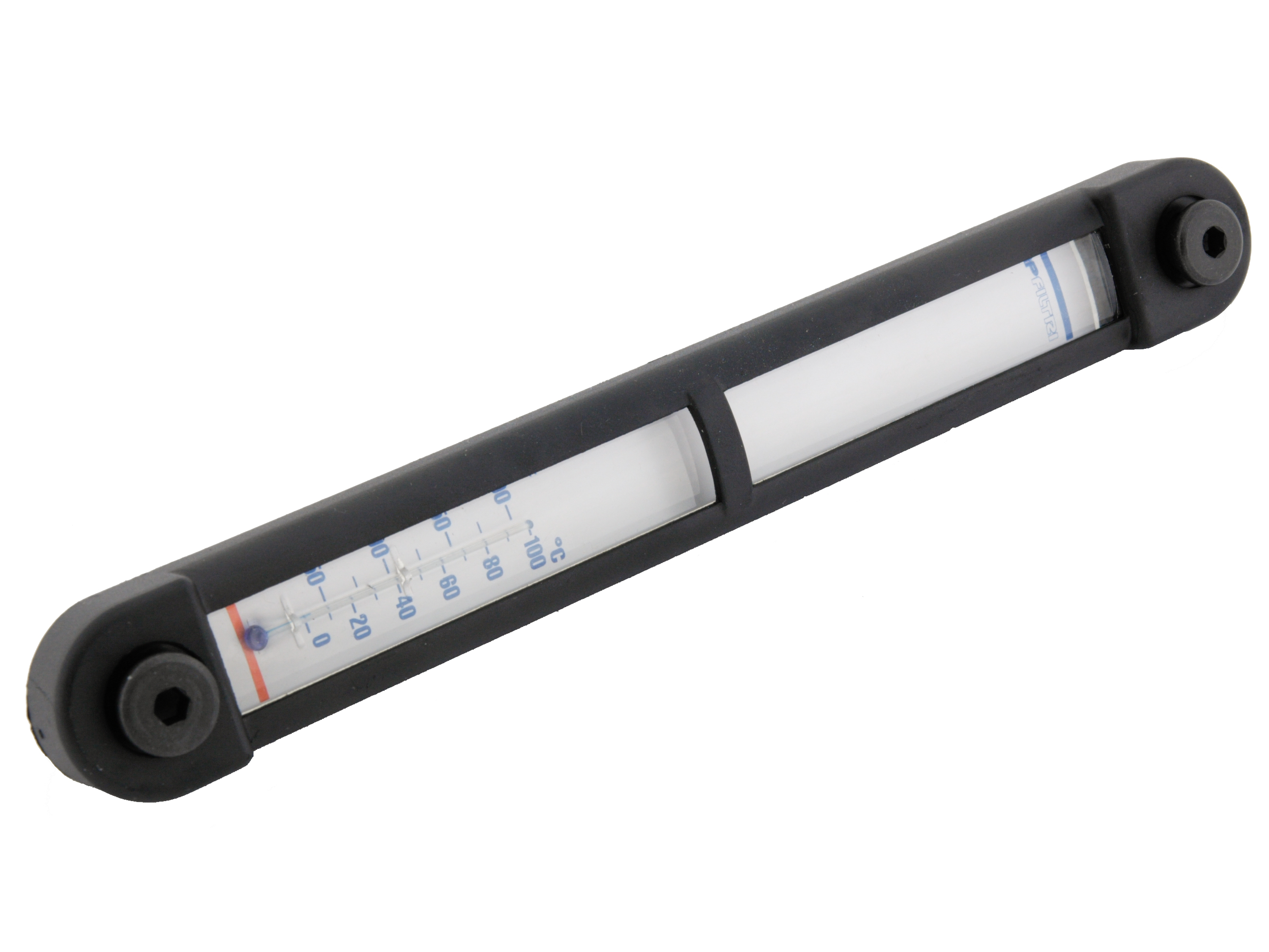

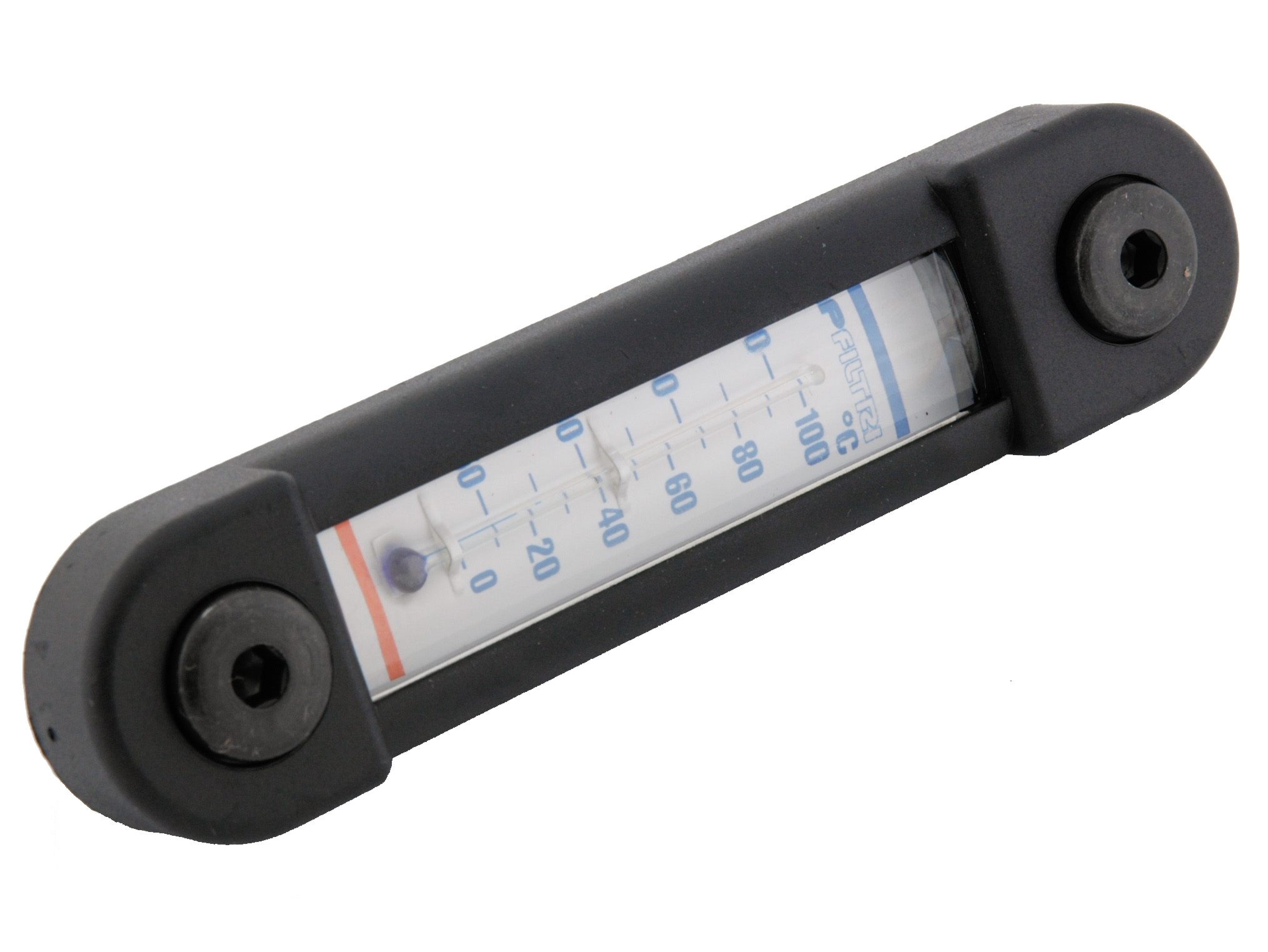

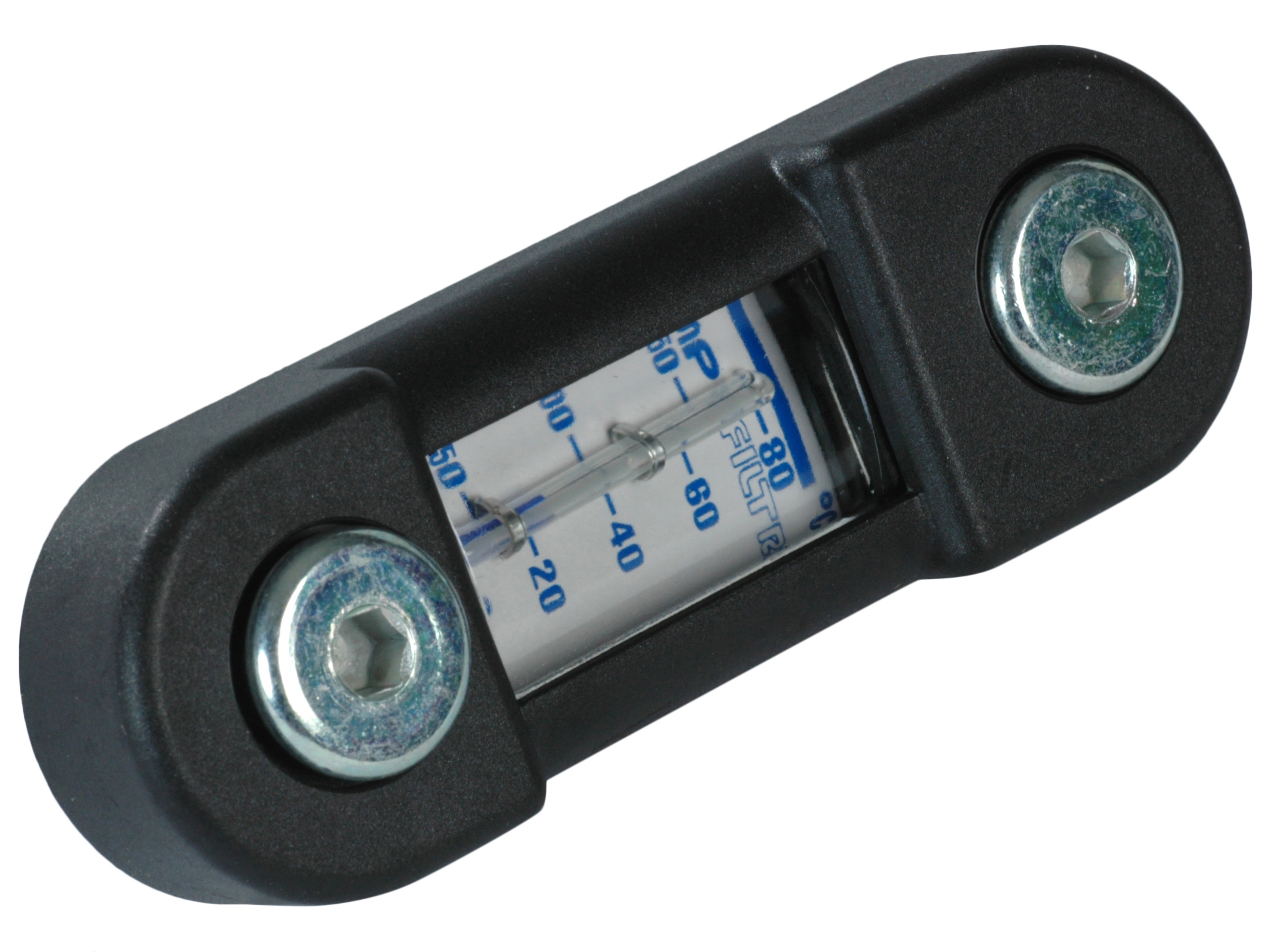

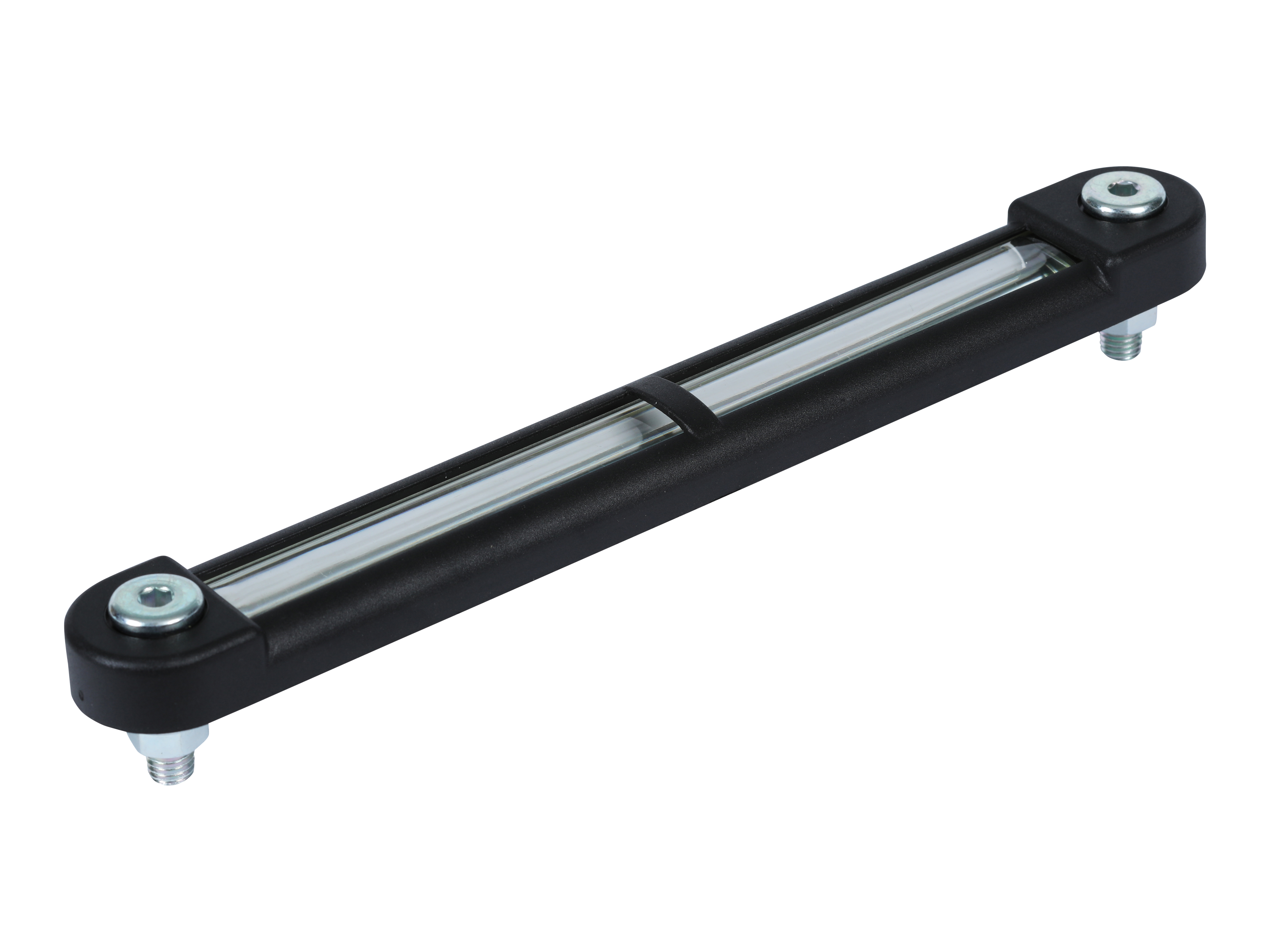

Rectangular oil level indicators - standard bolts

Visual oil level indicator - 76mm/M10

Visual oil level indicator - 76mm/M12

Visual oil level indicator - 127mm/M10

Visual oil level indicator - 127mm/M12

Visual oil level indicator - 254mm/M10

Visual oil level indicator - 254mm/M12

SELECT VARIANT

Partnumber	Description	Pressure max.	Length	Mounting holes spacing
LVA10TAPM10	Visual oil level indicator - 76mm/M10	1 bar	114 mm	76 mm
LVA10TAPM12	Visual oil level indicator - 76mm/M12	1 bar	114 mm	76 mm
LVA20TAPM10	Visual oil level indicator - 127mm/M10	1 bar	165 mm	127 mm
LVA20TAPM12	Visual oil level indicator - 127mm/M12	1 bar	165 mm	127 mm
LVA30TAPM10	Visual oil level indicator - 254mm/M10	1 bar	292 mm	254 mm
LVA30TAPM12	Visual oil level indicator - 254mm/M12	1 bar	292 mm	254 mm

Brand Name

MP Filtri

Pressure max.

Sealing material

NBR

Temperature max.

+100

Temperature min.

-25

Torque tightening
