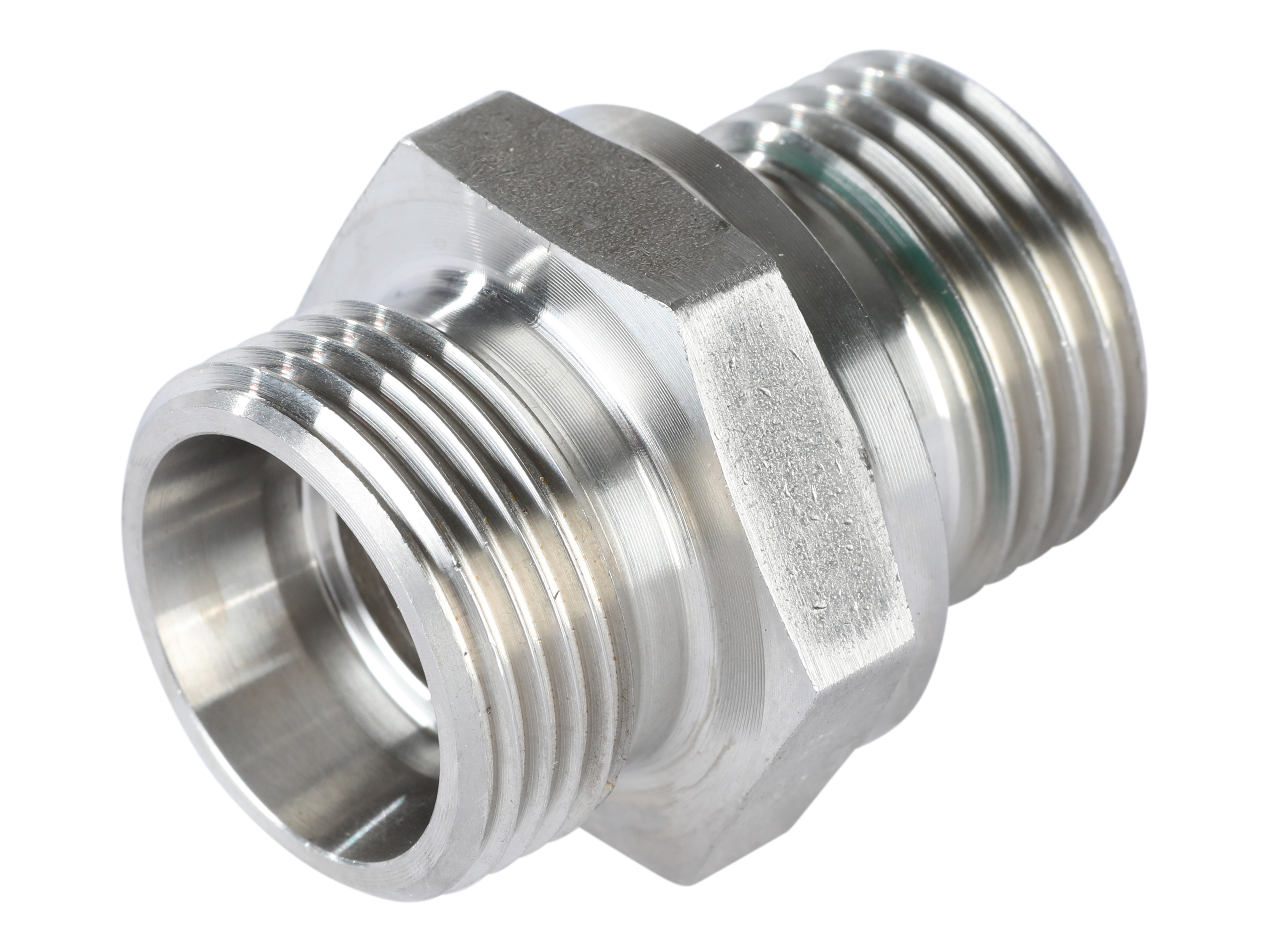

Straight fitting 0° - L-series - DIN male x BSP male stud WD seal stainless - A-RLWDX/71 / XGE-LRED-SY

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter rør	Gevind udvendig	Tryk maks.
A06LR14WDX/7	Stud fitting - ø6L x 1/4" BSP - WD seal - AISI316	6 mm	G 1/8 BSP	500 bar
A06RLWDX/71	Stud fitting - ø6L x 1/8" BSP - WD seal - AISI316	6 mm	G 1/8 BSP	500 bar
A08LR18WDX/7	Stud fitting - ø8L x 1/8" BSP - WD seal - AISI316	8 mm	G 1/8 BSP	500 bar
A08LR38WDX/7	Stud fitting - ø8L x 3/8" BSP - WD seal - AISI316	8 mm	G 3/8 BSP	500 bar
A08RLWDX/71	Stud fitting - ø8L x 1/4" BSP - WD seal - AISI316	8 mm	G 1/4 BSP	500 bar
A10LR12WDX/7	Stud fitting - ø10L x 1/2" BSP - WD seal - AISI316	10 mm	G 1/2 BSP	500 bar
A10LR34WDX/71	Stud fitting - ø10L x 3/4" BSP - WD seal - AISI316	10 mm	G 3/4 BSP	500 bar
A10LR38WDX/7	Stud fitting - ø10L x 3/8" BSP - WD seal - AISI316	10 mm	G 3/8 BSP	500 bar
A10RLWDX/71	Stud fitting - ø10L x 1/4" BSP - WD seal - AISI316	10 mm	G 1/4 BSP	500 bar
A12LR12WDX71	Stud fitting- ø12L x 1/2" BSP - WD seal - AISI316	12 mm	G 1/2 BSP	400 bar
A12LR14WDX71	Stud fitting- ø12L x 1/4" BSP - WD seal - AISI316	12 mm	G 1/4 BSP	400 bar
A12LR34WDX/71	Stud fitting- ø12L x 3/4" BSP - WD seal - AISI316	12 mm	G 3/4 BSP	400 bar
A12RLWDX/71	Stud fitting- ø12L x 3/8" BSP - WD seal - AISI316	12 mm	G 3/8 BSP	400 bar
A15LR34WDX/7	Stud fitting- ø15L x 3/4" BSP - WD seal - AISI316	15 mm	G 3/4 BSP	400 bar
A15LR38WDX/7	Stud fitting- ø15L x 3/8" BSP - WD seal - AISI316	15 mm	G 3/8 BSP	400 bar
A15RLWDX/71	Stud fitting- ø15L x 1/2" BSP - WD seal - AISI316	15 mm	G 1/2 BSP	400 bar
A18LR1WDX/71	Stud fitting- ø18L x 1" BSP - WD seal - AISI316	18 mm	G 1 BSP	400 bar
A18LR34WDX/7	Stud fitting- ø18L x 3/4" BSP - WD seal - AISI316	18 mm	G 3/4 BSP	400 bar
A18LR38WDX/7	Stud fitting- ø18L x 3/8" BSP - WD seal - AISI316	18 mm	G 3/8 BSP	400 bar
A18RLWDX/71	Stud fitting- ø18L x 1/2" BSP - WD seal - AISI316	18 mm	G 1/2 BSP	400 bar
A22LR1WDX/71	Stud fitting- ø22L x 1" BSP - WD seal - AISI316	22 mm	G 1 BSP	250 bar
A22RLWDX/71	Stud fitting- ø22L x 3/4" BSP - WD seal - AISI316	22 mm	G 3/4 BSP	250 bar
A28LR112WDX7	Stud fitting- ø28L x 1.1/2" BSP - WD seal - AISI316	28 mm	G 1.1/2 BSP	250 bar
A28LR34WDX71	Stud fitting- ø28L x 3/4" BSP - WD seal - AISI316	28 mm	G 3/4 BSP	250 bar
A28RLWDX/71	Stud fitting- ø28L x 1" BSP - WD seal - AISI316	28 mm	G 1 BSP	250 bar
A35LR112WX/7	Stud fitting- ø35L x 1.1/2" BSP - WD seal - AISI316	35 mm	G 1.1/2 BSP	250 bar
A35LR1WDX/71	Stud fitting- ø35L x 1" BSP - WD seal - AISI316	35 mm	G 1 BSP	250 bar
A35RLWDX/71	Stud fitting- ø35L x 1.1/4" BSP - WD seal - AISI316	35 mm	G 1.1/4 BSP	250 bar
A42R114WDX/7	Stud fitting- ø42L x 1.1/4" BSP - WD seal - AISI316	42 mm	G 1.1/4 BSP	250 bar
A42RLWDX/71	Stud fitting- ø42L x 1.1/2" BSP - WD seal - AISI316	42 mm	G 1.1/2 BSP	250 bar

Specifikationer
Dimensioner och frakt (välj variant)

Materiale

Acid-resistant steel

Materialekvalitet

1.4571 / AISI316Ti

Mærke navn

Volz

Pakningsmateriale

FKM/FPM (Viton®)

REACH compliant

Yes

RoHs compliant

Yes

Serie

Sikkerhedsfaktor

Temperatur maks.

+200

Temperatur min.

-25

Vinkel

Produktinformation
Måttskiss (välj variant)
