Stud fitting- ø28L x 3/4" BSP - WD seal - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Artikelnummer:
A28LR34WDX71
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs

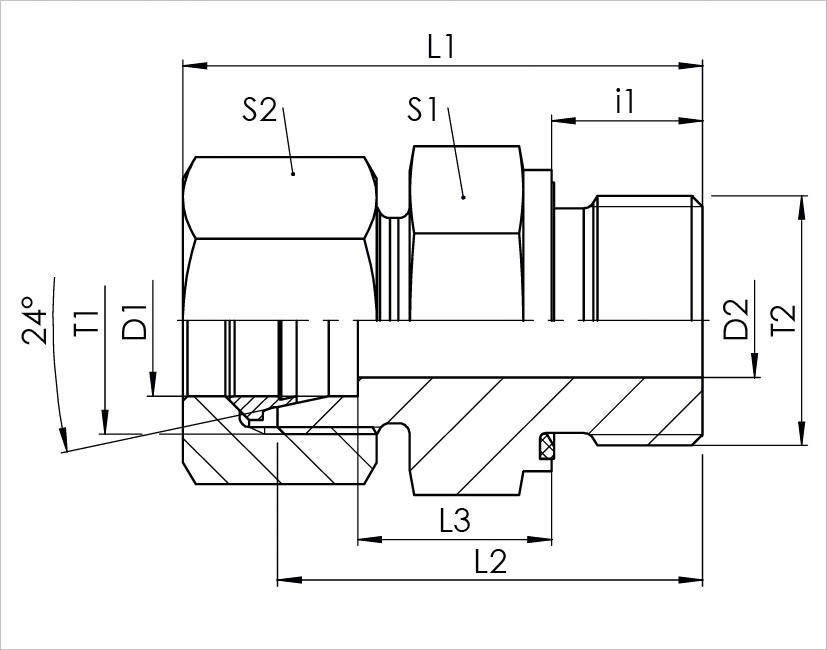

Diameter rör
28 mm
Dimension D1
28 mm
Dimension D2
18 mm
Dimension L1
52 mm
Dimension L2
41 mm
Dimension L3
17.5 mm
Dimension S1
41 mm
Dimension S2
41 mm
Dimension T2
180
Dimension d1
28 mm
Dimension i
16 mm
Dimension i1
16 mm
Gänga T1
M36x2
Gänga utv.
G 3/4 BSP
Gänga utv. metrisk
M36x2
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
XGEV 28 LR 3/4 WD
Märke namn
Volz
Packningsmaterial
FKM/FPM (Viton®)
REACH compliant
Yes
RoHs compliant
Yes
Serie
L
Säkerhetsfaktor
4
Temperatur max.
+200 °C
Temperatur min.
-25 °C
Thread T2
G 3/4 BSP
Tillverkningsmaterial
Acid-resistant steel
Tryck max.
250 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295910574
Gross weight
0,35 Kg
Net weight
0,35 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
