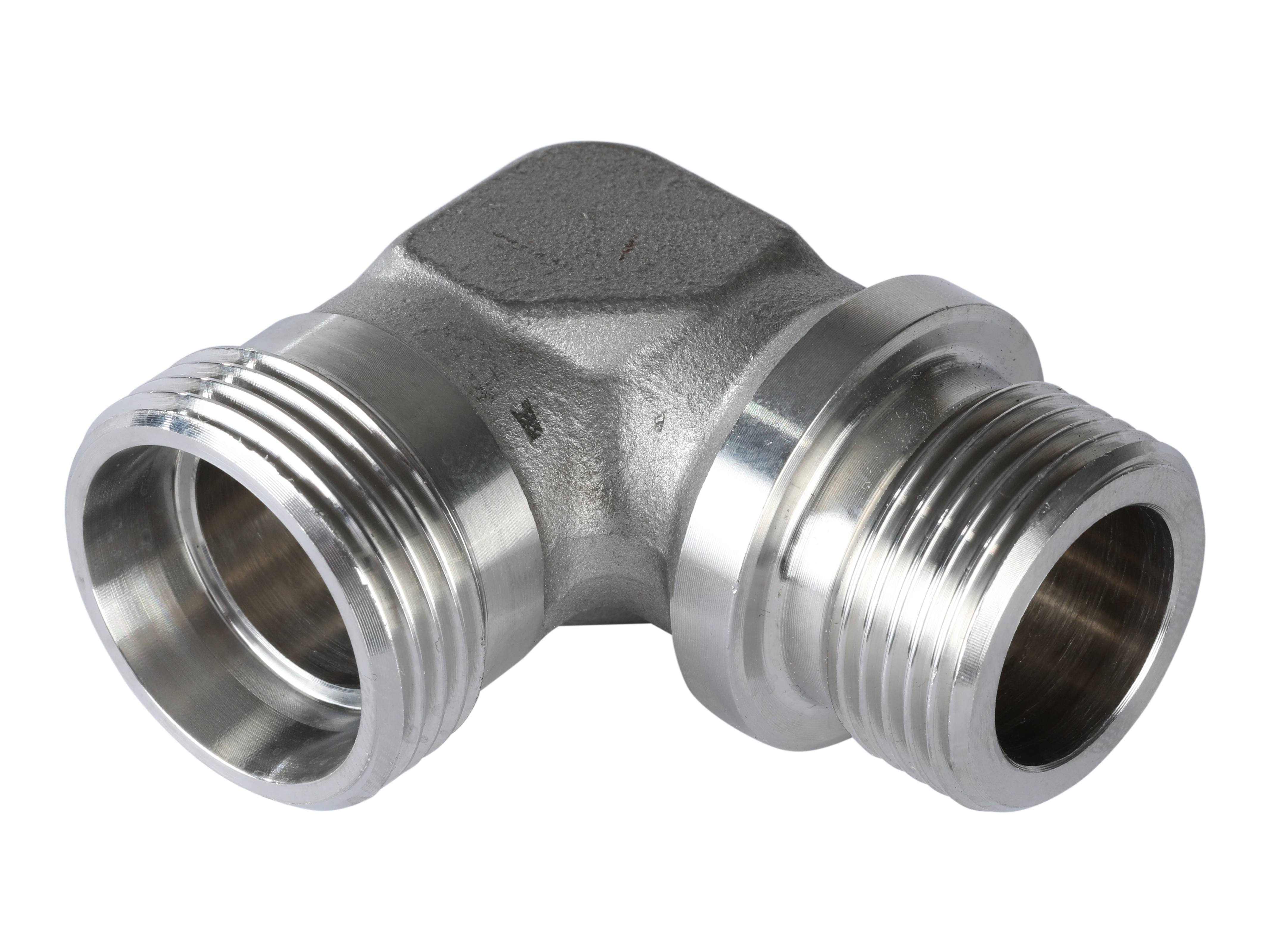

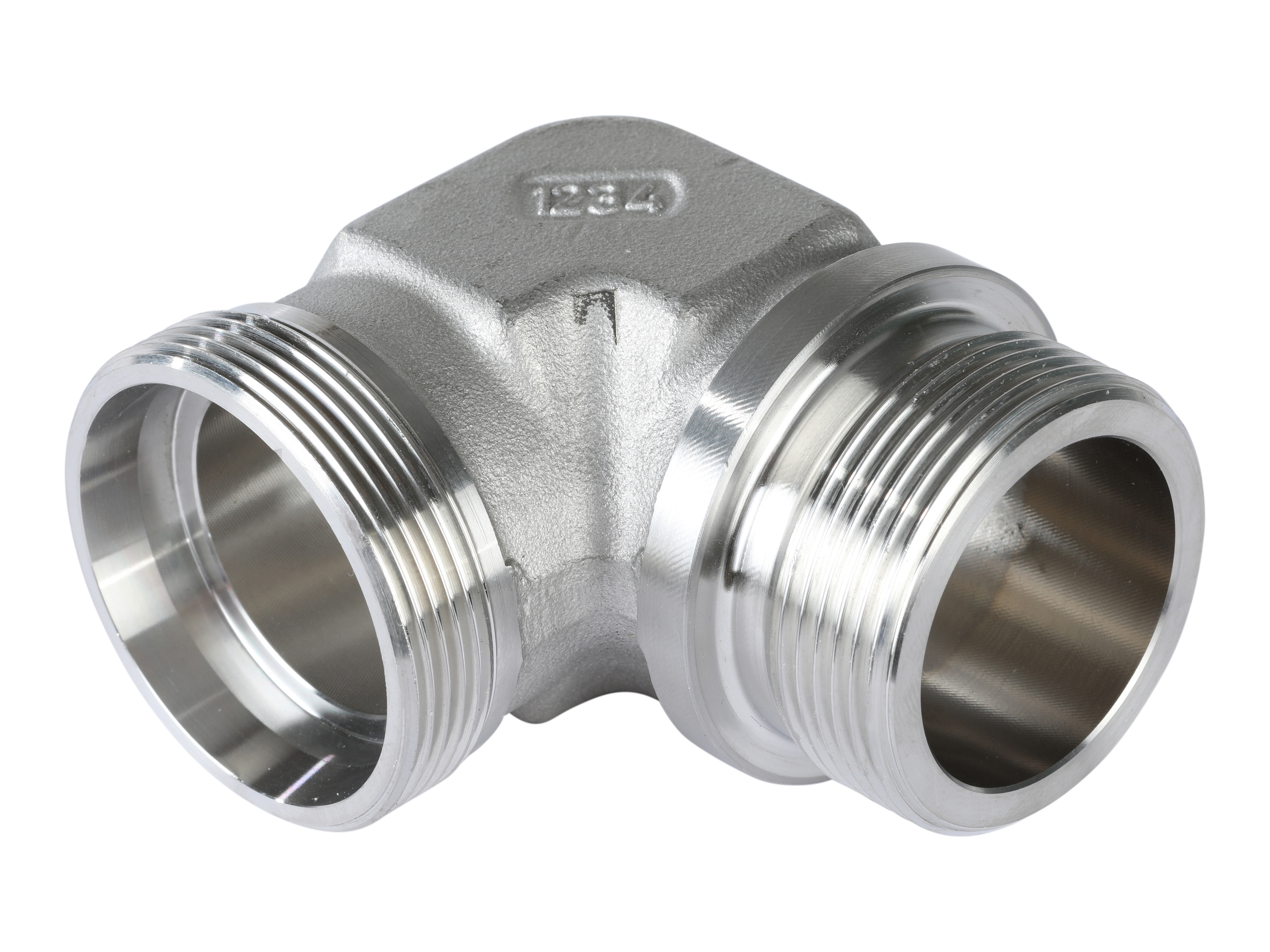

Elbow fitting 90° - L-series - MM male 24° x BSPT male stainless - B-RLX/71 / XWE-LKR-SY

Stud elbow 90° - ø22L x 3/4" BSPT - AISI316

Stud elbow 90° - ø28L x 1 BSPT - AISI316

Stud elbow 90° - ø35L x 1.1/4" BSPT - AISI316

Stud elbow 90° - ø42L x 1.1/2" BSPT - AISI316

SELECT VARIANT

Partnumber	Description	Thread outer	Diameter pipe	Pressure max.	Brand Name
B22RLX/71	Stud elbow 90° - ø22L x 3/4" BSPT - AISI316	G 3/4 BSP	22 mm	160 bar	Volz
B28RLX/71	Stud elbow 90° - ø28L x 1 BSPT - AISI316	G 1 BSP	28 mm	160 bar	Volz
B35RLX/71	Stud elbow 90° - ø35L x 1.1/4" BSPT - AISI316	G 1.1/4 BSP	35 mm	160 bar	Volz
B42RLX/71	Stud elbow 90° - ø42L x 1.1/2" BSPT - AISI316	G 1.1/2 BSP	42 mm	160 bar	Volz

Angle

Brand Name

Volz

Material

Stainless steel

Material quality

1.4571 / AISI316Ti

Pressure max.

160

Safety factor

Series

Temperature max.

+400

Temperature min.

-60
