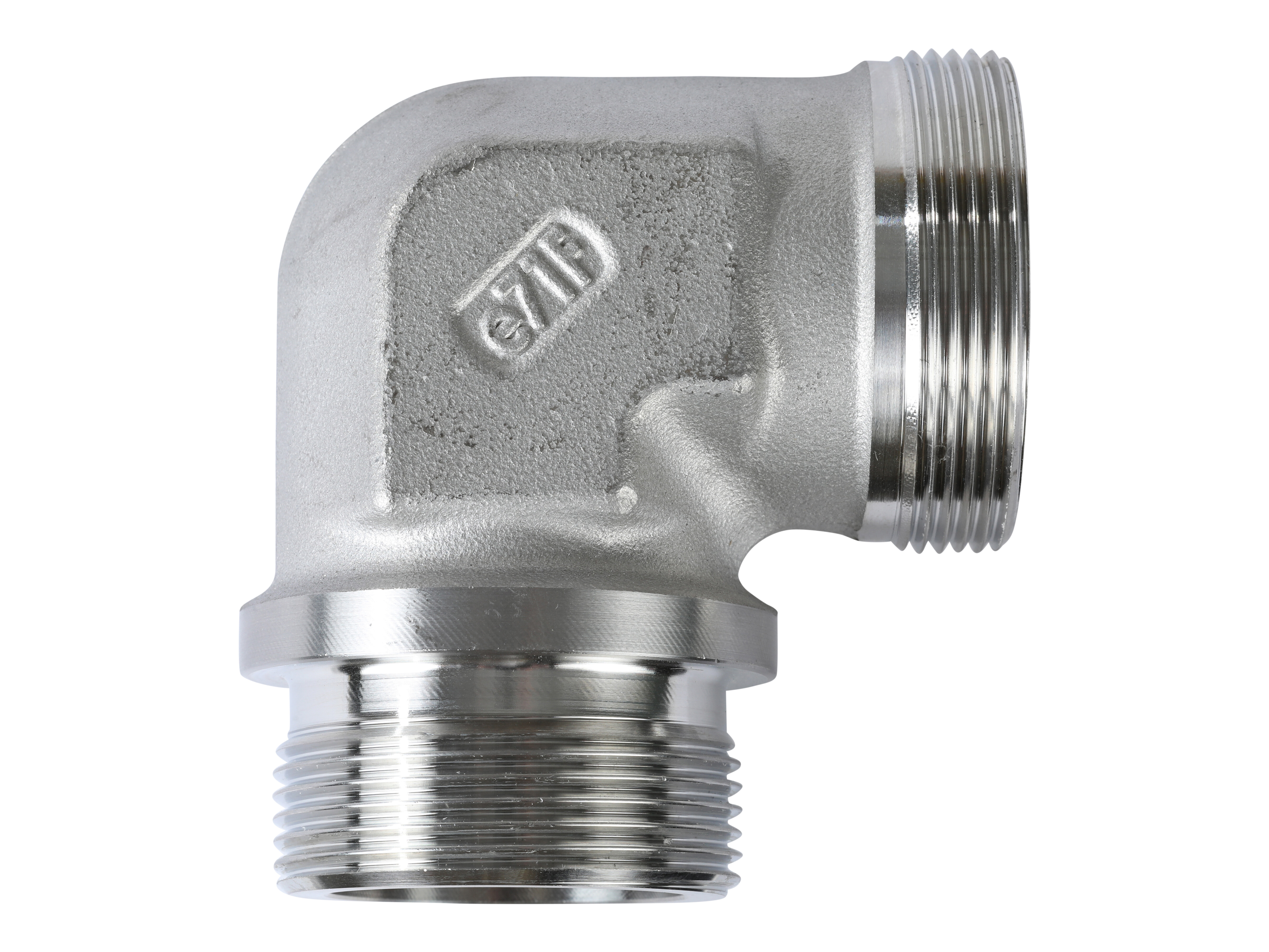

Stud elbow 90° - ø42L x 1.1/2" BSPT - AISI316

Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.

Varenummer:
B42RLX/71

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Cutting ring ø 42 1.4571
Varenummer: DS42L/71
Nut ø42 M52x2 1.4571 1.4571
Varenummer: M42L/71
Angle
90 °

Brand Name
Volz

Diameter pipe
42 mm

Material
Stainless steel

Material quality
1.4571 / AISI316Ti

Model code
XWEV 42 LR 1.1/2

Pressure max.
160 bar

Safety factor
4

Series
L

Temperature max.
+400 °C

Temperature min.
-60 °C

Thread outer
G 1.1/2 BSP

Thread outer metric
M52x2
Pakke str.
0 pcs

Stregkode
5704334203193

Brutto vægt
0,68 Kg

Netto vægt
0,68 Kg

Oprindelsesland
DEU

Intrastat varekode
73072910

Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.

Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
