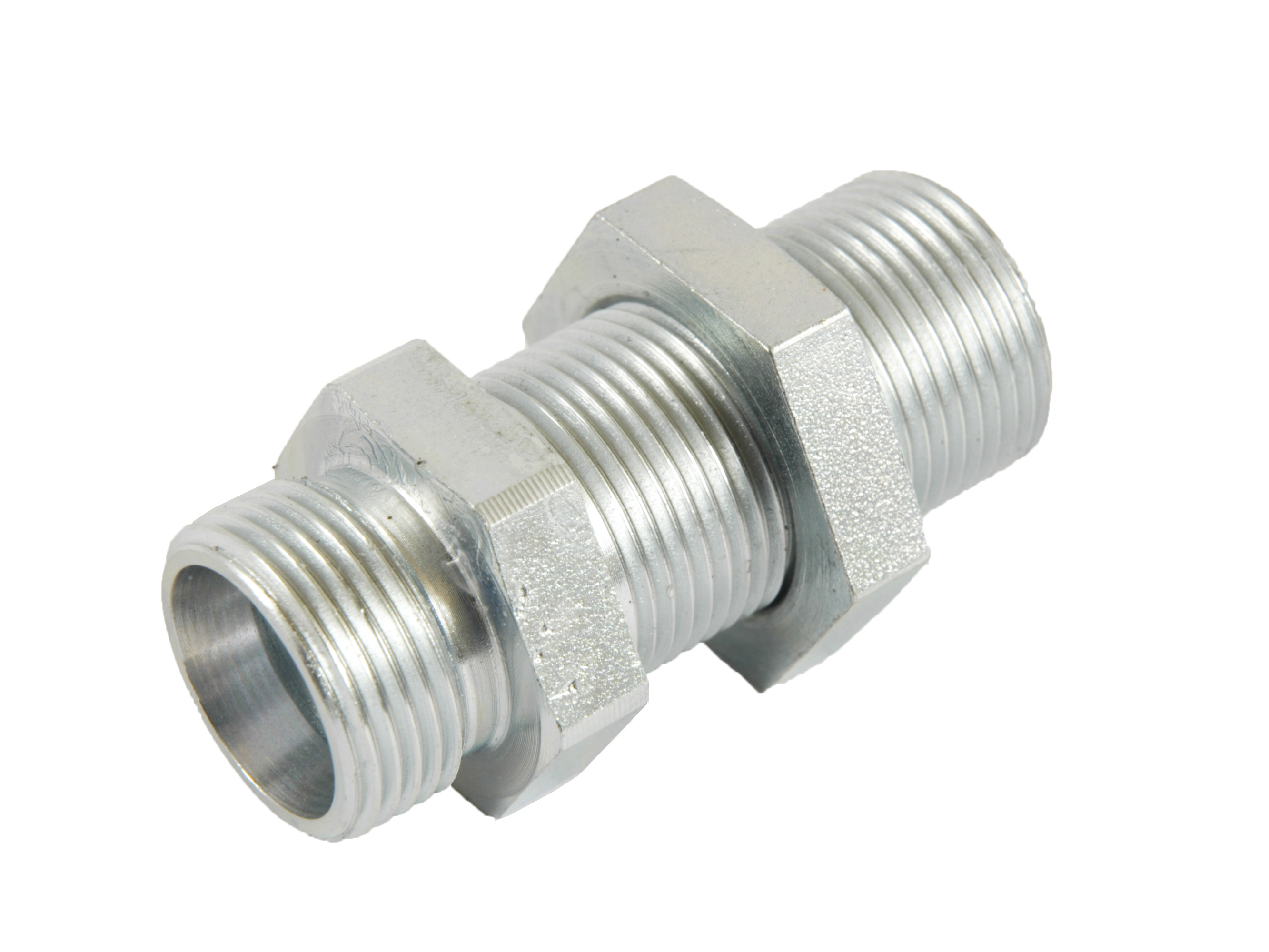

Bulkhead fitting straight 0° - L-series BSP

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread outer metric	Pressure max.	Brand Name
K08LXGM1/4	Bulkhead fitting - ø8L x 1/4" BSP - w. counter nut	8 mm	M14x1,5	500 bar	Gates
K08LXGM3/8	Bulkhead fitting - ø8L x 3/8" BSP - w. counter nut	8 mm	M14x1,5	500 bar	Gates
K10LXGM1/4	Bulkhead fitting - ø10 x 1/4" BSP - w. counter nut	10 mm	M16x1,5	500 bar	Gates
K10LXGM3/8	Bulkhead fitting - ø10L x 3/8" BSP - w. counter nut	10 mm	M16x1,5	500 bar	Gates
K12LXGM1/2	Bulkhead fitting - ø12L x 1/2" BSP - w. counter nut	12 mm	M18x1,5	400 bar	Gates
K12LXGM1/4	Bulkhead fitting - ø12L x 1/4" BSP - w. counter nut	12 mm	M18x1,5	400 bar	Gates
K12LXGM3/8	Bulkhead fitting - ø12L x 3/8" BSP - w. counter nut	12 mm	M18x1,5	400 bar	Gates
K15LXGM1/2	Bulkhead fitting - ø15L x 1/2" BSP - w. counter nut	15 mm	M22x1,5	400 bar	Gates
K18LXGM1/2	Bulkhead fitting - ø18L x 1/2" BSP - w. counter nut	18 mm	M26x1,5	400 bar	Gates
K22LXGM3/4	Bulkhead fitting - ø22L x 3/4" BSP - w. counter nut	22 mm	M30x2	250 bar	Gates
K28LXGM1	Bulkhead fitting - ø28L x 1" BSP - w. counter nut	28 mm	M36x2	250 bar	Gates

Angle

Brand Name

Gates

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Material

Steel

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

Series

Surface treatment

Zinc-Nickel plated

Temperature max.

+120

Temperature min.

-40

Bulkhead fitting straight 0° - L-series BSP
