AC electromotors - 11 kW

SELECT VARIANT
Partnumber Description Rotational speed at 50 Hz Voltage Number of motor poles Motor size

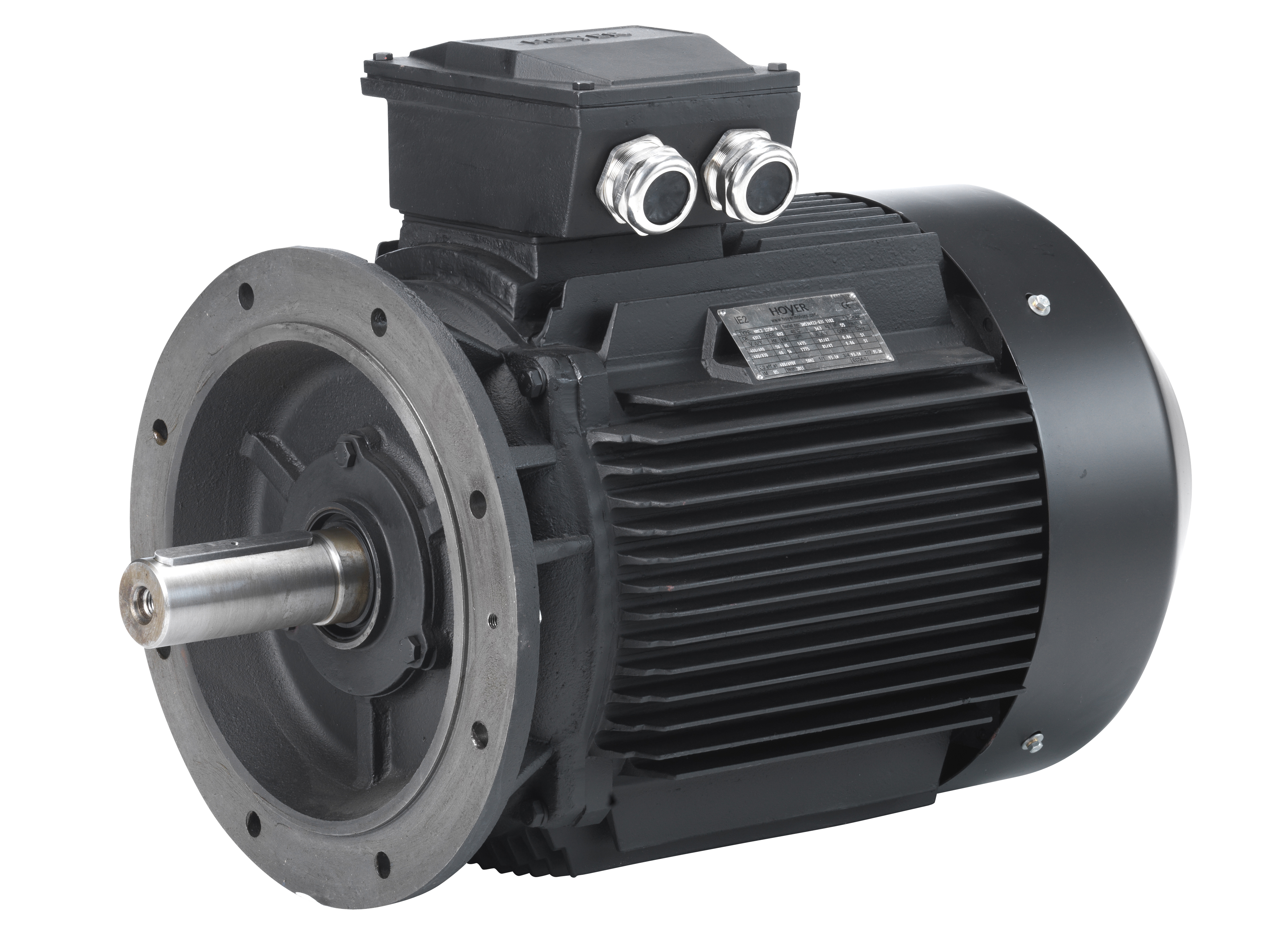

M31604110350 HMC3 160 1470rpm 11,0kW 4 pol B35/350 IE3, black 400/690V 1470 rpm 400, 690 V 4 160M IEC
M316041103502 HMC3 160 1470rpm 11.0 kW 4 pol B5/350 IE3 black 400/690V 1470 rpm 400, 690 V 4 160M IEC
Bolts spacing
300

Current type
AC

Diameter Bolt hole
18,5

Diameter flange
350

Efficiency class
IE3

Insulation class
IP 55

Material
Cast iron

Motor size
160M

Mountingtype
B3/B5

Number of motor poles
4

Power
11

Power
15

Recess
250,0

Rotational speed at 50 Hz
1470

Shaft diameter
42

Shaft keyway
12,0

Shaft type
Cylindrical

Voltage
400, 690
