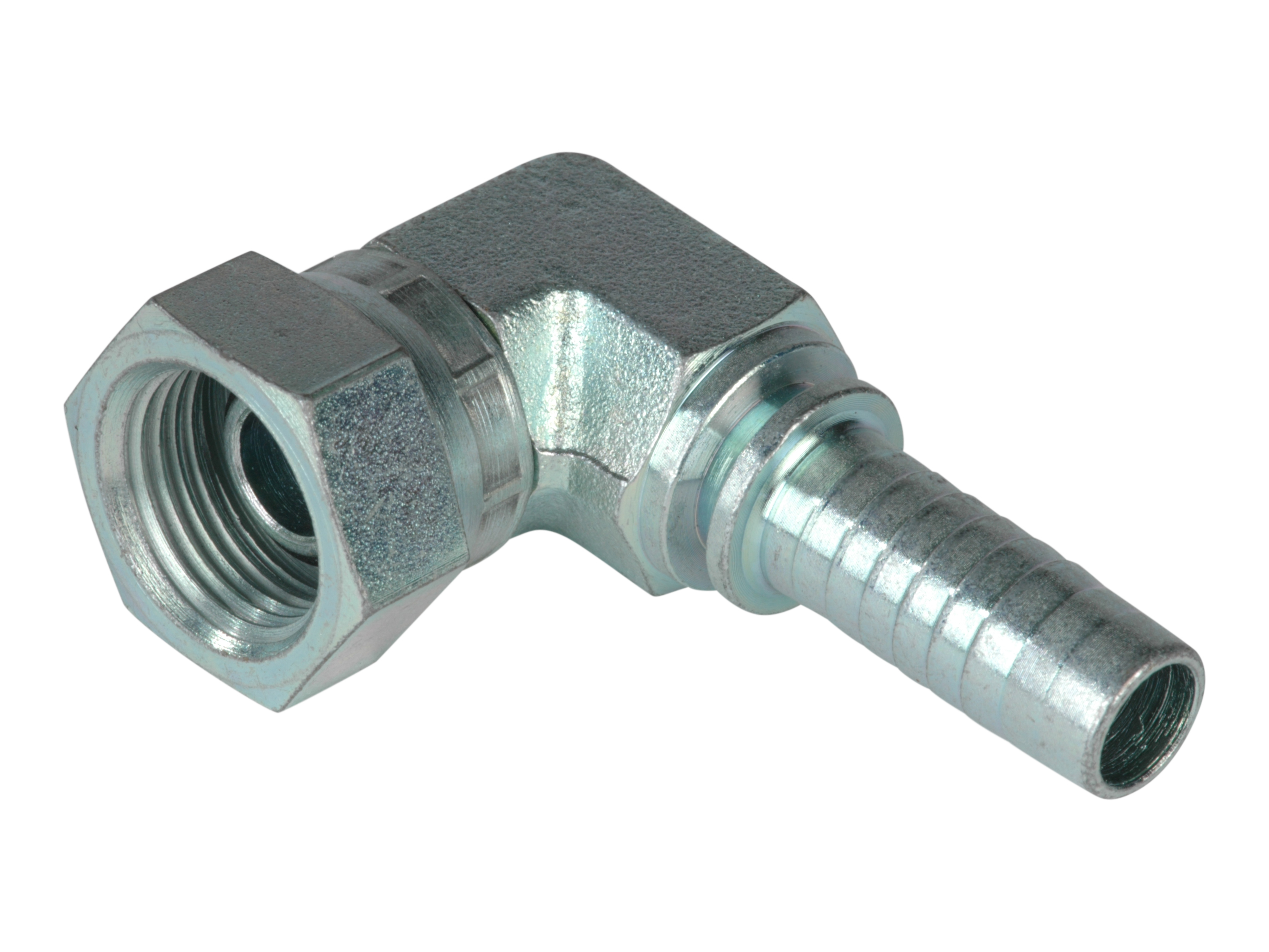

BSP union nut, 60° cone face, 90° elbow, short, "NO90S"

BSP union nut, 60° cone face, 90° elbow, short, "NO90S"

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
P0404NO90S Insert 1/4" - 1/4" BSP nut 90S w. cap G 1/4 BSP 1/4 " 90 ° For separate ferrule
P0606NO90S Insert 3/8" - 3/8" BSP nut 90S G 3/8 BSP 3/8 " 90 ° For separate ferrule
P0808NO90S Insert 1/2" - 1/2" BSP nut 90S w. cap O-ring G 1/2 BSP 1/2 " 90 ° For separate ferrule
Angle
90
Brand Name
I.M.M Hydraulics
Hose coupling type
For separate ferrule
Material
Steel
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100
Temperature min.
-30
