Insert 1/4" - 1/4" BSP nut 90S w. cap

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).

Partnumber:
P0404NO90S

Package size:
0 pcs

Min. order quantity is:
1 pcs
Angle
90 °

Brand Name
I.M.M Hydraulics

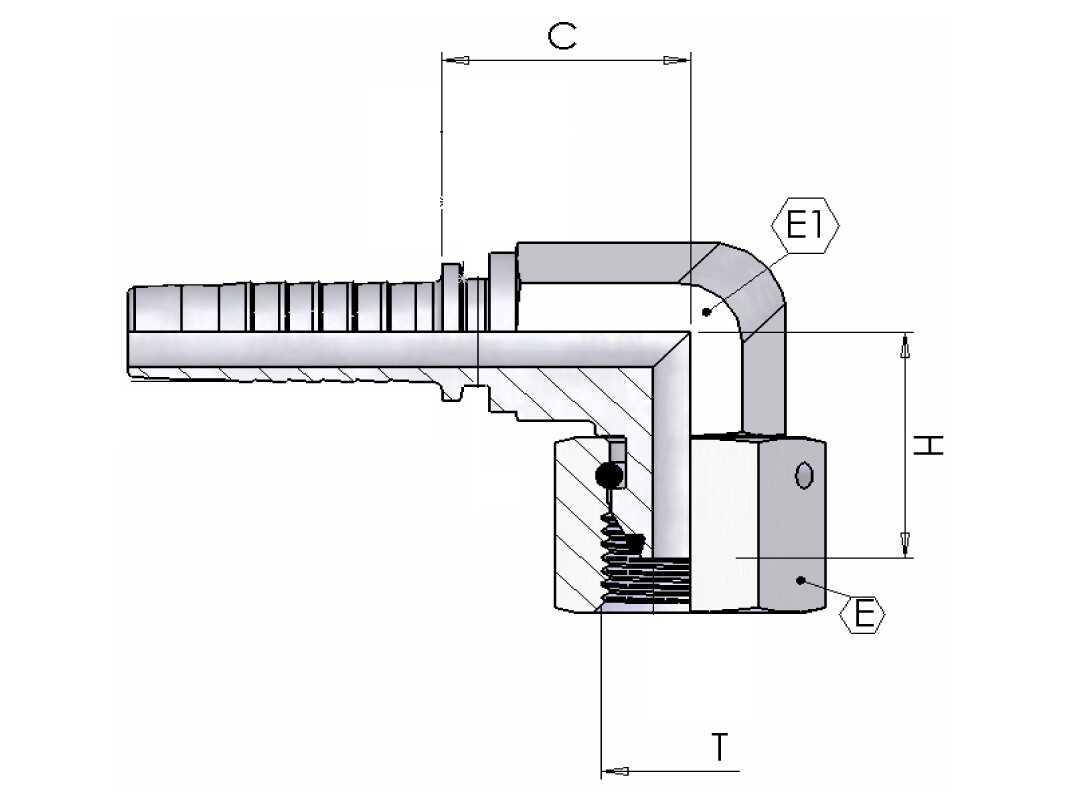

Dimension C
19 mm

Dimension E
19 mm

Dimension E1
15 mm

Dimension H
20 mm

Dimension T
G 1/4 BSP

Hose coupling type
For separate ferrule

Hose size
1/4 "

Material
Steel

Model code
2310-04-04

Sealing material
NBR

Surface treatment
Electro-galvanized / White chromatized

Temperature max.
+100 °C

Temperature min.
-30 °C

Thread
G 1/4 BSP

Torque tightening
20 Nm
Package size
0 pcs

Barcode
5704295723587

Gross weight
0,06 Kg

Net weight
0,06 Kg

Country of origin
ITA

Intrastat code
73269098

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).
