Test couplings, various, Test 20

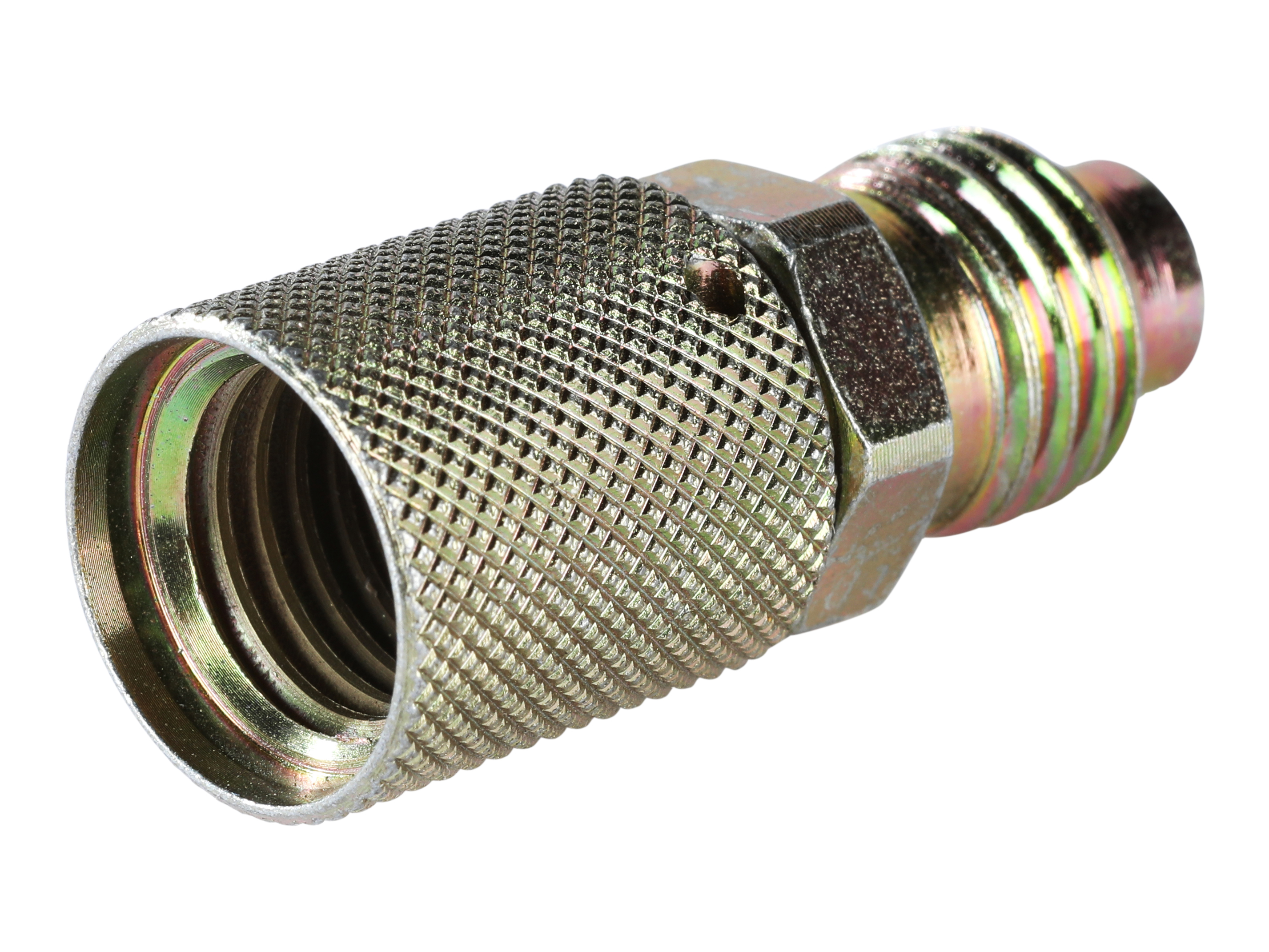

Adaptor male M12,65 female M16

Adaptor male M16x2 female M16x

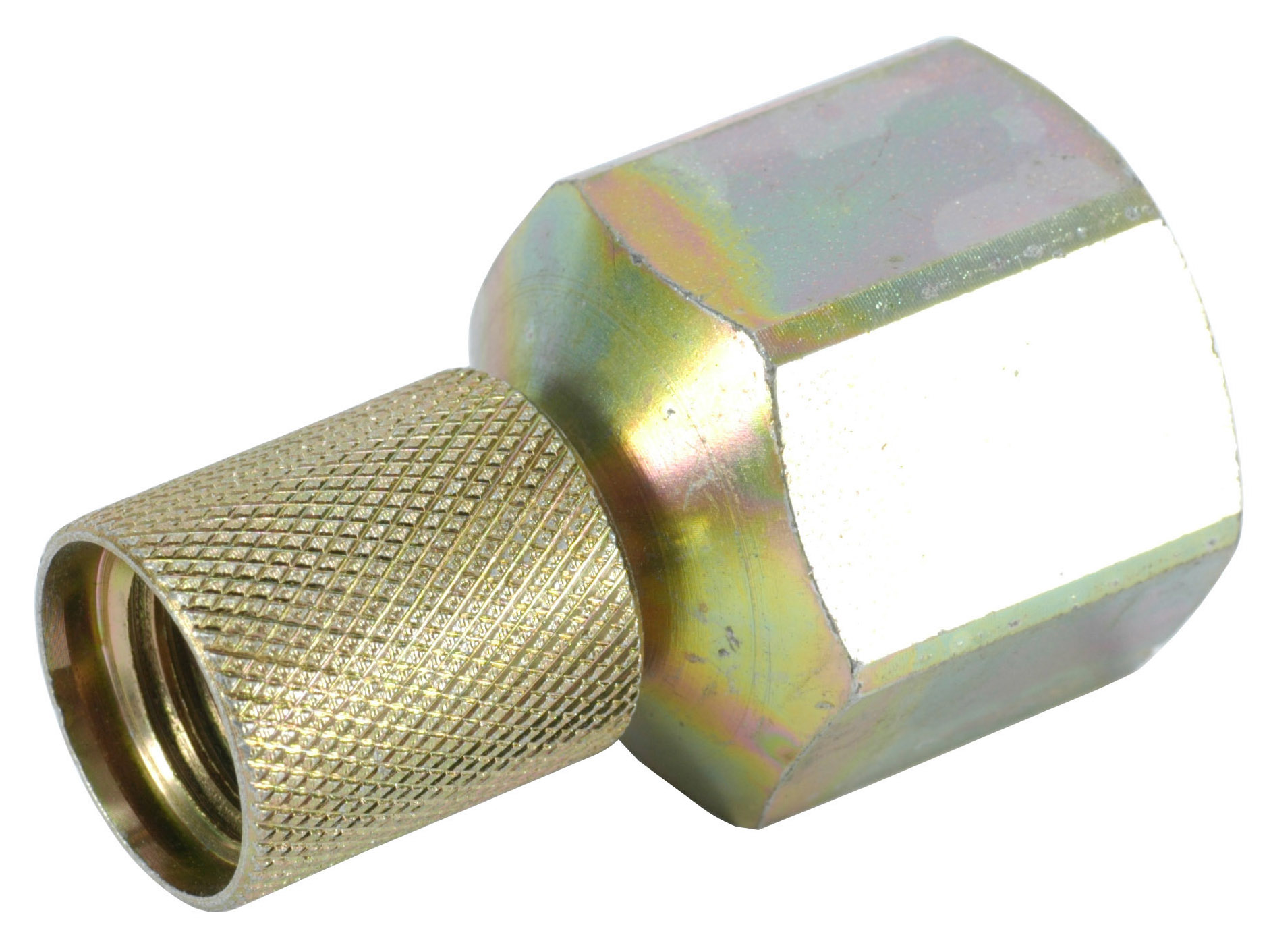

Adaptor female1/2 - female M16 For pressure sensor

Adaptor 1/4female x M16 female For pressure sensor

Adaptor male.1/4 female M16

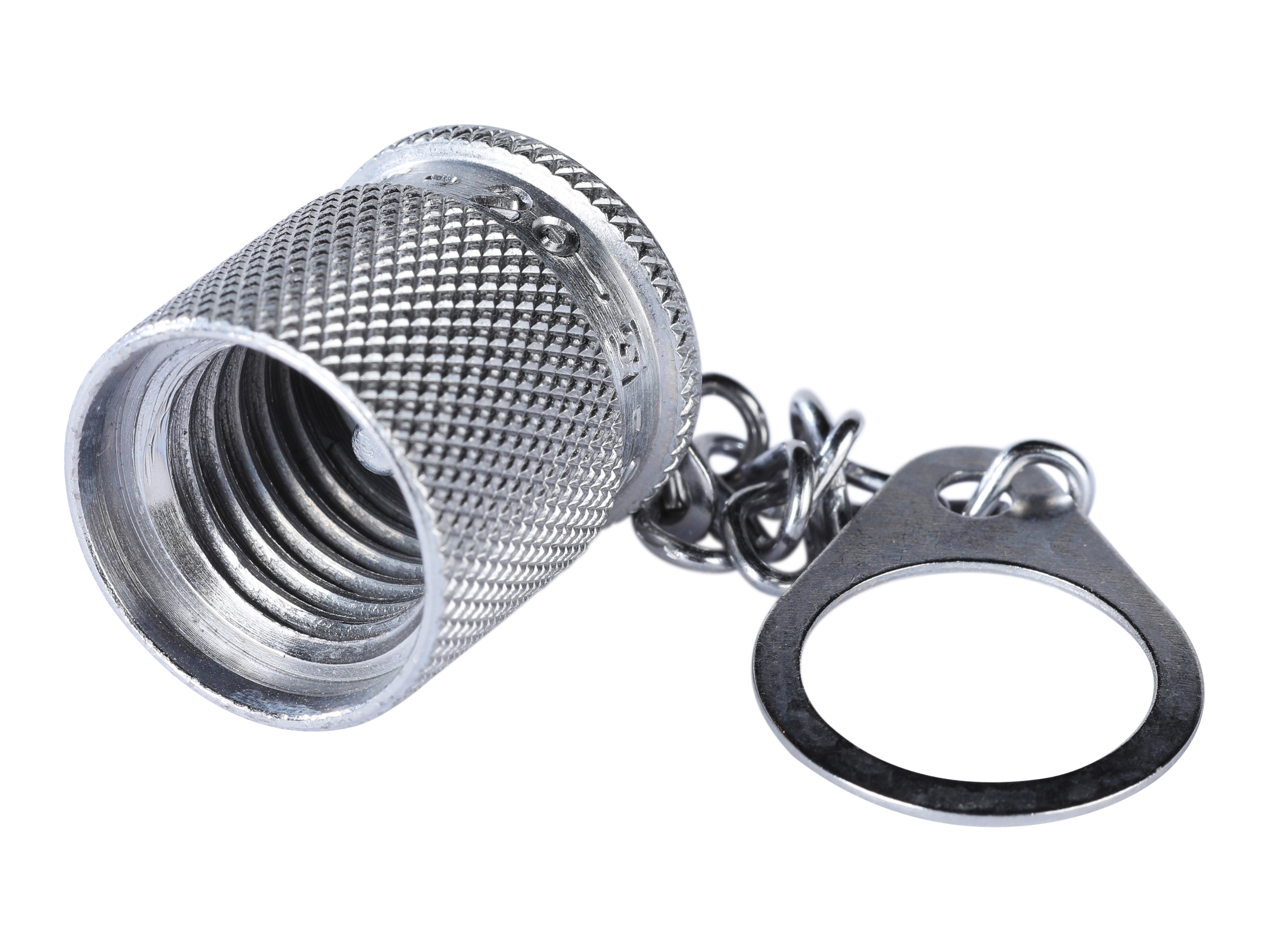

Cap + chain/ring

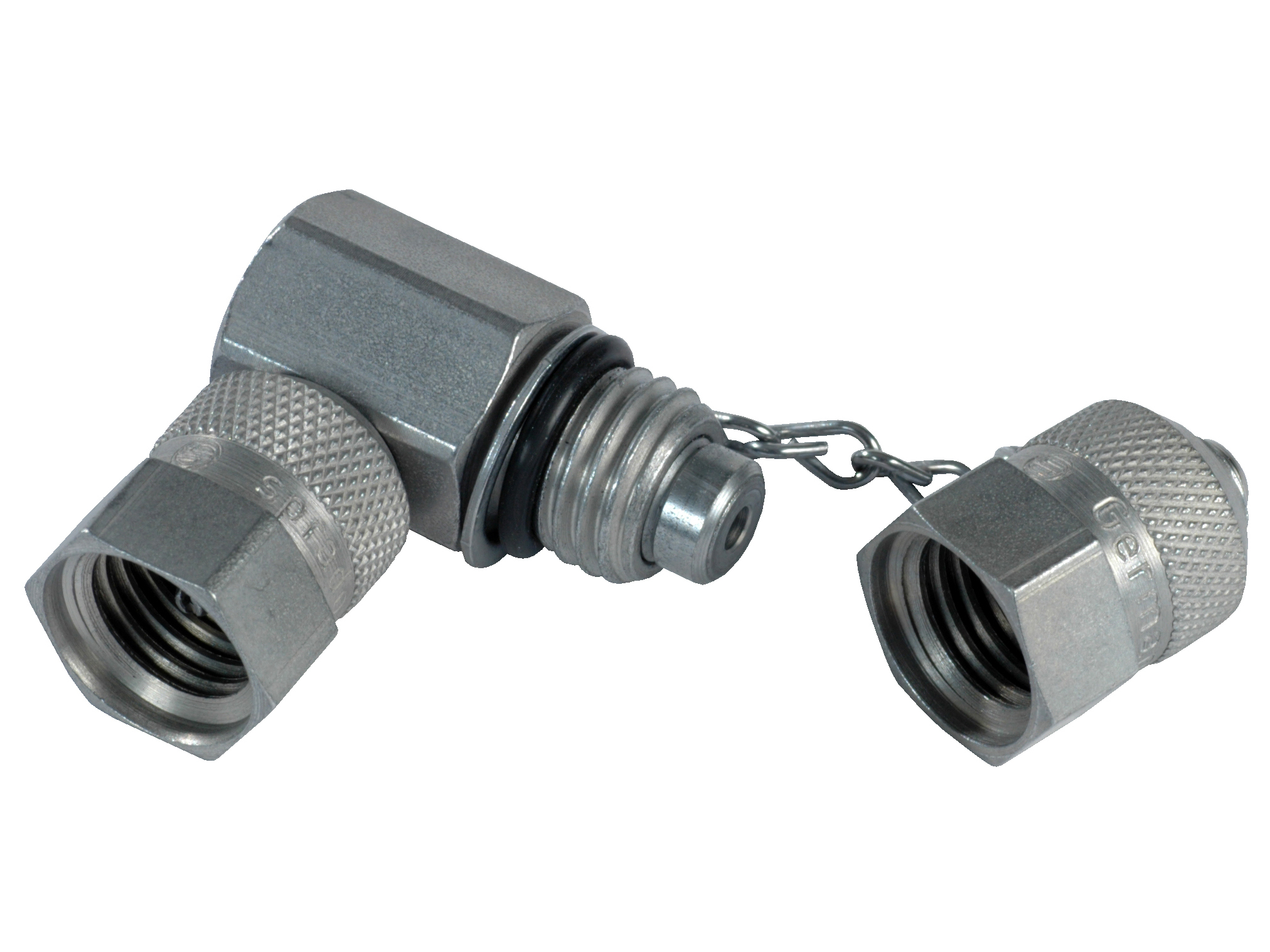

Elbow M16x2 female M16x2 male 90 degree

SELECT VARIANT

Partnumber	Description	Thread inner	Thread inner metric	Thread outer metric	Pressure max.
SAD12/20	Adaptor male M12,65 female M16		M16x2	M12,65x1,5	630 bar
SAD20/20-P	Adaptor male M16x2 female M16x		M16x2	M16x2	630 bar
SDA20G1/2	Adaptor female1/2 - female M16 For pressure sensor	G 1/2 BSP	M16x2		630 bar
SDA20G1/4	Adaptor 1/4female x M16 female For pressure sensor	G 1/4 BSP	M16x2		630 bar
SDA20G1/4PC	Adaptor male.1/4 female M16		M16x2		630 bar
SKP-SMK20-V3	Cap + chain/ring		M16x2		630 bar
SMK20/90	Elbow M16x2 female M16x2 male 90 degree		M16x2	M16x2	630 bar

Pressure max.

630

Temperature max.

+100

Thread inner metric

M16x2
