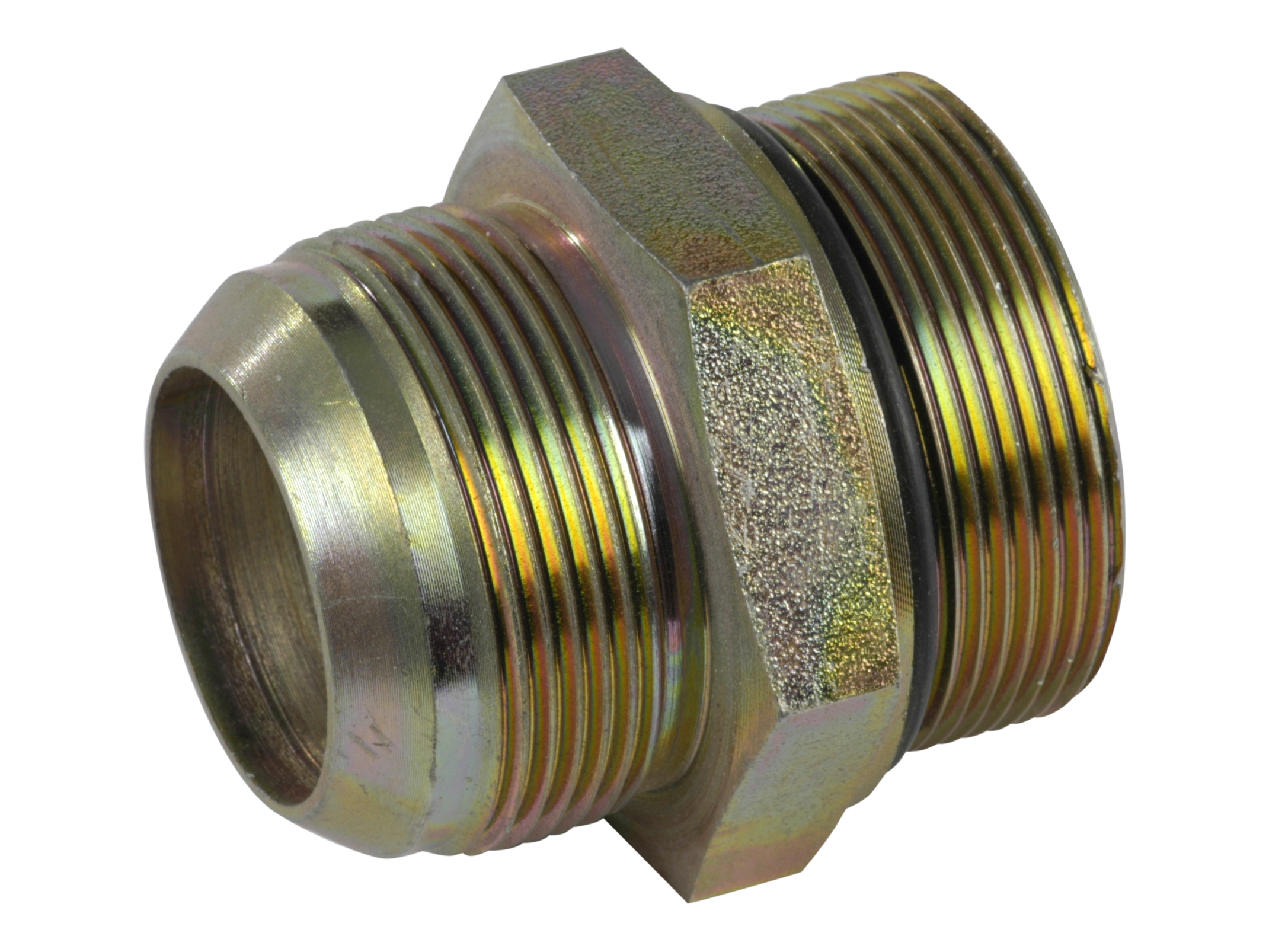

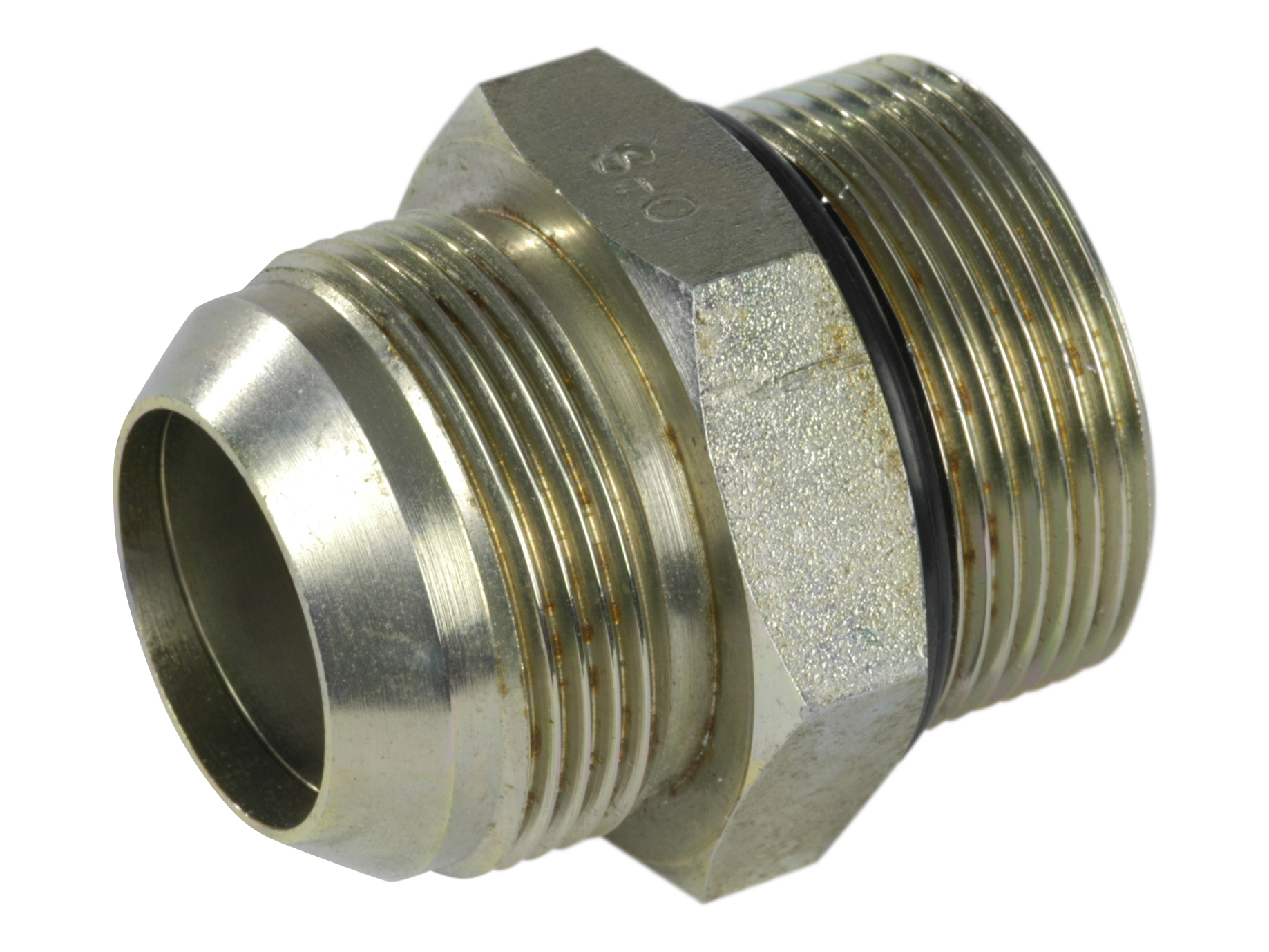

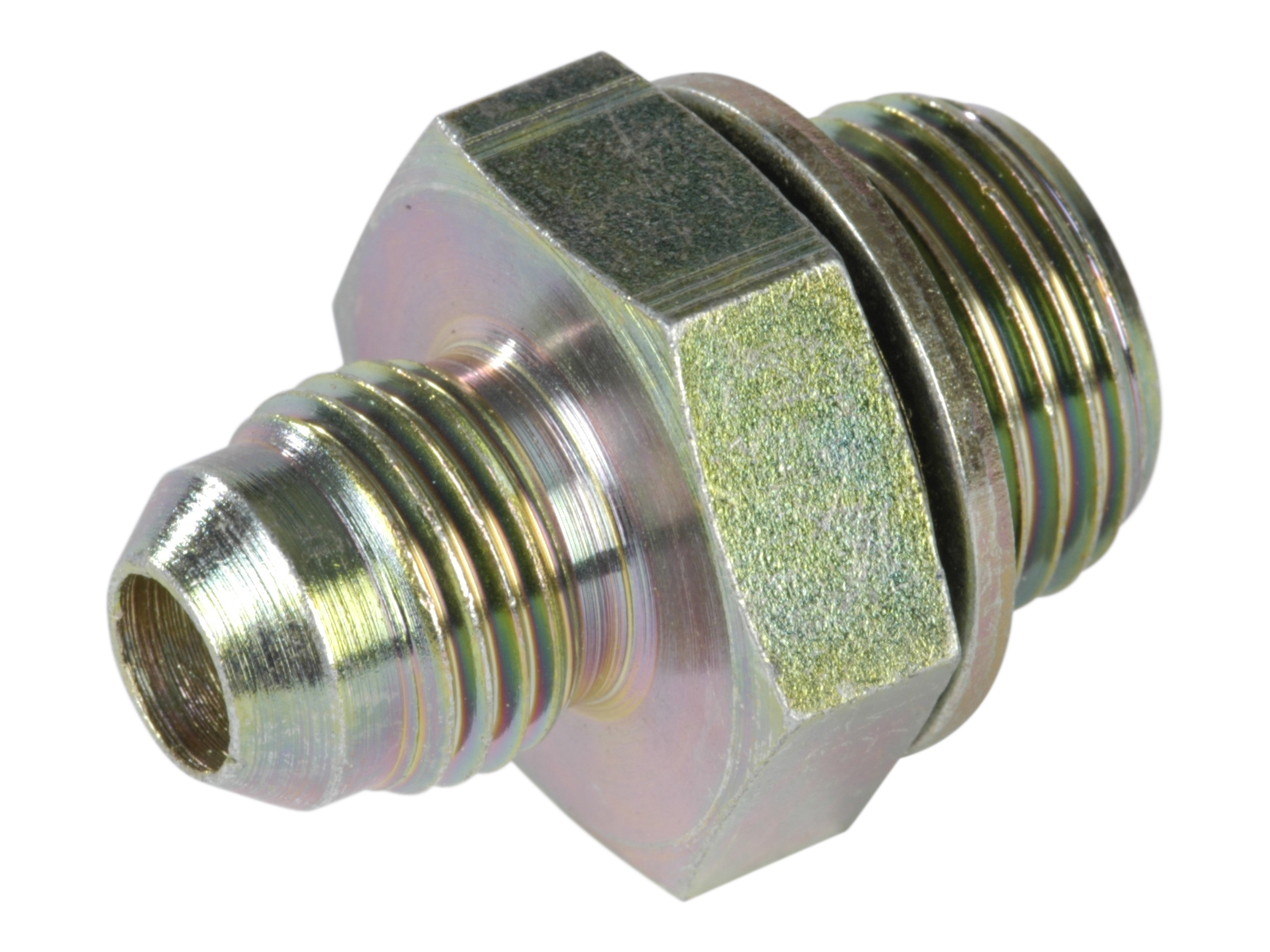

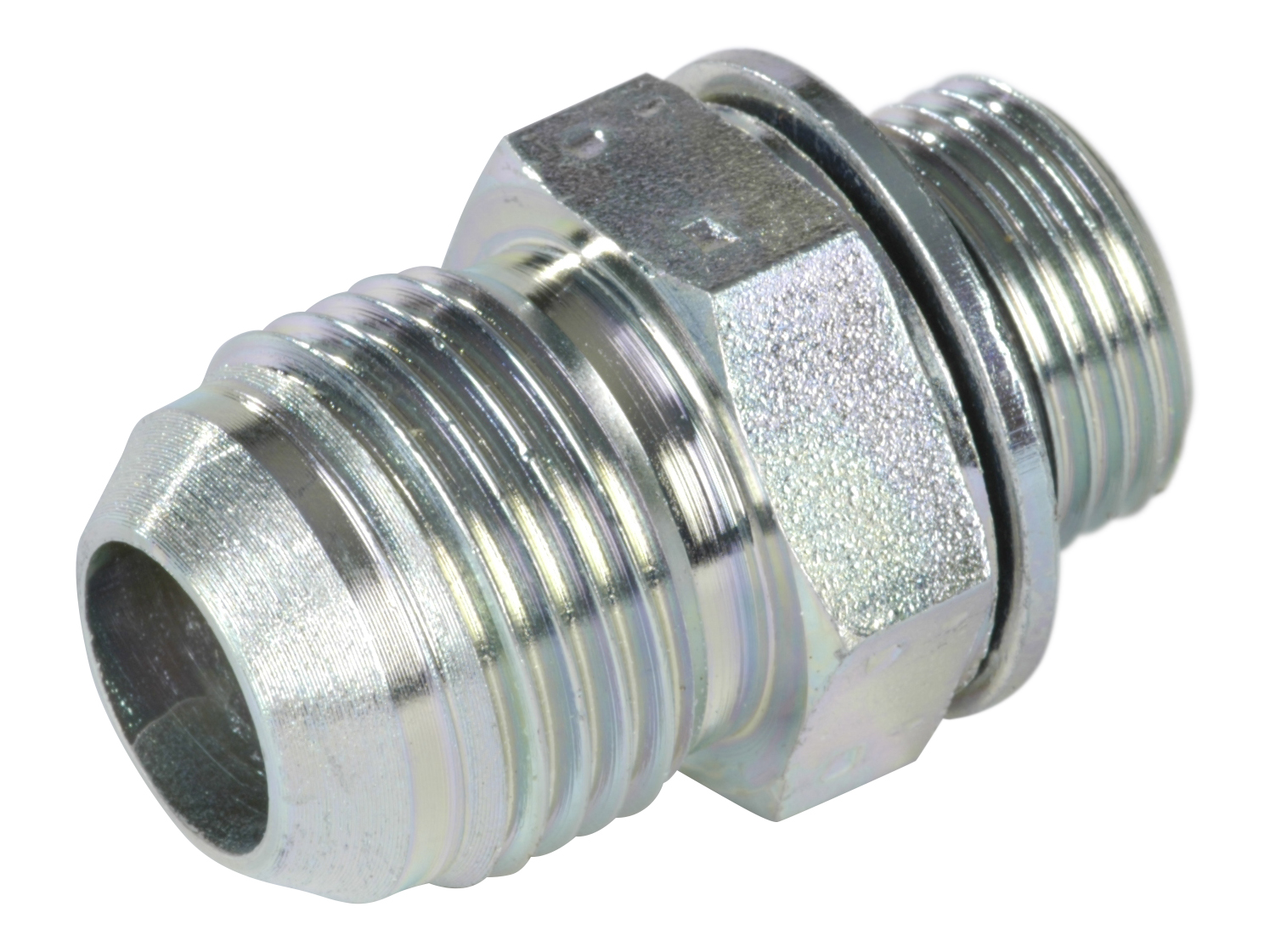

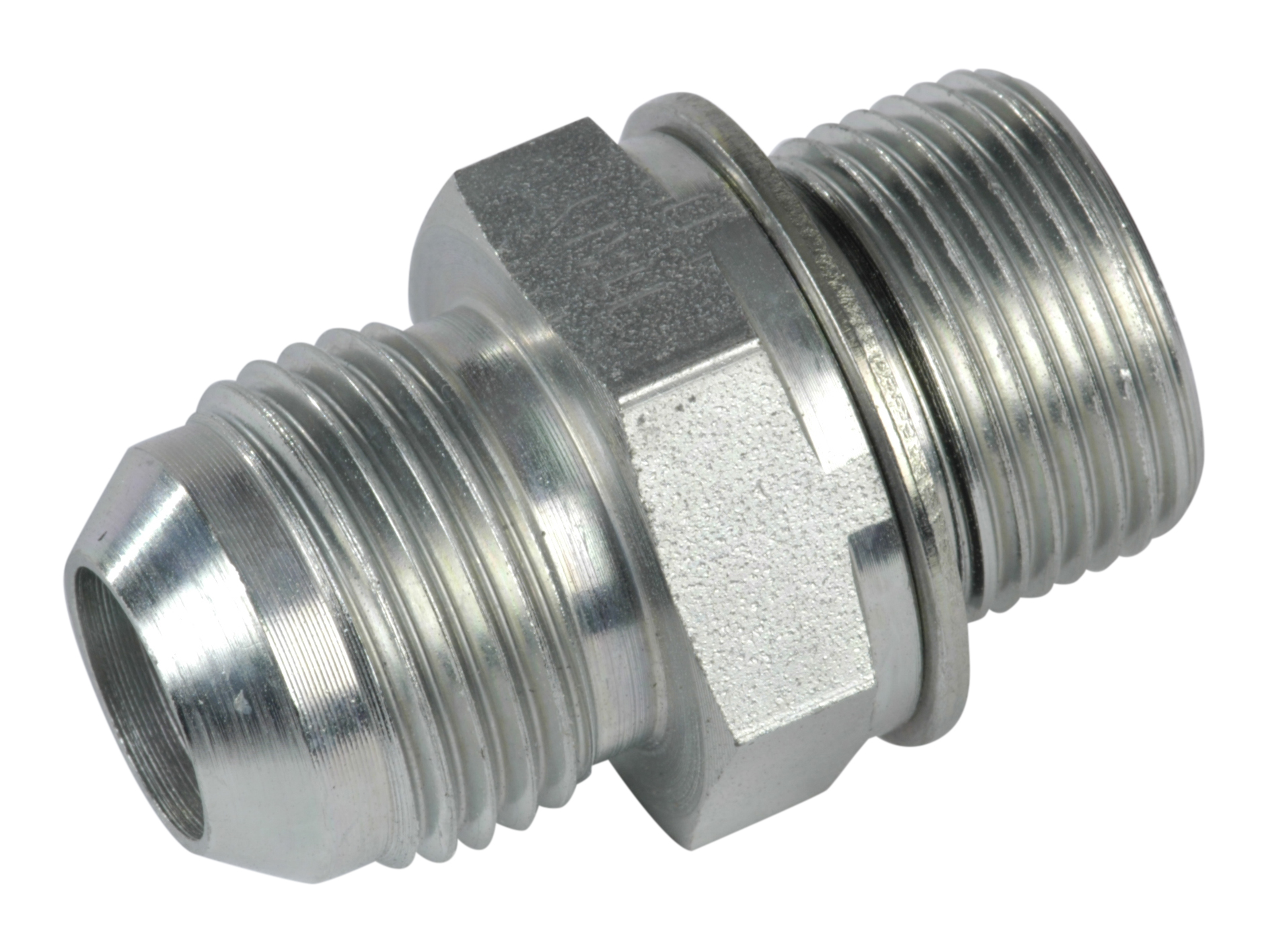

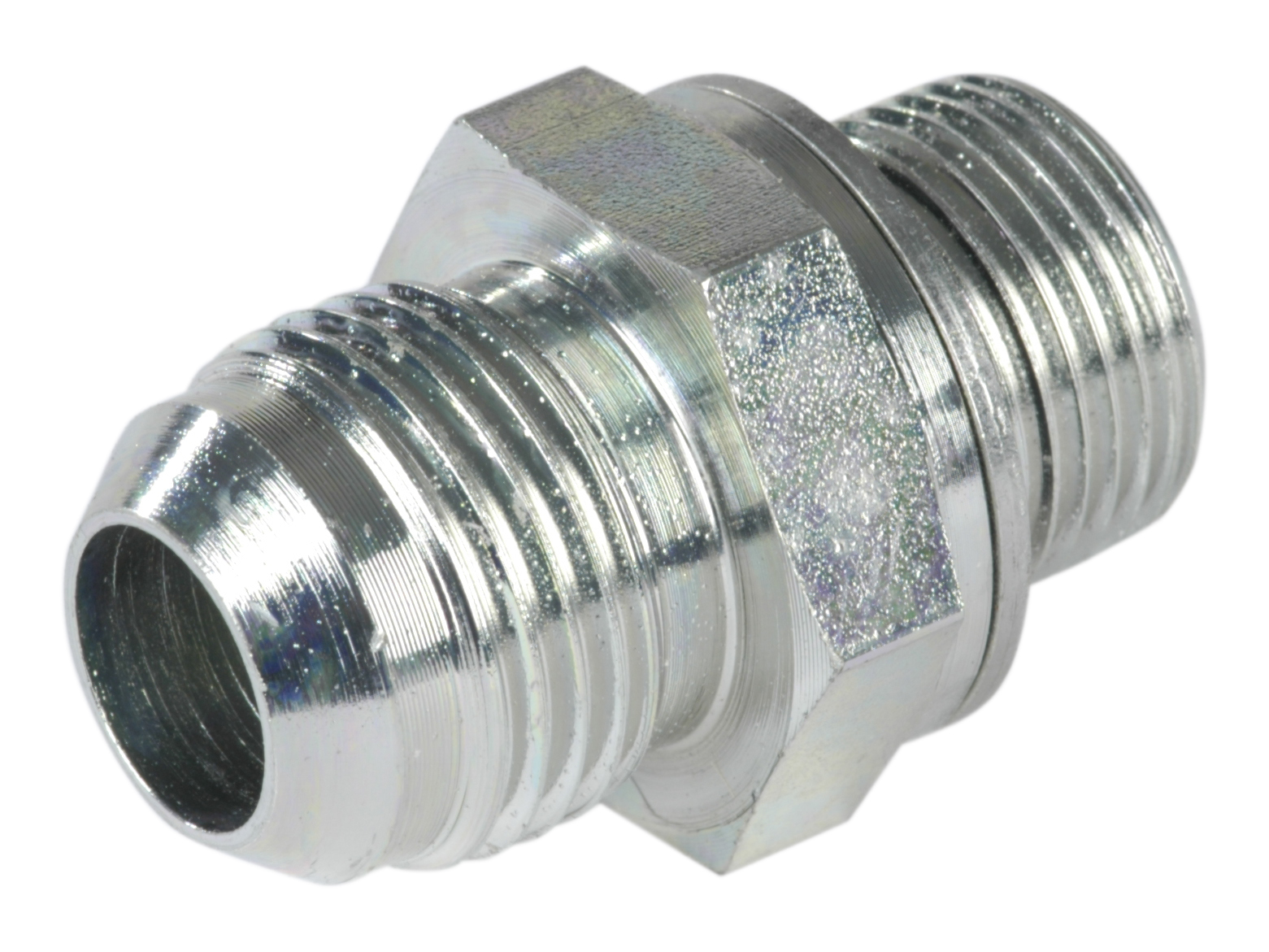

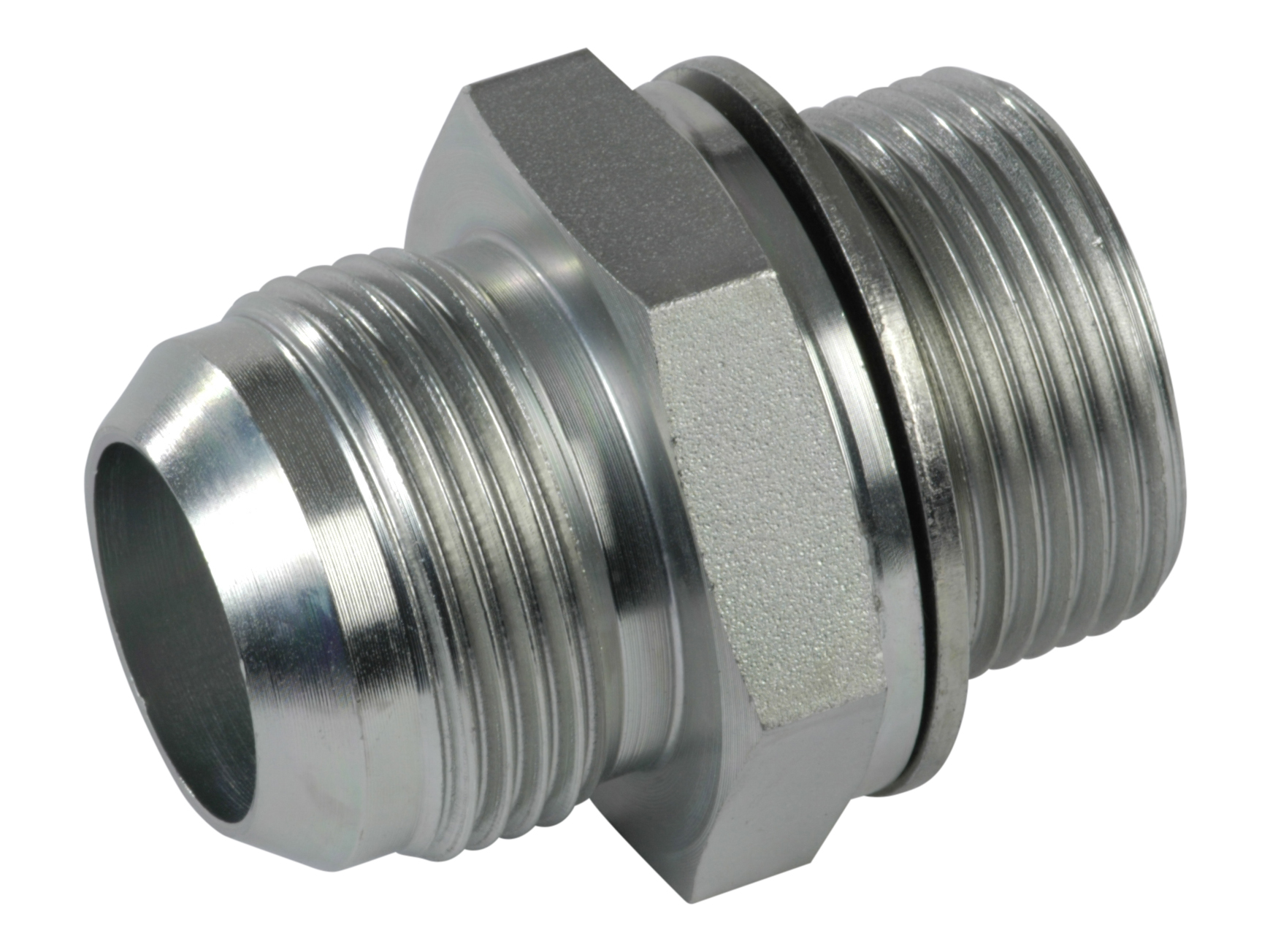

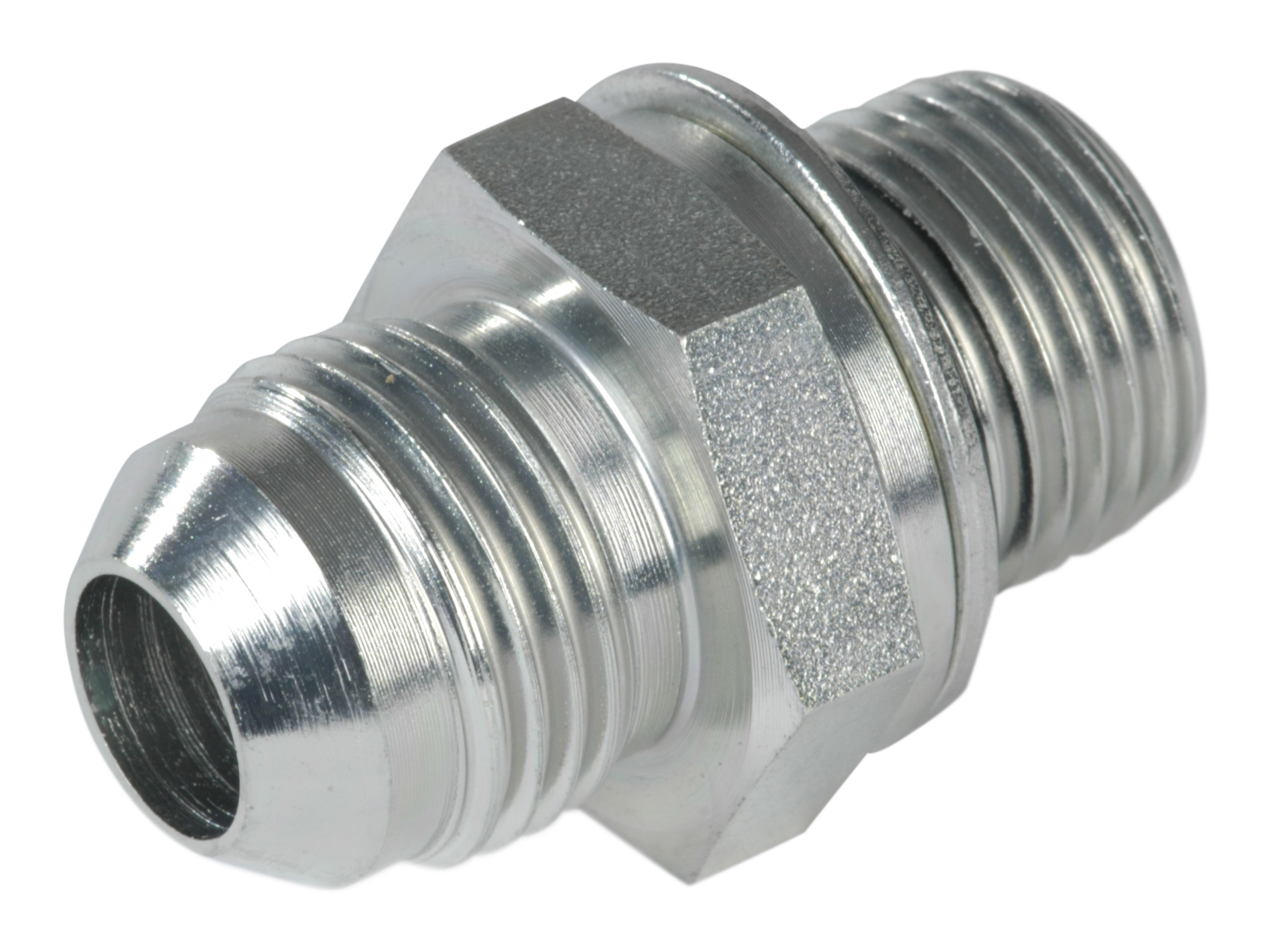

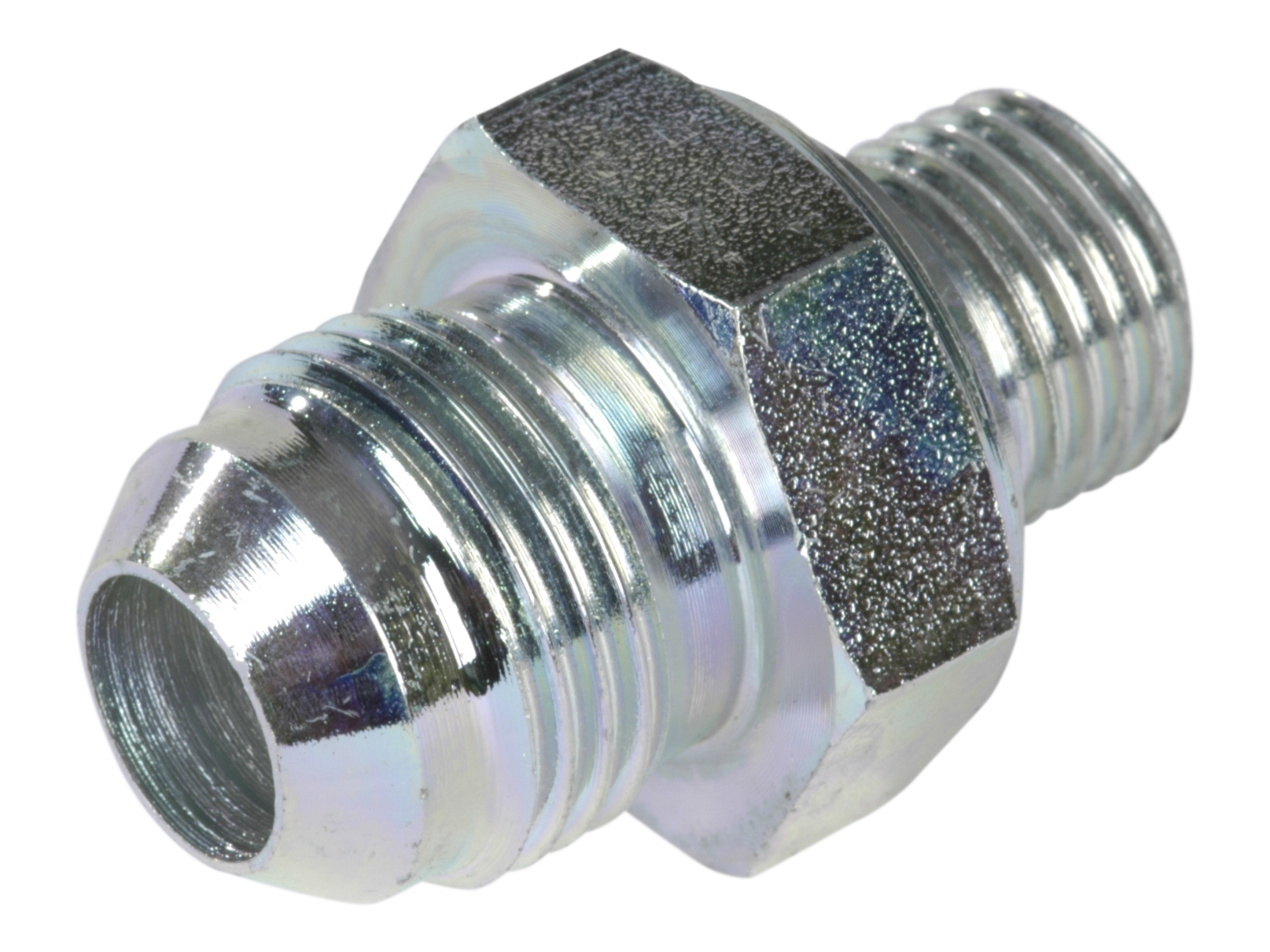

Adapter JIC male x MM male - M / JGEM

Adapter JIC male x MM male - M / JGEM

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer metric Pressure max.
M-06-10 S240-06-10M adaptor MM 6 mm 7/16-20 JIC M10x1 450 bar
M-08-12 S240-08-12M adaptor MM 8 mm 1/2-20 JIC M12x1,5 416 bar
M-10-12 Adaptor 9/16-18 x M12x1,5 SA102067-1012 10 mm 9/16-18 JIC M12x1,5 350 bar
M-10-14 S240-10-14M adaptor MM 10 mm 9/16-18 JIC M14x1,5 350 bar
M-10-16 S240-10-16M adaptor MM 10 mm 9/16-18 JIC M16x1,5 350 bar
M-10-18 S240-10-18M adaptor MM 10 mm 9/16-18 JIC M18x1,5 350 bar
M-12-14 S240-12-14M adaptor MM 12 mm 3/4-16 JIC M14x1,5 350 bar
M-12-16 S240-12-16M adaptor MM 12 mm 3/4-16 JIC M16x1,5 350 bar
M-12-18 S240-12-18M adaptor MM 12 mm 3/4-16 JIC M18x1,5 350 bar
M-16-18 S240-16-18M adaptor MM 16 mm 7/8-14 JIC M18x1,5 350 bar
M-16-20 Adaptor, cyl. MM ¤ 16 mm 7/8-14 JIC M20x1,5 350 bar
M-16-22 S240-16-22M adaptor MM 16 mm 7/8-14 JIC M22x1,5 350 bar
M-20-22 S240-20-22M adaptor MM 20 mm 1.1/16-12 JIC M22x1,5 300 bar
M-20-27 S240-20-27M adaptor MM 20 mm 1.1/16-12 JIC M27x2 300 bar
M-25-33 S240-25-33M adaptor MM 25 mm 1.5/16-12 JIC M33x2 290 bar
M-32-42 S240-30-42M adaptor MM 32 mm 1.5/8-12 JIC M42x2 240 bar
Angle
0
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
