S240-10-14M adaptor MM
\ufeff
-

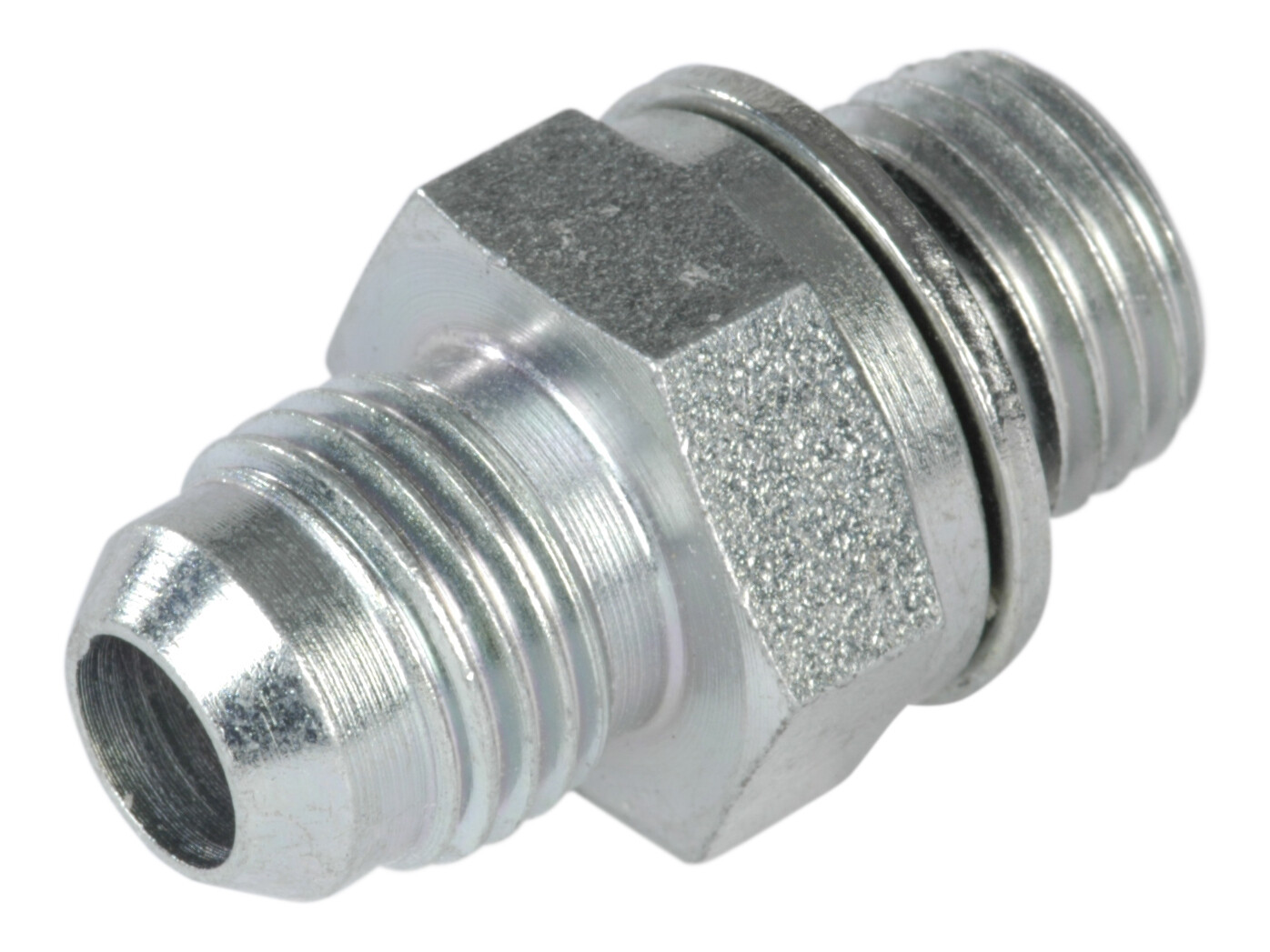

JIC 37° external thread straight basic connector
- External thread metric
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 9974 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
M-10-14
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
34 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
12 mm
Diameter pipe
10 mm
Dimension F metric
M14x1,5
J
9/16-18 JIC
Material
Steel
Model code
A102067/1014
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 9974
Surface treatment
Electro-galvanized / White chromatized
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer metric
M14x1,5
Package size
0 pcs
Barcode
5704295981130
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° external thread straight basic connector
- External thread metric
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 9974 - for threaded ports
- Operating temperature -20° to +120°
