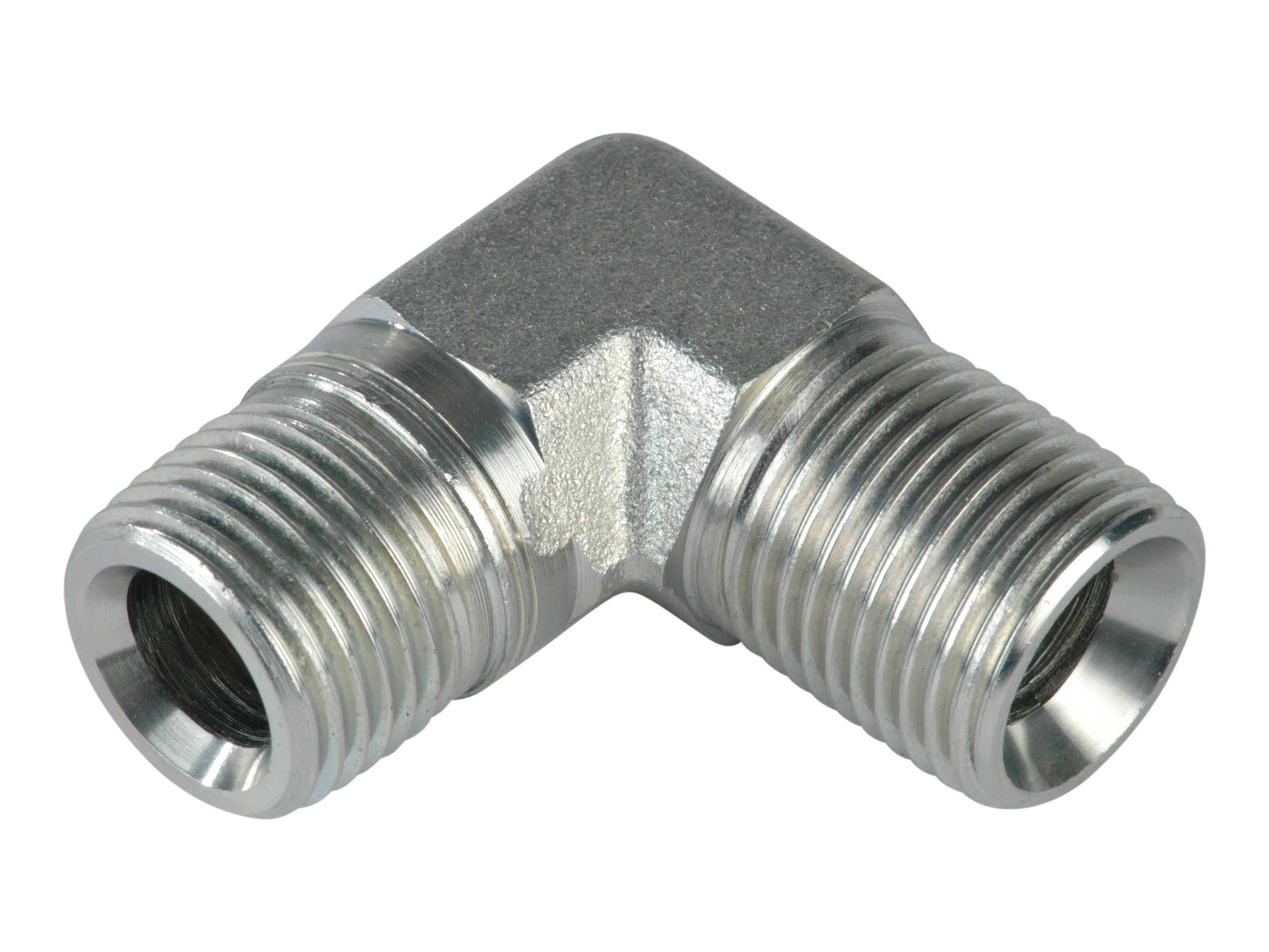

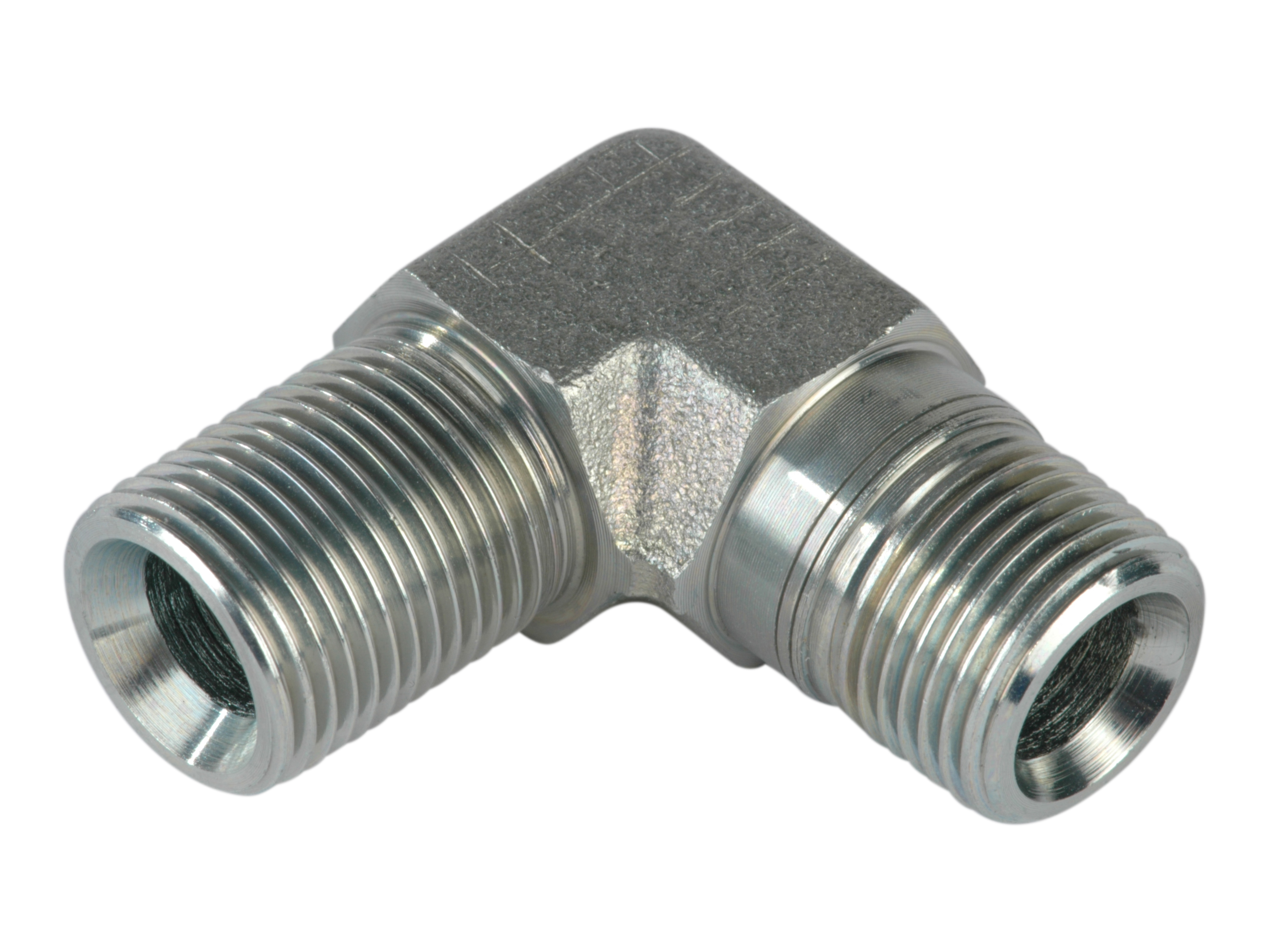

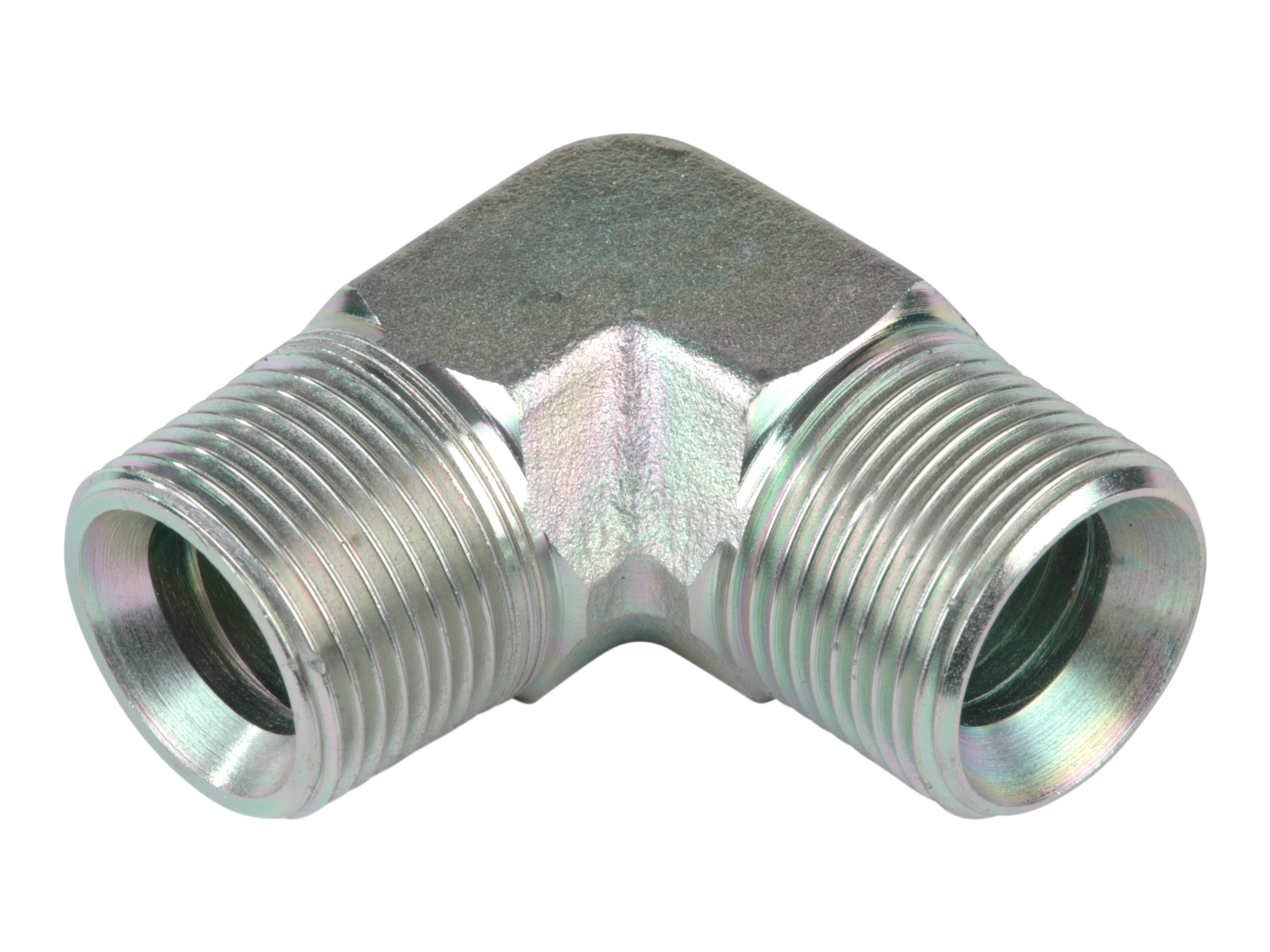

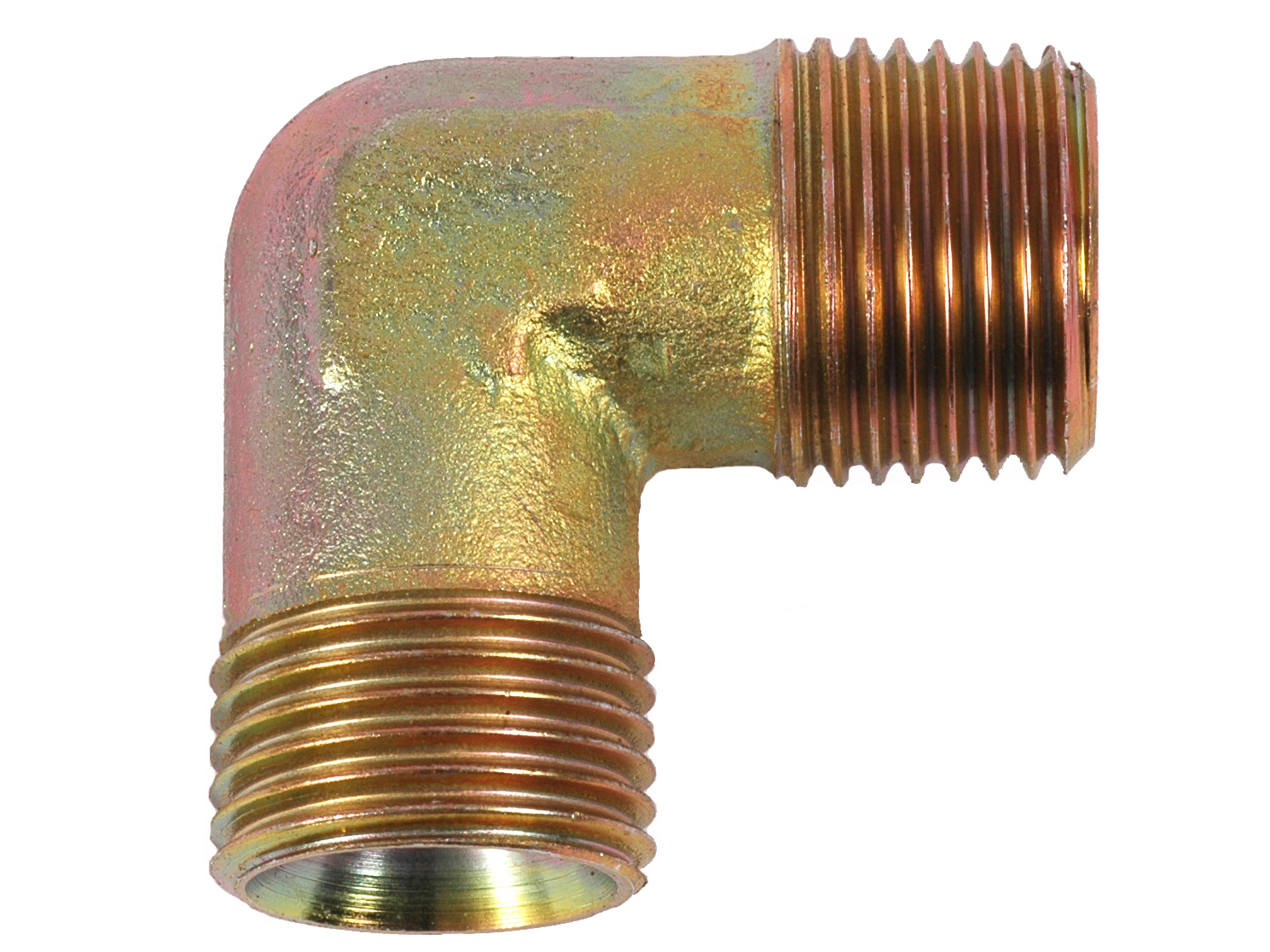

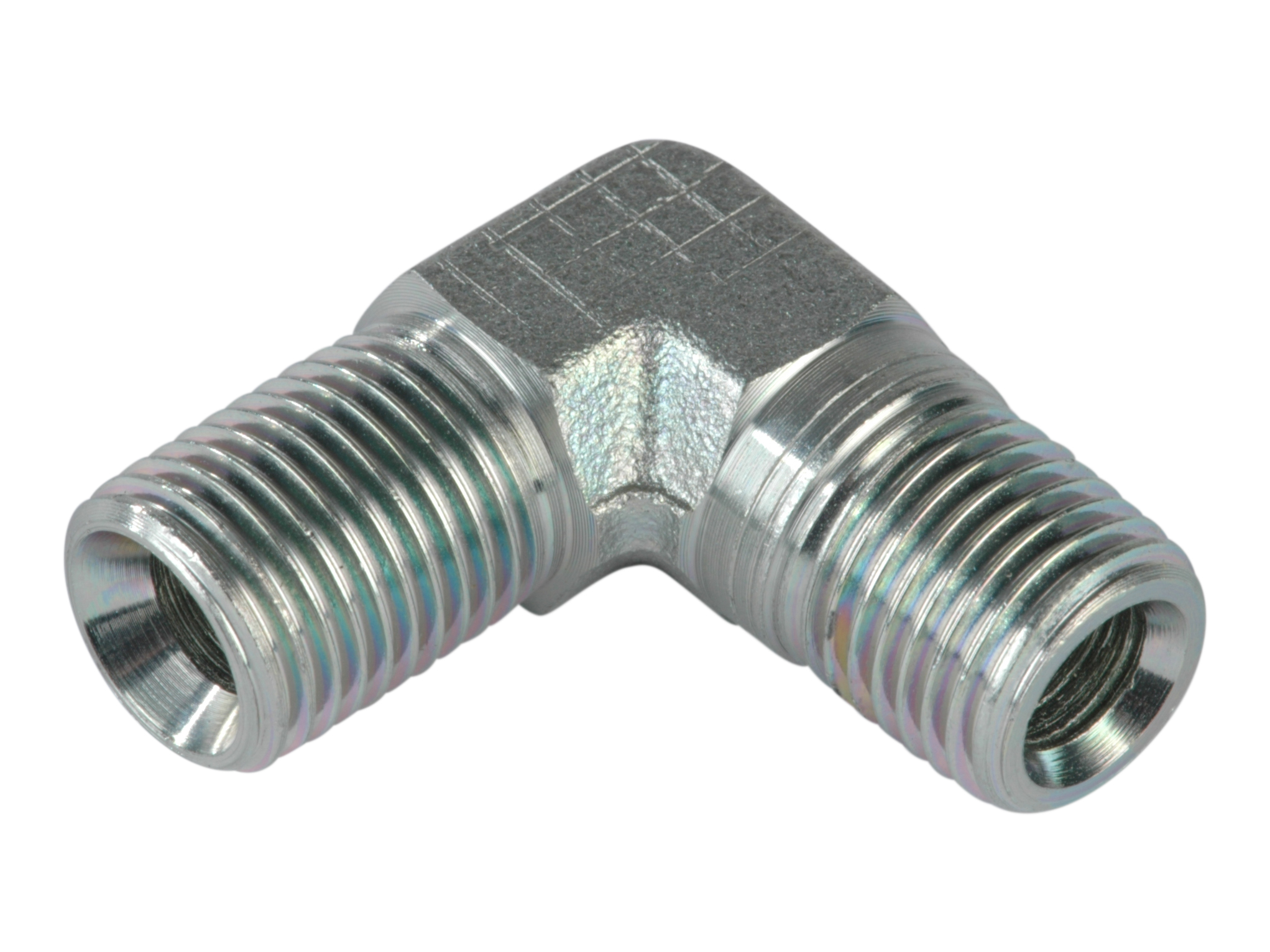

Elbow adapter 90° BSP male x BSPT male - 05BK / 537 / 1046

SELECT VARIANT

Partnumber	Description	Thread outer	Thread outer	Thread inner	Pressure max.
05BK04	Kulmanippa 90° uk-uk	G 1/4 BSP	R 1/4 BSPT		350 bar
05BK06	Elbow 3/8" BSP x 3/8" BSPT		R 3/8 BSPT	G 3/8 BSP	350 bar
05BK08	Kulmanippa 90° uk-uk	G 1/2 BSP	R 1/2 BSPT		315 bar
05BK12	Kulmanippa 90° uk-uk	G 3/4 BSP	R 3/4 BSPT		250 bar
05BK16	Elbow 1" BSP x 1" BSPT	G 1 BSP	R 1 BSPT		200 bar
05BK1612	Elbow 1" BSP x 3/4" BSPT		R 3/4 BSPT	G 1 BSP
05BK20	Elbow 1.1/4" BSP x 1.1/4" BSPT		R 1.1/4 BSPT	G 1.1/4 BSP	160 bar
05BK32	Elbow 2" BSP x 2" BSPT		R 2 BSPT	G 2 BSP

Angle
