Elbow 3/8" BSP x 3/8" BSPT

Vinkel 3/8 BSP x 3/8 BSPT Støbt udførelse

Partnumber:

05BK06

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

I.M.M Hydraulics

CH1

19 mm

G 3/8 BSP

R 3/8 BSPT

31 mm

32 mm

Material

Steel

Material quality

1,0726

Pressure max.

350 bar

Surface treatment

Electro zinc plated

Thread outer

G 3/8 BSP

Thread outer

R 3/8 BSPT

Ø tube

10 mm mm

Package size

0 pcs

Barcode

5704334020974

Gross weight

0,06 Kg

Net weight

0,06 Kg

Country of origin

ITA

Intrastat code

73071110

Product information

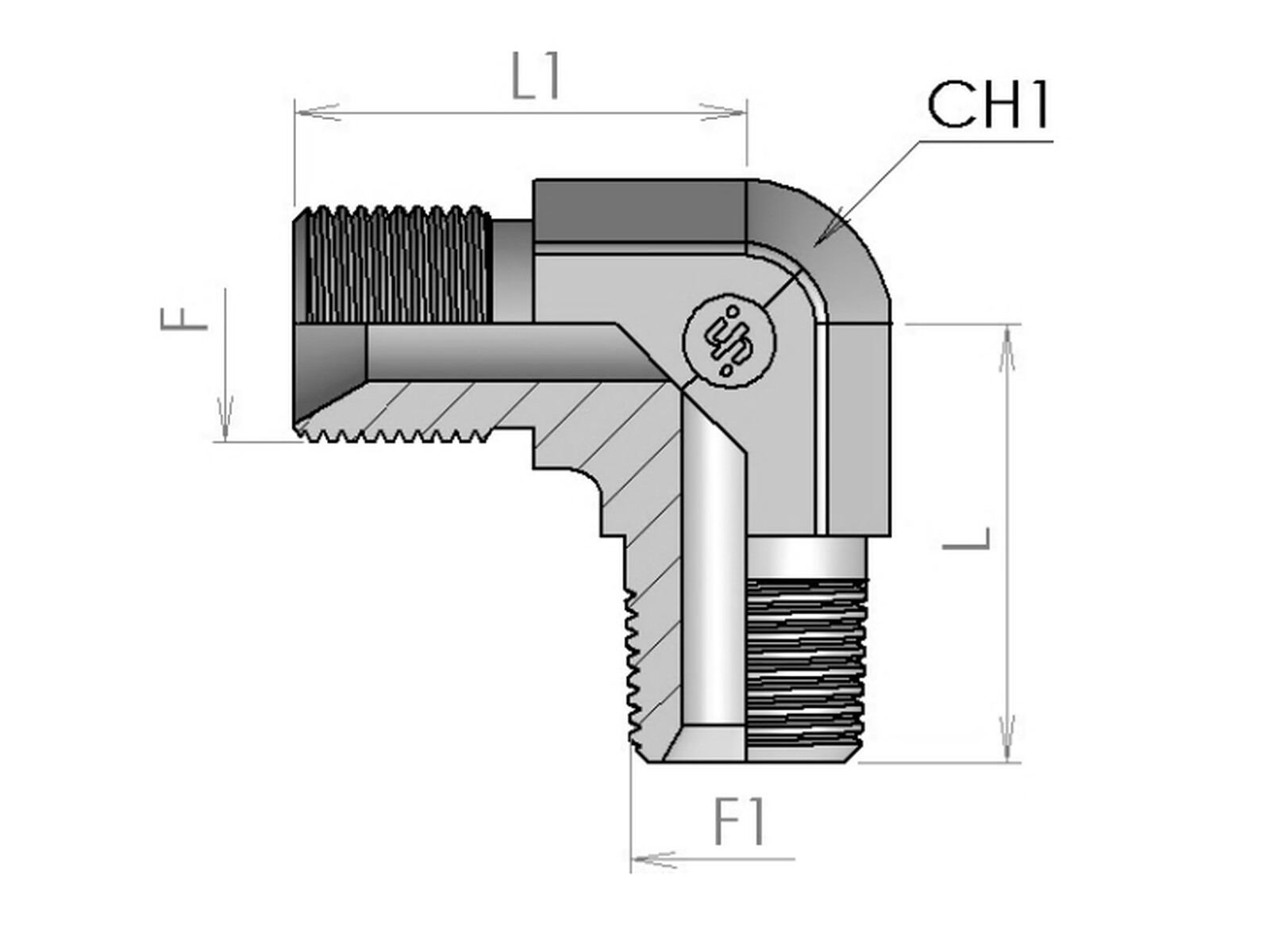

Measure sketch

Vinkel 3/8 BSP x 3/8 BSPT Støbt udførelse
