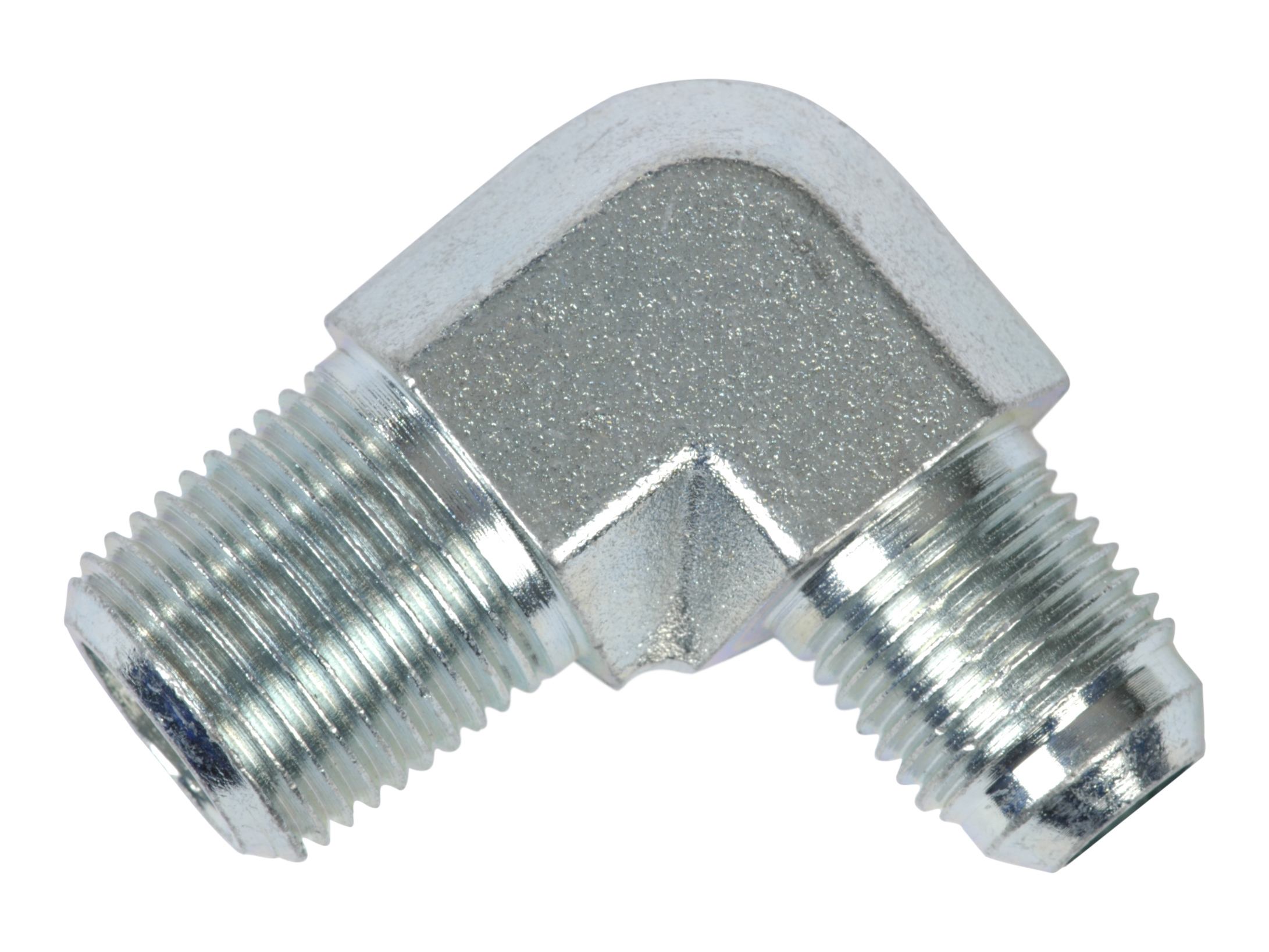

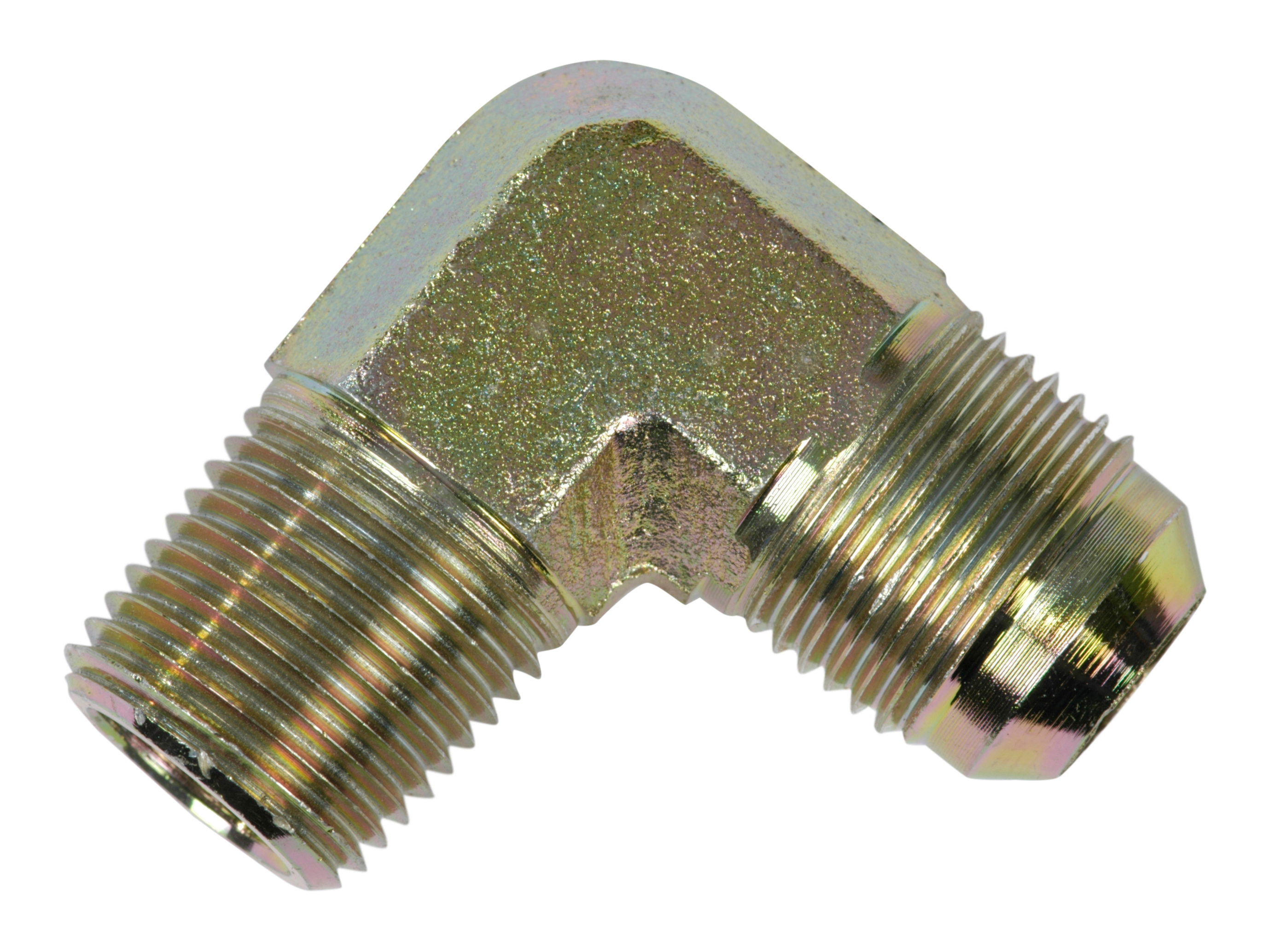

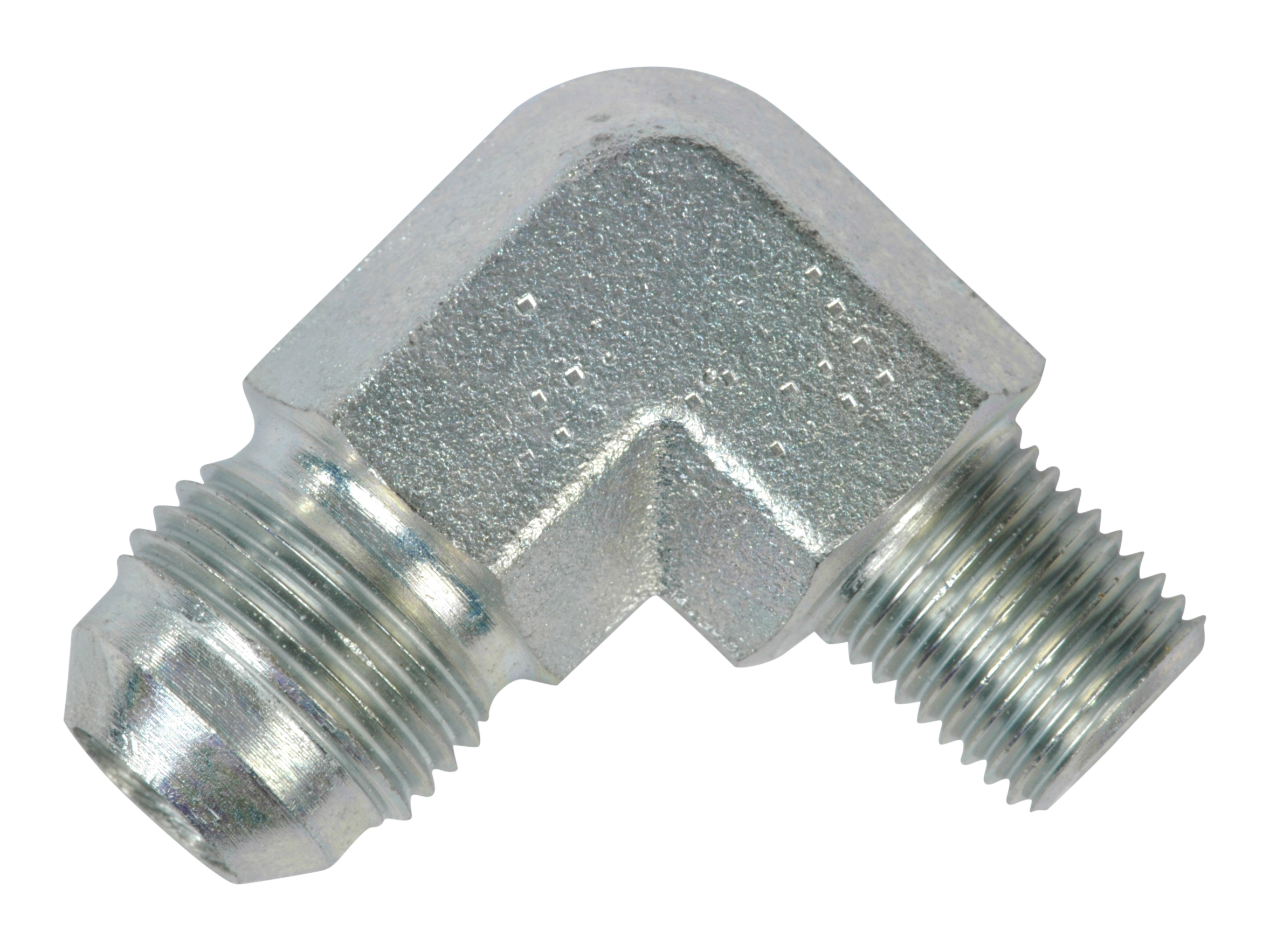

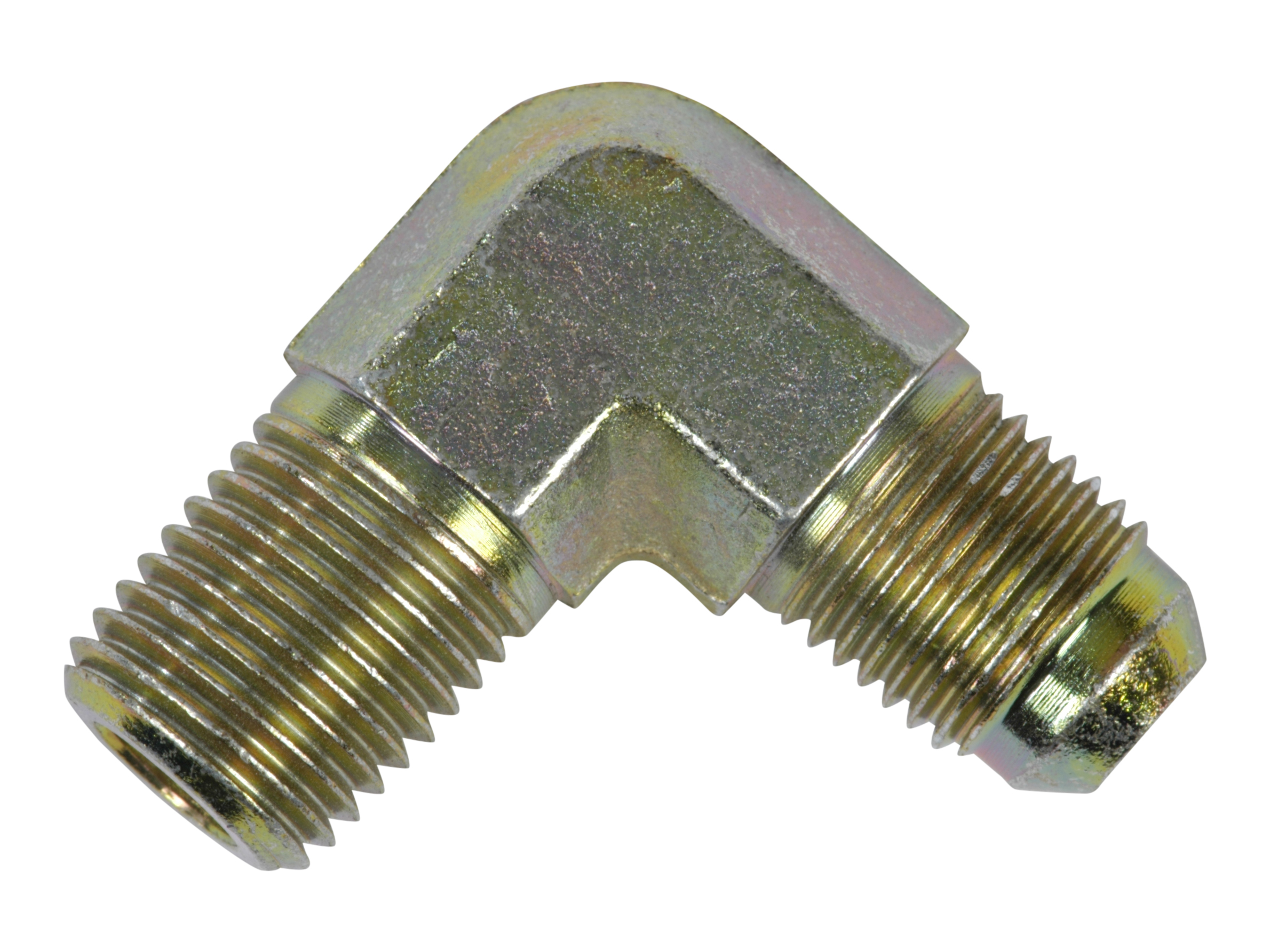

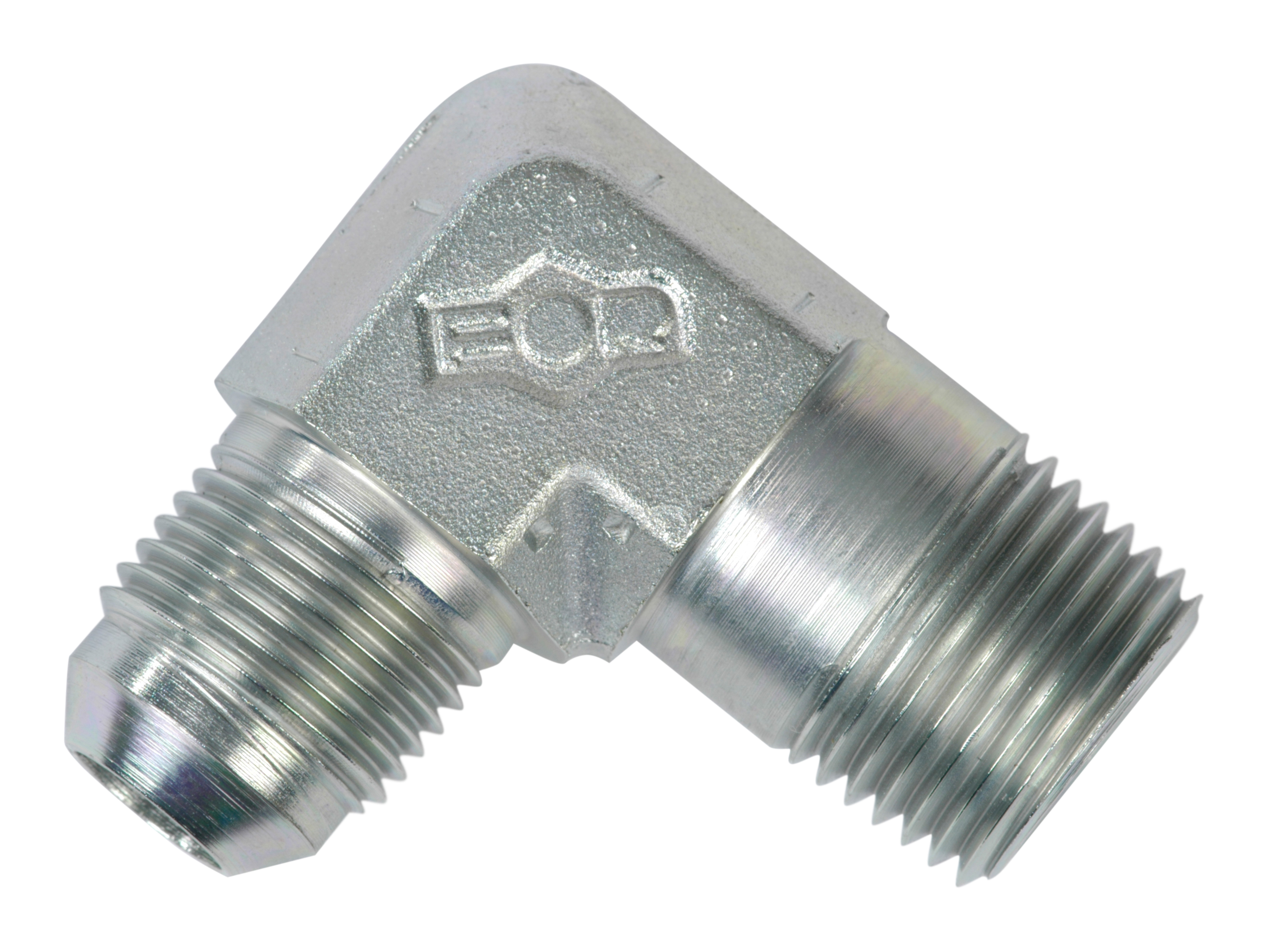

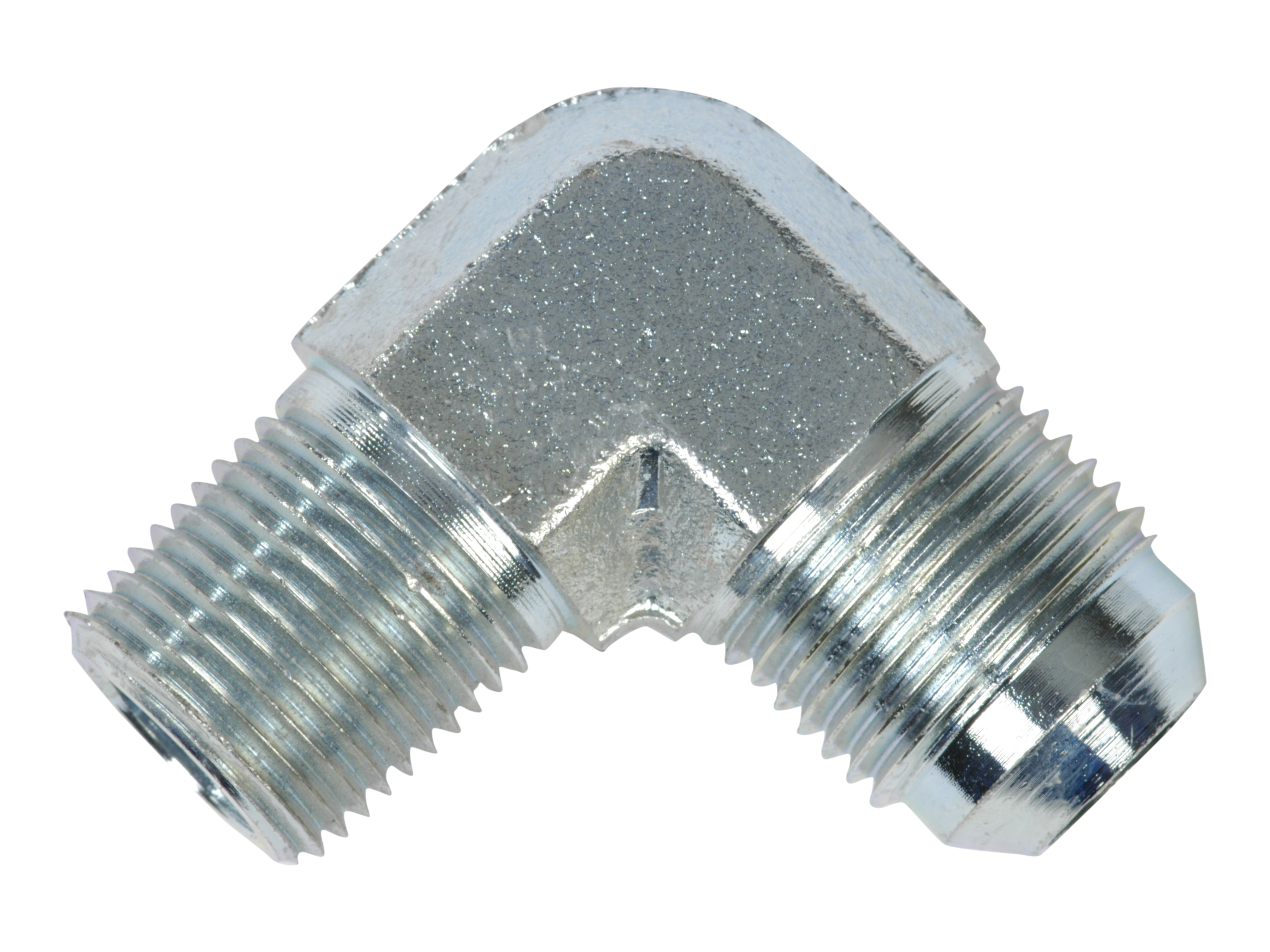

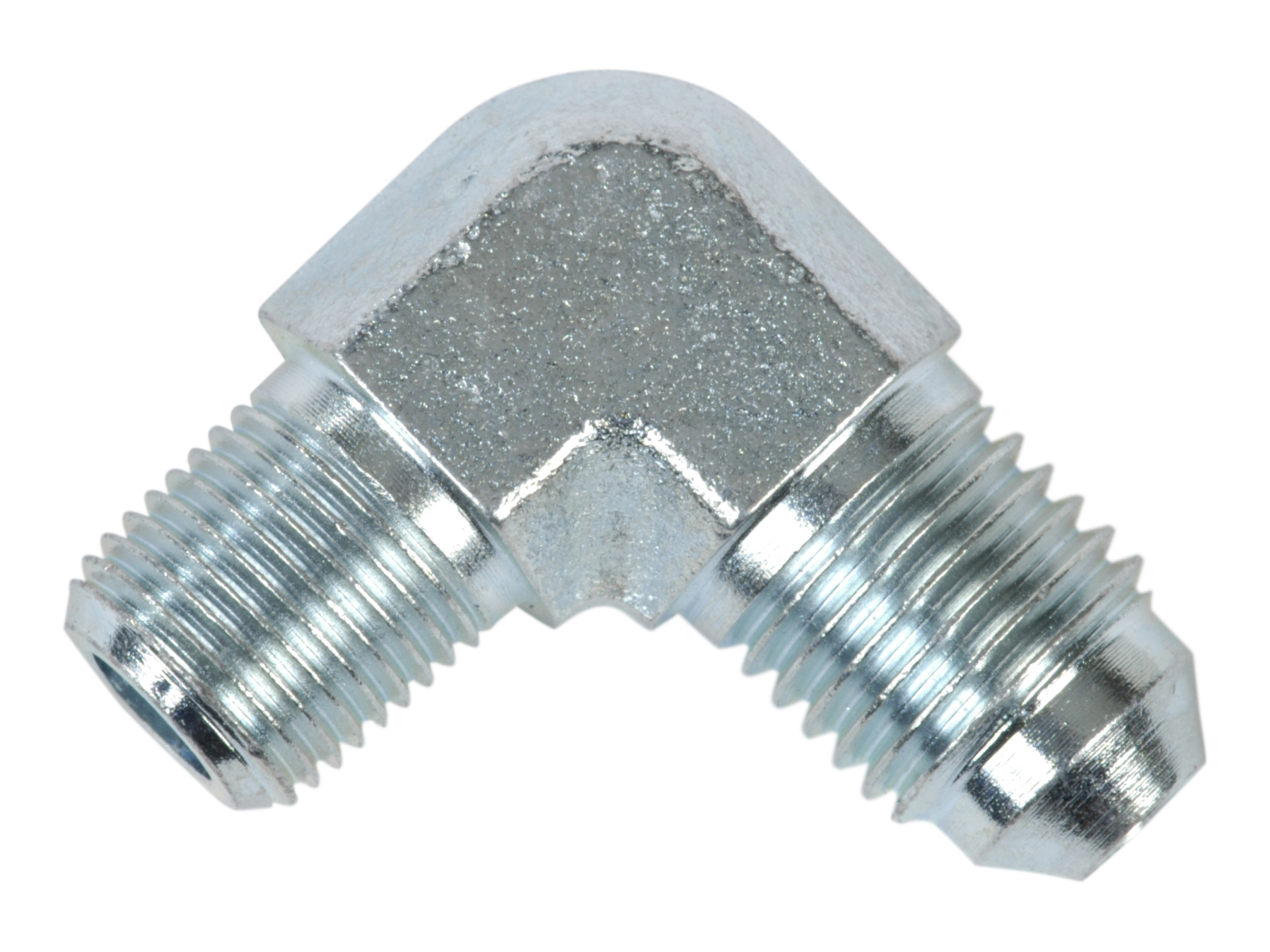

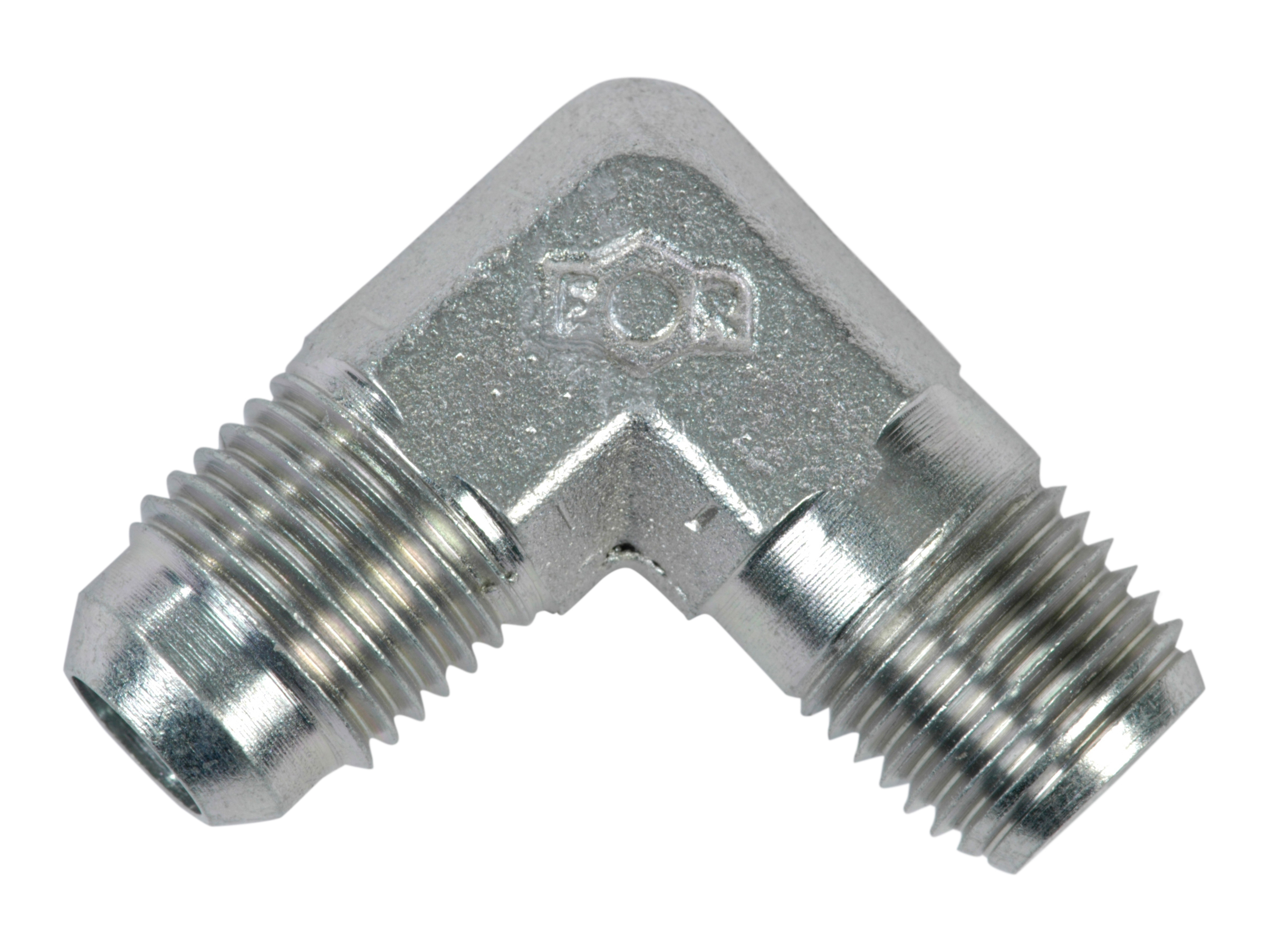

Elbow adapter 90° JIC male x NPT male - C1 / COA1 / JWEN

Elbow adapter 90° JIC male x NPT male - C1 / COA1 / JWEN

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Brand Name
C1-06-1/8 S525-06-10N elbow NPT 6 mm 1/8 NPT 7/16-20 JIC FOR
C1-08-1/4 S525-08-13N elbow NPT 8 mm 1/4 NPT 1/2-20 JIC FOR
C1-10-1/4 S525-10-13N elbow NPT 06BK0406 10 mm 1/4 NPT 9/16-18 JIC FOR
C1-10-3/8 S525-10-17N elbow NPT 10 mm 3/8 NPT 9/16-18 JIC FOR
C1-12-1/2 S525-12-21N elbow NPT 12 mm 1/2 NPT 3/4-16 JIC FOR
C1-12-1/4 S525-12-13N elbow NPT 12 mm 1/4 NPT 3/4-16 JIC FOR
C1-12-3/8 S525-12-17N elbow NPT 12 mm 3/8 NPT 3/4-16 JIC FOR
C1-16-1/2 S525-16-21N elbow NPT 16 mm 1/2 NPT 7/8-14 JIC FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
