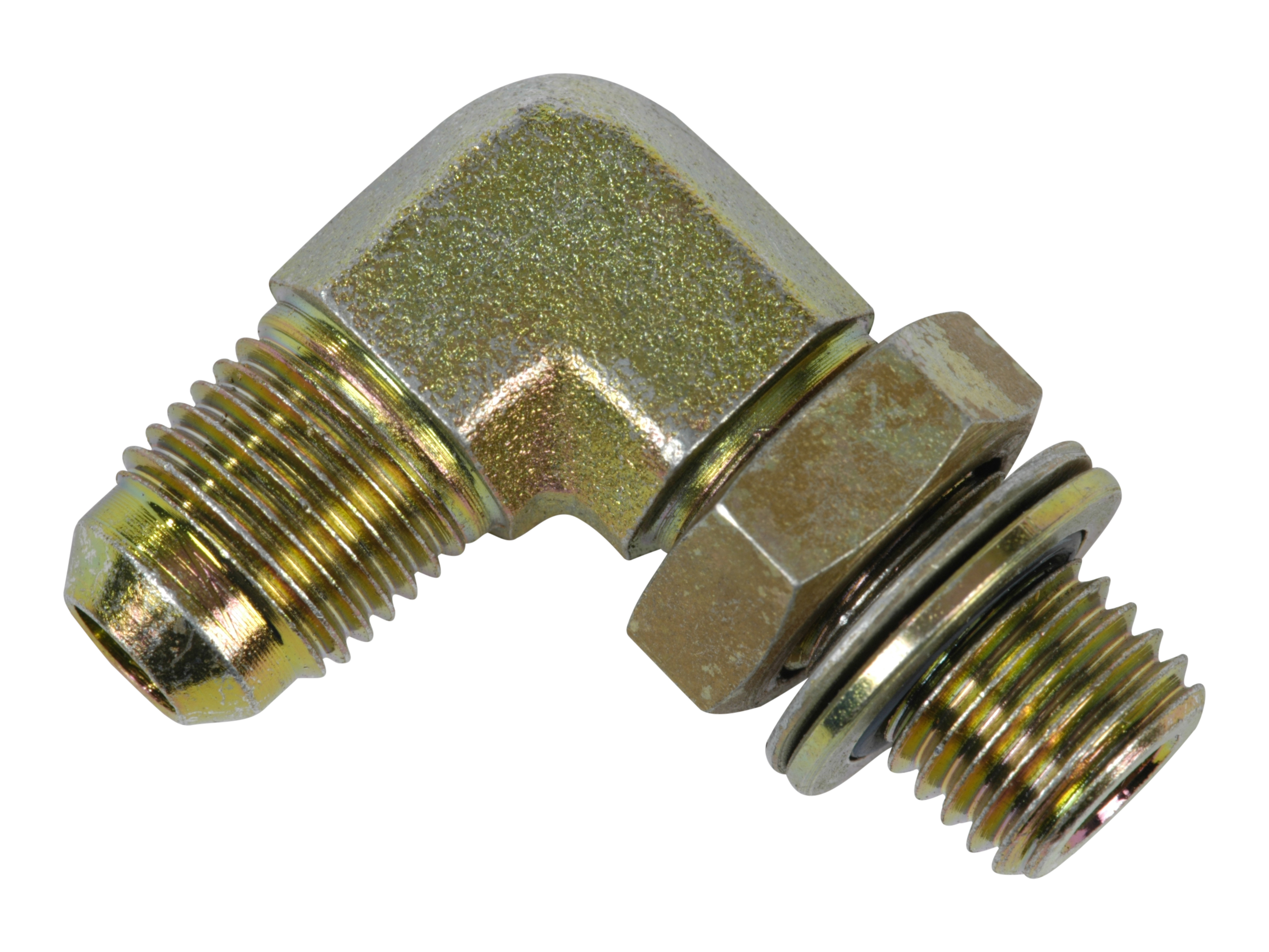

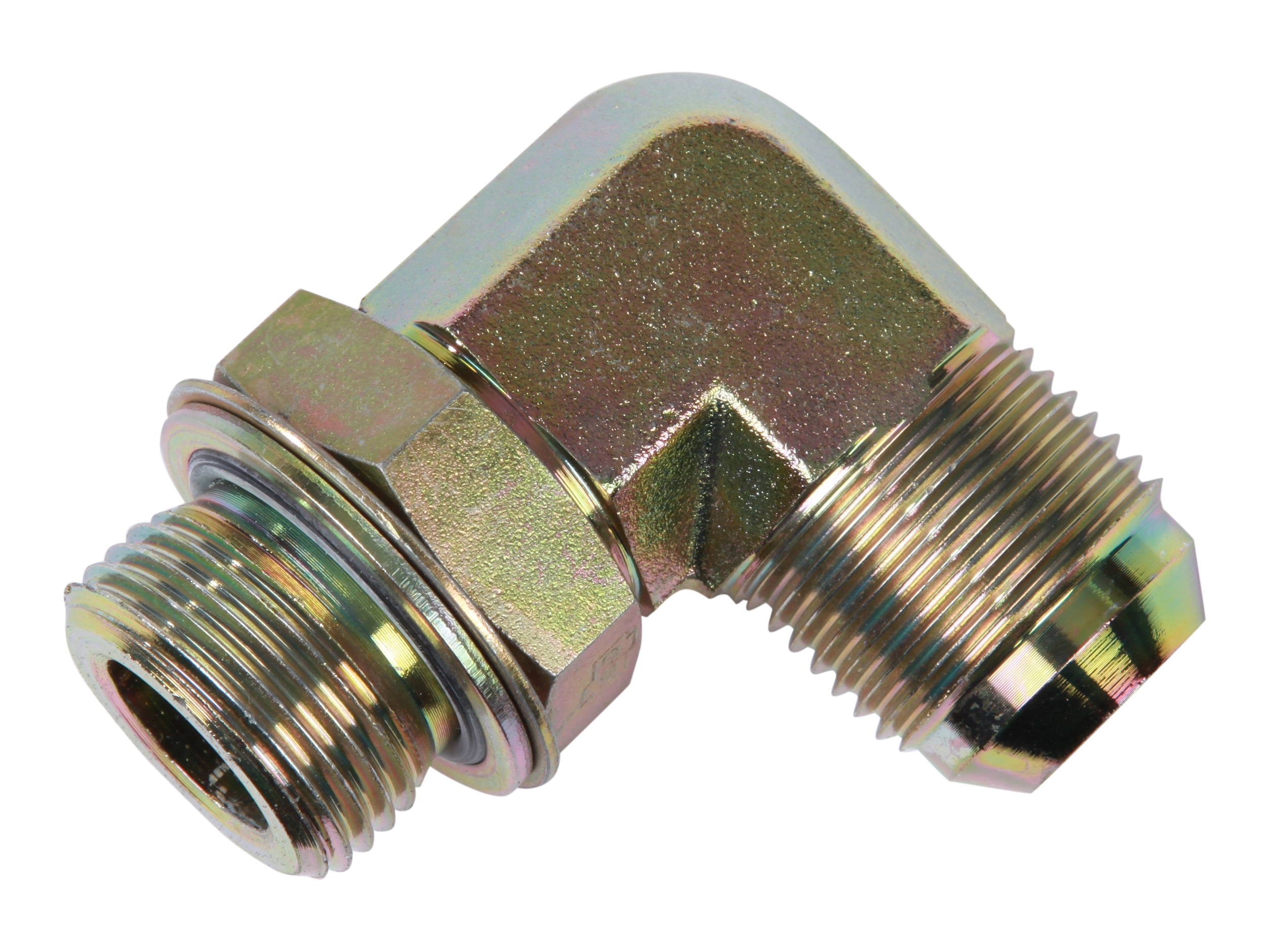

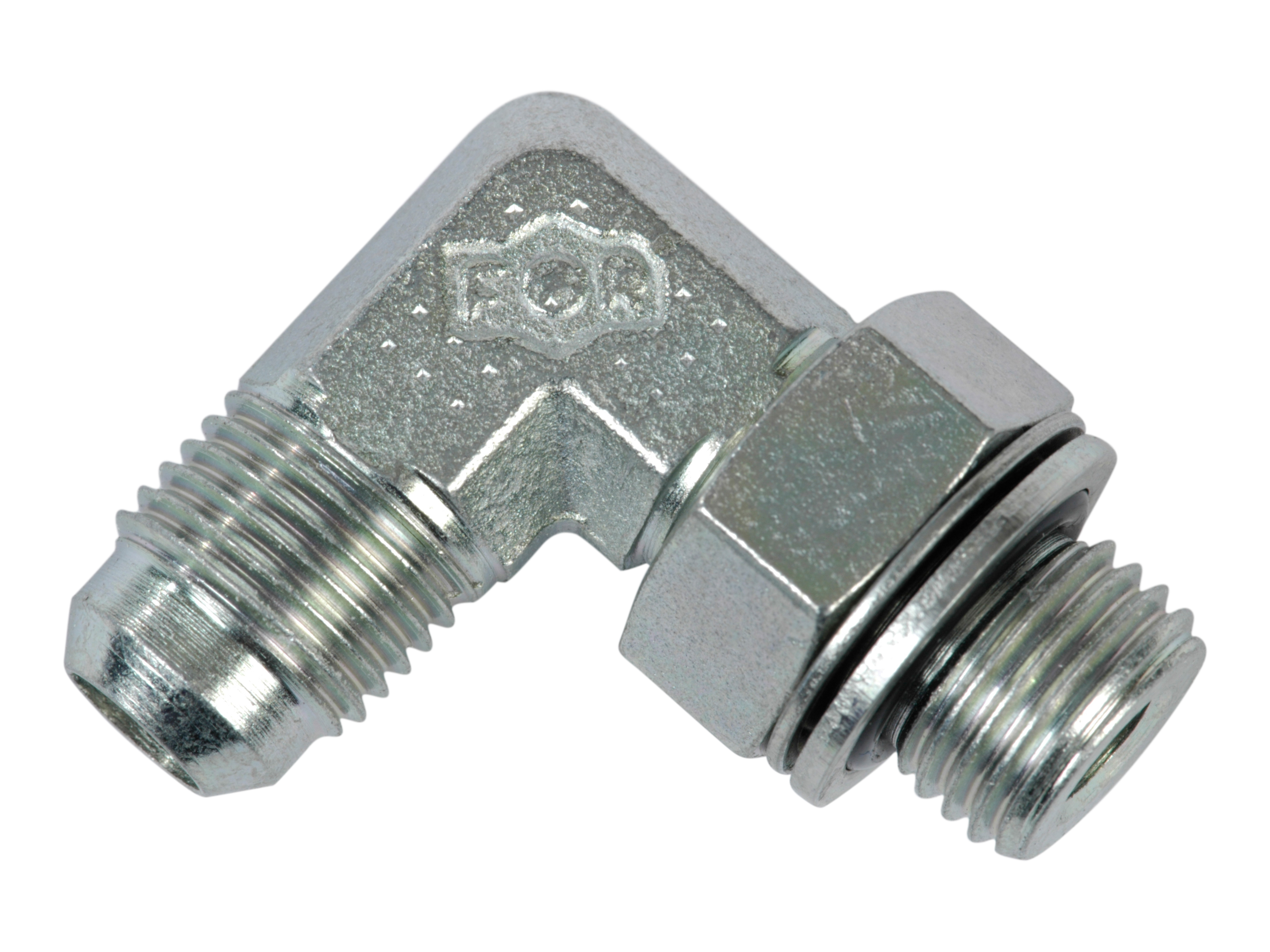

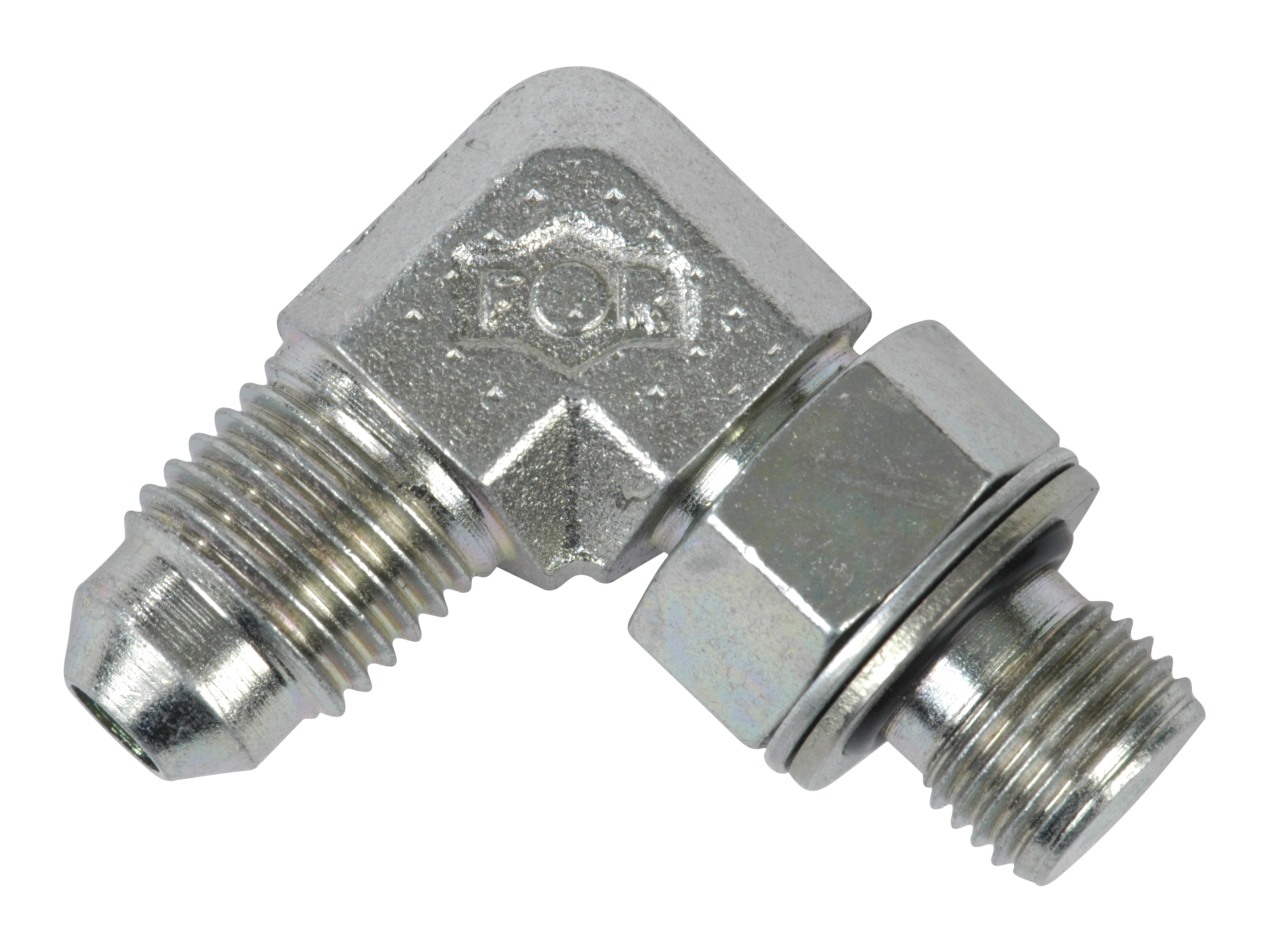

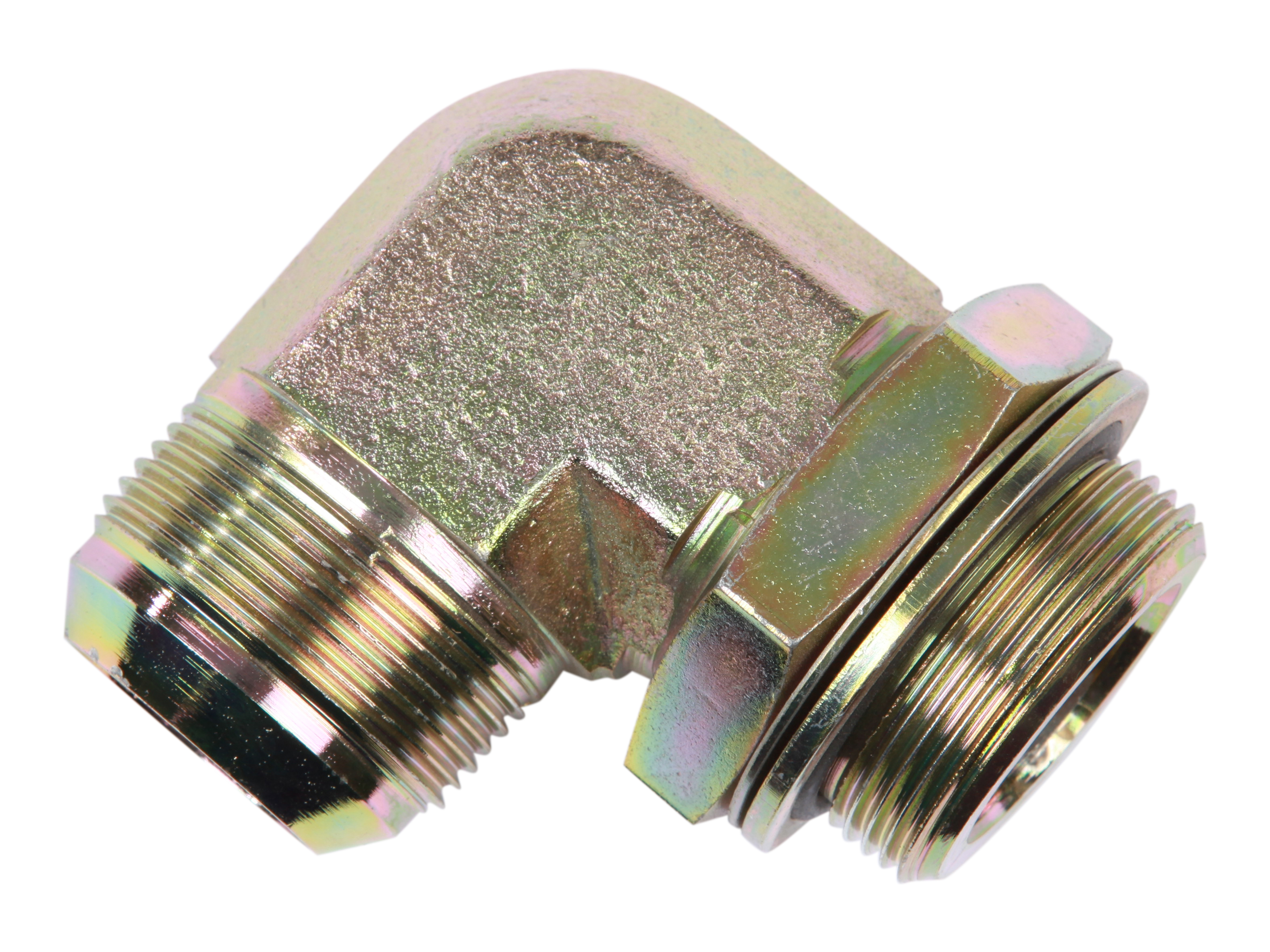

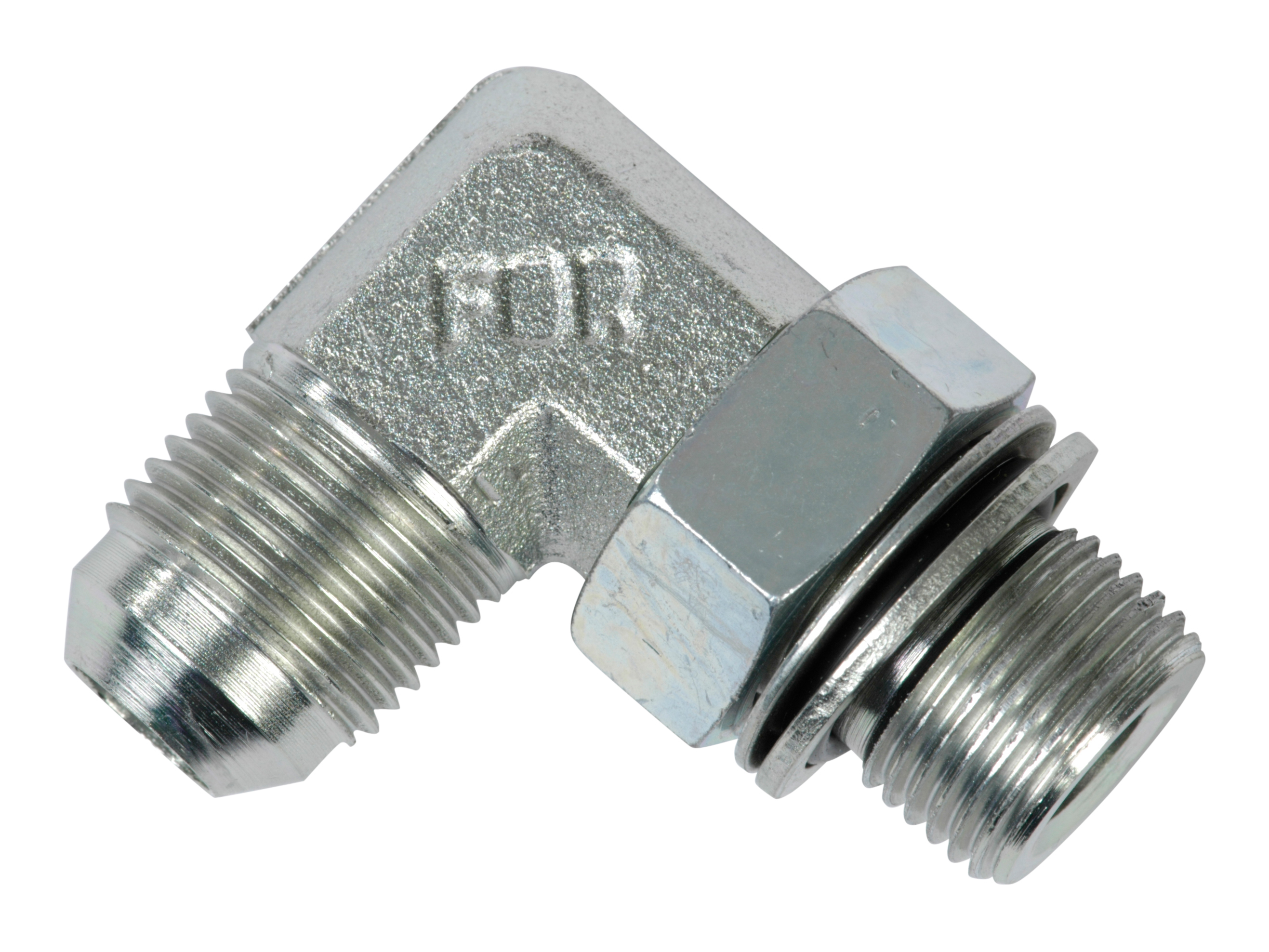

Elbow adapter 90° JIC male x MM male adjustable - JWEEM

Elbow adapter 90° JIC male x MM male adjustable - JWEEM

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer metric Thread outer Brand Name
CO-06-10 S625-06-10M elbow 6 mm M10x1 7/16-20 JIC FOR
CO-08-12 S625-08-12M elbow 8 mm M12x1,5 1/2-20 JIC FOR
CO-10-14 S625-10-14M elbow 10 mm M14x1,5 9/16-18 JIC FOR
CO-12-16 S625-12-16M elbow 12 mm M16x1,5 3/4-16 JIC FOR
CO-12-18 S625-12-18M elbow 12 mm M18x1,5 3/4-16 JIC FOR
CO-16-18 S625-16-18M elbow 14-15-16 mm M18x1,5 7/8-14 JIC FOR
CO-16-22 S625-16-22M elbow 16 mm M22x1,5 7/8-14 JIC FOR
CO-20-22 S625-20-22M elbow 20 mm M22x1,5 1.1/16-12 JIC FOR
CO-20-27 S625-20-27M elbow 20 mm M27x2 1.1/16-12 JIC FOR
CO-32-42 S625-32-42M elbow 30-32 mm M42x2 1.5/8-12 JIC FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
