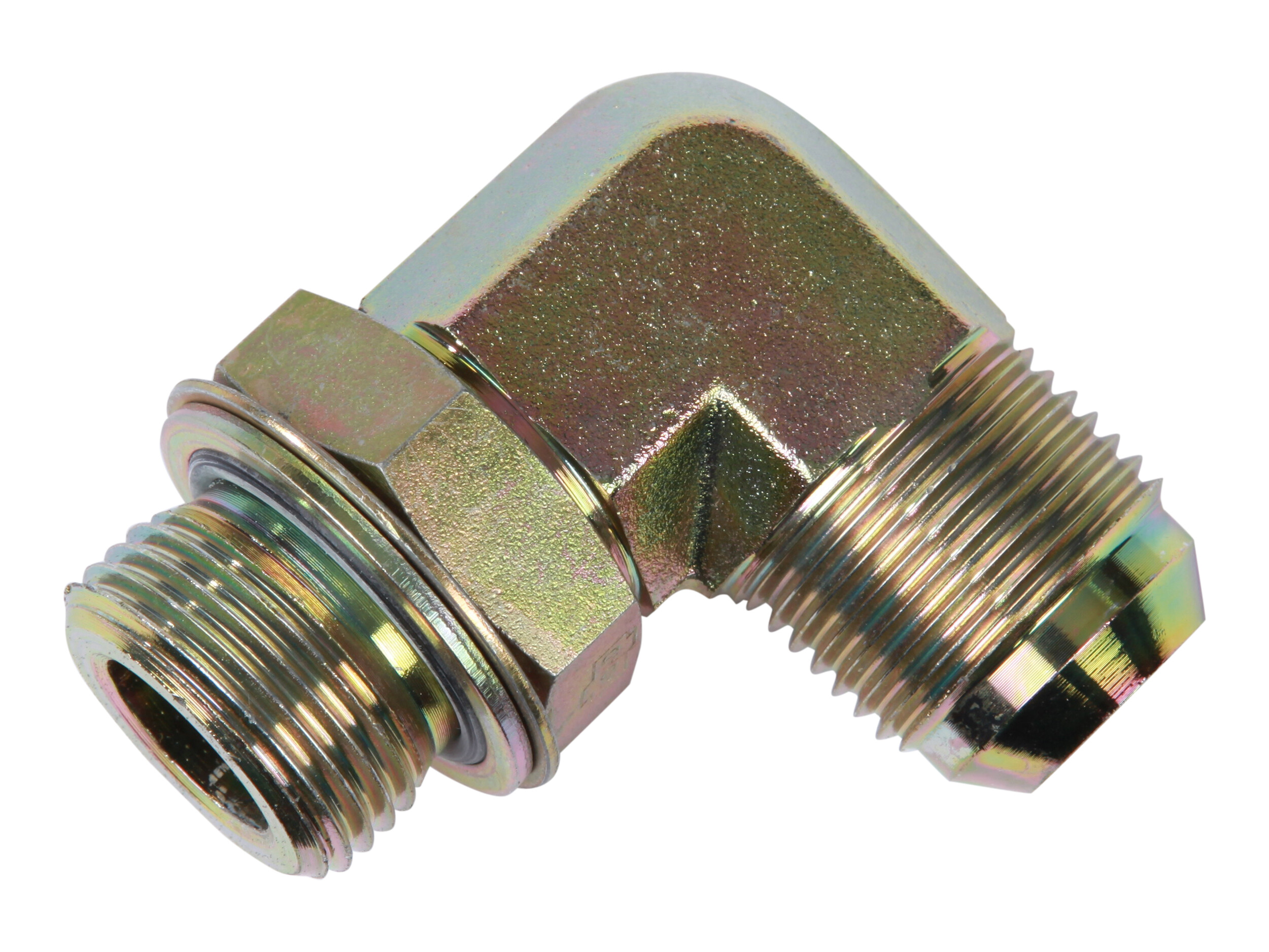

S625-20-27M elbow

Partnumber:

CO-20-27

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (1)

Bushing

Partnumber: B-20

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

20 mm

Dimension B

42 mm

Dimension C

51.5 mm

Dimension CH

32 mm

Dimension F metric

M27x2

Dimension J

1.1/16-12 JIC

Dimension T

20 mm

Material

Steel

Model code

A107040/2027

Pressure max.

300 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.1/16-12 JIC

Thread outer metric

M27x2

Package size

0 pcs

Barcode

5704334358060

Gross weight

0,28 Kg

Net weight

0,28 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S625-20-27M elbow

Note: Opening 3D files requires a program that supports the file format
