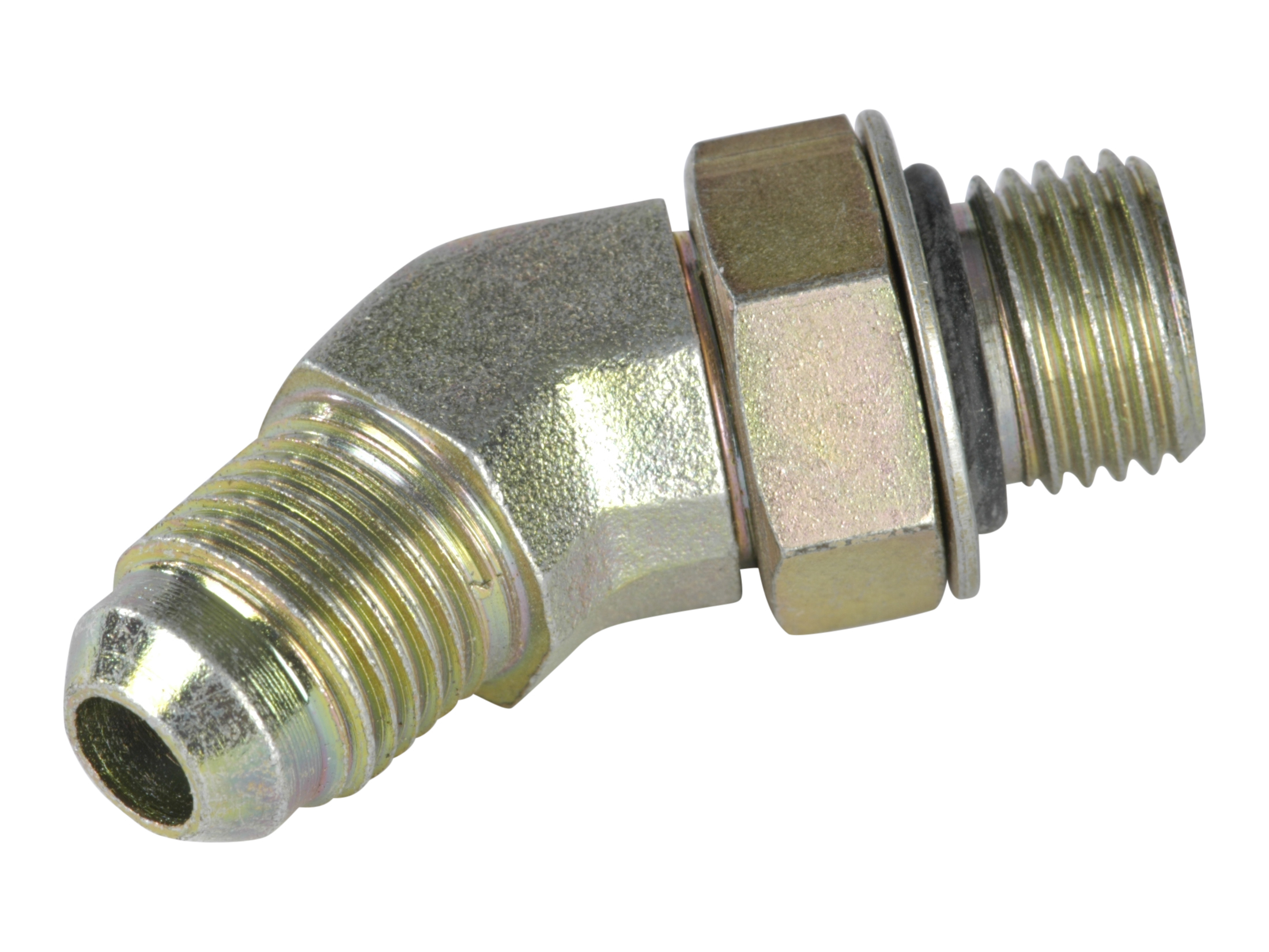

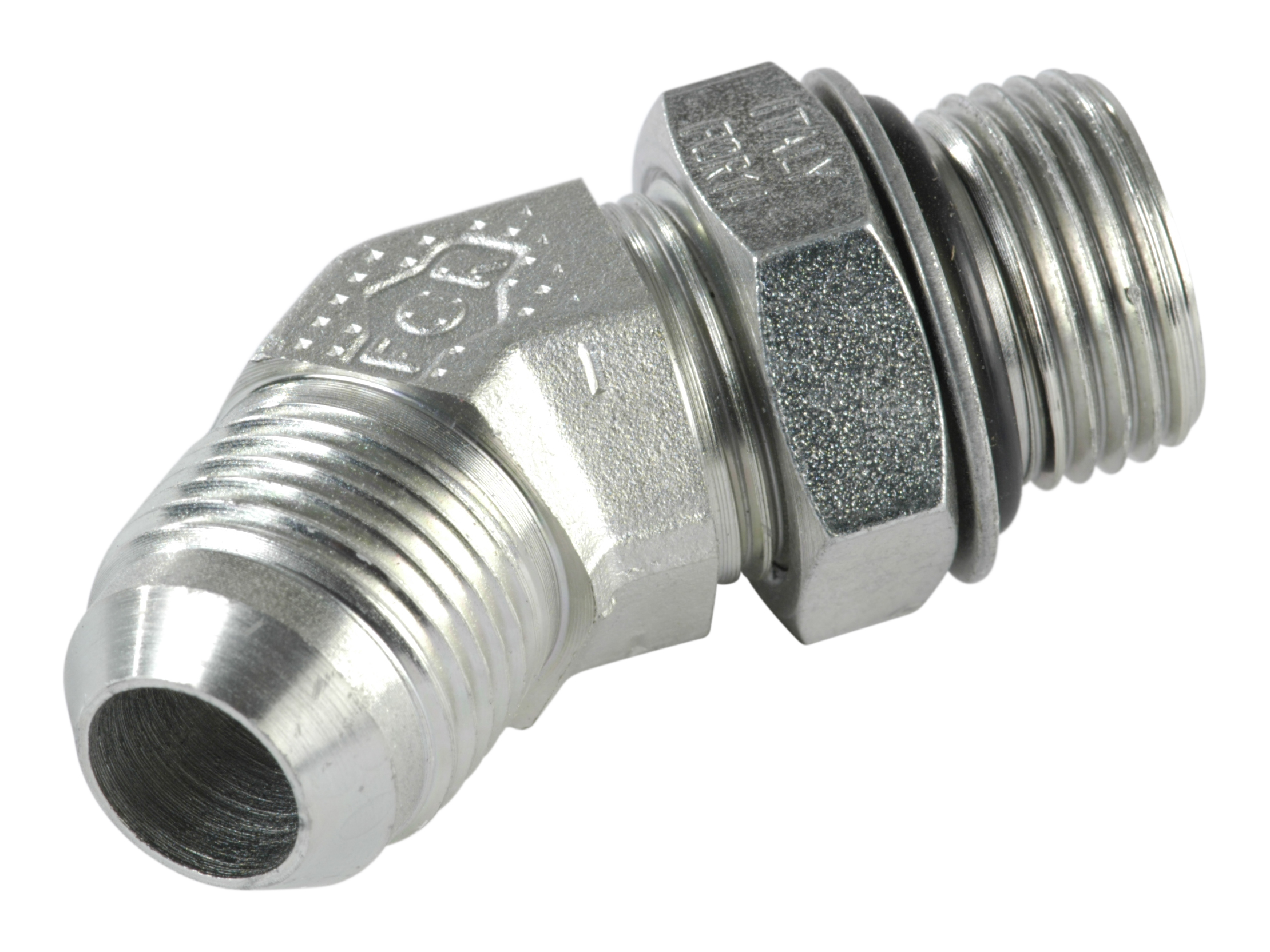

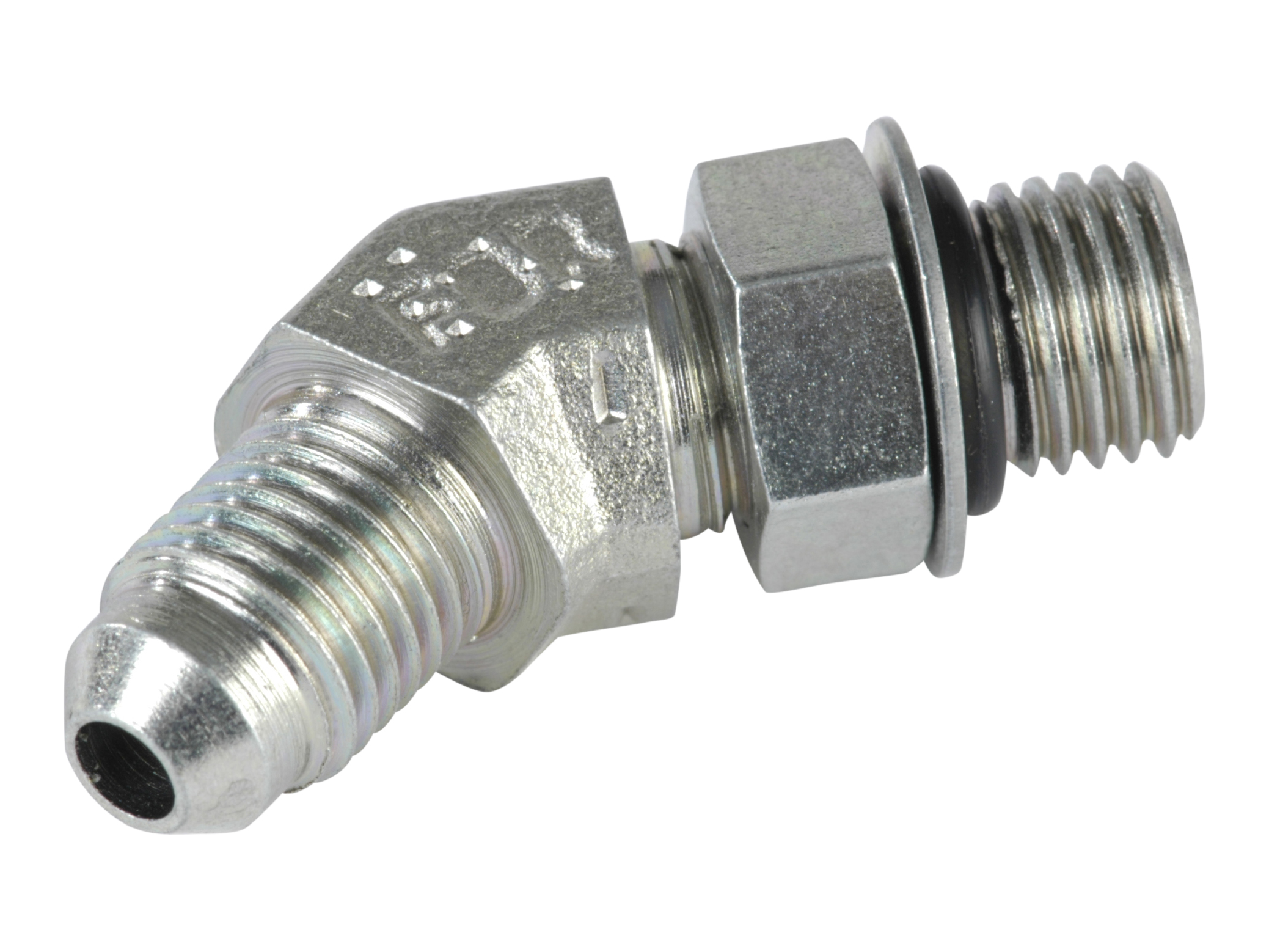

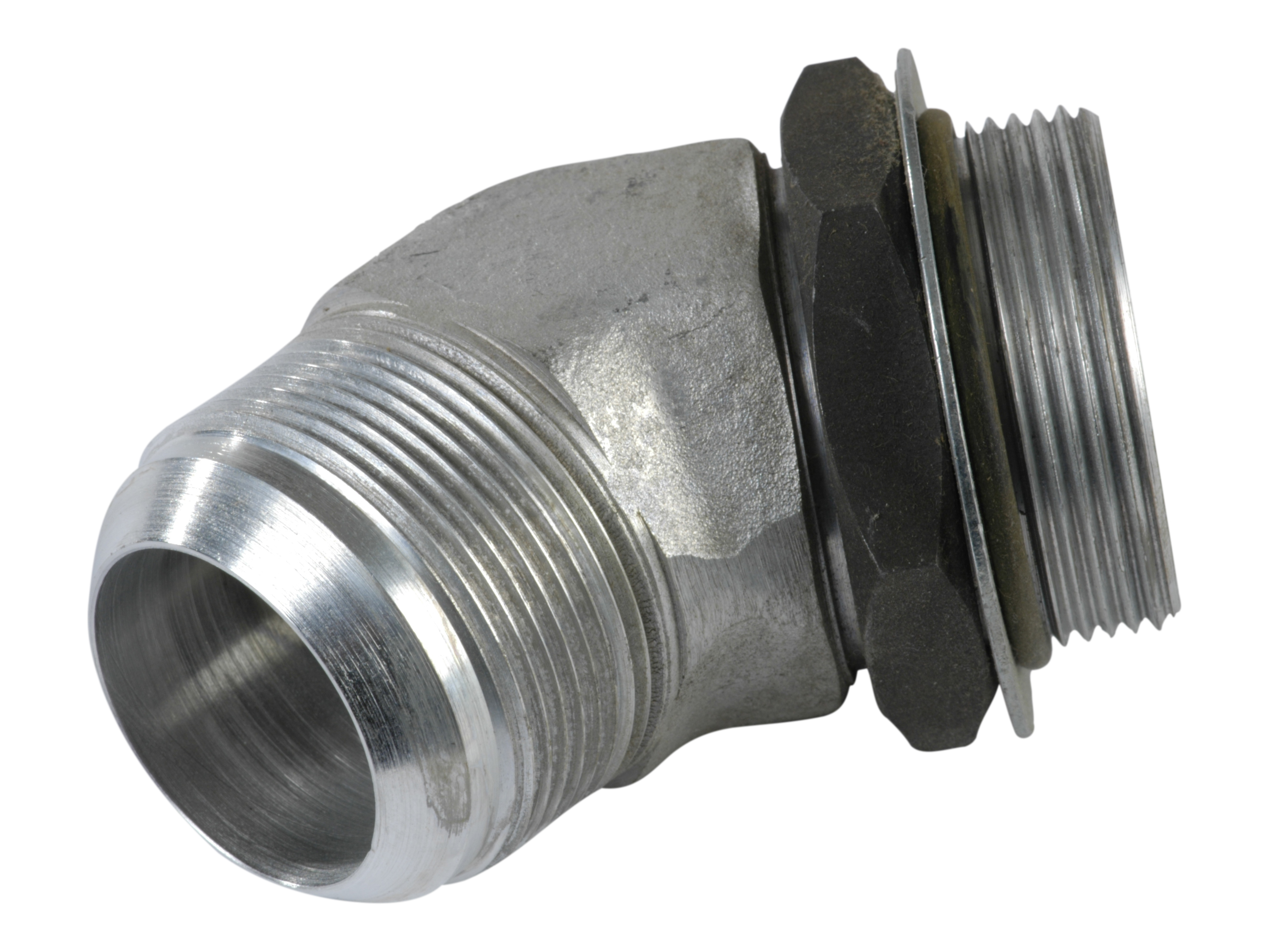

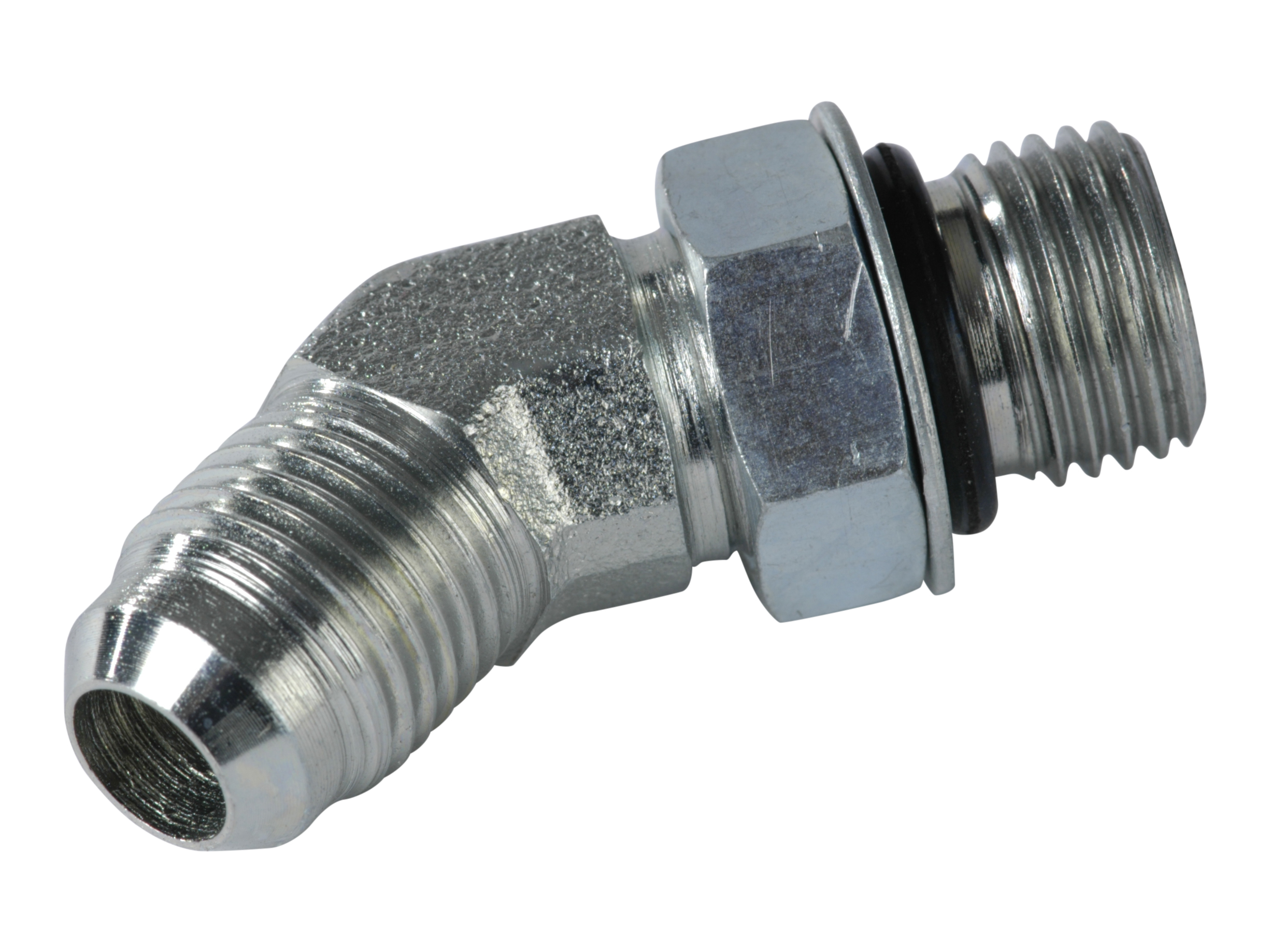

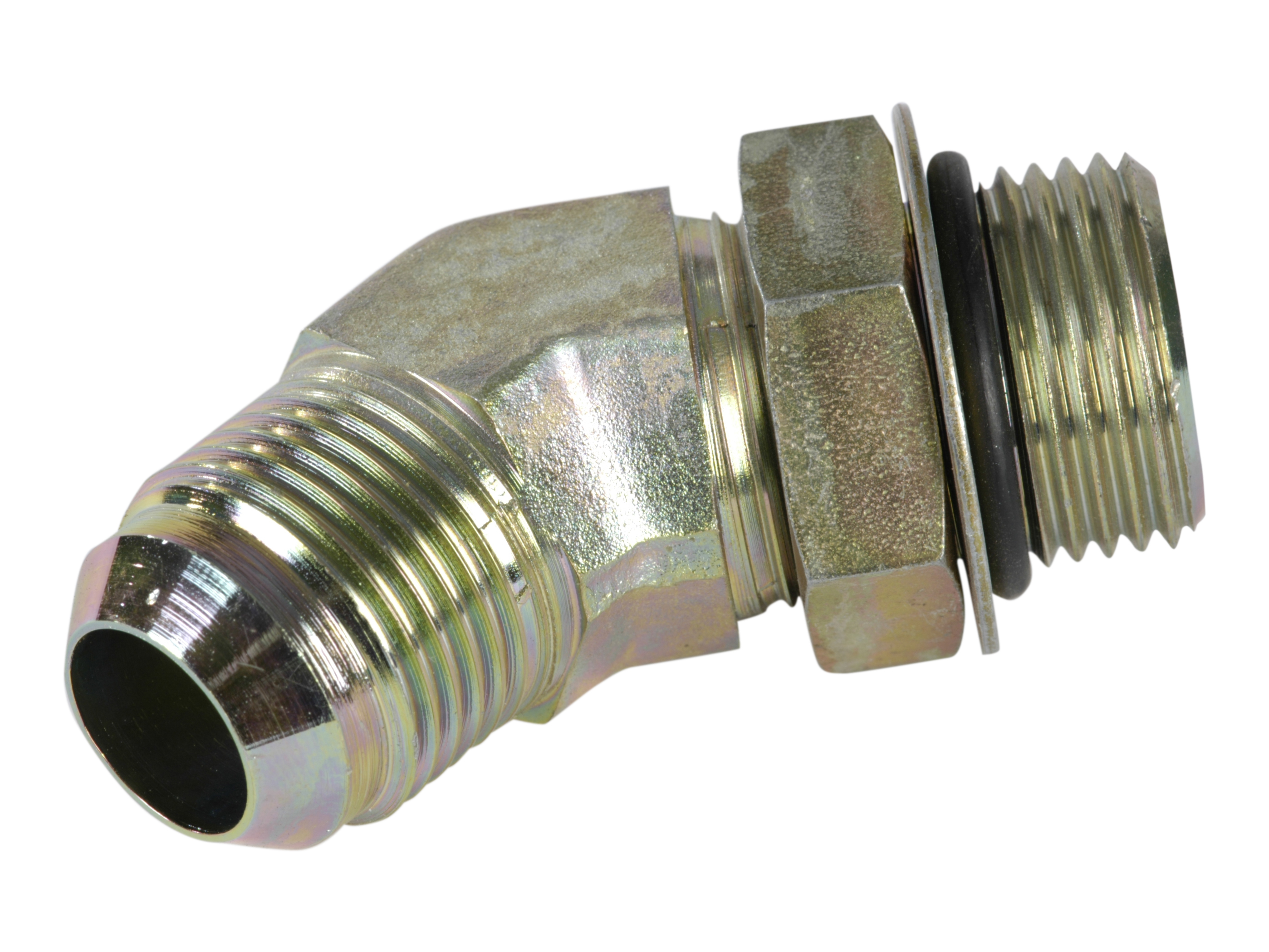

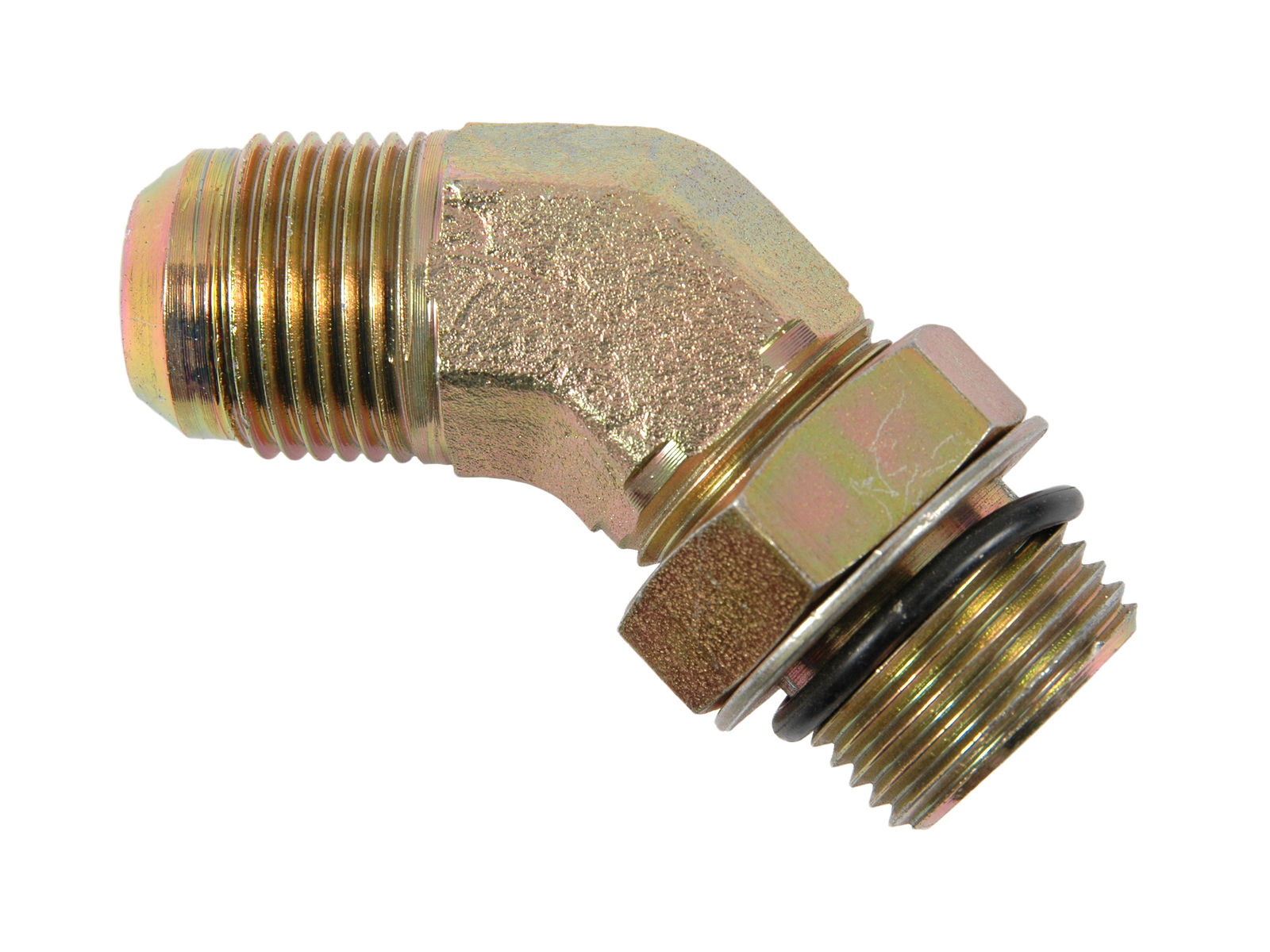

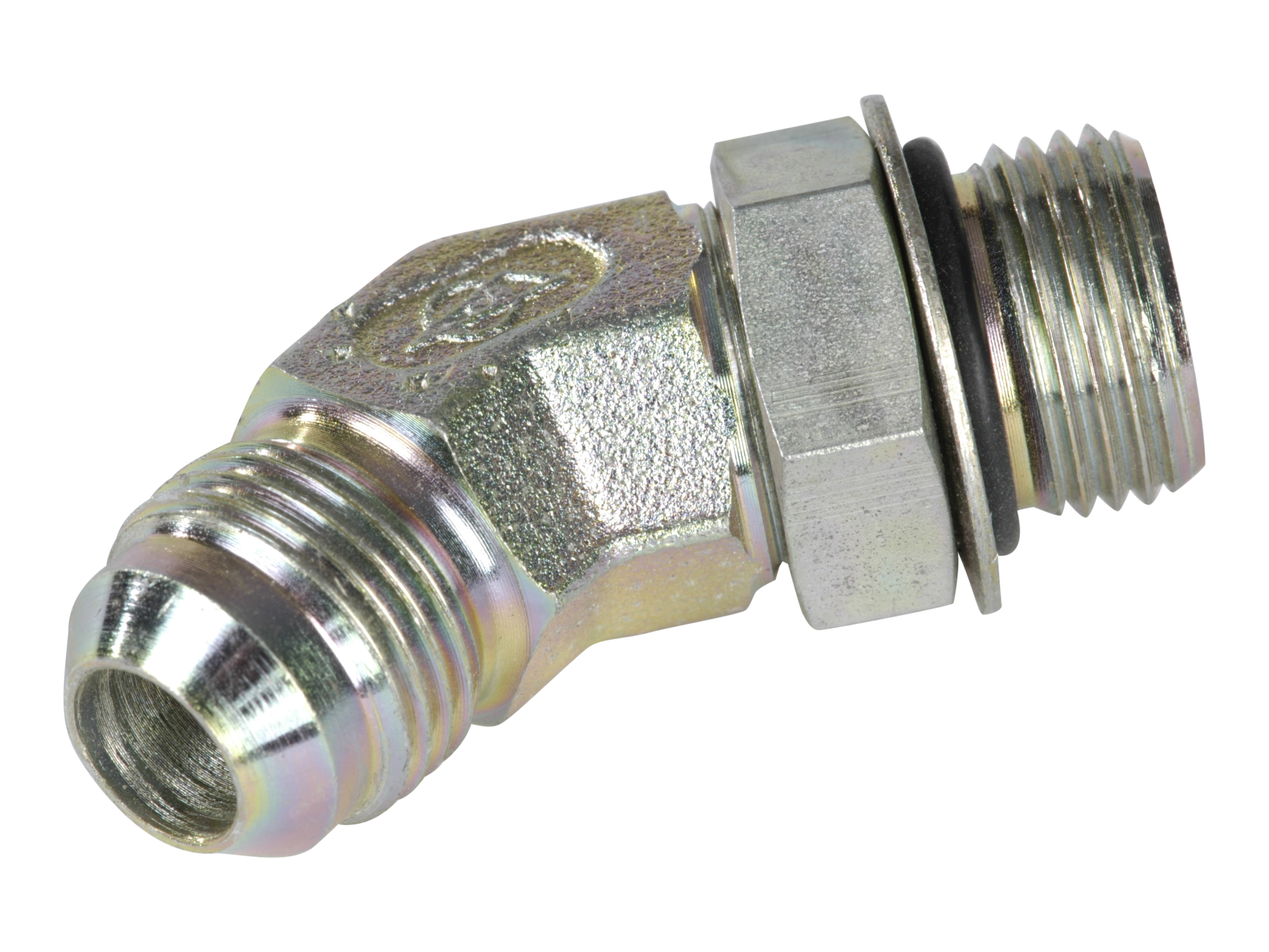

Elbow adapter 45° JIC male x UNF male adjustable - VO / JVEEU

Elbow adapter 45° JIC male x UNF male adjustable - VO / JVEEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Brand Name
VO-06-7/16 S590-06-11U elbow UNF 6 mm 7/16-20 UNF 7/16-20 JIC FOR
VO-08-1/2 S590-08-12U elbow UNF 8 mm 1/2-20 UNF 1/2-20 JIC FOR
VO-10-9/16 S590-10-14U elbow UNF 10 mm 9/16-18 UNF 9/16-18 JIC Hydraspecma
VO-12-3/4 S590-12-19U elbow UNF 12 mm 3/4-16 UNF 3/4-16 JIC FOR
VO-16-7/8 S590-16-22U elbow UNF 16 mm 7/8-14 UNF 7/8-14 JIC FOR
VO-20-1.1/16 S590-20-27U elbow UNF 20 mm 1.1/16-12 UNF 1.1/16-12 JIC FOR
VO-25-1.5/16 S590-25-33U elbow UNF 25 mm 1.5/16-12 UNF 1.5/16-12 JIC FOR
VO-38-1.7/8 S590-38-48U elbow UNF 38 mm 1.7/8-12 UNF 1.7/8-12 JIC FOR
Angle
45
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
