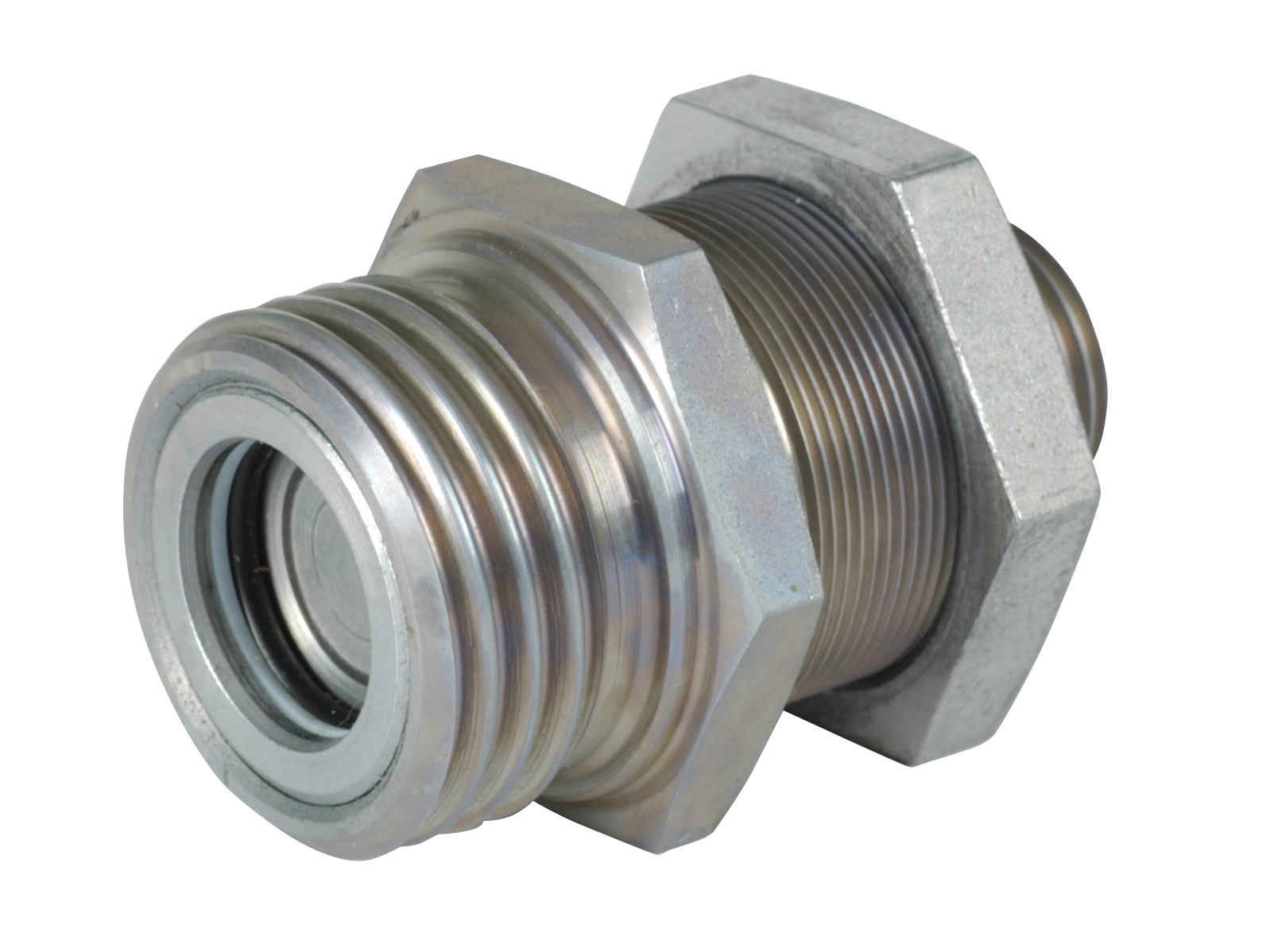

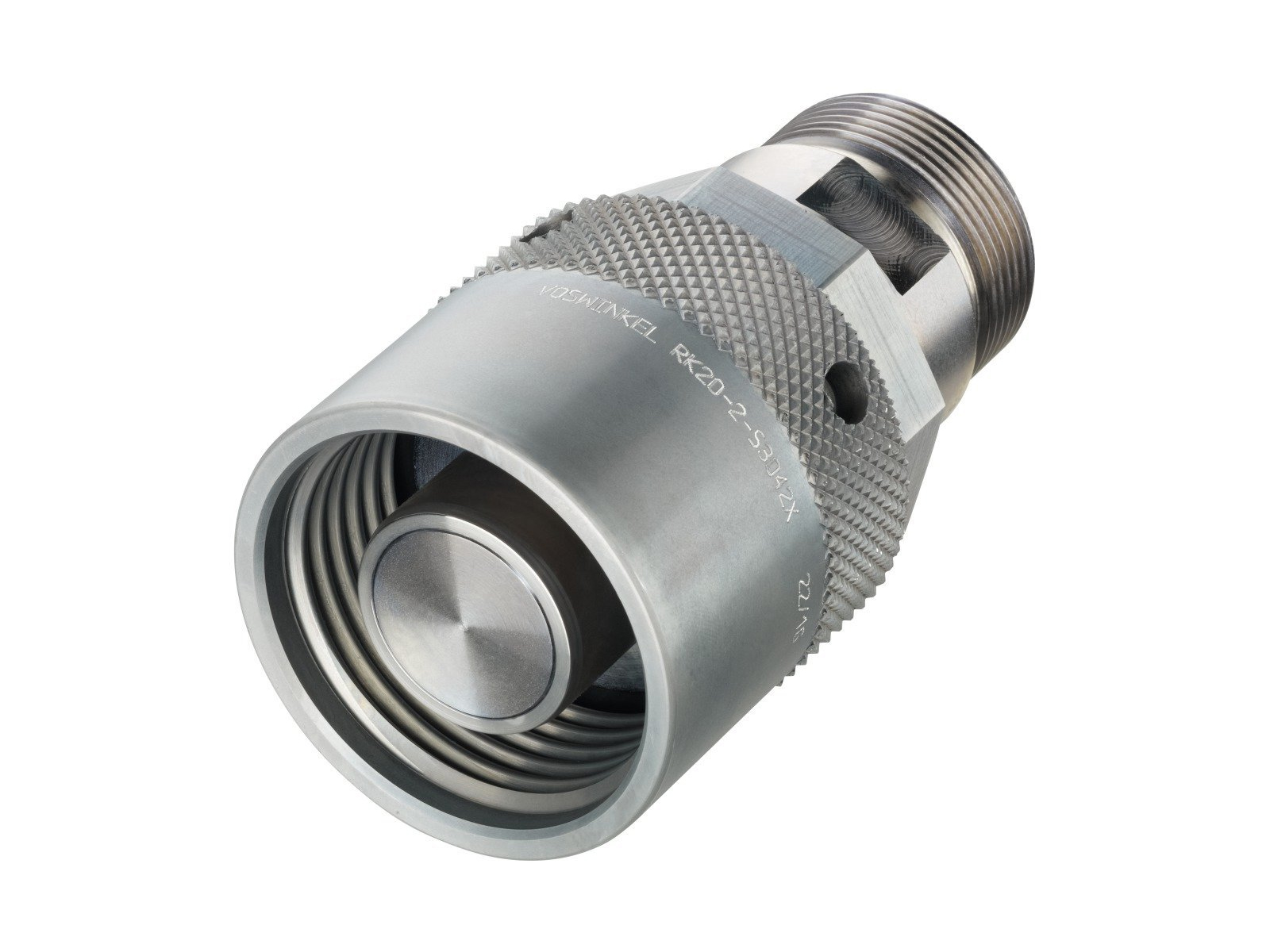

Stauff RH/RK/RS

VÆLG VARIANT
Varenummer Beskrivelse Brand Name Size Material Pressure max.
RH08-1-L1218 Screw coupling female RH - DN10 - M18x1.5 (12L) Stauff 3/8 " Steel 420 bar
RH08-1-S1220 Screw coupling female RH - DN10 - M20x1.5 (12S) Stauff 3/8 " Steel 420 bar
RH08-1-S1422 Screw coupling female RH - DN10 - M22x1.5 (14S) Stauff 3/8 " Steel 420 bar
RH08-1-S1624 Screw coupling female RH - DN10 - M24x1.5 (16S) Stauff 3/8 " Steel 420 bar
RH08-2-L1218 Screw coupling male RH - DN10 - M18x1.5 (12L) Stauff 3/8 " Steel 420 bar
RH08-2-S1220 Screw coupling male RH - DN10 - M20x1.5 (12S) Stauff 3/8 " Steel 420 bar
RH08-2-S1422 Screw coupling male RH - DN10 - M22x1.5 (14S) Stauff 3/8 " Steel 420 bar
RH08-2-S1624 Screw coupling male RH - DN10 - M24x1.5 (16S) Stauff 3/8 " Steel 420 bar
RH12-1-L1522 Screw coupling female RH - DN20 - M22x1.5 (15L) Stauff 1/2 " Steel 420 bar
RH12-1-S1624 Screw coupling female RH - DN20 - M24x1.5 (16S) Stauff 1/2 " Steel 420 bar
RH12-2-L1522 Screw coupling male RH - DN20 - M22x1.5 (15L) Stauff 1/2 " Steel 420 bar
RH12-2-S1624 Screw coupling male RH - DN20 - M24x1.5 (16S) Stauff 1/2 " Steel 420 bar
RH16-1-S2030 Screw coupling female RH - DN20 - M30x2 (20S) Stauff 5/8 " Steel 420 bar
RH16-2-S2030 Screw coupling male RH - DN20 - M30x2 (20S) Stauff 5/8 " Steel 420 bar
RH25-1-S3852 Screw coupling female RH - DN25 - M52x2 (38S) Stauff 1 " Steel 420 bar
RH25-2-S3852 Screw coupling male RH - DN25 - M52x2 (38S) Stauff 1 " Steel 420 bar
Brand Name
Stauff

Material
Steel

Pressure max.
420

Sealing material
NBR

Surface treatment
Zinc-Nickel plated

Temperature max.
+100

Temperature min.
-20
