Screw coupling female RH - DN20 - M30x2.0 (20S)
Voswinkel quick coupling (screw type)
_x000D_Pressure range: Up to 420 bar.
_x000D_Too high flows.
Partnumber:
RH12-1-S2030
Package size:
1 pcs
Min. order quantity is:
1 pcs
A
M30x2
Brand Name
Stauff
Connection
Screw
Diameter pipe
20 mm
Disconnection
Screw
Field of application
Construction Machinery

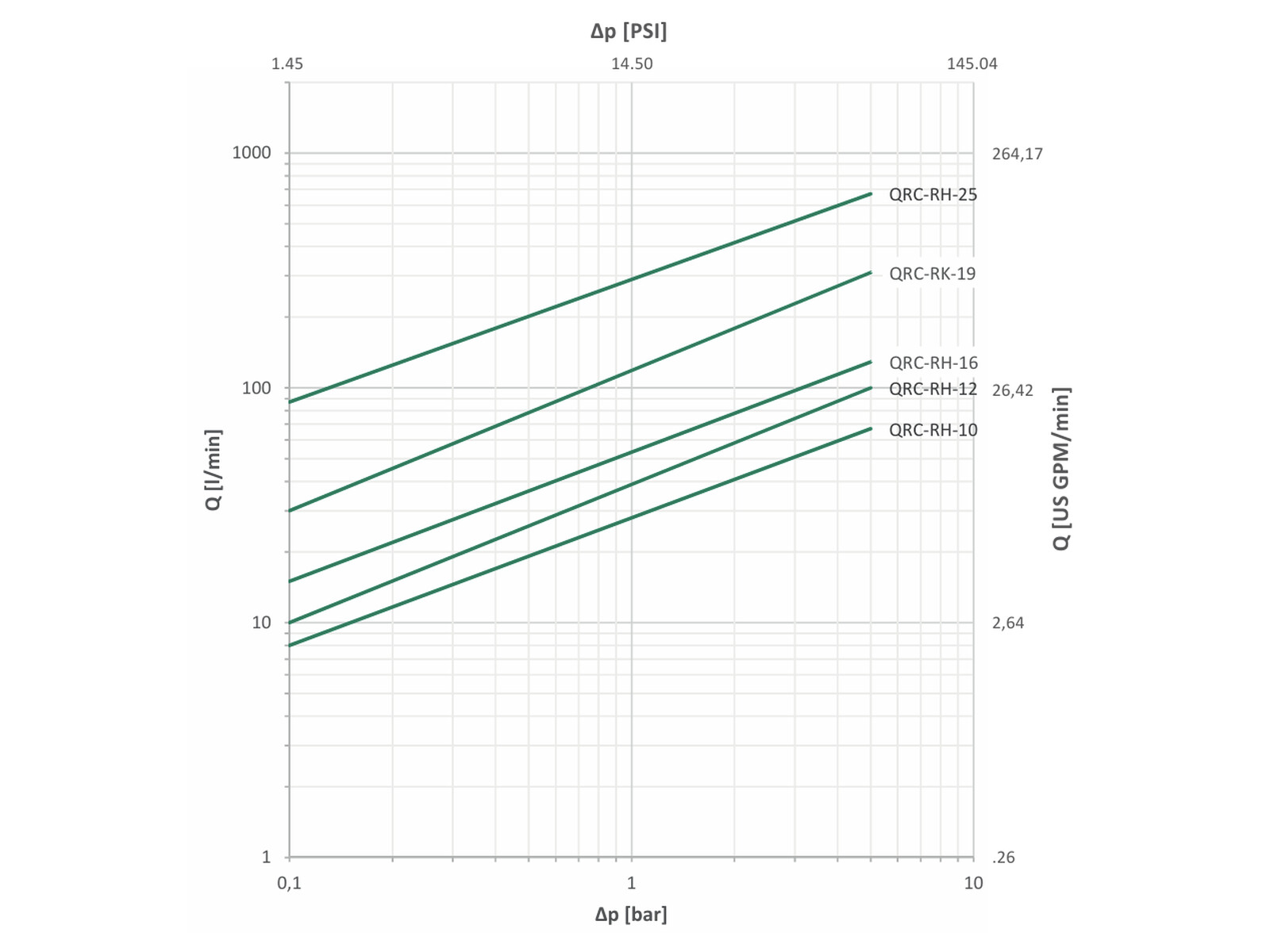

Flow rate nominal LMin
106 lpm

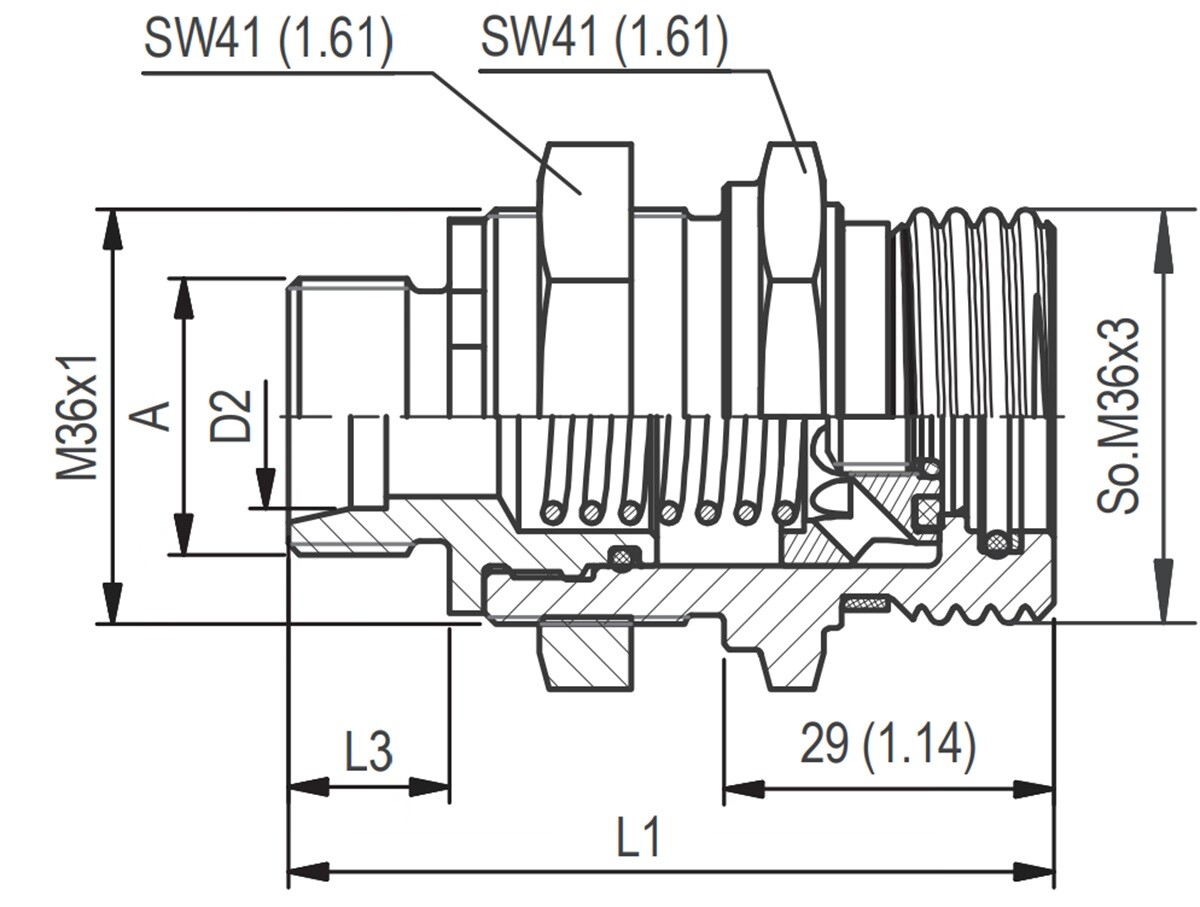

L1
69,5 mm
L3
16 mm
Material
Steel
Model code
QRC-RH-12-F-20S-S1-W3
Pressure burst min.
1260 bar
Pressure max. connected
420 bar
Pressurized connection
Allowed, max. 20 bar
Sealing material
NBR
Series
S
Size
1/2 "
Spillage
0,16 ml
Standard DIN
DIN 3861
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer metric
M30x2
ØD2
20 mm
Package size
1 pcs
Barcode
5704334996293
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Voswinkel quick coupling (screw type)
_x000D_Pressure range: Up to 420 bar.
_x000D_Too high flows.
