Uncut flanges SAE 3000 PSI - AFSI3 / 8301

SELECT VARIANT

Partnumber	Description	Flange	O-ring	Bolt dimension	Pressure max.
AFSI301	Flange clamp 1/2" SAE3000	1/2 "	18.64X3.53 mm	M8x25 mm	350 bar
AFSI302	Flange clamp 3/4" SAE3000	3/4 "	24.99X3.53 mm	M10x35 mm	350 bar

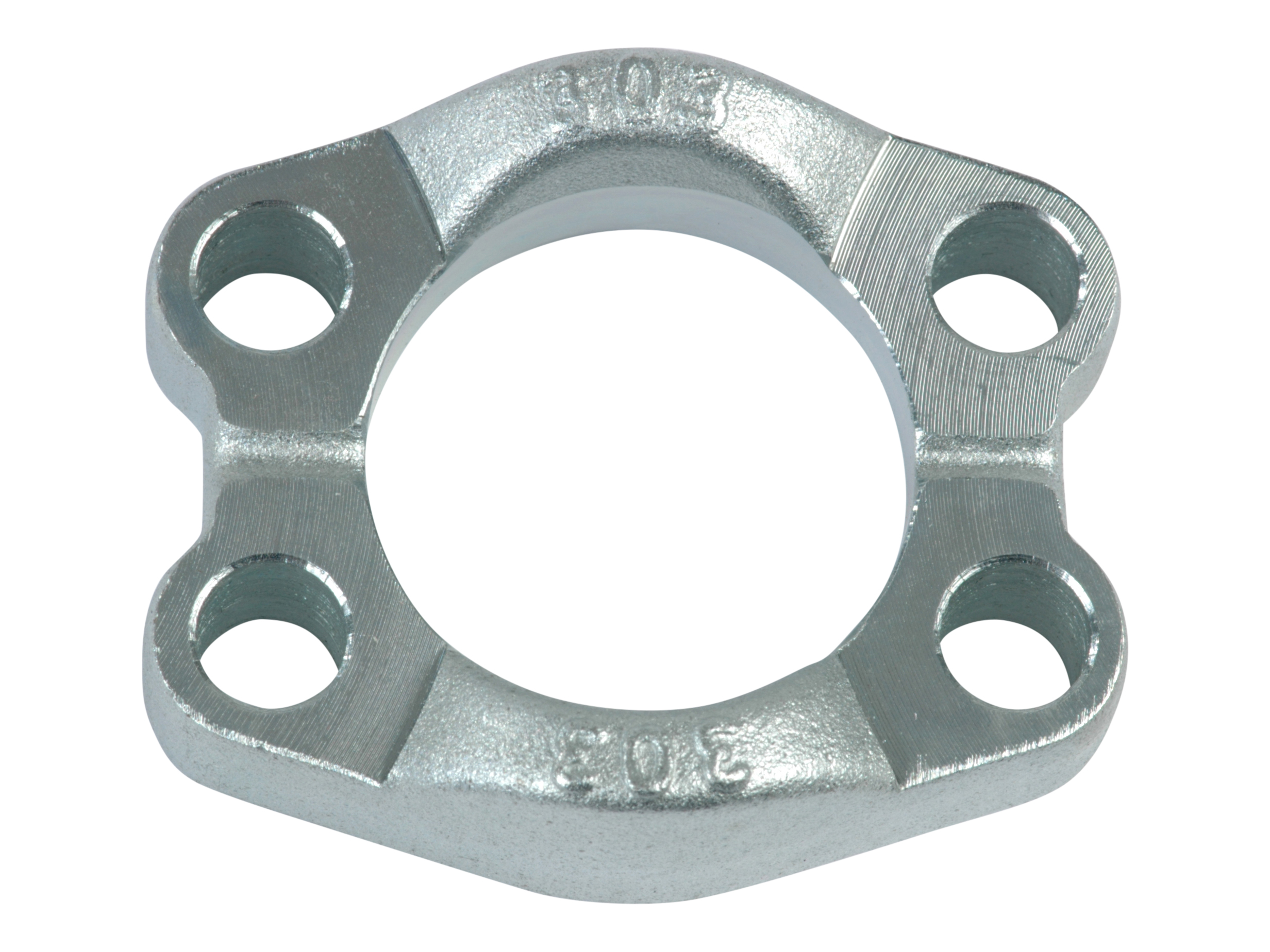

AFSI303	Flange clamp 1" SAE3000	1 "	32.93X3.53 mm	M10x35 mm	320 bar

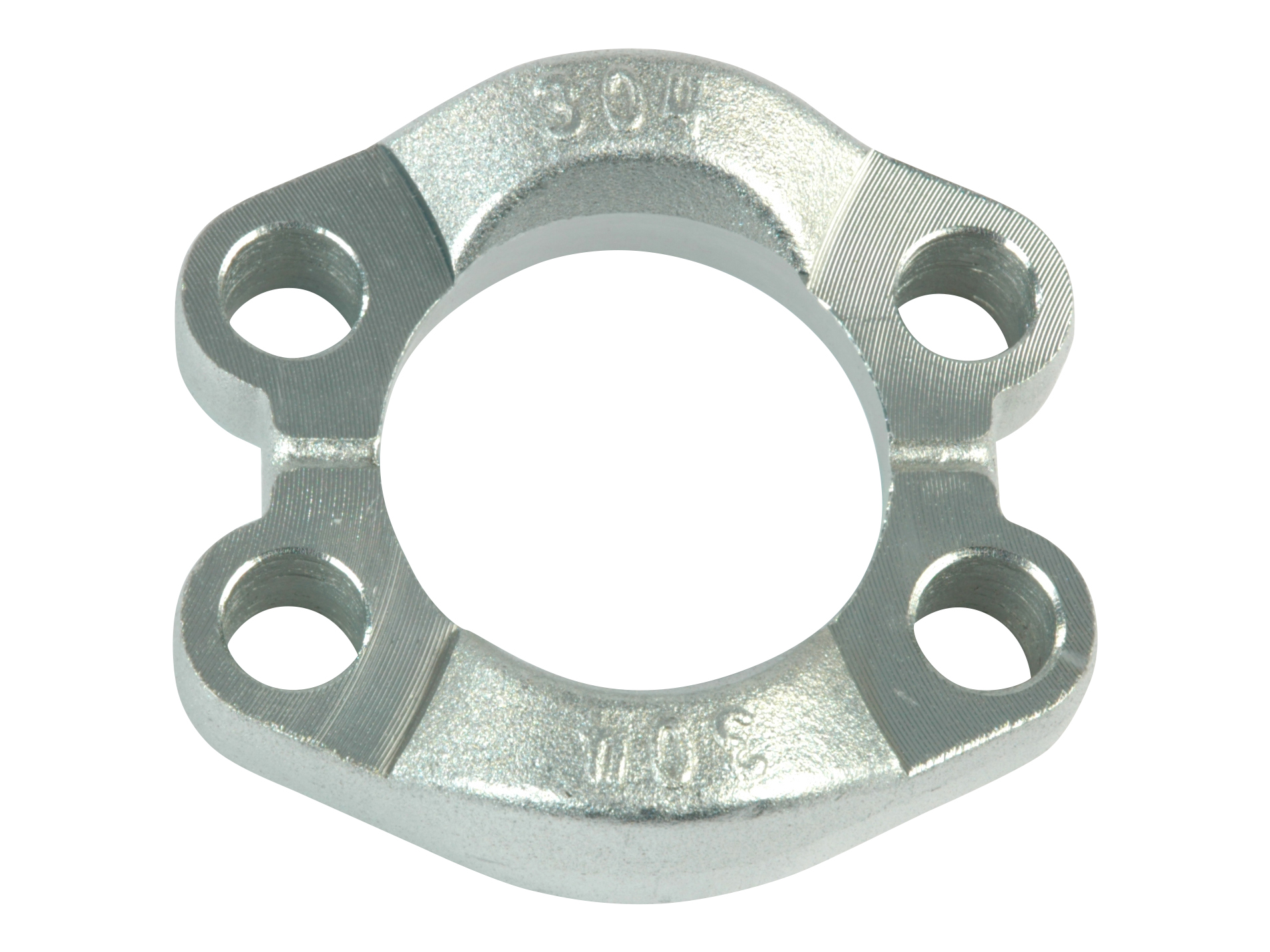

AFSI304	Flange clamp 1.1/4" SAE3000	1.1/4 "	37.69X3.53 mm	M10x35 mm	280 bar

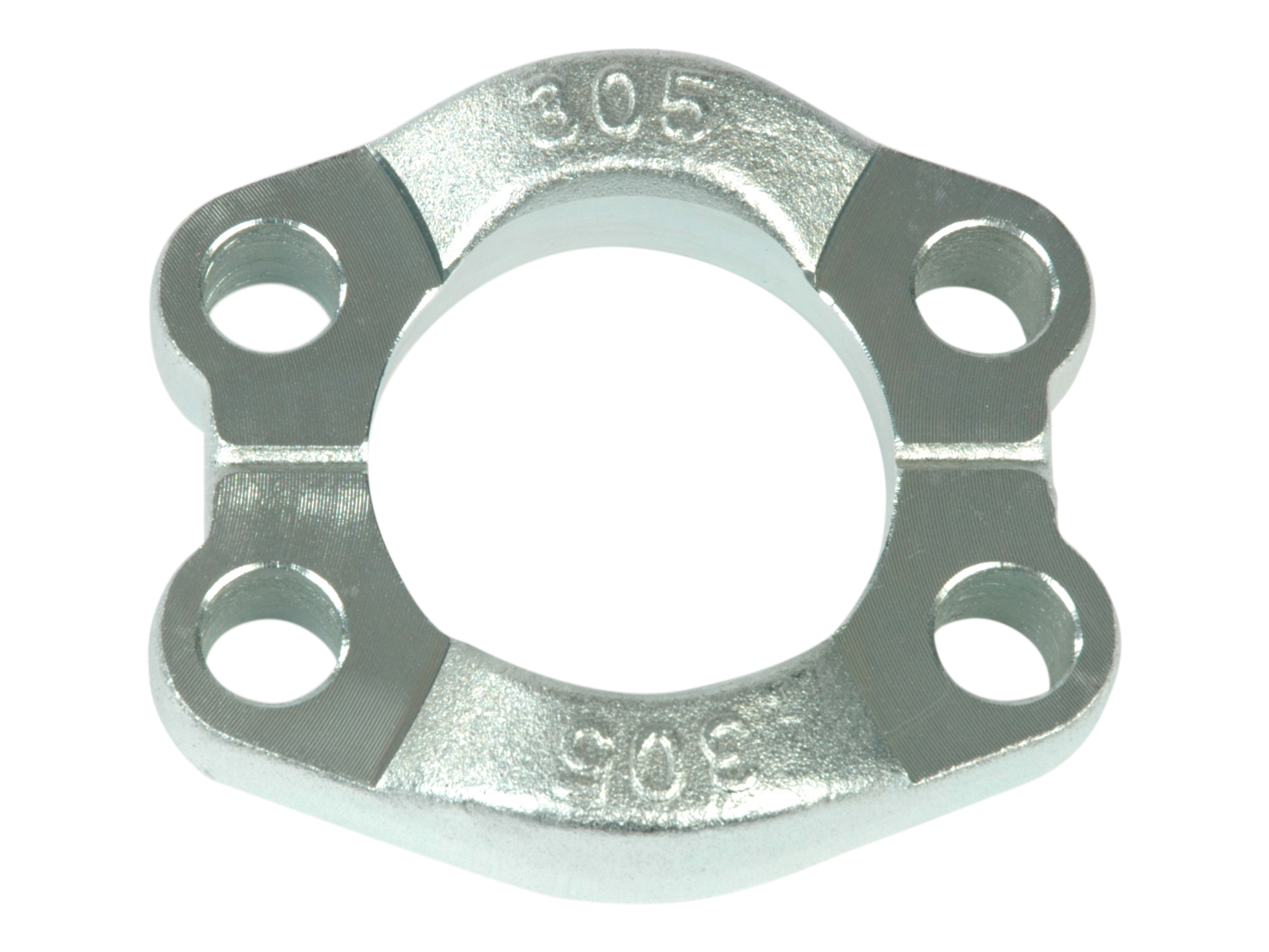

AFSI305	Flange clamp 1.1/2" SAE3000	1.1/2 "	47.22X3.53 mm	M12x35 mm	210 bar

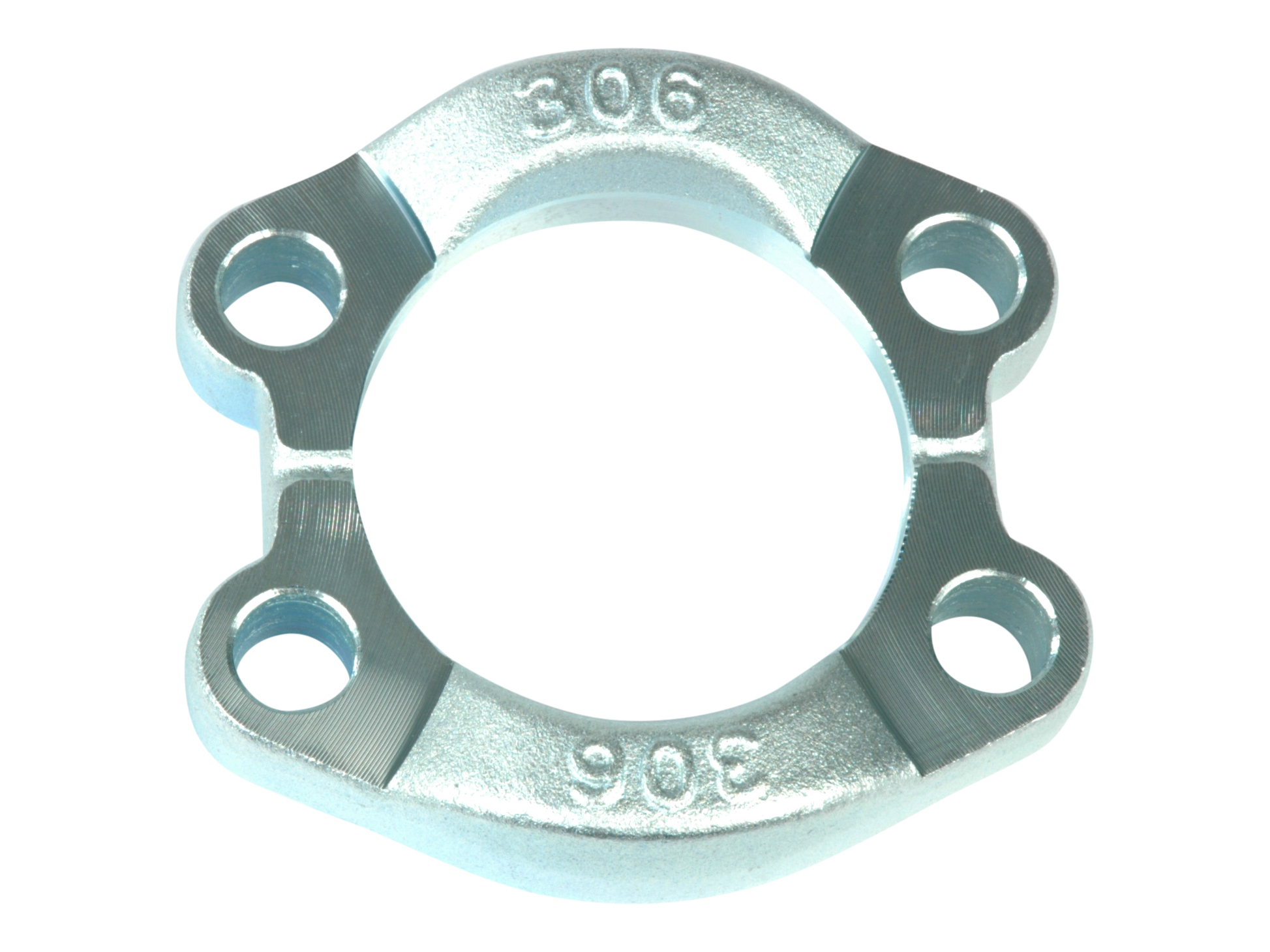

AFSI306	Flange clamp 2" SAE3000	2 "	56.75X3.53 mm	M12x35 mm	210 bar

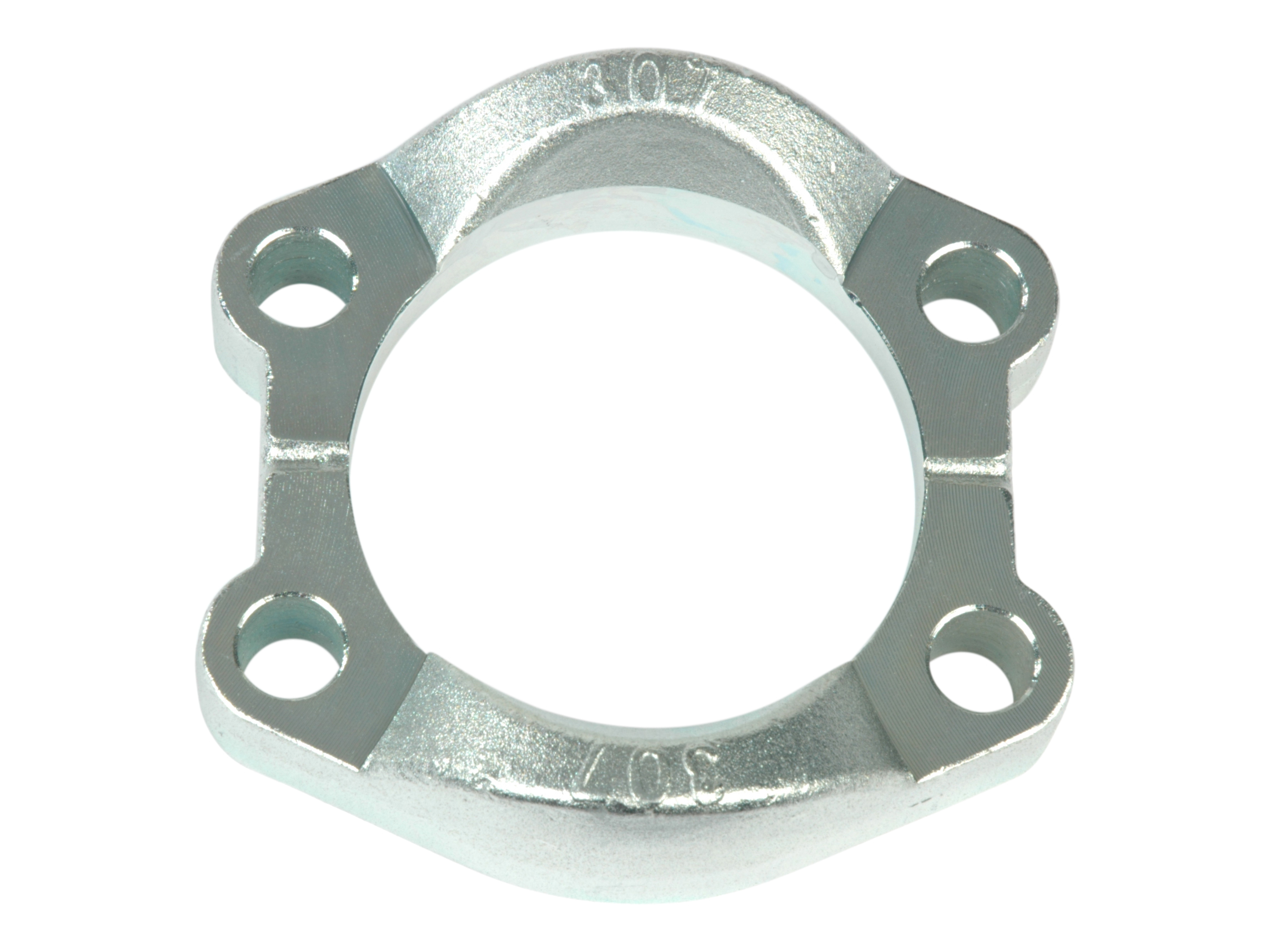

AFSI307	Flange clamp 2.1/2" SAE3000	2.1/2 "	69.44X3.53 mm	M12x40 mm	175 bar

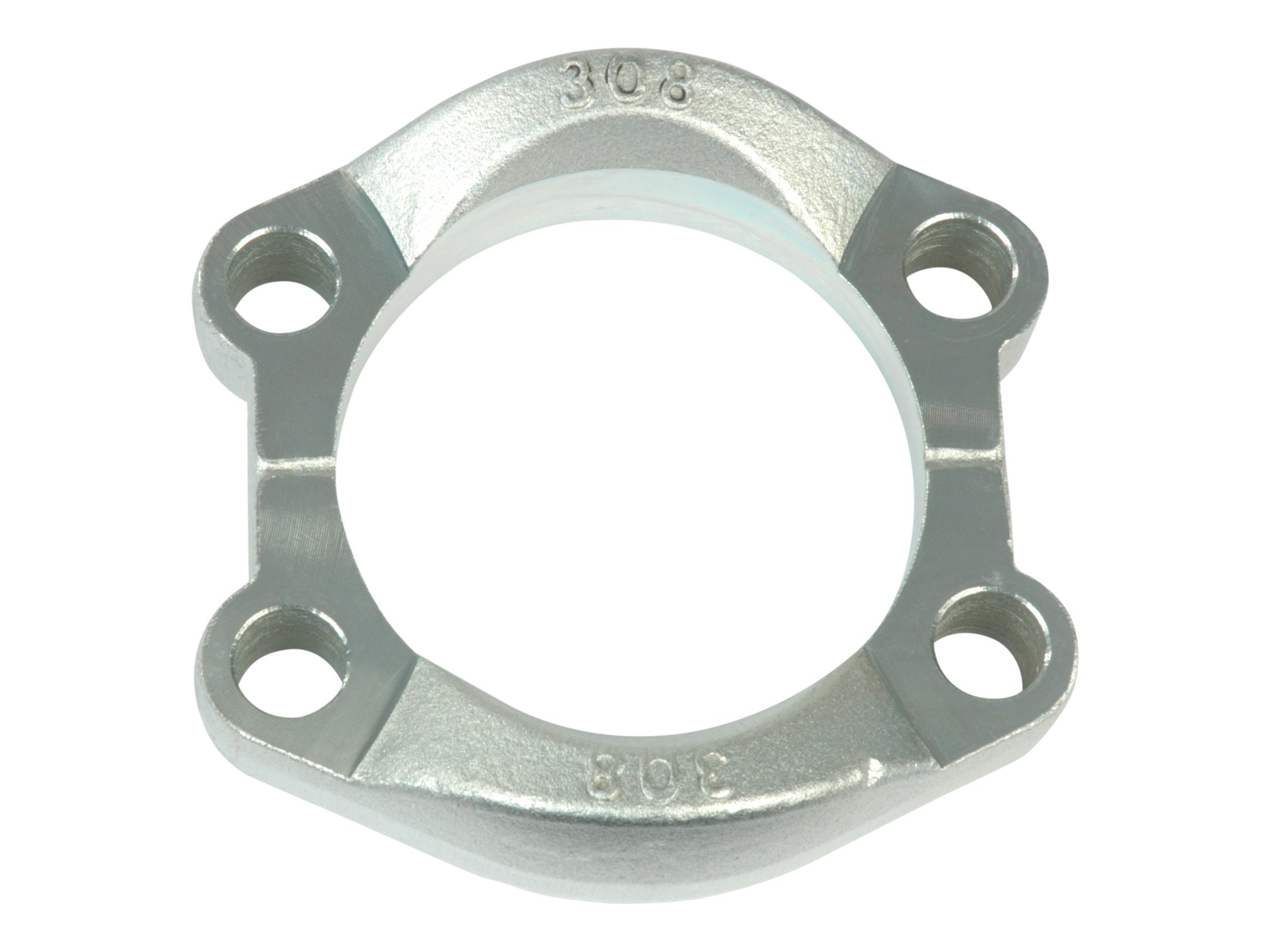

AFSI308	Flange clamp 3" SAE3000	3 "	85.32X3.53 mm	M16x50 mm	160 bar

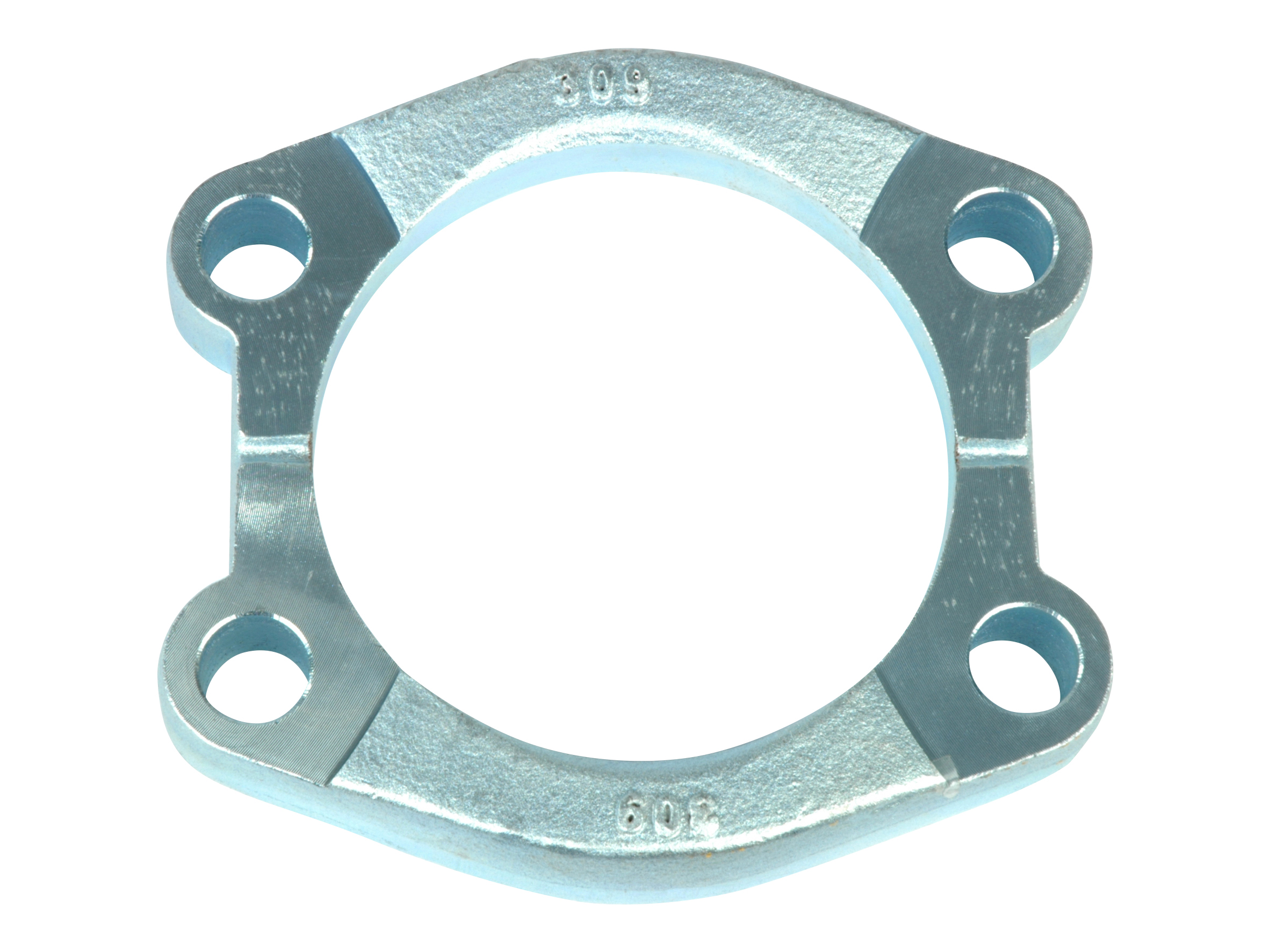

AFSI309	Flange clamp 3.1/2" SAE3000	3.1/2 "	98.02X3.53 mm	M16x50 mm	35 bar

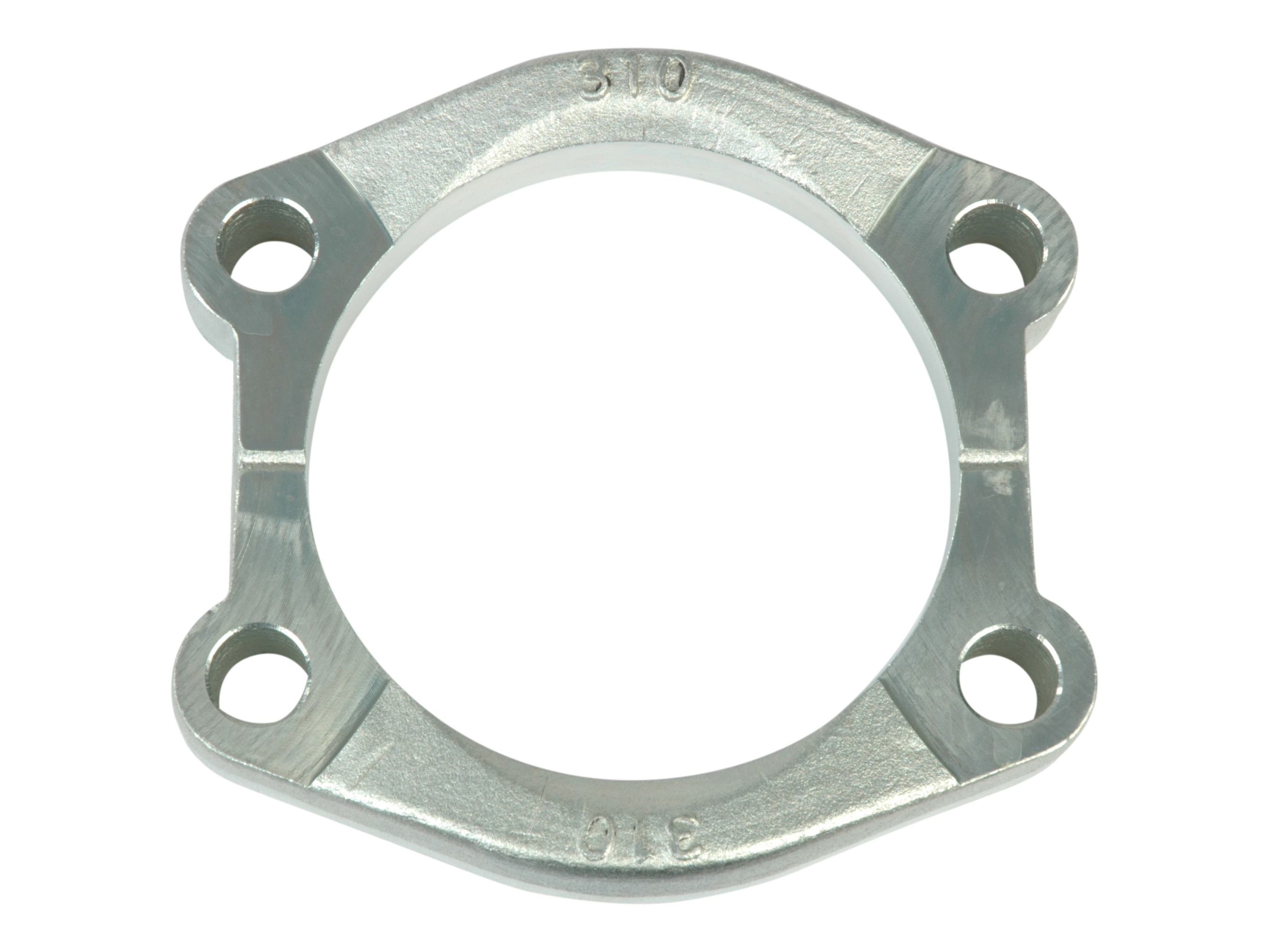

AFSI310	Flange clamp 4" SAE3000	4 "	110.72X3.53 mm	M16x50 mm	35 bar

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

3000 PSI

Material

Steel

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40
