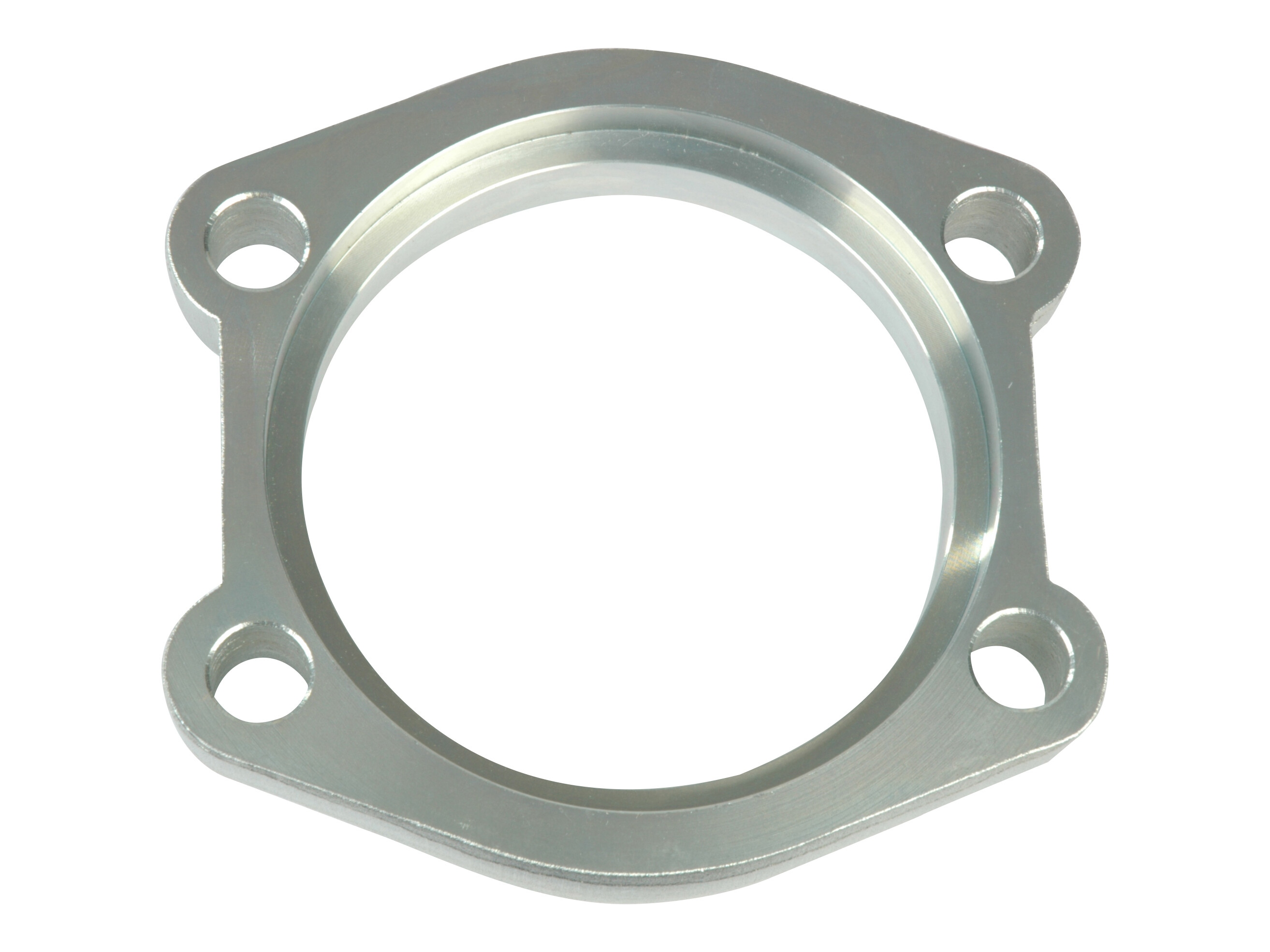

Flange clamp 4" SAE3000
Flange clamp 4" SAE3000
Partnumber:
AFSI310
Package size:
0 pcs
Min. order quantity is:
1 pcs
Bolt dimension
M16x50 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
127 mm
Dimension C
130.2 mm
Dimension E
77.8 mm
Flange
4 "
Flange SAE/DIN
3000 PSI
Material
Steel
O-ring
110.72X3.53 mm
Pressure max.
35 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704295697208
Gross weight
1,50 Kg
Net weight
1,50 Kg
Country of origin
DEU
Intrastat code
73079100
Flange clamp 4" SAE3000
