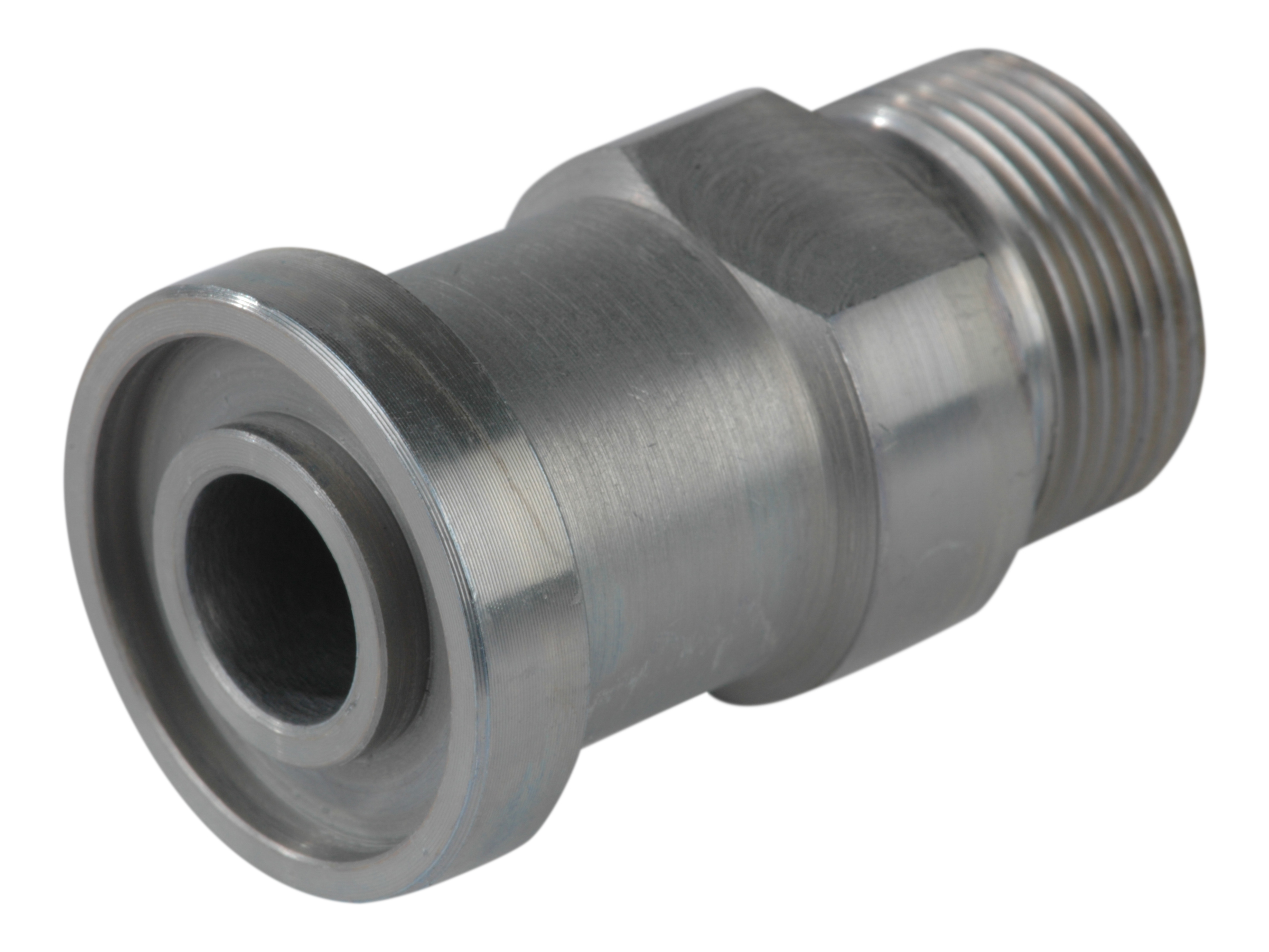

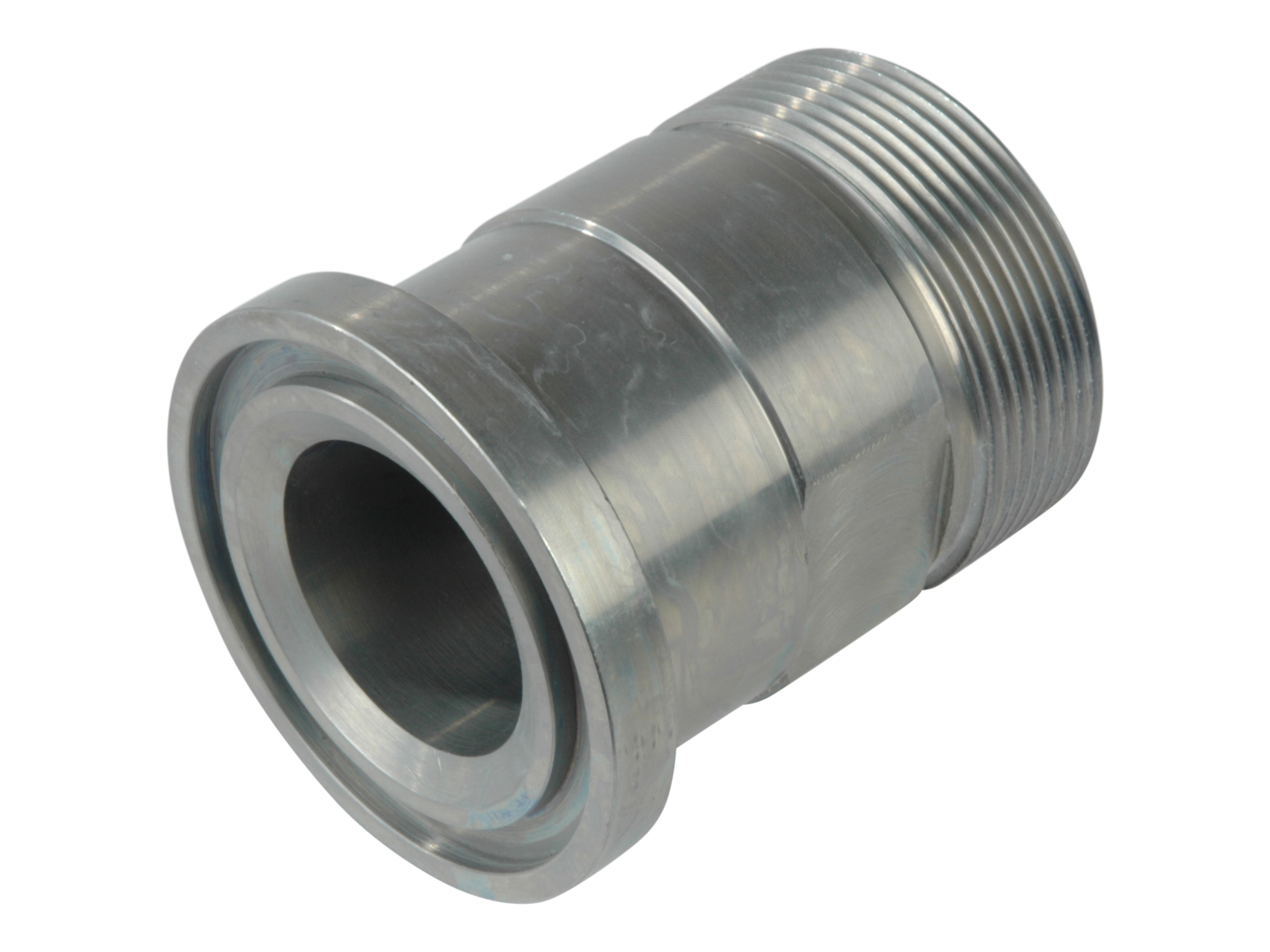

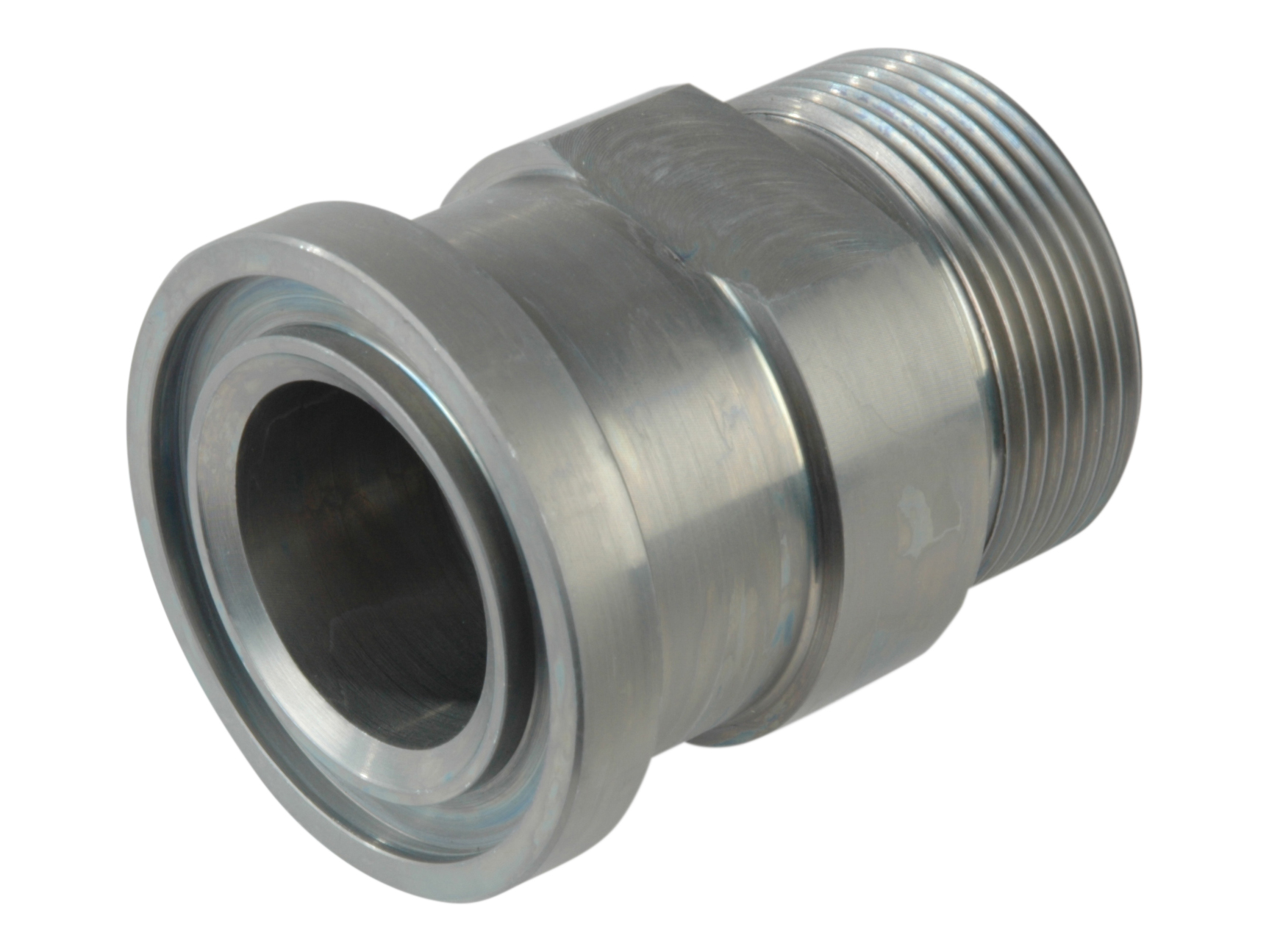

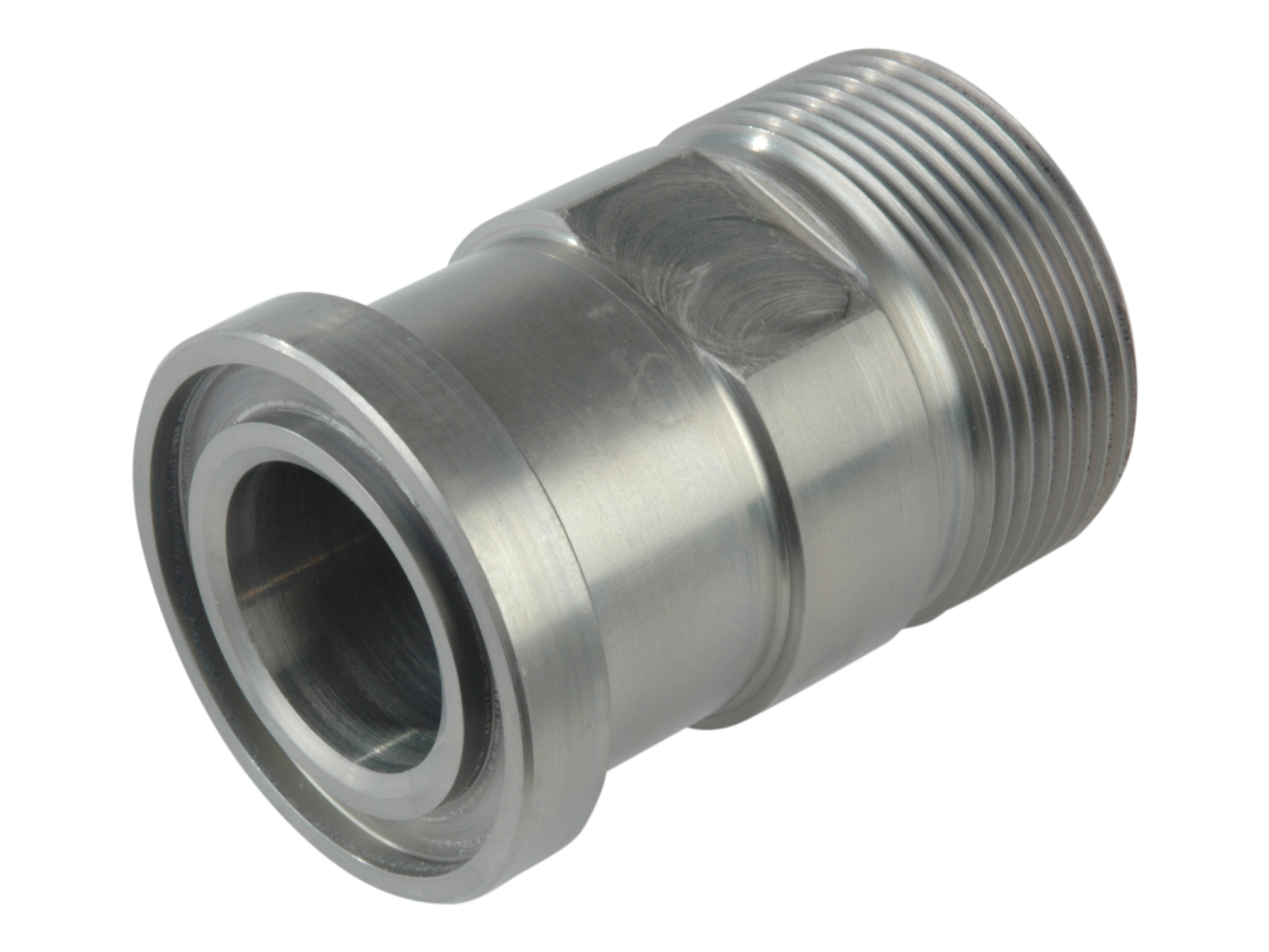

Threaded flange 0° SAE 3000 PSI x DIN2353 MM male - SFCE / 8360

Threaded flange 0° SAE 3000 PSI x DIN2353 MM male - SFCE / 8360

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange SAE/DIN Flange Diameter pipe Thread outer metric
SFCE301S16 Threaded flange 1/2" SAE3000 x ø16S 3000 PSI 1/2 " 16 mm M24x1,5
SFCE303L28 Threaded flange 1" SAE3000 x 28L 3000 PSI 1 " 28 mm M36x2
SFCE303S30 Threaded flange 1" SAE3000 x 30S 3000 PSI 1 " 30 mm M42x2
SFCE304S30 Threaded flange 1.1/4" SAE3000 x 30S 3000 PSI 1.1/4 " 30 mm M42x2
SFCE305S38 Threaded flange 1.1/2" SAE3000 x 38S 3000 PSI 1.1/2 " 38 mm M52x2
Angle
0
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Flange SAE/DIN
3000 PSI
Material
Steel
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90
Temperature min.
-40
