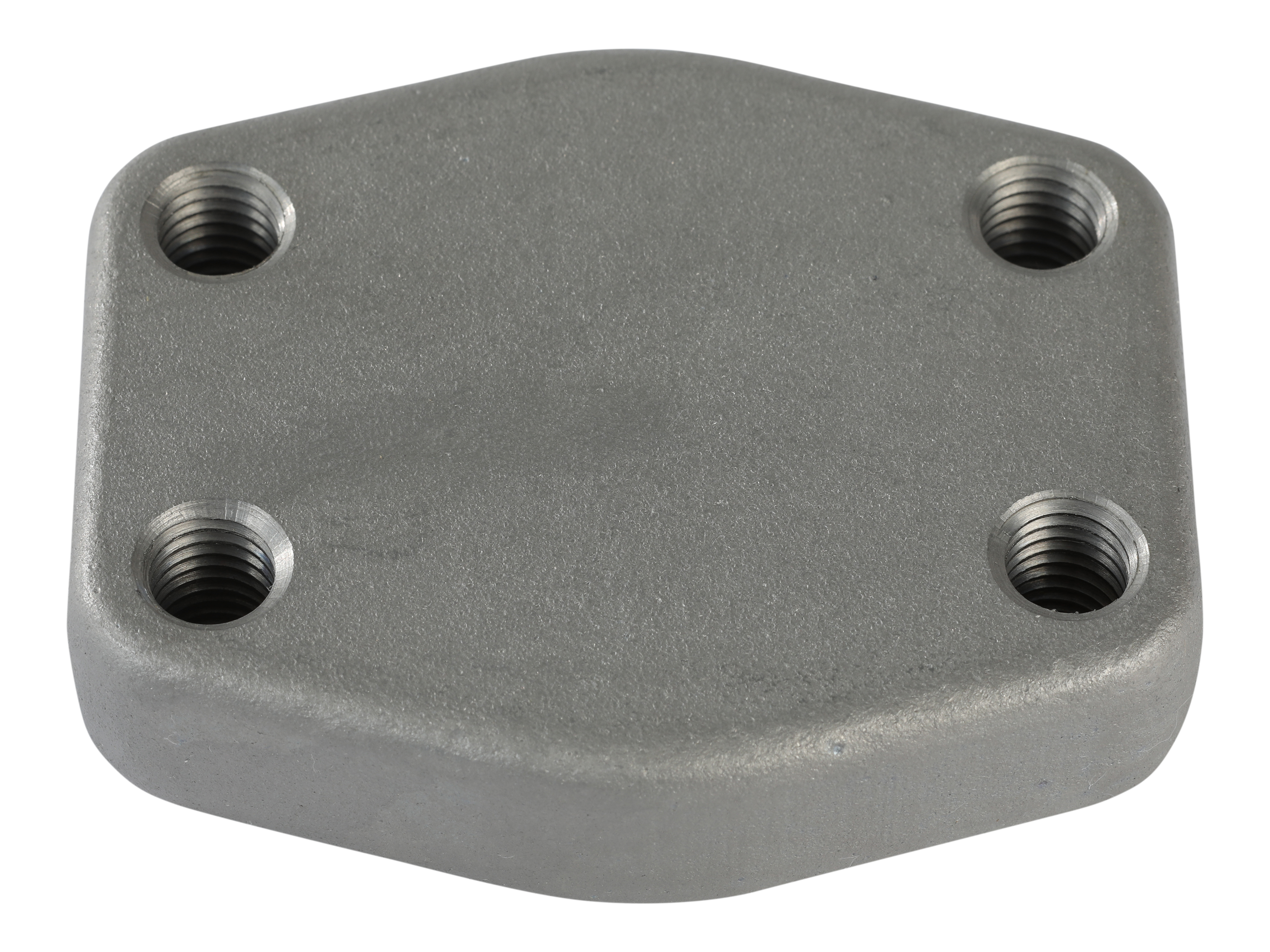

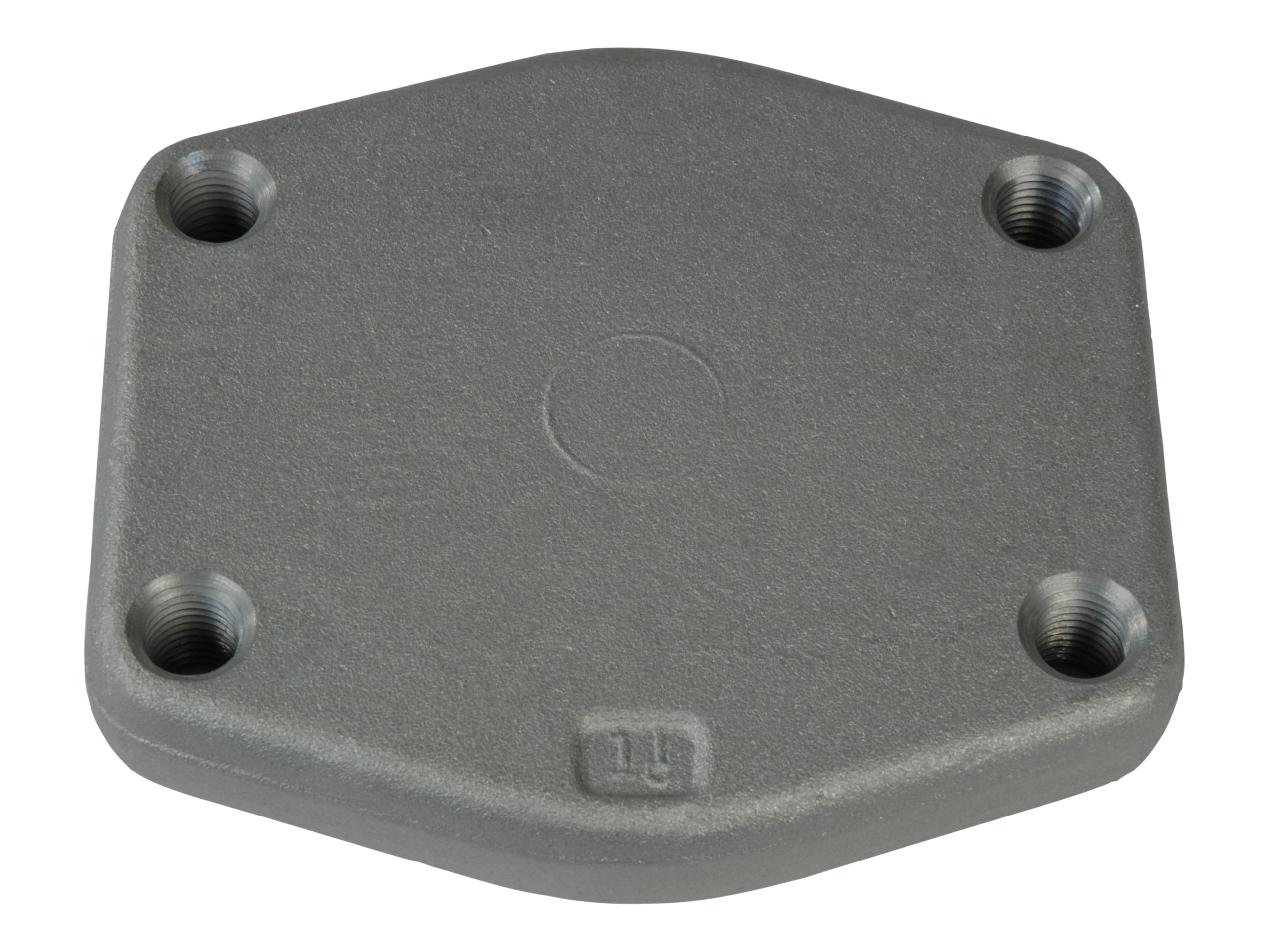

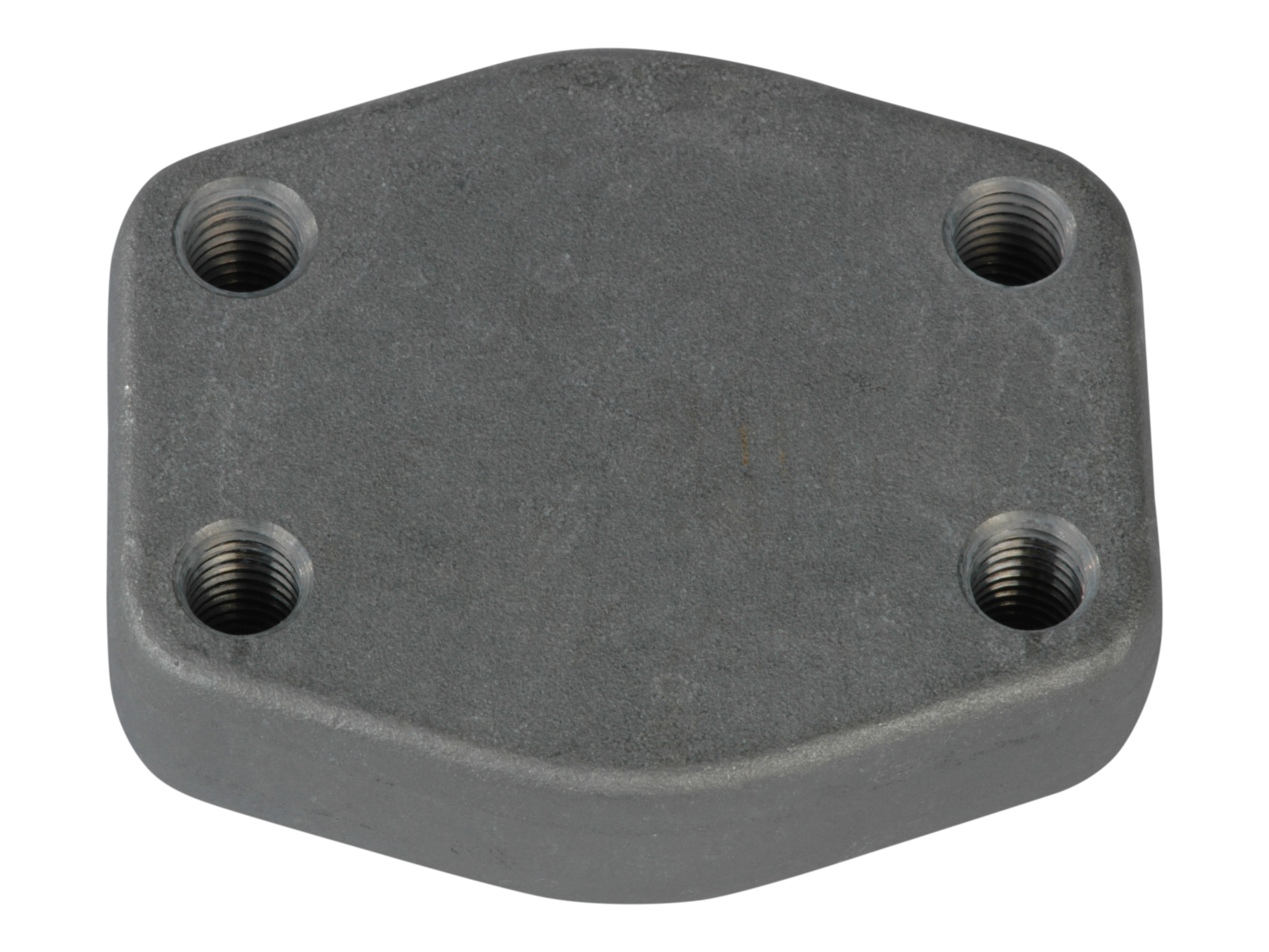

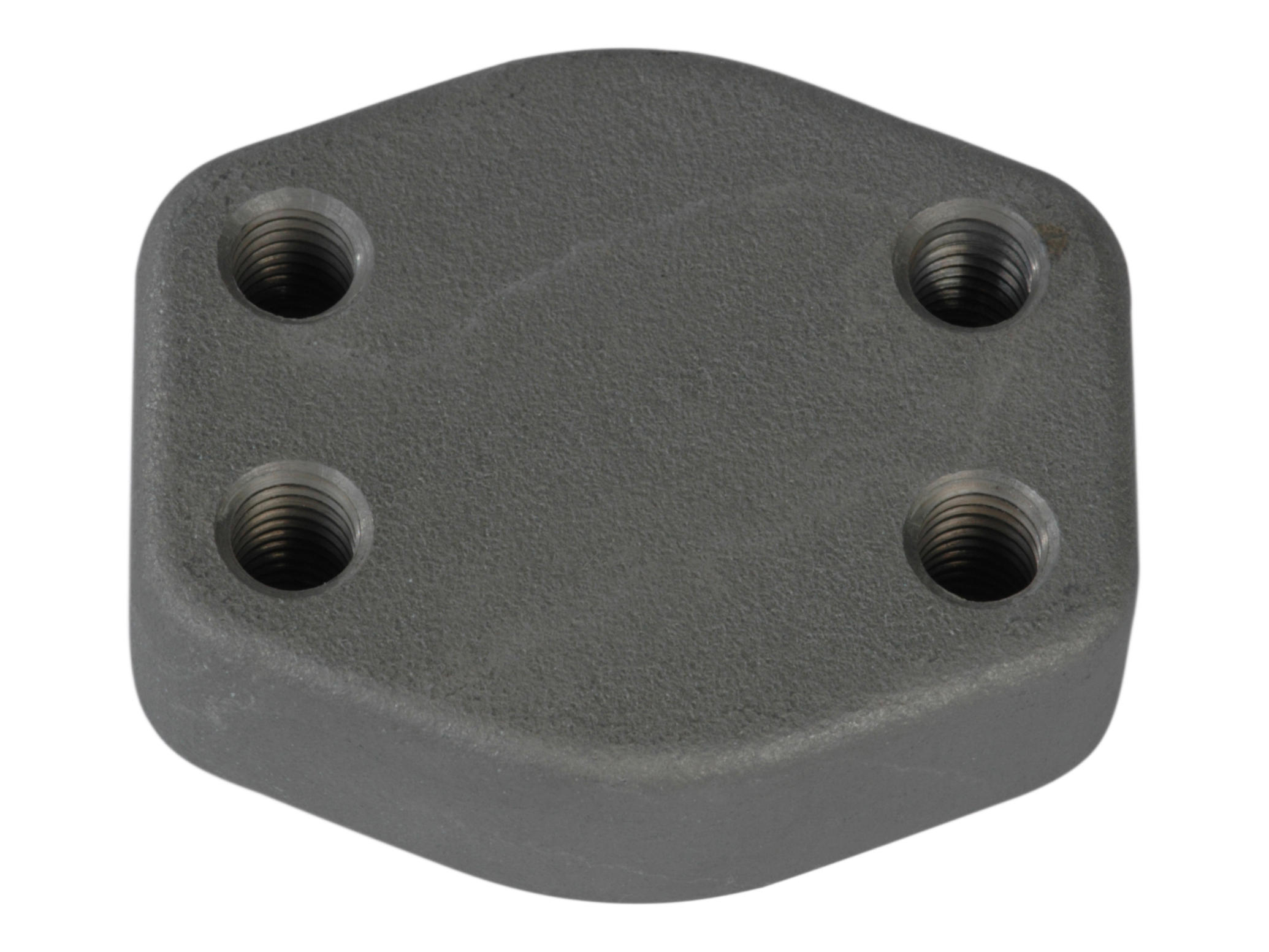

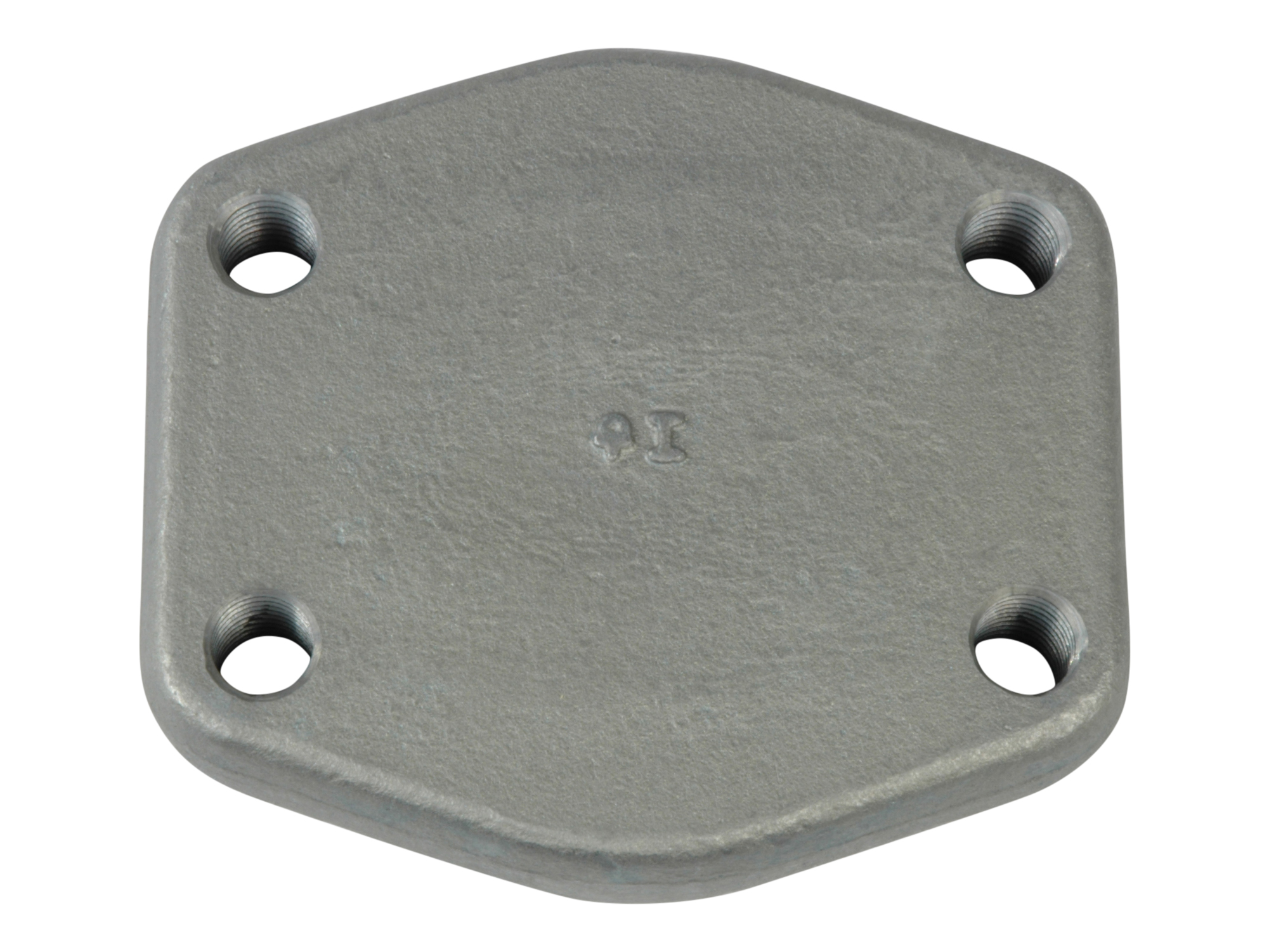

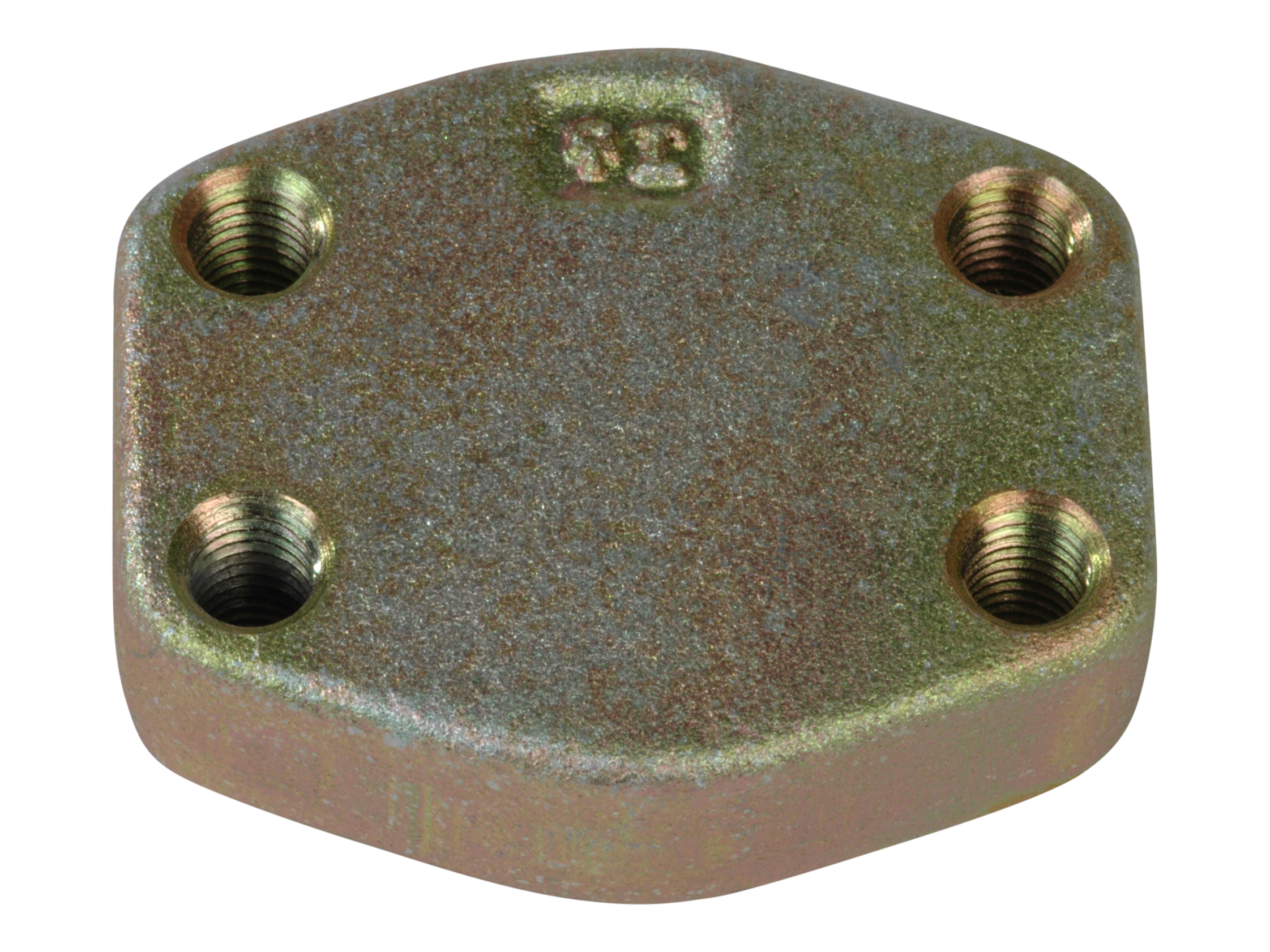

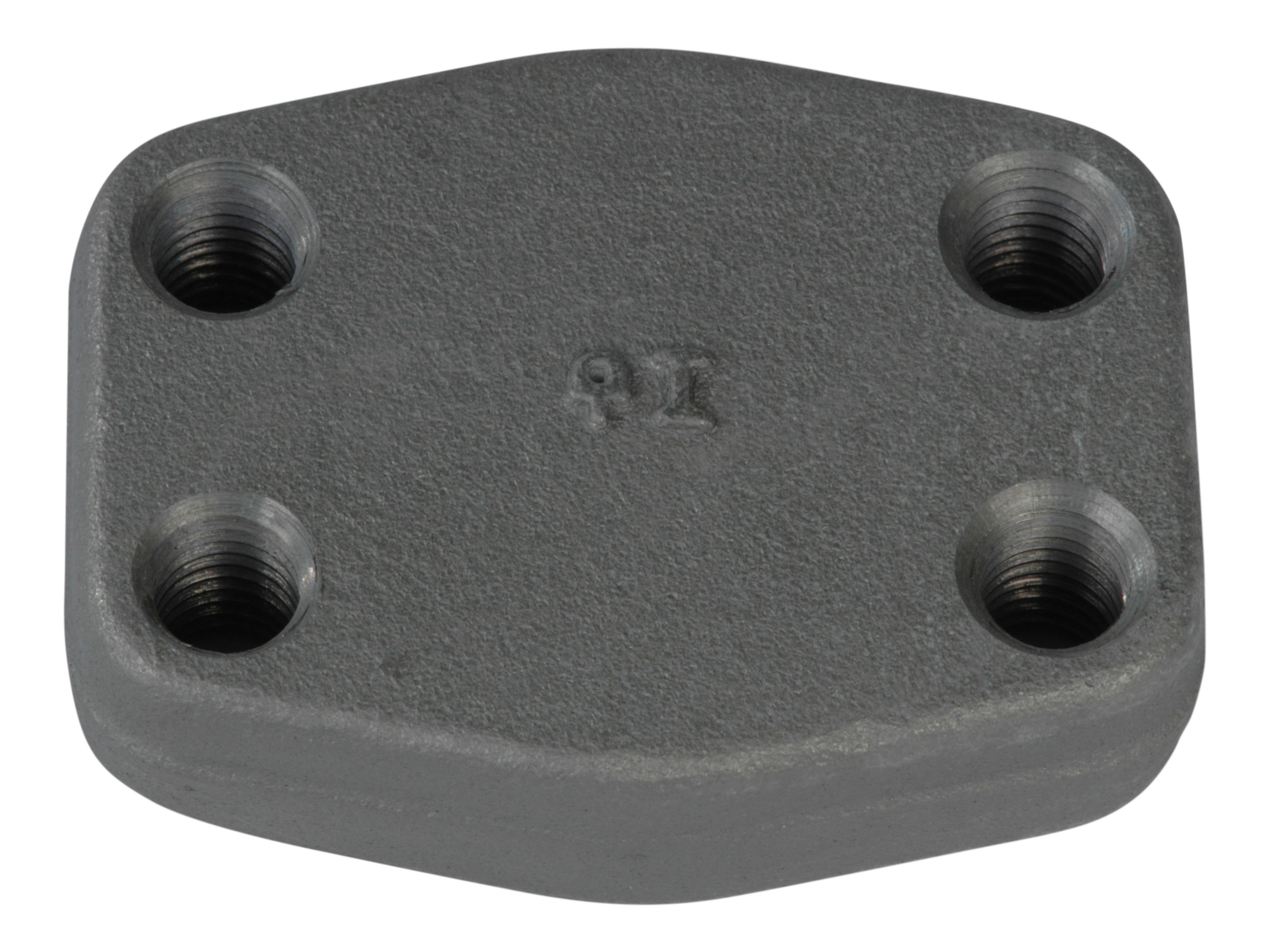

Blind flanges w/o O-ring - SAE 3000 PSI - GFC1 / 8341

SELECT VARIANT

Partnumber	Description	Flange	O-ring	Pressure max.
GFC080	Closed flange 1/2" SAE3000	1/2 "	18.64X3.53 mm	350 bar
GFC100	Closed flange 3/4" SAE3000	3/4 "	24.99X3.53 mm	350 bar
GFC102	Closed flange 1" SAE3000	1 "	32.93X3.53 mm	350 bar
GFC104	Closed flange 1.1/4" SAE3000	1.1/4 "	37.69X3.53 mm	280 bar
GFC106	Closed flange 1.1/2" SAE3000	1.1/2 "	47.22X3.53 mm	210 bar
GFC108	Closed flange 2" SAE3000	2 "	56.75X3.53 mm	210 bar
GFC112	Closed flange 3" SAE3000	3 "	85.32X3.53 mm	160 bar
GFC116	Closed flange 4" SAE3000	4 "	110.72X3.53 mm	35 bar
GFC118	Closed flange 5" SAE3000	5 "	136.10X3.53 mm	35 bar

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

3000 PSI

Material

Steel

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40
