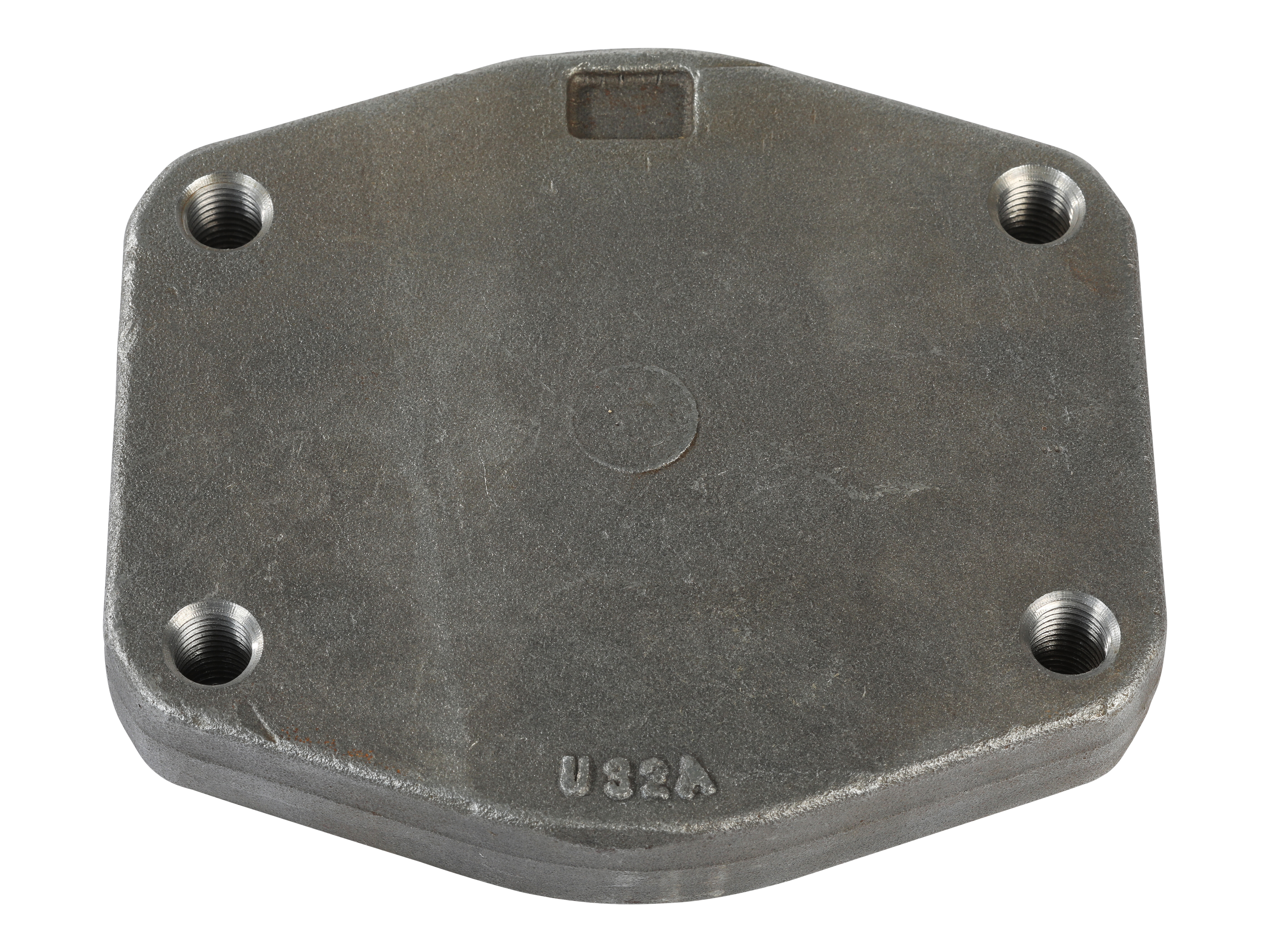

Closed flange 5" SAE3000

Varenummer:

GFC118

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

152.4 mm

Dimension C

152.4 mm

Dimension E

92.1 mm

Flange

5 "

Flange SAE/DIN

3000 PSI

Material

Steel

O-ring

136.10X3.53 mm

Pressure max.

35 bar

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread of bolt metric

M16

Package size

0 pcs

Barcode

5704334204848

Gross weight

5,80 Kg

Net weight

5,80 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Closed flange 5" SAE3000
