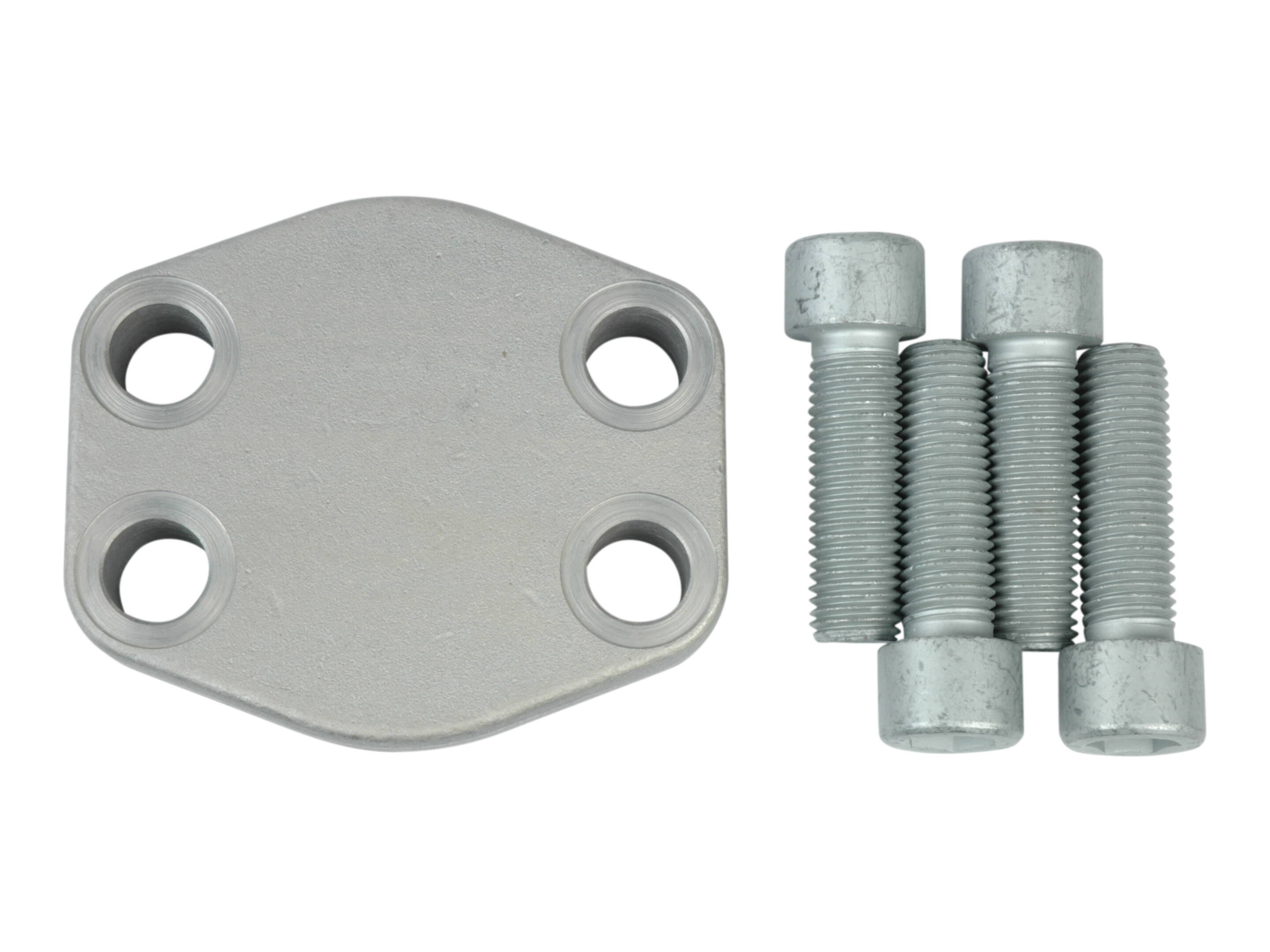

Closed flange 2" SAE6000 - complete
Closed flange 2" SAE6000 - complete
Partnumber:
AFC406M
Package size:
0 pcs
Min. order quantity is:
1 pcs
Bolt dimension
M20x65 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
79.5 mm
Dimension C
96.8 mm
Dimension E
44.5 mm
Flange
2 "
Flange SAE/DIN
6000 PSI
Material
Steel
Number of bolts
4
O-ring
56.75X3.53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Pakke str.
0 pcs
Stregkode
5704334060239
Brutto vægt
2,00 Kg
Netto vægt
2,00 Kg
Oprindelsesland
DEU
Intrastat varekode
73079100
Closed flange 2" SAE6000 - complete
