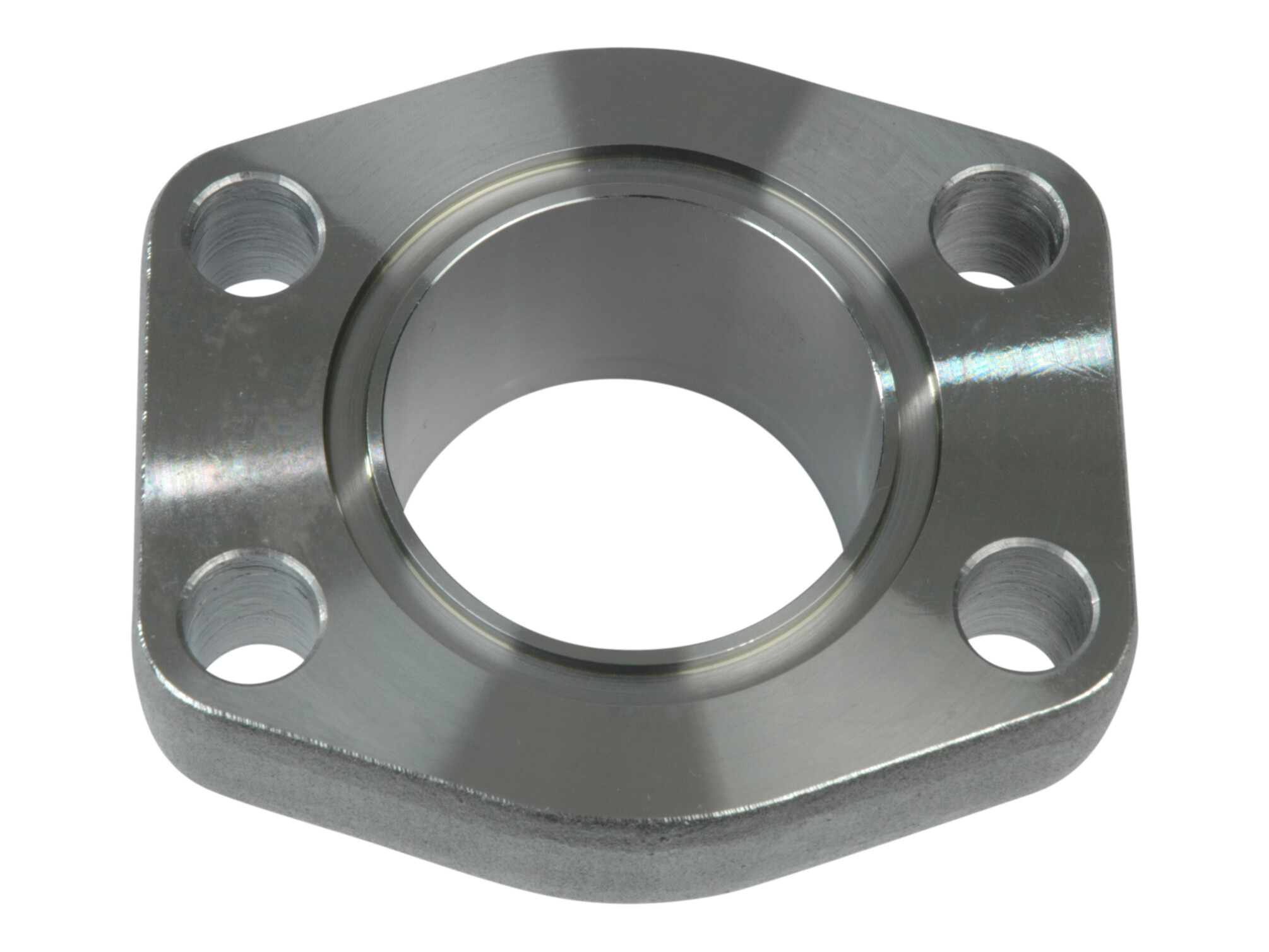

Stuksvejseflange 2" SAE3000

Artikelnummer:

AFS108ST

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Tillbehör (1)

O-ring 90S

Partnumber: 56.75X3.53S

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M12x45 mm

Diameter flange

71.4 mm

Dimension C

77.8 mm

Dimension E

42.9 mm

Flange

2 "

Flange SAE/DIN

3000 PSI

Materiale

Stål

Mærke navn

Havit

O-ring

56.75X3.53 mm

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

210 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295320694

Gross weight

1,19 Kg

Net weight

1,19 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Stuksvejseflange 2" SAE3000
