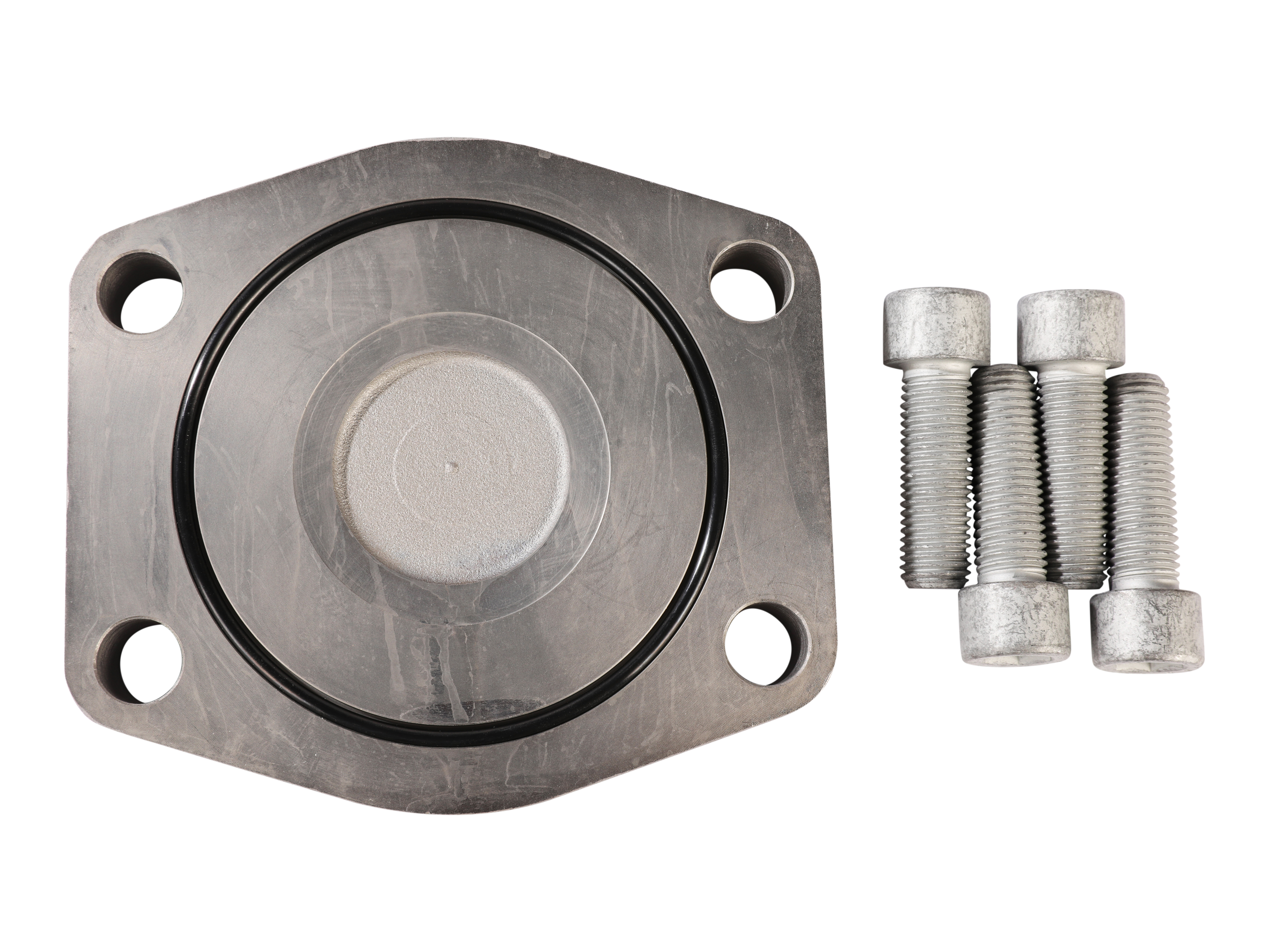

Closed flange 5" SAE3000 - complete
Blændflange 5" SAE3000 - komplet
Partnumber:
AFC118M
Package size:
0 pcs
Min. order quantity is:
1 pcs
Bolt dimension
M16x50 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
152.4 mm
Dimension C
152.4 mm
Dimension E
92.1 mm
Flange
5 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
136.10X3.53 mm
Pressure max.
35 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704334378334
Gross weight
3,00 Kg
Net weight
3,00 Kg
Country of origin
DEU
Intrastat code
73079100
Blændflange 5" SAE3000 - komplet
