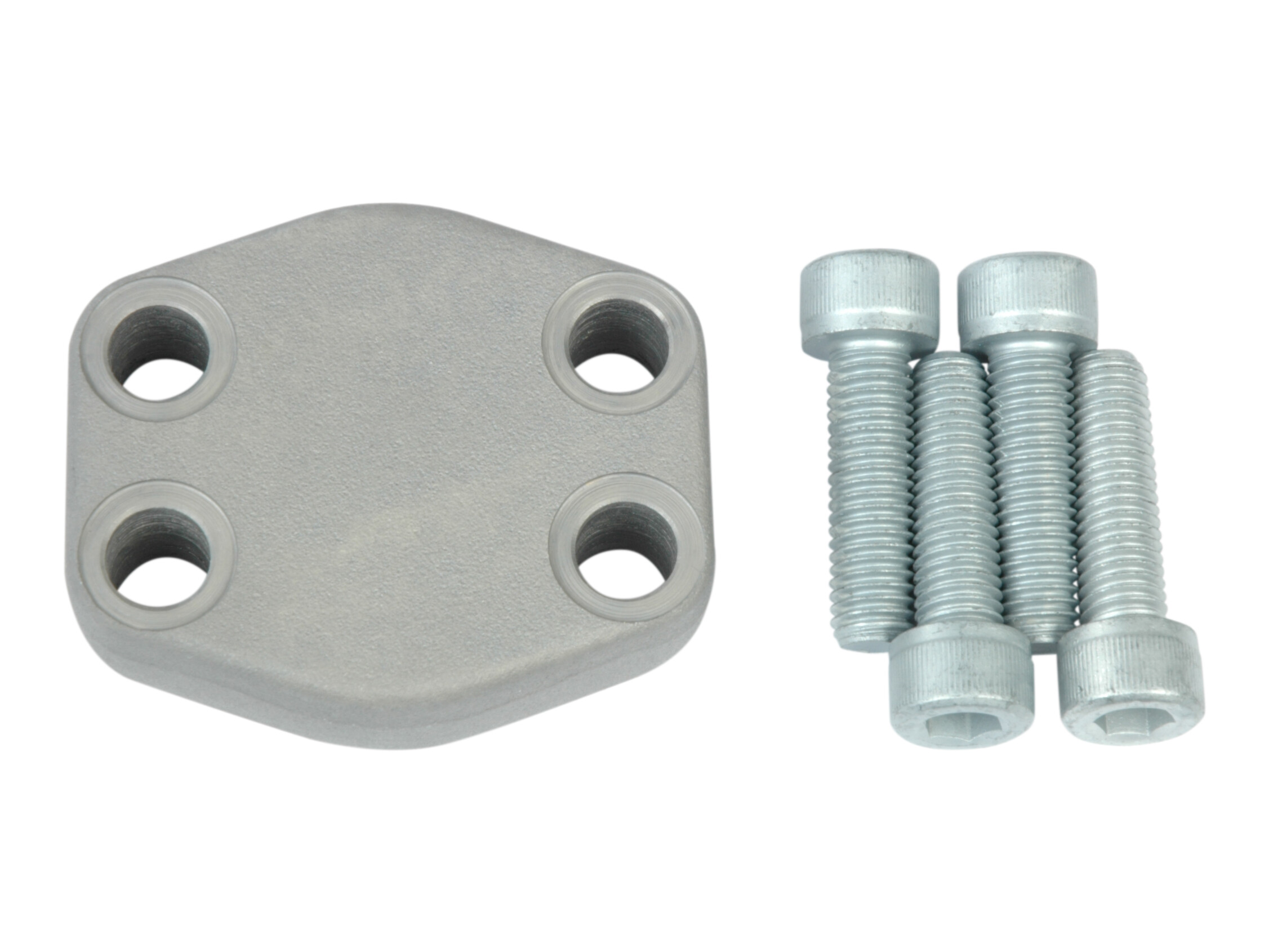

Closed flange 3/4" SAE6000 - complete
Closed flange 3/4" SAE6000 - complete
Partnumber:
AFC402M
Package size:
0 pcs
Min. order quantity is:
1 pcs
Bolt dimension
M10x35 mm
Brand Name
Havit
C
50,8 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
71 mm
Diameter flange
41.3 mm
E
23,8 mm
F
60 mm
Flange
3/4 "
Flange SAE/DIN
6000 PSI
H
19 mm
L
11 mm
M
M10x35
Material
Steel
Number of bolts
4
O-ring
24,99X3,53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704334251743
Gross weight
0,48 Kg
Net weight
0,48 Kg
Country of origin
DEU
Intrastat code
73079100
Closed flange 3/4" SAE6000 - complete
