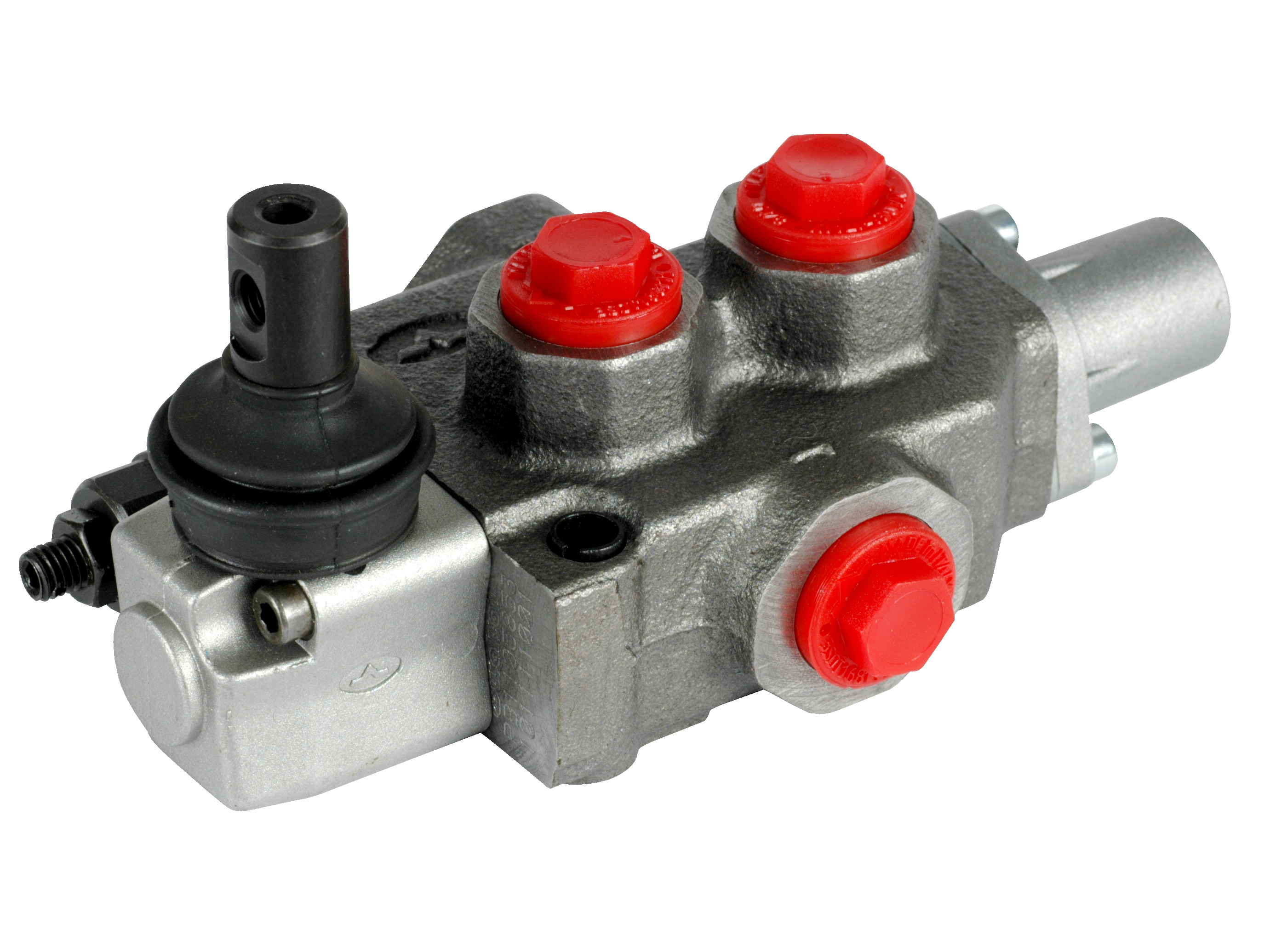

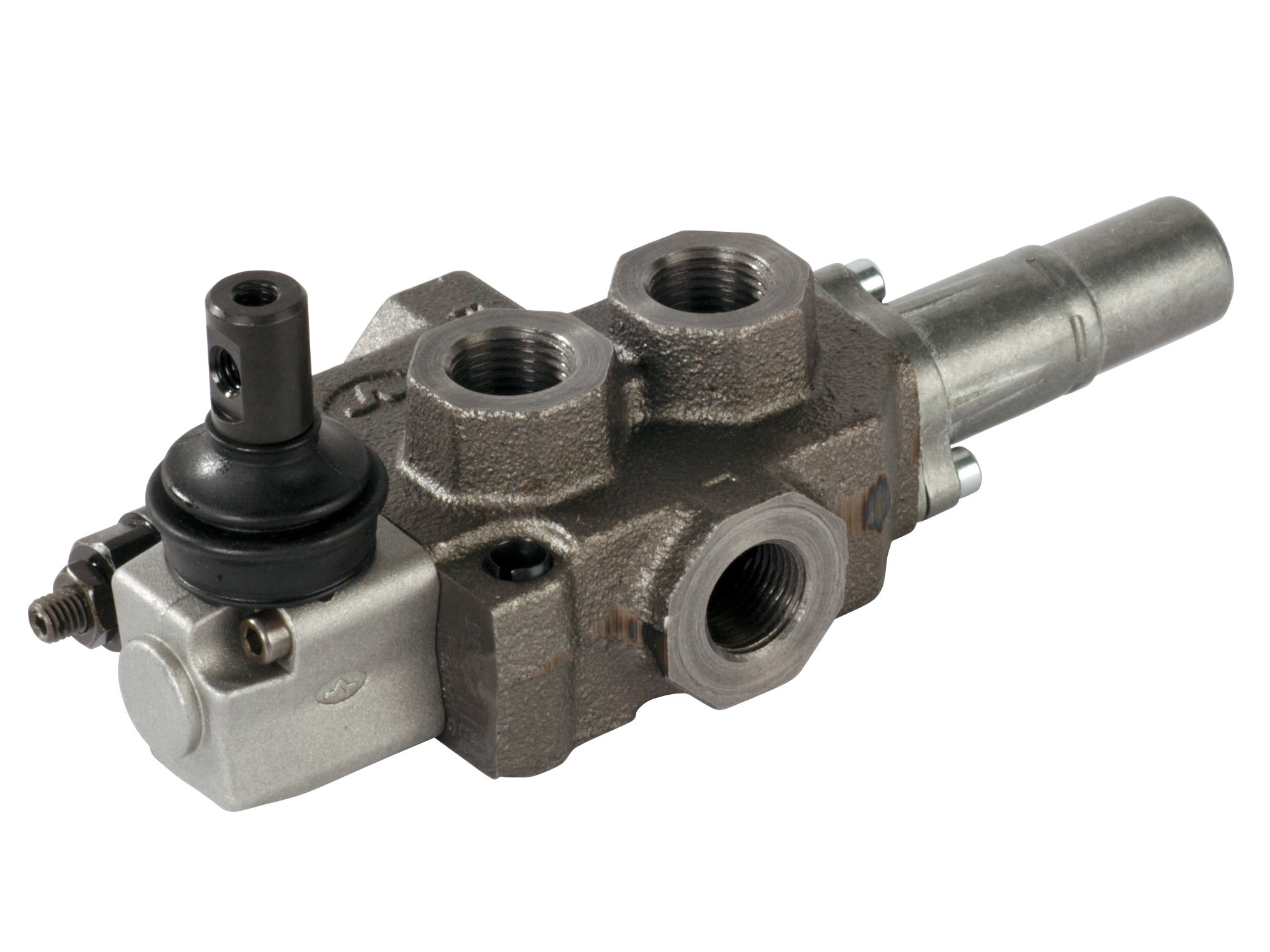

Directional valves SD4

SELECT VARIANT
Partnumber Description Number of sections Pressure max. Flow rate nominal LMin
101100300 SD4/1(JG3-120)/8N13FZL-BSP12 (P-A-B-T=G1/2 BSP) (B=+cylinder 1 250 bar 45 lpm
101111001 SD4/1(KG3-120)/1CP8L, Walvoil 1 250 bar 45 lpm
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
45

Lever
Exclusive

Material
Cast iron

Number of sections
1

Oil viscocity recommended
12 - 400

Pressure T max.
25

Pressure carry-over
No

Pressure max.
250

Pressure relief valve
Yes

Pressure setting max.
200
