SD4/1(KG3-120)/1CP8L, Walvoil

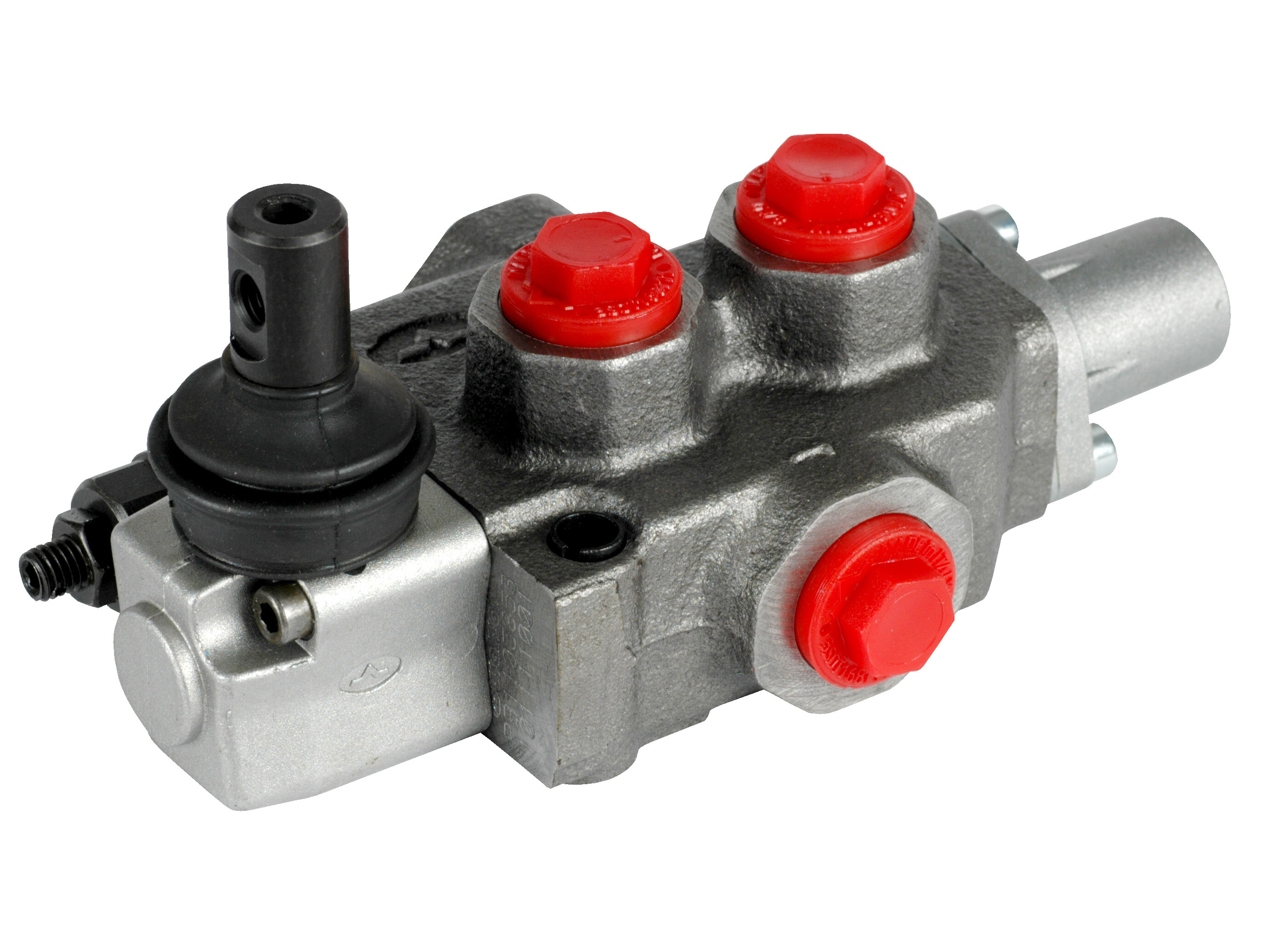

1-section SD4 monoblock directional valve with built-in pressure relief valve and one spool.

Spool function: Doubleacting with positive overlap, port A and B closed in neutral position. Spring centered.

Open center port P to T in neutral position.

Partnumber:
101111001

Package size:
0 pcs

Min. order quantity is:
1 pcs
LeverAL01-M8x120, Walvoil L/SDM080,SD4,SD5
Artikelnummer: 170011012
O-ring
Artikelnummer: 15.88X2.62
Lever housing SD4, SD5, SD6
Artikelnummer: 5LEV105000
SD4/8 Spring return set
Artikelnummer: 5V08104000
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
45 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD4/1(KG3-120)/1CP8L,

Number of sections
1

Oil viscocity recommended
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
250 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
63 bar

Working ports
G 3/8 BSP
Förpackningsstorlek
0 pcs

Streckkod
5704295997339

Bruttovikt
2,10 Kg

Nettovikt
2,10 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

1-section SD4 monoblock directional valve with built-in pressure relief valve and one spool.

Spool function: Doubleacting with positive overlap, port A and B closed in neutral position. Spring centered.

Open center port P to T in neutral position.
