SD5/1-N(KG3-120)/18L walvoil

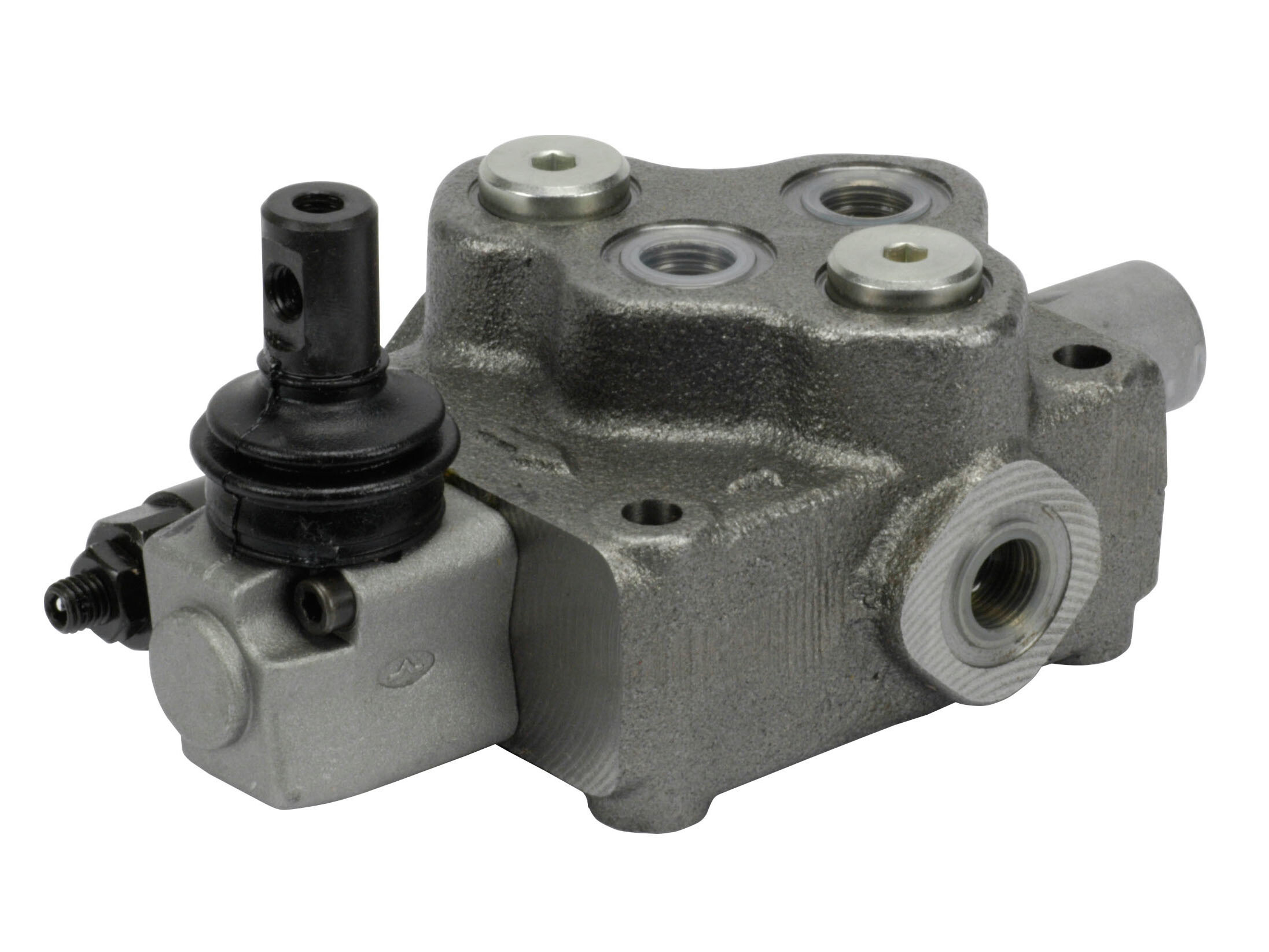

1-section SD5 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
Varenummer:
102111001
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Antal sektioner
1
Arbetsportar
G 3/8 BSP
Flödeshastighet nominell LMin
45 lpm
Föroreningsgrad max.
-/19/16 - ISO 4406
Handtag
Exclusive
Modell kod
SD5/1-N(KG3-120)/18L
Märke namn
Walvoil
Oljeviskositet rekommanderad
12 - 400 cSt
Port P
G 3/8 BSP
Port T
G 3/8 BSP
Tillverkningsmaterial
Cast iron
Tryck T max.
25 bar
Tryck max.
315 bar
Tryckbegränsningsventil
Yes
Tryckinställning max.
200 bar
Tryckinställning min.
63 bar
Tryckvidereföring
No
Pakke str.
1 st
Stregkode
467889
Brutto vægt
3,44 Kg
Netto vægt
3,44 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
1-section SD5 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
