Directional valves SDM080

SELECT VARIANT

Partnumber	Description	Number of sections	Pressure max.	Flow rate nominal LMin

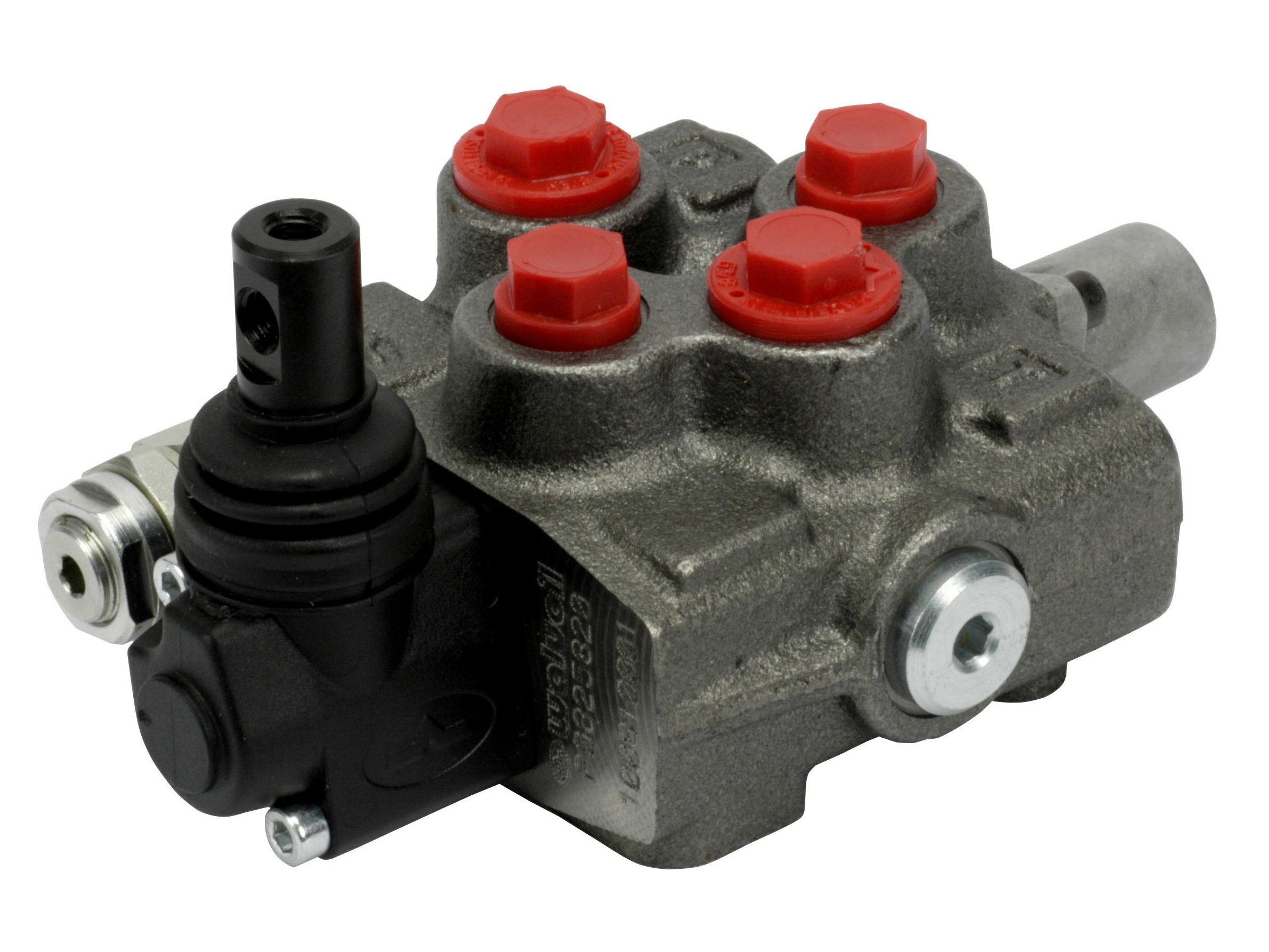

100810001	SDM080/1-P(TG3-175)/18L/PSA Walvoil	1	315 bar	25 lpm

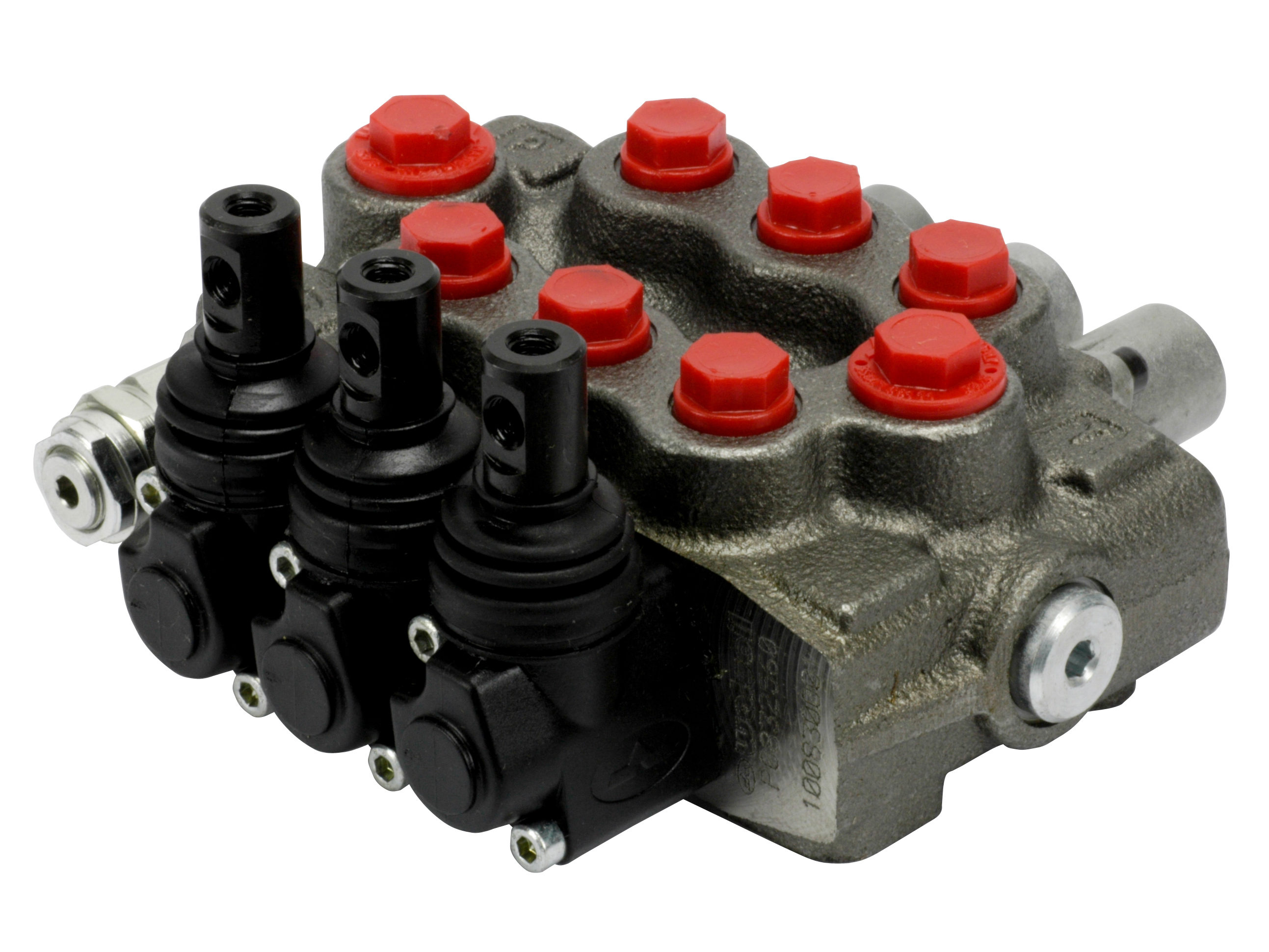

100830001	SDM080/3-P(TG3-175)/18L/18L/18L/PSA	3	315 bar	25 lpm

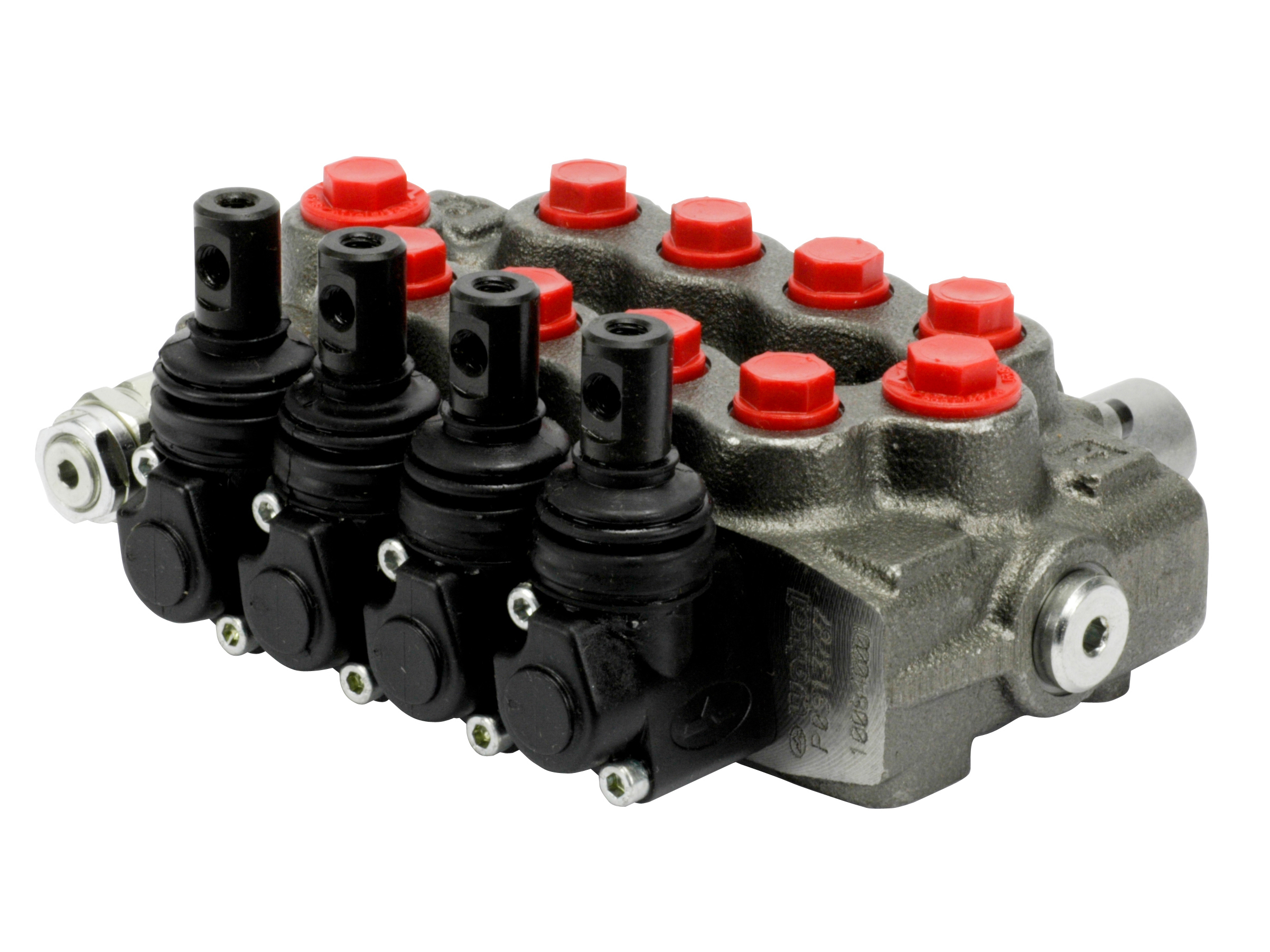

100840001	SDM080/4-P(TG3-175)/18L/18L/18 L/18L-PSA	4	315 bar	25 lpm

Brand Name

Walvoil

Contamination level max.

-/19/16 - ISO 4406

Flow rate nominal LMin

Lever

Exclusive

Material

Cast iron

Oil viscocity recommended

12 - 400

Port P

G 3/8

Port P1

G 3/8

Port T

G 3/8

Port T1

G 3/8

Pressure T max.

Pressure carry-over

Pressure max.

315

Pressure relief valve

Yes

Pressure setting max.

200

Pressure setting min.

100

Working ports

G 1/4
