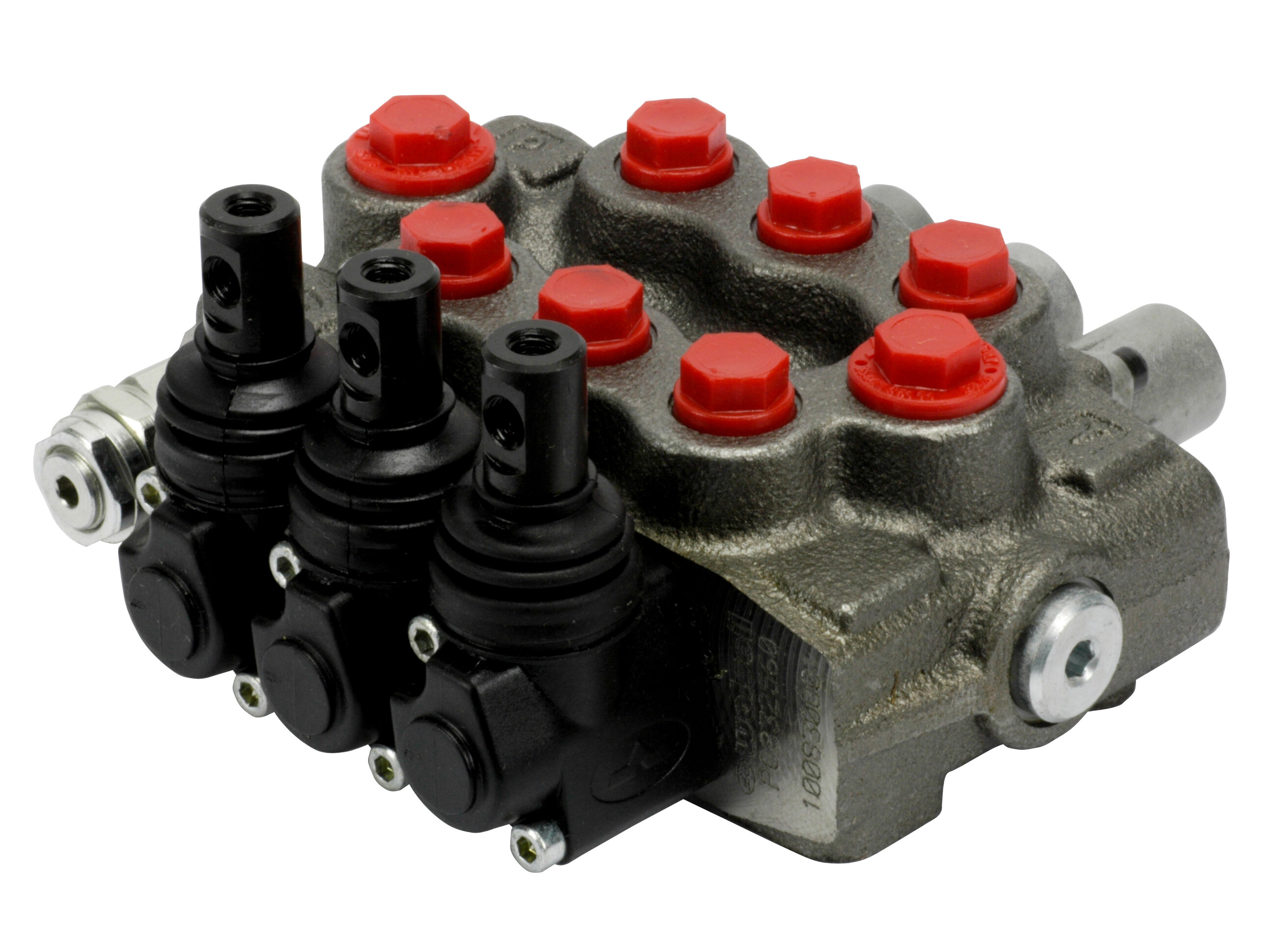

SDM080/3-P(TG3-175)/18L/18L/18L/PSA
3-section SDM080 monoblock directional valve with built-in pressure relief valve and 3 spools in parallel. Manually activated with handlevers.
PSA-configuration: Port P and T upwards as the working ports.
Spool function: 3 x double acting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
Varenummer:
100830001
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Antal sektioner
3
Arbejdsporte
G 1/4 BSP
Flow Nominel
25 lpm
Forureningsgrad maks.
-/19/16 - ISO 4406
Håndtag
Exclusive
Materiale
Cast iron
Model kode
SDM080/3-P(TG3-175)/18L/18L/18L/PSA
Mærke navn
Walvoil
Olieviskositet anbefalet
12 - 400 cSt
Port P
G 3/8 BSP
Port P1
G 3/8 BSP
Port T
G 3/8 BSP
Port T1
G 3/8 BSP
Tryk T maks.
25 bar
Tryk maks.
315 bar
Trykbegrænsningsventil
Yes
Trykindstilling maks.
200 bar
Trykindstilling min.
100 bar
Trykvidereføring
No
Package size
0 pcs
Barcode
5704334150503
Gross weight
5,27 Kg
Net weight
5,27 Kg
Country of origin
ITA
Intrastat code
84812010
3-section SDM080 monoblock directional valve with built-in pressure relief valve and 3 spools in parallel. Manually activated with handlevers.
PSA-configuration: Port P and T upwards as the working ports.
Spool function: 3 x double acting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
