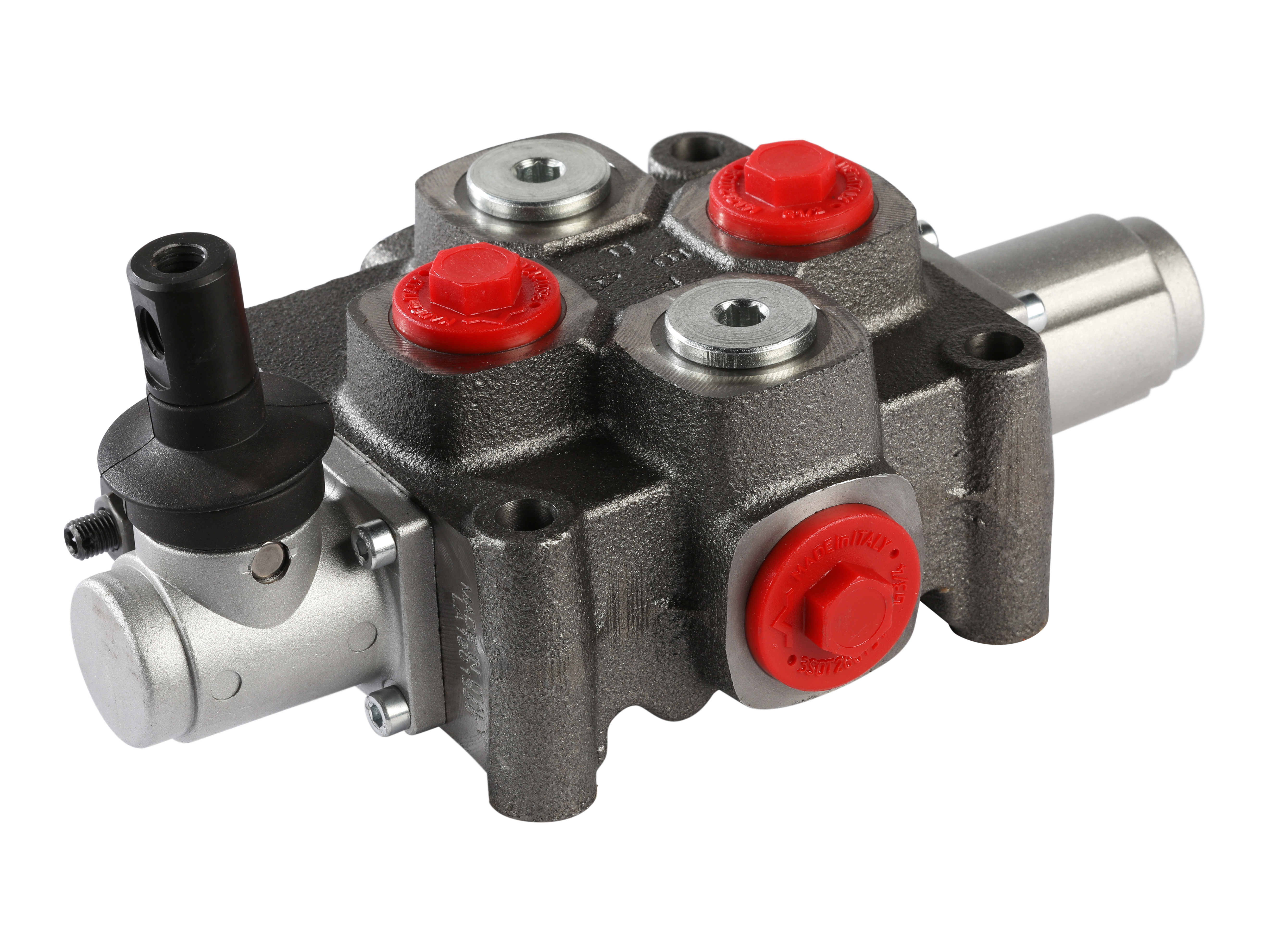

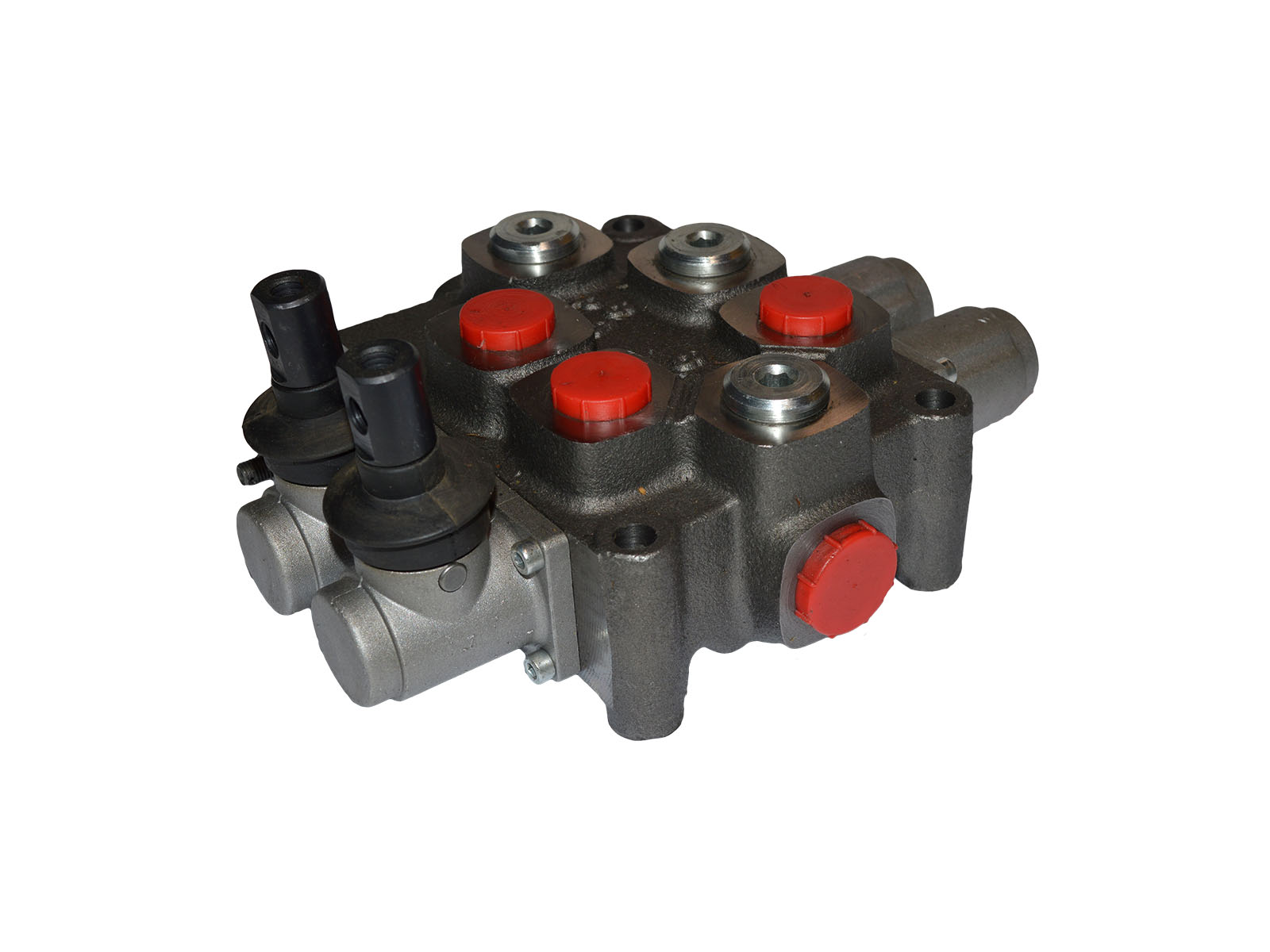

Directional valves Q75

Directional valves Q75

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Flow rate nominal LMin
075-1001 Q75M/1-F1S-103/A1/M1-F3D 350 bar 75 lpm
075-1003 Q75M/1-F1S-111/A1/M1-F3D 350 bar 75 lpm
075-2001 Q75M/2-F1S-2x103/A1/M1-F3D 350 bar 75 lpm
075-2003 Q75M/2-F1S-2x111/A1/M1-F3D 350 bar 75 lpm
075-3004 Q75M/3-F1S-2x103/A1/M1- 101/A1/M1-F3D 300 bar 75 lpm
Brand Name
Walvoil
Contamination level max.
16/14/12 - ISO 4406
Flow rate nominal LMin
75
Lever
Exclusive
Material
Cast iron
Oil viscocity recommended
10 - 400
Port P1
G 1/2
Port P2
G 1/2
Port T1
G 3/4
Port T2
G 1/2
Pressure T max.
25
Pressure carry-over
No
Pressure relief valve
Yes
Pressure setting max.
280
Pressure setting min.
30
Working ports
G 1/2
