08MEUP48 closing plug M48x2 m.

Partnumber:

VSCH48

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Dimension D1

55 mm

Dimension L1

22.8 mm

Dimension S1

24 mm

Dimension i

16 mm

Material

Steel

Model code

FI-VS-M48x2-WD-B-W3

Pressure max.

55 bar

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR

Surface treatment

Zinc-Nickel plated

Temperature max.

+100 °C

Temperature min.

-35 °C

Thread T

M48x2

Thread outer metric

M48x2

Torque tightening

380 Nm

Package size

0 pcs

Barcode

5704295287874

Gross weight

0,26 Kg

Net weight

0,26 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

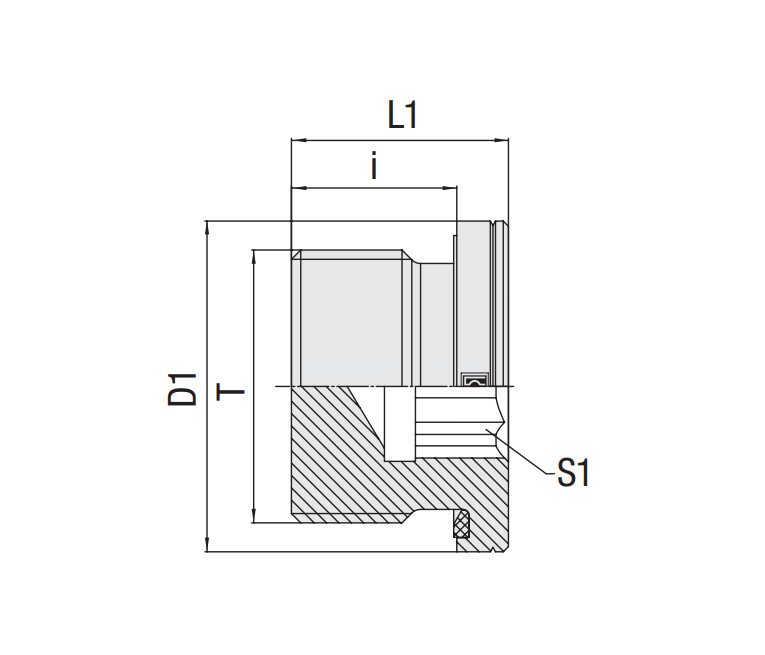

Measure sketch

08MEUP48 closing plug M48x2 m.

Note: Opening 3D files requires a program that supports the file format
