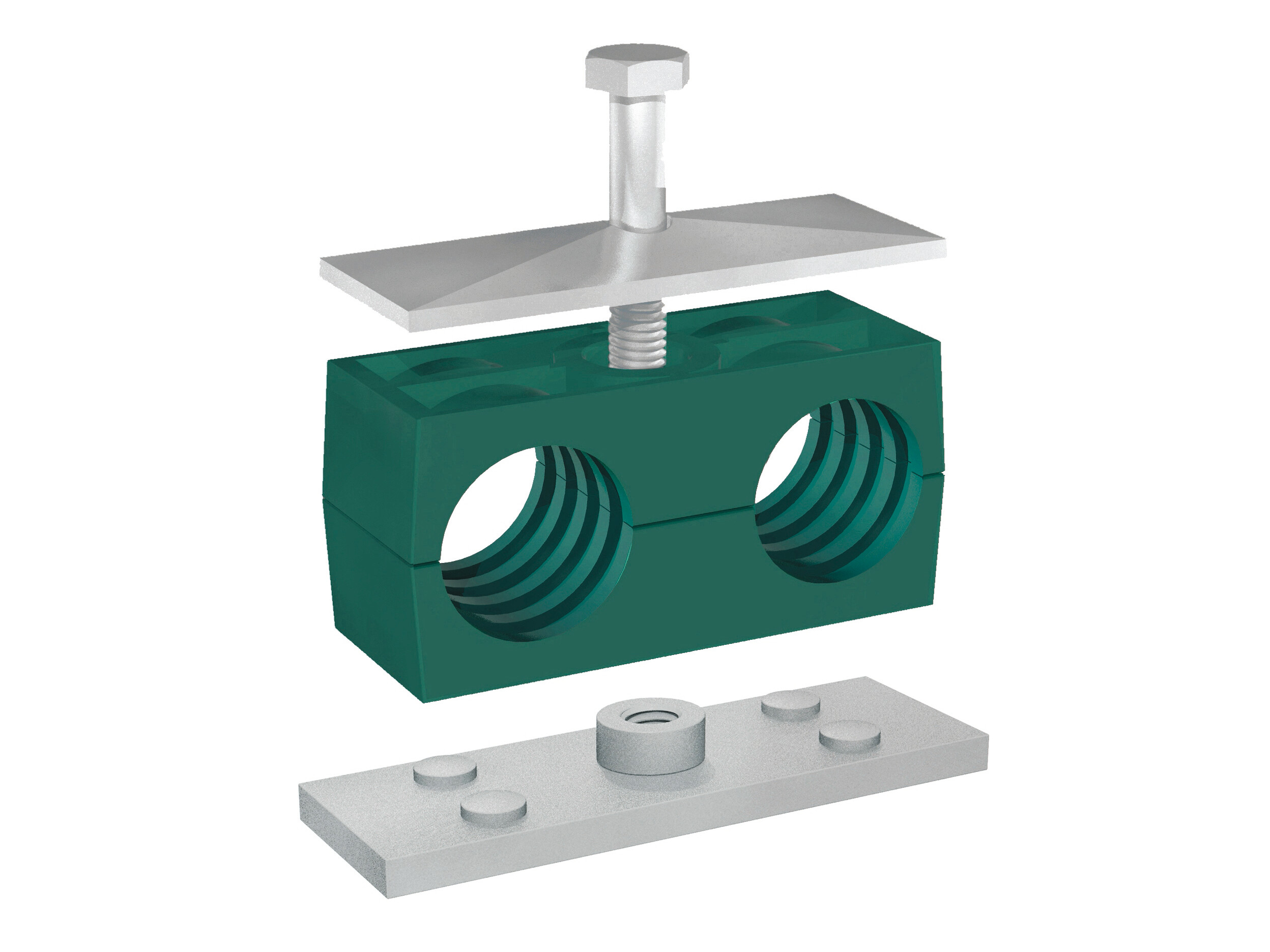

Twin clamp ø22-22 - Green PP - Complete

Twin clamp ø22-22 - Green Profiled Polypropylene - incl weld plate + cover plate + M8x45 bolts - SP-322/22-PP-GD-AS-M-W3

Partnumber:
SP32222GDAS

Package size:
0 Set

Min. order quantity is:
1 Set
Twin clamp ø22-22 - Green PP - DIN 3 Twin
Partnumber: 32222
Hexagon head bolt - M8x45 - DIN 3 Twin - ZiNi
Partnumber: AS3D
Cover plate - DIN 3 Twin - ZiNi
Partnumber: GD3D
Weld plate - DIN 3 Twin - Phosphated
Partnumber: SP3D
Brand Name
Stauff

Color
Green

DIN size
3

Diameter pipe
22 mm

Dimension A
5 mm

Dimension B
23.5 mm

Dimension C
49 mm

Dimension D
54 mm

Dimension E
70 mm

Dimension F
67 mm

Dimension G
65 mm

Dimension H
36 mm

Group Stauff
3D

Material
Polypropylene, Steel

Model code
SP-322/22-PP-GD-AS-M-W3

Number of bolts
1

Standard DIN
DIN 3015 part 3

Surface treatment
Zinc-Nickel plated

Temperature max.
+90 °C

Temperature min.
-30 °C

Torque tightening
12 Nm

Type
Profiled
Package size
0 Set

Barcode
5704295340265

Gross weight
0,17 Kg

Net weight
0,17 Kg

Country of origin
DEU

Intrastat code
39259010

Twin clamp ø22-22 - Green Profiled Polypropylene - incl weld plate + cover plate + M8x45 bolts - SP-322/22-PP-GD-AS-M-W3
