Weld plate - DIN 1 Twin - Stainless

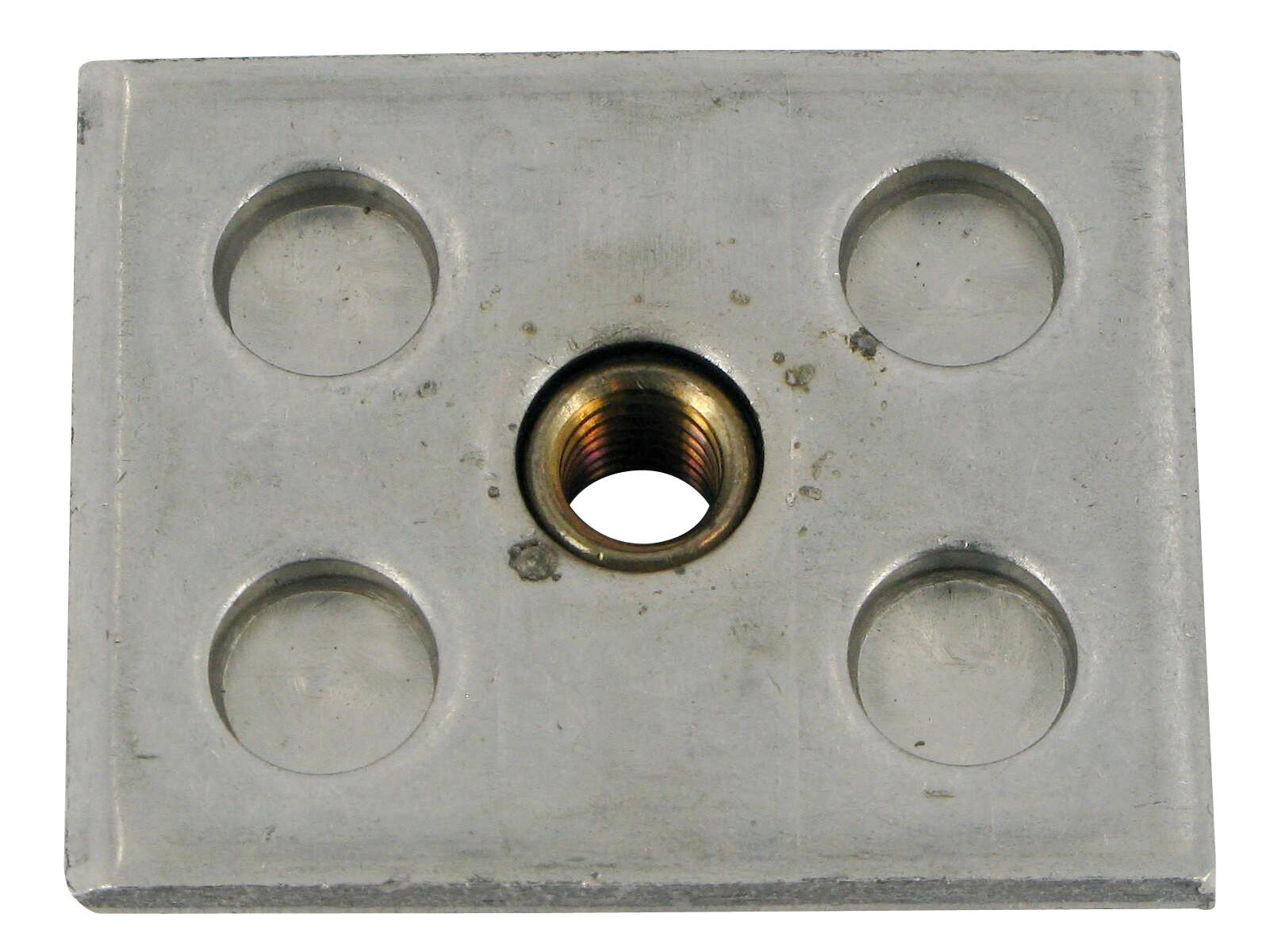

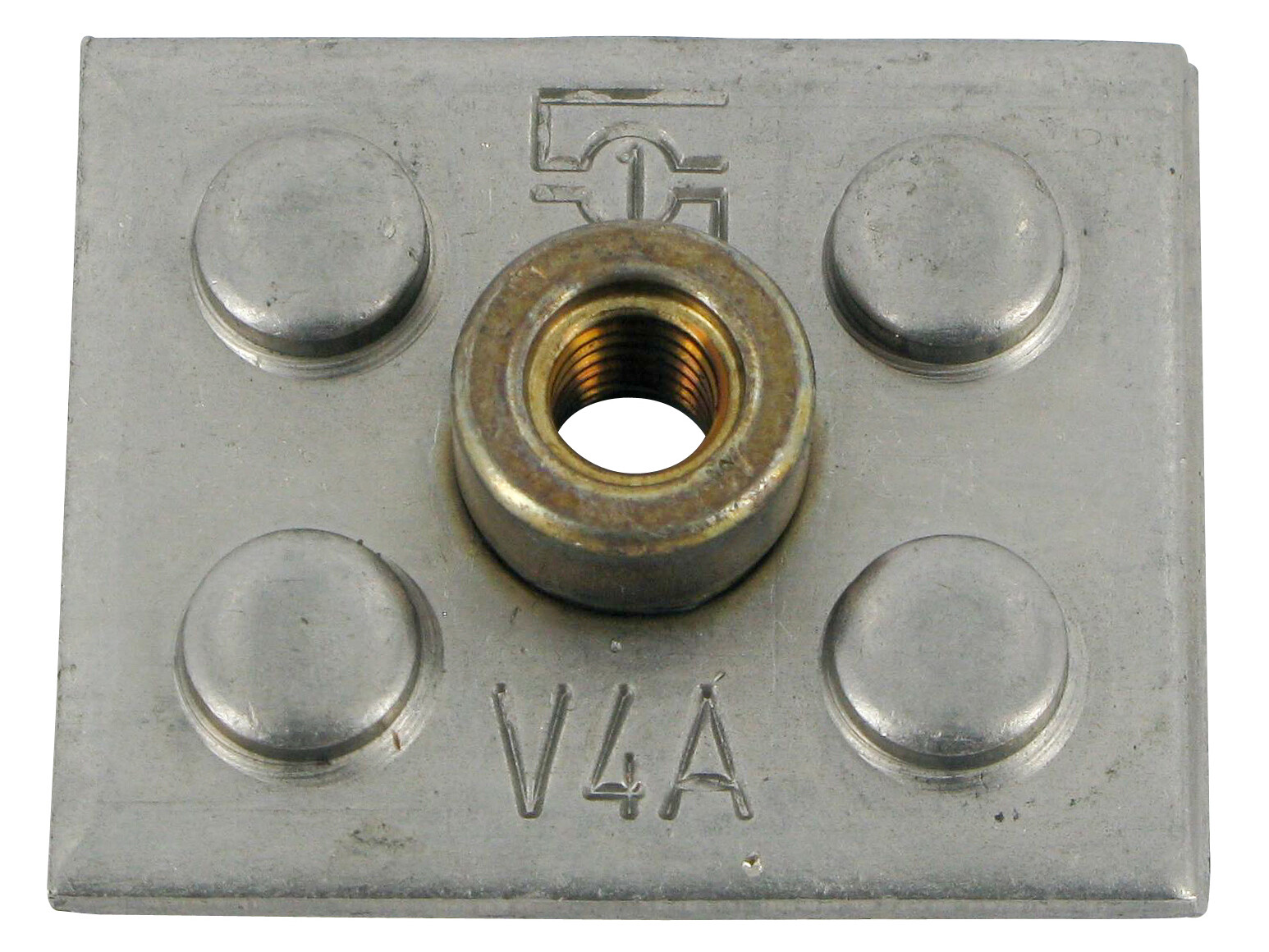

Weld plate for fastening a DIN 3015 pipe clamp to a machine frame or support structure by welding. The integrated M6 threaded connection provides the mounting interface for the clamp hardware in twin-series installations.
Designed to DIN 3015 Part 3, size 1. The plate is manufactured in stainless steel quality 1.4571 / AISI 316Ti and has a compact footprint for clamp mounting points in hydraulic and industrial piping layouts.
Typical Applications
- Weld-on mounting point for DIN 3015 pipe clamps in hydraulic pipe and tube routing
- Mounting of clamp assemblies on frames, skids, and welded support structures
Partnumber:
SP1D/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
B
30 mm
Brand Name
Stauff
D
12 mm
DIN size
1
G
M6
Group Stauff
1D
H
6,5 mm
L
37 mm
Length
37 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
SP-1D-M-W5
Number of clamps
1
S
3 mm
Standard DIN
DIN 3015 part 3
Thread
M6
Width
30 mm
Package size
0 pcs
Barcode
5704295323329
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
DEU
Intrastat code
39259010
Weld plate for fastening a DIN 3015 pipe clamp to a machine frame or support structure by welding. The integrated M6 threaded connection provides the mounting interface for the clamp hardware in twin-series installations.
Designed to DIN 3015 Part 3, size 1. The plate is manufactured in stainless steel quality 1.4571 / AISI 316Ti and has a compact footprint for clamp mounting points in hydraulic and industrial piping layouts.
Typical Applications
- Weld-on mounting point for DIN 3015 pipe clamps in hydraulic pipe and tube routing
- Mounting of clamp assemblies on frames, skids, and welded support structures
Note: Opening 3D files requires a program that supports the file format
