Test adaptor ø10 with outlet 400 bar
Straight screw connection for pressure monitoring and venting. With external thread (collector) at both ends, as well as M16x2 side outlet for test hose or manometer test screw. Suitable for hydraulic oil and other mineral oil-based oils. Metal protective cap included. Can be connected under pressure without oil spillage.
Partnumber:
SMK20-10L-PG
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rör
10 mm
Gänga utv. metrisk
M16x2

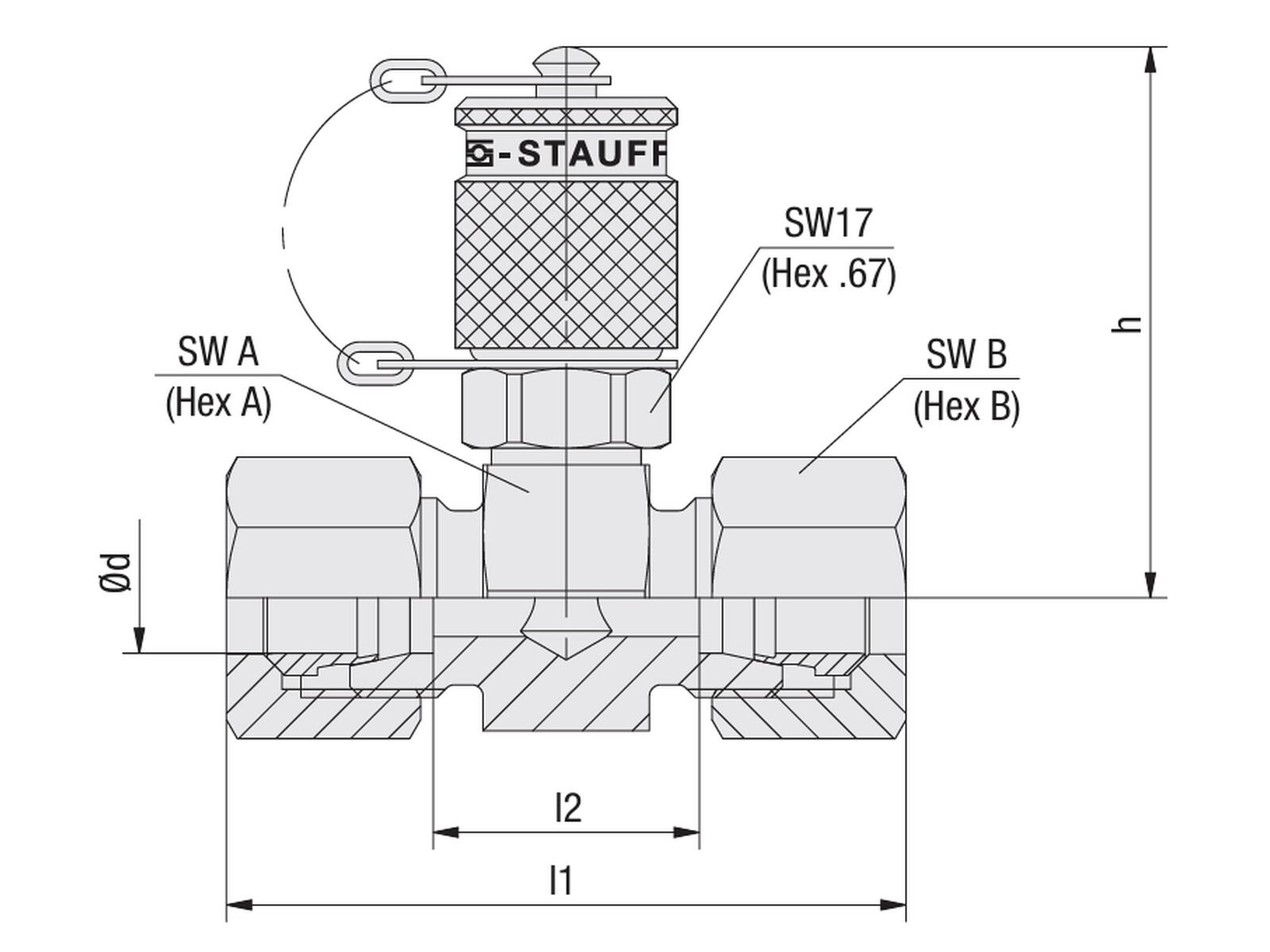

HEX A
24 mm
HEX B
19 mm
I1
53 mm
I2
23 mm
Modell kod
SKK-20-10L-G-W3-MS
Märke namn
Stauff
Packningsmaterial
FKM/FPM (Viton®)
Serie
L
Standard DIN
DIN 2353
Standard ISO
ISO 8434-1
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Steel
Tryck max.
315 bar
Ytskiktbehandling
Zinc-Nickel plated
h
49 mm
Ød
10 mm
Förpackningsstorlek
0 pcs
Streckkod
5704295297491
Bruttovikt
0,17 Kg
Nettovikt
0,17 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Straight screw connection for pressure monitoring and venting. With external thread (collector) at both ends, as well as M16x2 side outlet for test hose or manometer test screw. Suitable for hydraulic oil and other mineral oil-based oils. Metal protective cap included. Can be connected under pressure without oil spillage.
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
