Insert 1.1/2" - 2" SAE 3000 psi 45°

Insert to be used with split-flanges.

Sealing: Metal against o-ring (90shore).

Varenummer:

P2432PA45

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Angle

45 °

Brand Name

I.M.M Hydraulics

115 mm

Diameter flange

71.4 mm

Flange

2 "

Flange SAE/DIN

3000 PSI

40 mm

Hose coupling type

For separate ferrule

Hose size

1.1/2 "

Material

Steel

Model code

SF4071L45

O-ring

56,75X3,53 mm

Pressure max.

210 bar

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Electro-galvanized / White chromatized

71,4 mm

Package size

0 pcs

Barcode

5704295696652

Gross weight

0,99 Kg

Net weight

0,99 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

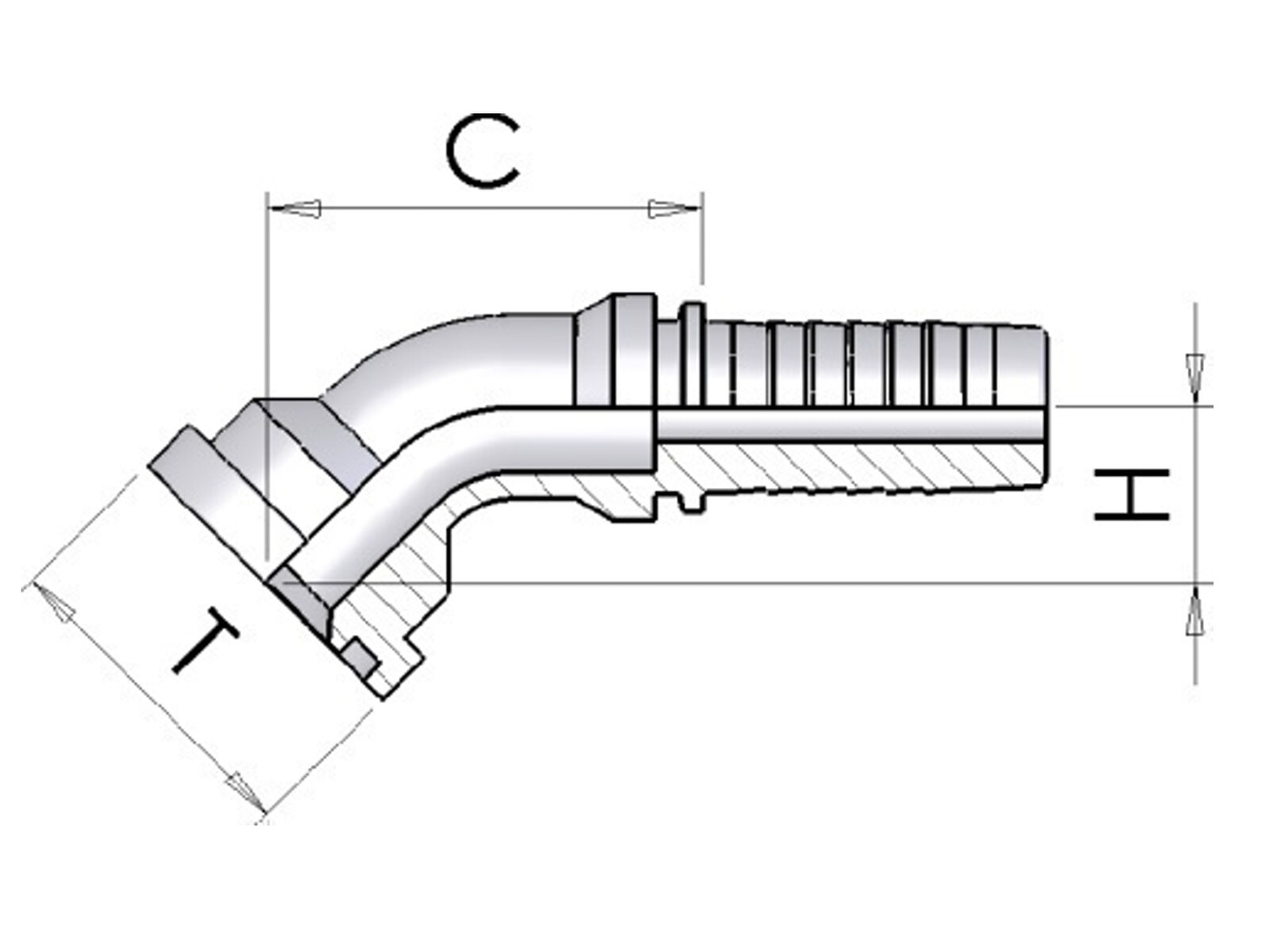

Measure sketch

Insert to be used with split-flanges.

Sealing: Metal against o-ring (90shore).
