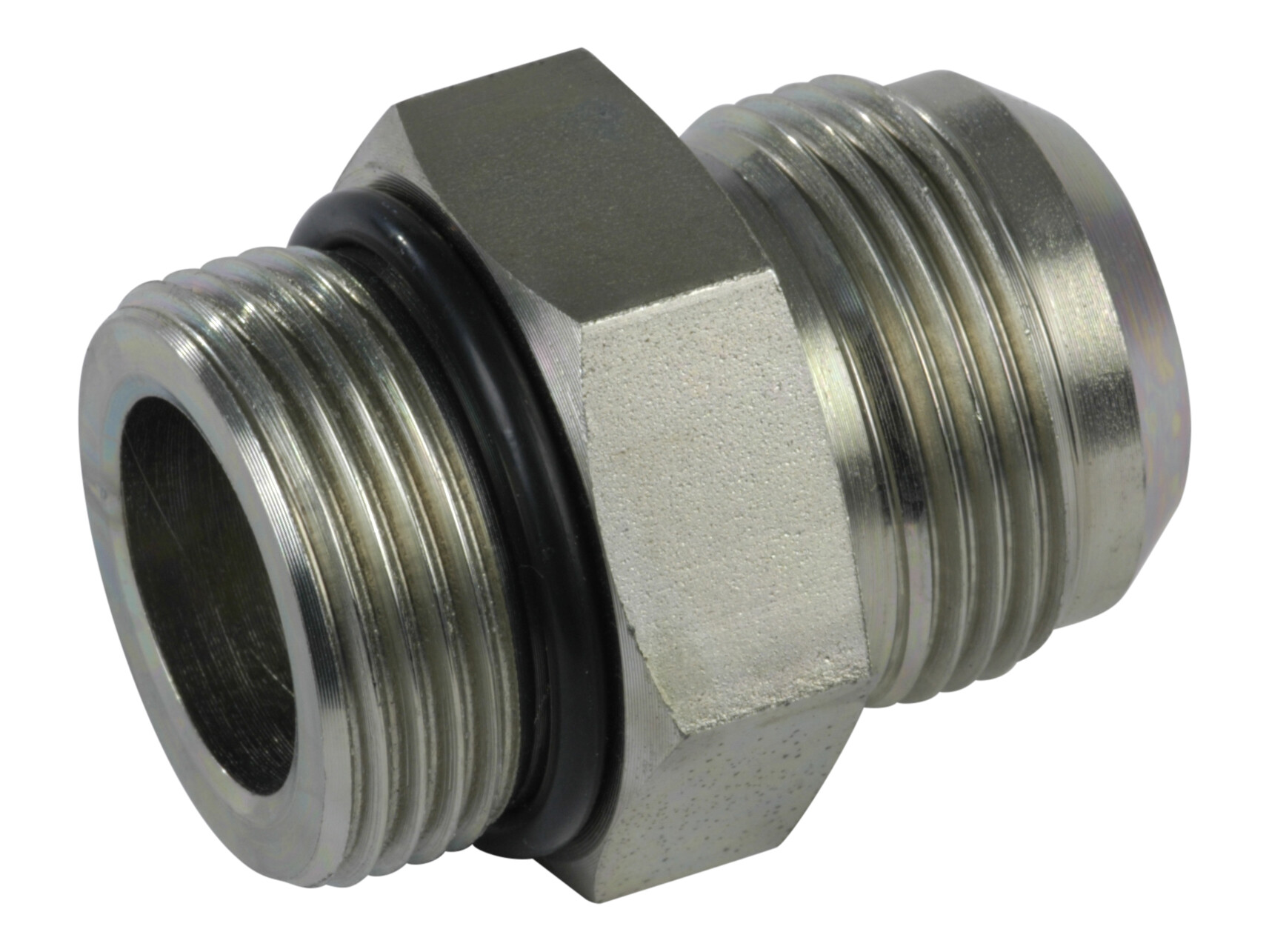

S220-25-33U adaptor UNF
Indskruning 1.5/16-12 JIC udv x 1.5/16-12 UNF udv
Partnumber:
M-25-1.5/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rör
25 mm
Dimension A
52 mm
Dimension B
23 mm
Dimension CH
38 mm
Dimension D
15 mm
Dimension F
1.5/16-12 UNF
Dimension J
1.5/16-12 JIC
Dimension T
25 mm
Gänga utv.
1.5/16-12 JIC
Gänga utv.
1.5/16-12 UNF
Märke namn
FOR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Tillverkningsmaterial
Steel
Tryck max.
290 bar
Vinkel
0 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Package size
0 pcs
Barcode
5704334309017
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1.5/16-12 JIC udv x 1.5/16-12 UNF udv
